Product Overview
We are experts in plastic mould development, design, and manufacture, specializing in high-quality injection and blowing moulds. Our range includes bottle moulds, chair moulds, household moulds, pipe fitting moulds, auto part moulds, and specialized preform and cap moulds.

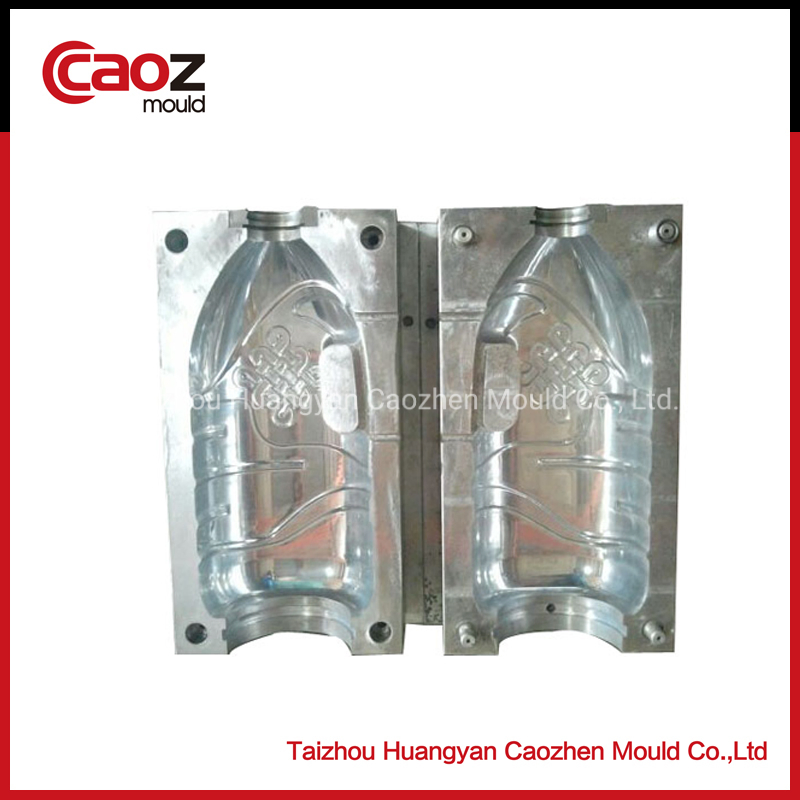

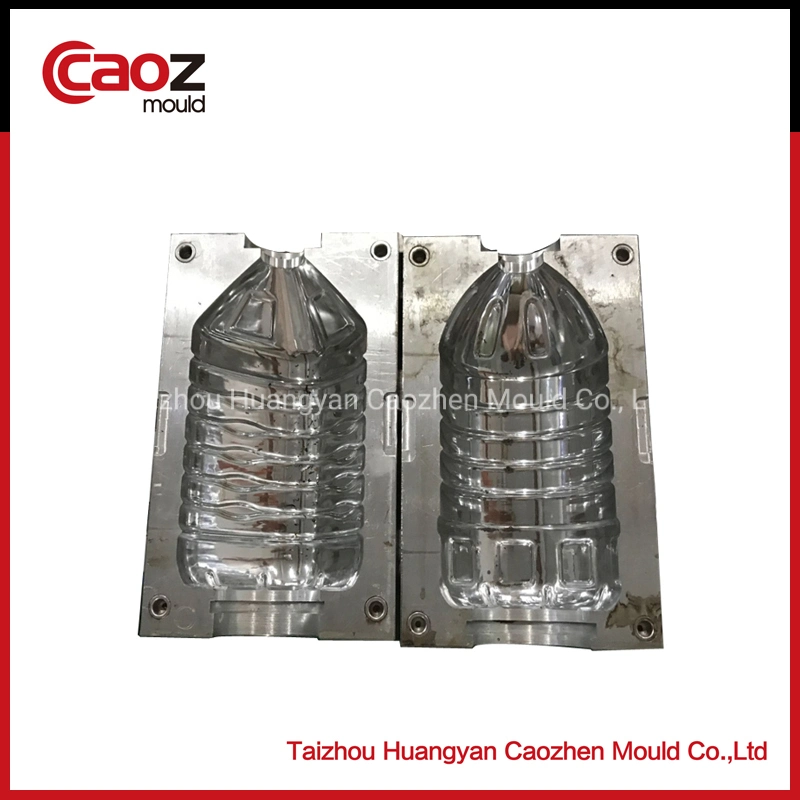

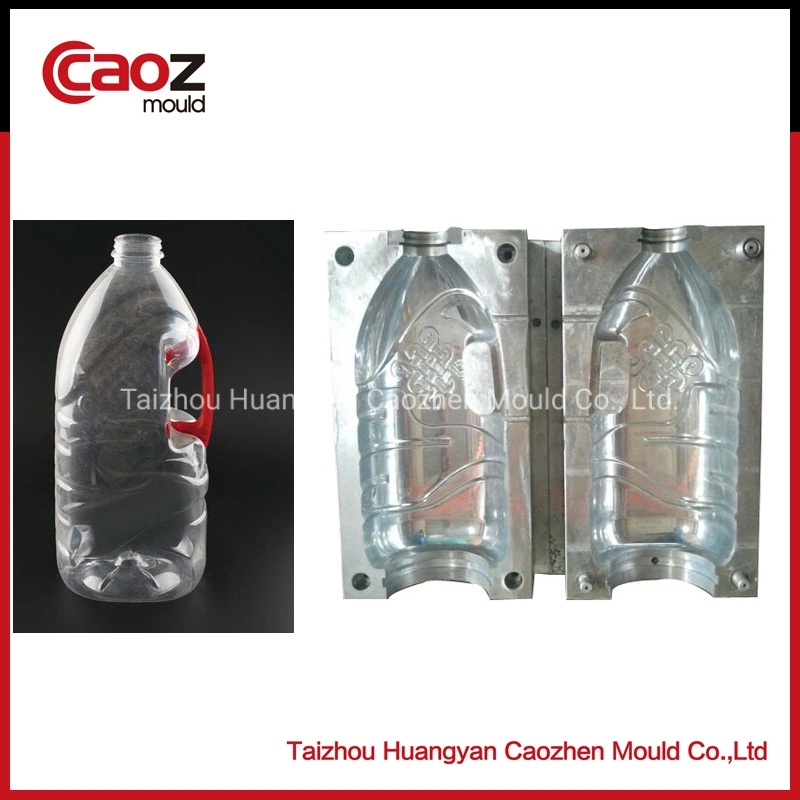

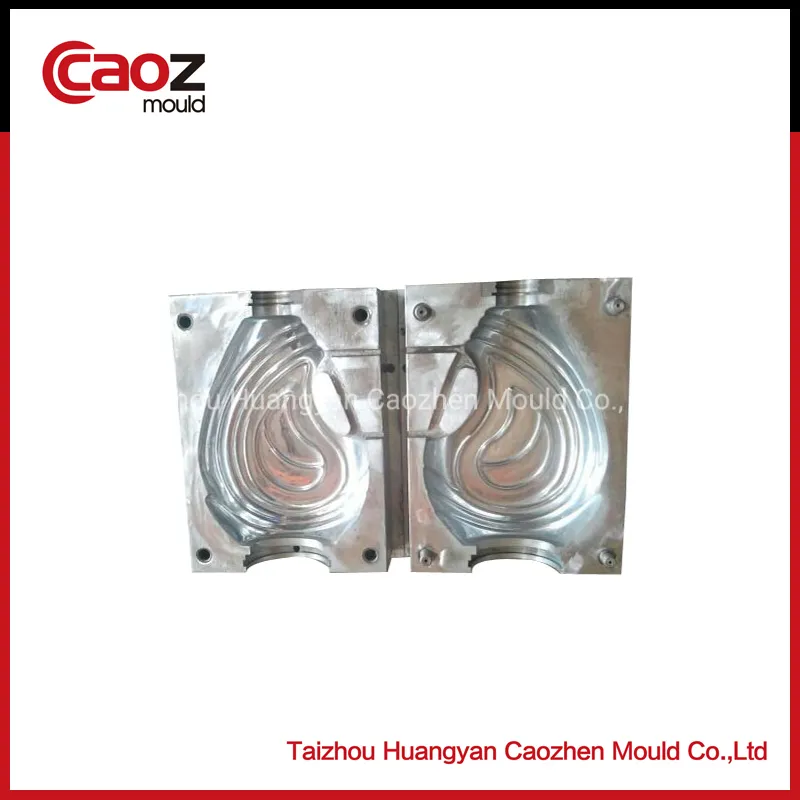

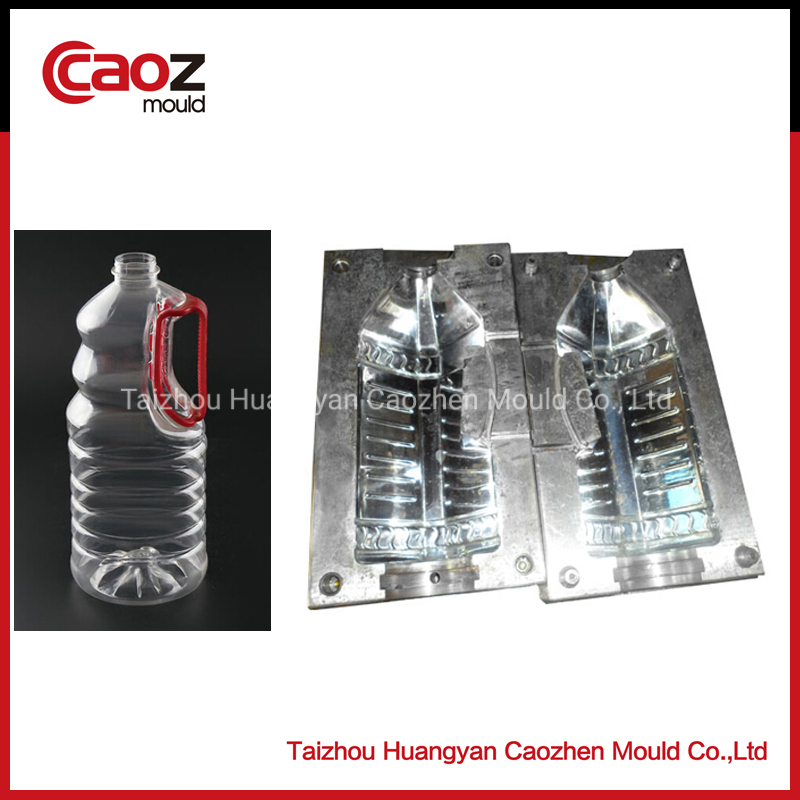

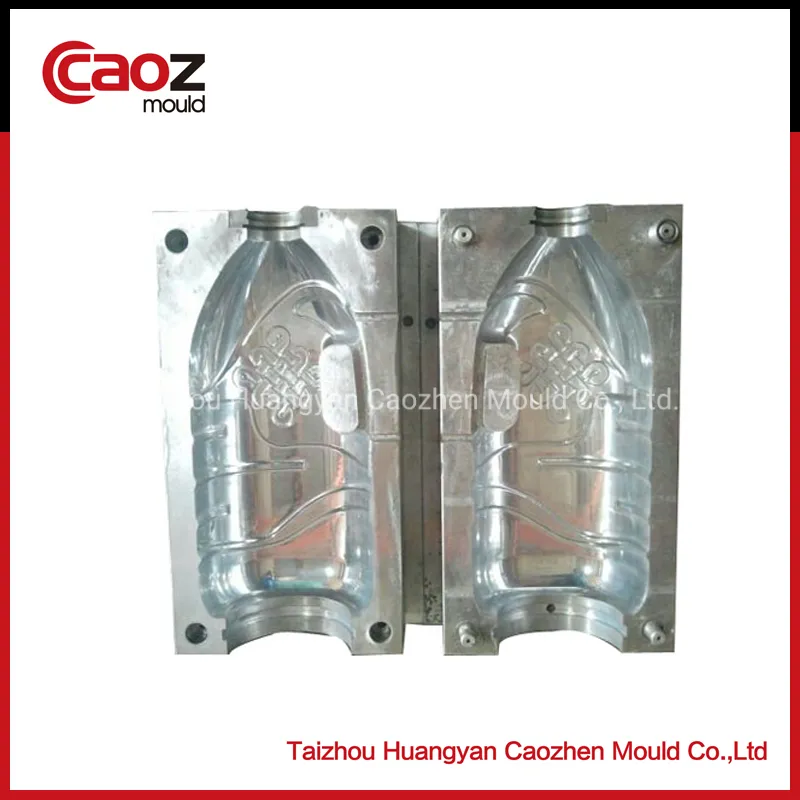

Key Product Feature: 5L Plastic PET Bottle Blow Mold - Engineered for durability and high-volume production.
- Material: P20 or customized steel grades based on requirements.
- Runner System: Optimized Cold Runner design.
- Capacity: Suitable for 160Ton Injection Machines.
- Efficiency: Precision cavity design ensuring 1,000,000 shots life cycle.

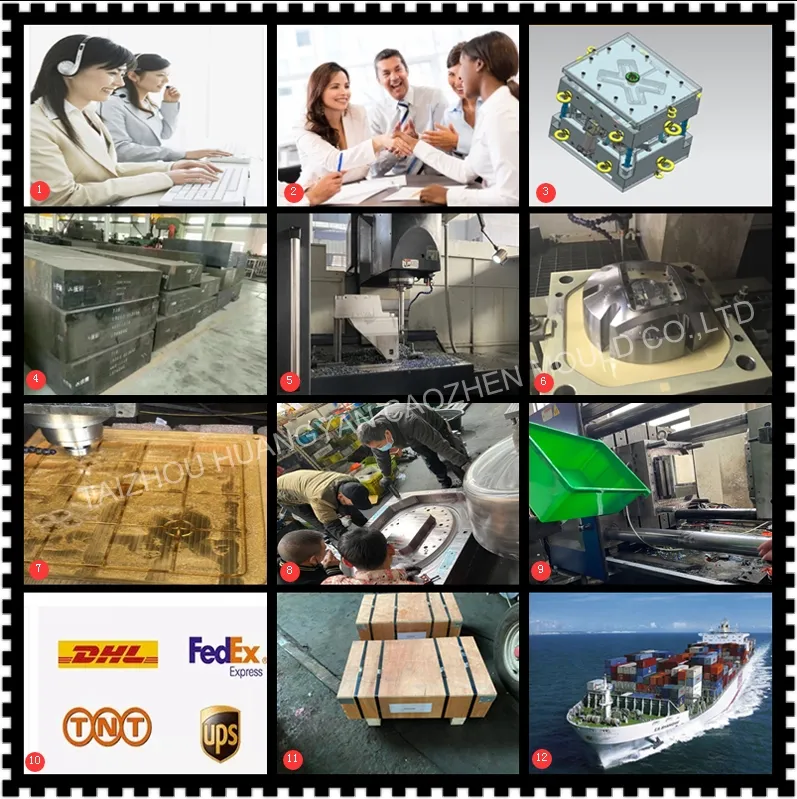

Manufacturing Process Chart
1. Communication → 2. Sign Contract → 3. Design → 4. Material Preparation → 5. CNC Machining → 6. High-Speed CNC → 7. Elaboration → 8. Assembling → 9. Trial Run → 10. Sample Confirmation → 11. Packing → 12. Shipment.
Quality Control & Service
1. Material Inspection: Steel hardness testing and flaw detection; spare parts size verification.
2. Process Monitoring: Design validation, dimensional accuracy checks against drawings.
3. Final Testing: Full mould operational testing and sample quality inspection.
Frequently Asked Questions
Q1: What information is required for a custom mould inquiry?
Please provide product drawings or sample photos with dimensions, your preferred mould steel type, and your requirement for the runner system (hot or cold).
Q2: Which steel materials do you use for bottle moulds?
We typically use P20, but we also offer C55, 718, 2316, H13, 2738, and S136 depending on the durability requirements and the plastic material used.
Q3: How long does the mould manufacturing process take?
Standard delivery is usually 30 days, while more complex multi-cavity moulds may take up to 45 days.
Q4: What is the expected lifespan of your moulds?
Depending on the material and maintenance, our moulds are designed to last between 500,000 and 3,000,000 shots. The CZ-968 model is rated for 1,000,000 shots.
Q5: Do you provide samples before shipping the final mould?
Yes, we send trial samples to our customers via international couriers (DHL, Fedex, UPS, TNT) for confirmation before the mould is packed in wooden cases for shipment.
Q6: Are the moulds compatible with different injection machines?
Our 5L bottle moulds are typically designed for 160Ton machines, but we can customize the design to fit your specific factory equipment.
