Basic Specifications
Suitable for
Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Product Name
CNC Press Brake Machine
Main Motor
Siemens From Germany Brand
Hydraulic System
Bosch-Rexroth Form Germany
Electrical Components
Schneider Electrical From French
Control System
DA-53T Controller
Production Capacity
30set/Month

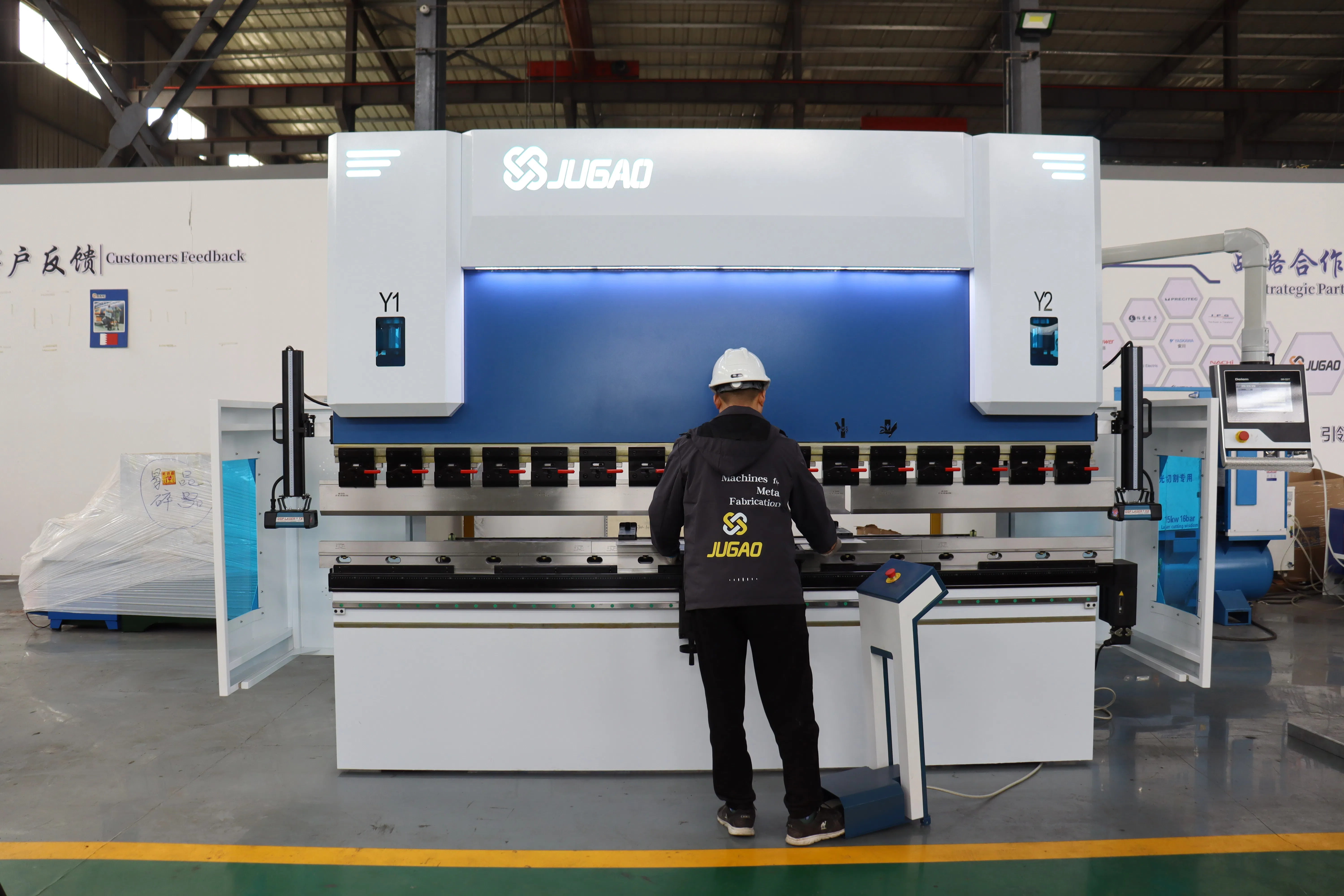

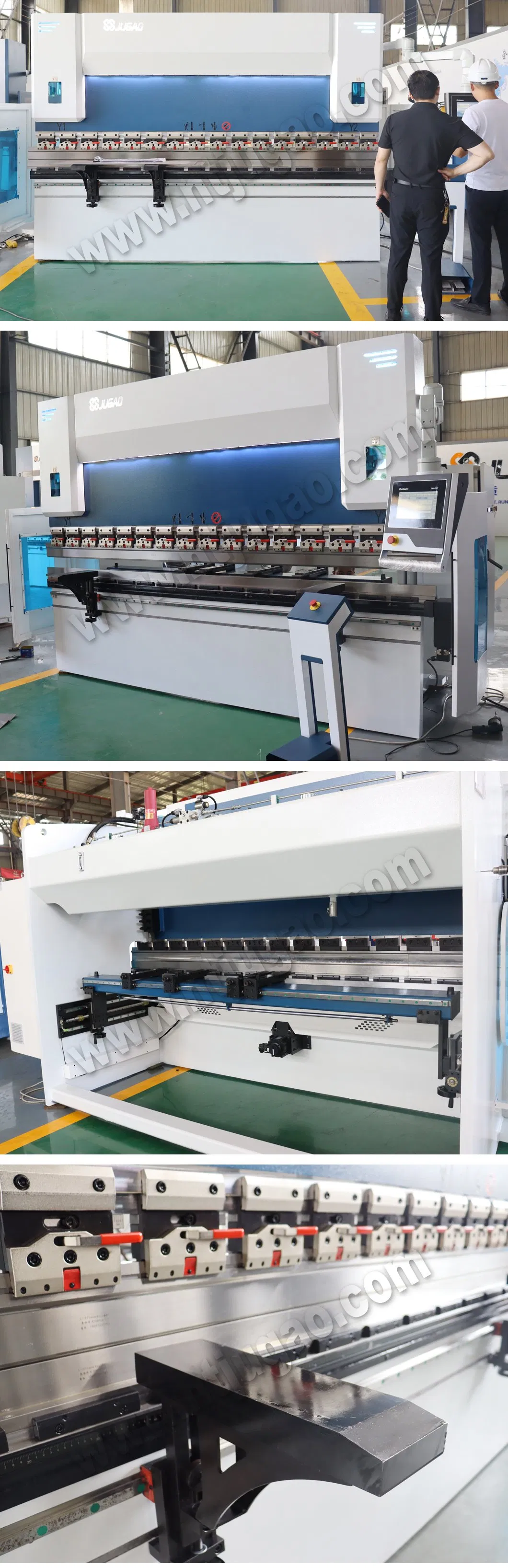

Product Overview

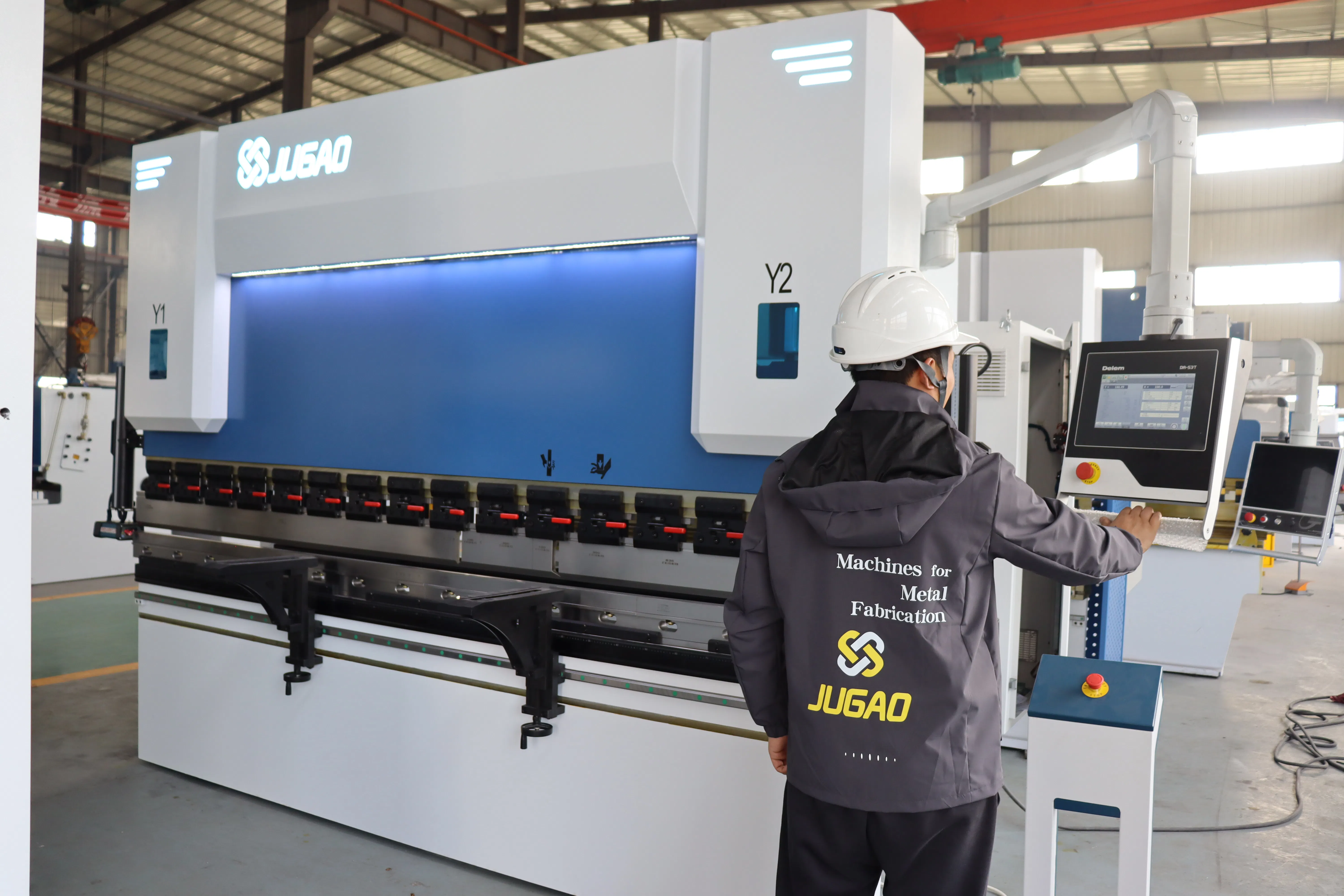

Introducing our sophisticated Hydraulic Sheet Metal Bending Machine, a CNC marvel equipped with the state-of-the-art DA-53T Controller for precision engineering.
The revolutionary DA-53T blends cutting-edge technology with compact design, offering an unparalleled touch control solution for synchronized press brakes. Experience seamless CNC programming through the intuitive Delem graphical touch screen interface. Featuring a 10.1" high-resolution color TFT display, it employs industrial-grade multi-touch technology.

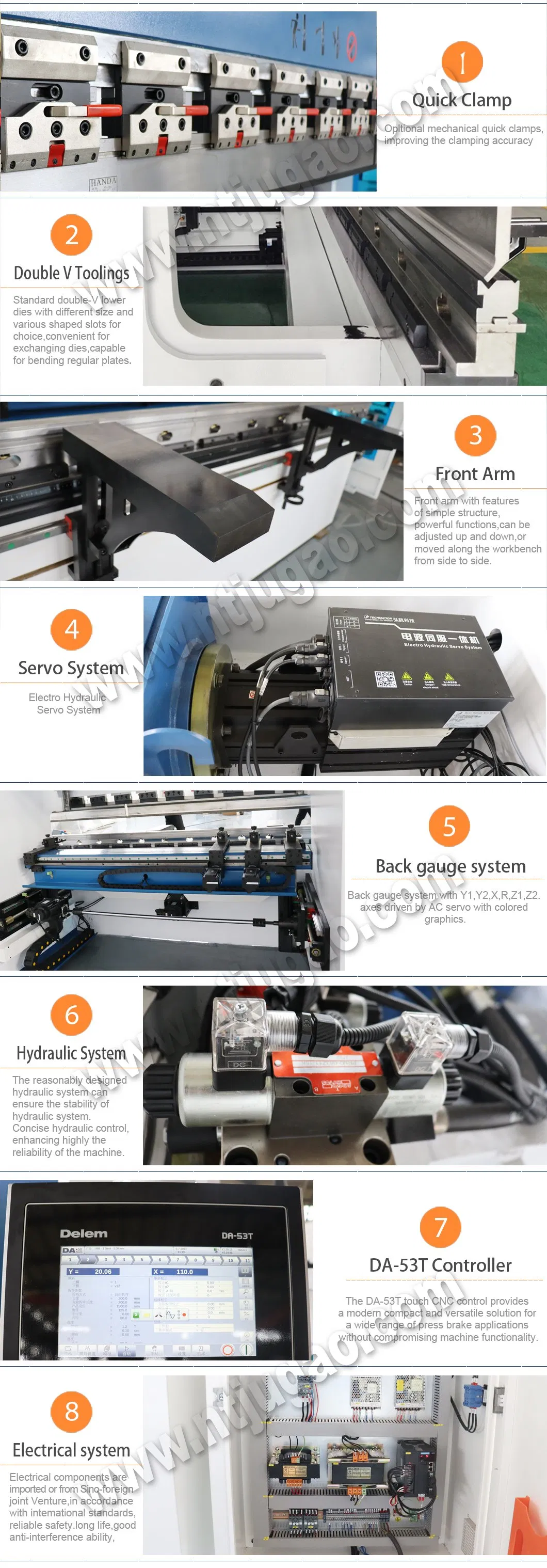

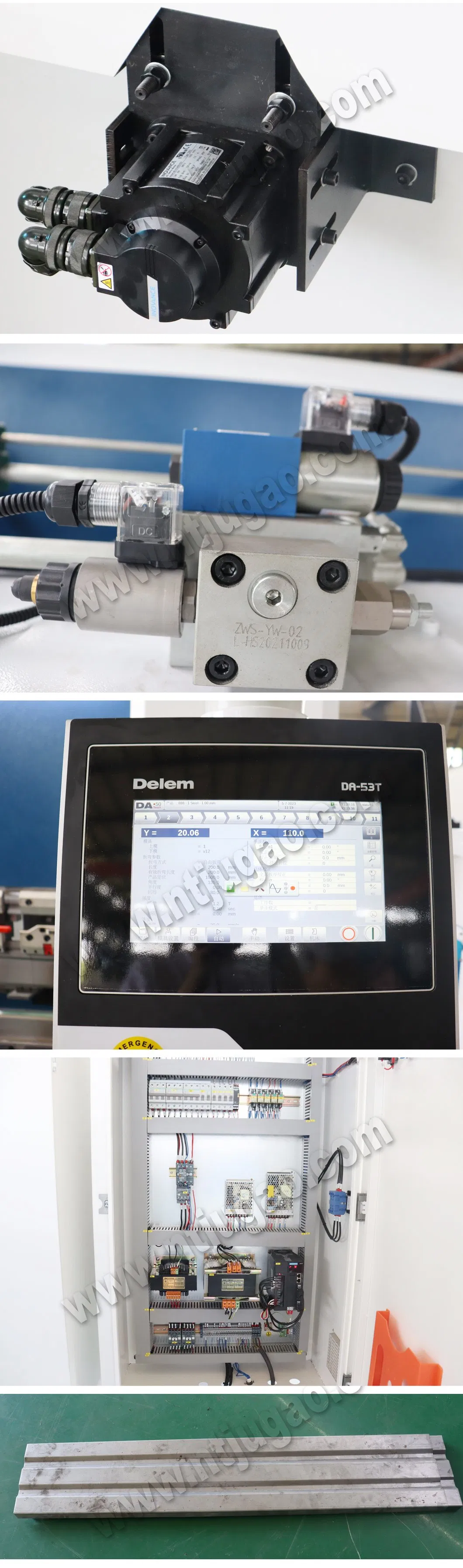

01Multi-language CNC operating system offers global adaptability.
02Silent internal gear pump designed for longevity and quietness.
03Advanced proportional valves for precise hydraulic regulation.

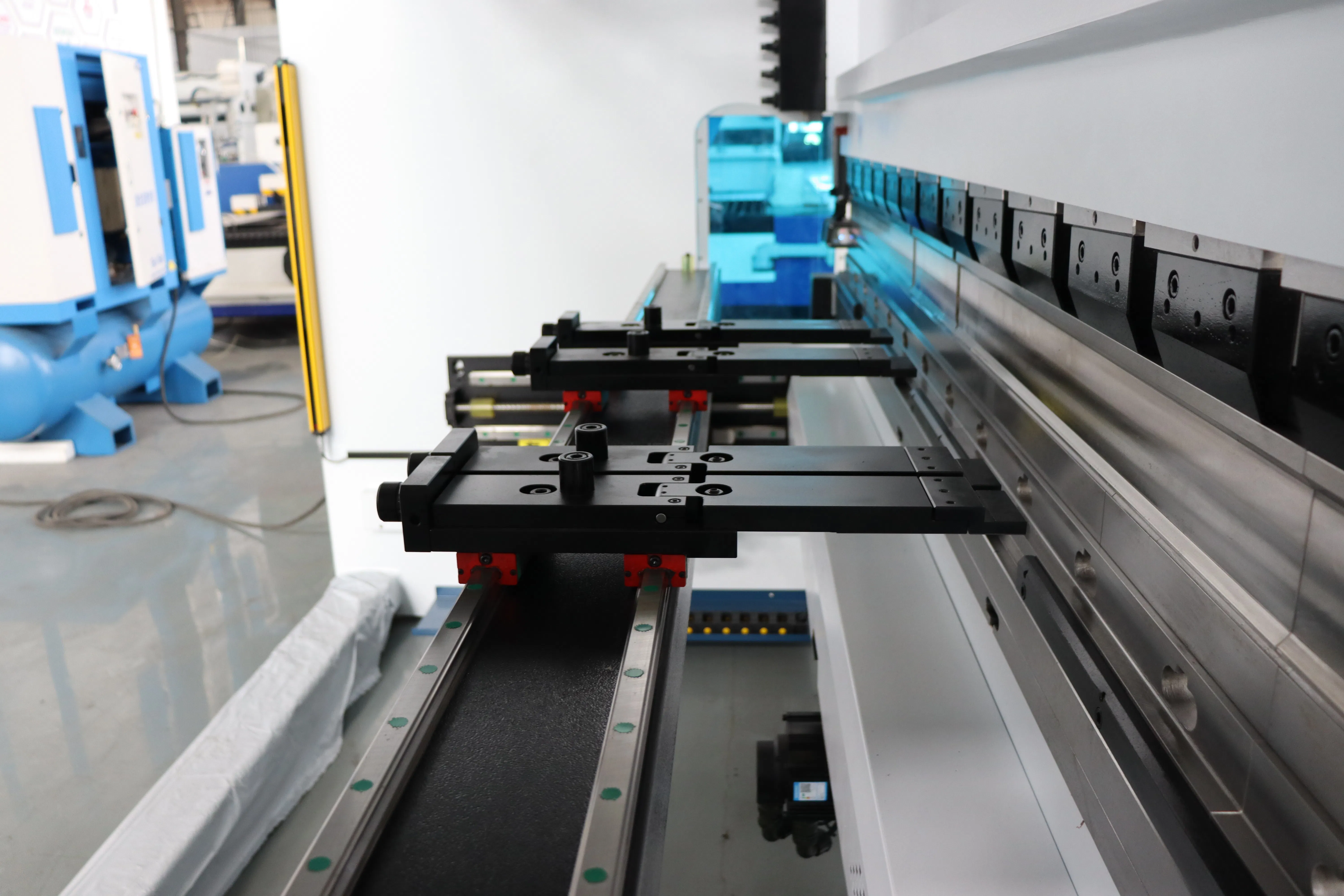

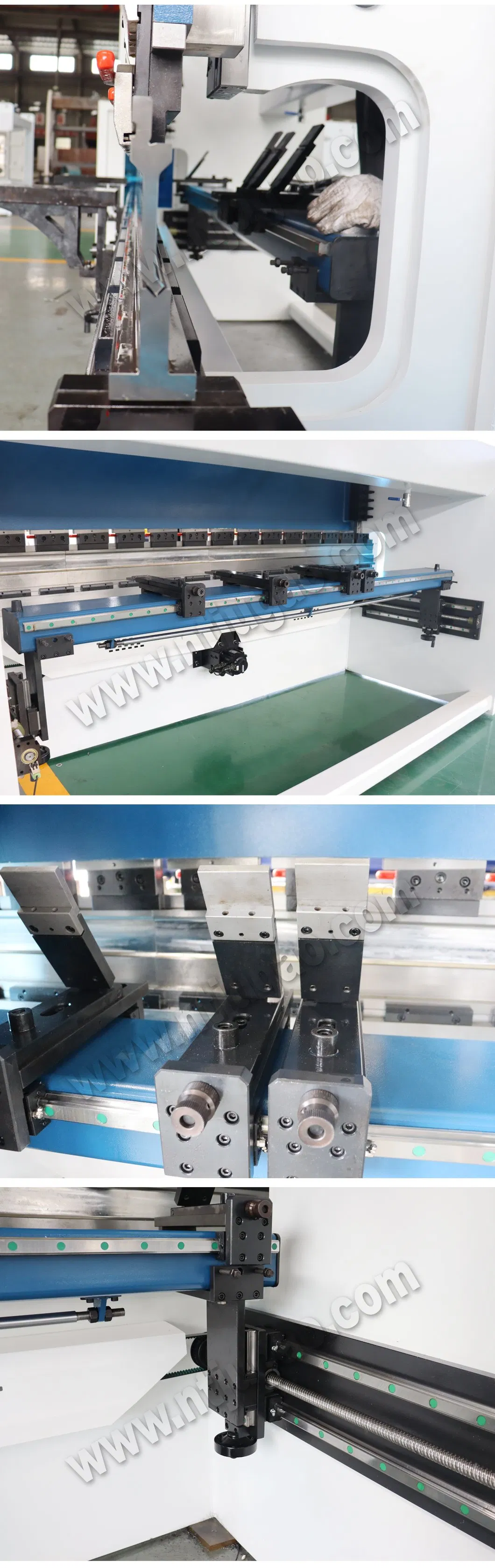

04Brushless drive and motor with "can open" digital technology for high-precision backgauge.
05High precision optical lines ensure top-tier accuracy.
06Hardened and ground tools for quick and efficient adjustments.
07Automatic mechanical crowning for consistent quality in every operation.
08Start&Stop system adhering to European safety standards.
Technical Parameters
| Model |
Nominal Pressure (kn) |
Length of table (mm) |
Housing Distance (mm) |
Throat Depth (mm) |
Stroke (mm) |
Open Height (mm) |
Main Motor (kw) |
Dimensions (L×W×H) |
| 40/2000 | 400 | 2000 | 1600 | 200 | 110 | 335 | 4 | 2545×1510×2050 |
| 63/2500 | 630 | 2500 | 2000 | 250 | 110 | 350 | 5.5 | 2960×1600×2180 |
| 100/3200 | 1000 | 3200 | 2600 | 350 | 150 | 400 | 7.5 | 3740×1650×2355 |
| 125/4000 | 1250 | 4000 | 3200 | 350 | 150 | 410 | 7.5 | 4550×1650×2470 |
| 160/4000 | 1600 | 4000 | 3200 | 350 | 190 | 450 | 11 | 4550×1715×2730 |
| 200/3200 | 2000 | 3200 | 2600 | 350 | 240 | 460 | 11 | 3750×1815×2715 |
Frequently Asked Questions
Q1: What are the main features of the DA-53T controller?
The DA-53T features a 10.1" high-resolution multi-touch color TFT display, capable of controlling up to 4 axes. It includes a tool/material/product library and uses advanced Y-axis control algorithms for both closed-loop and open-loop valves.
Q2: Which materials can this CNC Press Brake process?
This machine is highly versatile and suitable for bending a wide range of materials including Plastic, Rubber, Copper, Aluminum, Alloy, Carbon Steel, and Stainless Steel.
Q3: What brands are used for the machine's core components?
We use world-renowned brands for reliability: Siemens (Germany) for the main motor, Bosch-Rexroth (Germany) for the hydraulic system, Schneider (France) for electrical components, and Yaskawa (Japan) for servo motors and drives.
Q4: How does the machine ensure bending precision?
Precision is guaranteed through high-precision optical lines, automatic mechanical crowning control, and a brushless drive backgauge system mounted on double linear guides.
Q5: Does the machine meet international safety standards?
Yes, the machine is CE certified and features a Start&Stop system that strictly adheres to European safety standards to ensure safe and efficient operation.
Q6: Is the control system easy for international operators to use?
Absolutely. The CNC operating system supports multiple languages and features an intuitive "hot-key" touch navigation, making it user-friendly for operators worldwide.
