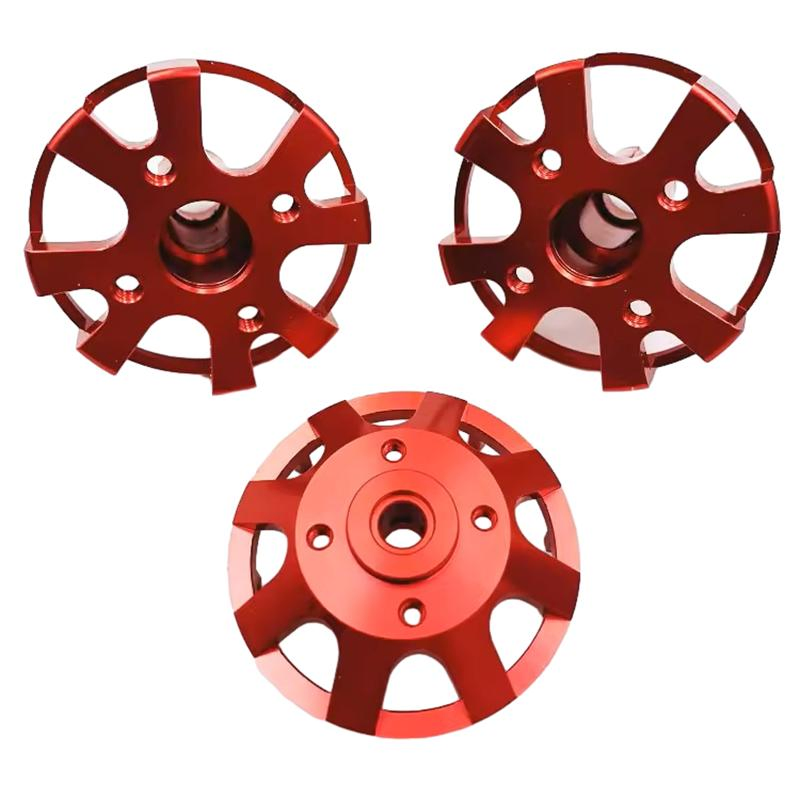

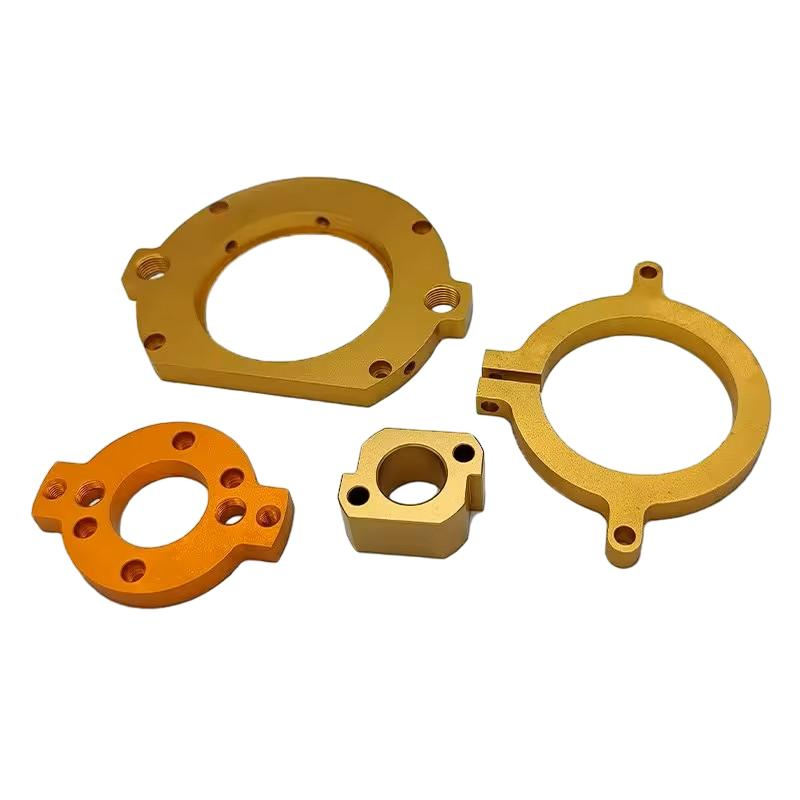

Precision Aluminum Welding Jig for CNC Lathe Machining Process

1 / 5

Precision Aluminum Welding Jig for CNC Lathe Machining Process

Customization:	Available
After-sales Service:	Home Delivery
Warranty:	Express Delivery

Send Inquiry

Product Description

Basic Info.

Model NO.

customisation

Prototype Customisation

Aluminium Alloy Hardware

Medical Appliance Parts

Medical Sensor Parts

Packaging

Wooden Box Carton

Origin

Chinese

HS Code

0101101010

Production Capacity

150000

Product Description

Feature	Details	Application	Details
Material Capabilities	Aluminium, Brass, Bronze, Steel, Stainless Steel, Plastic	Application	Metal Processing Machinery Parts

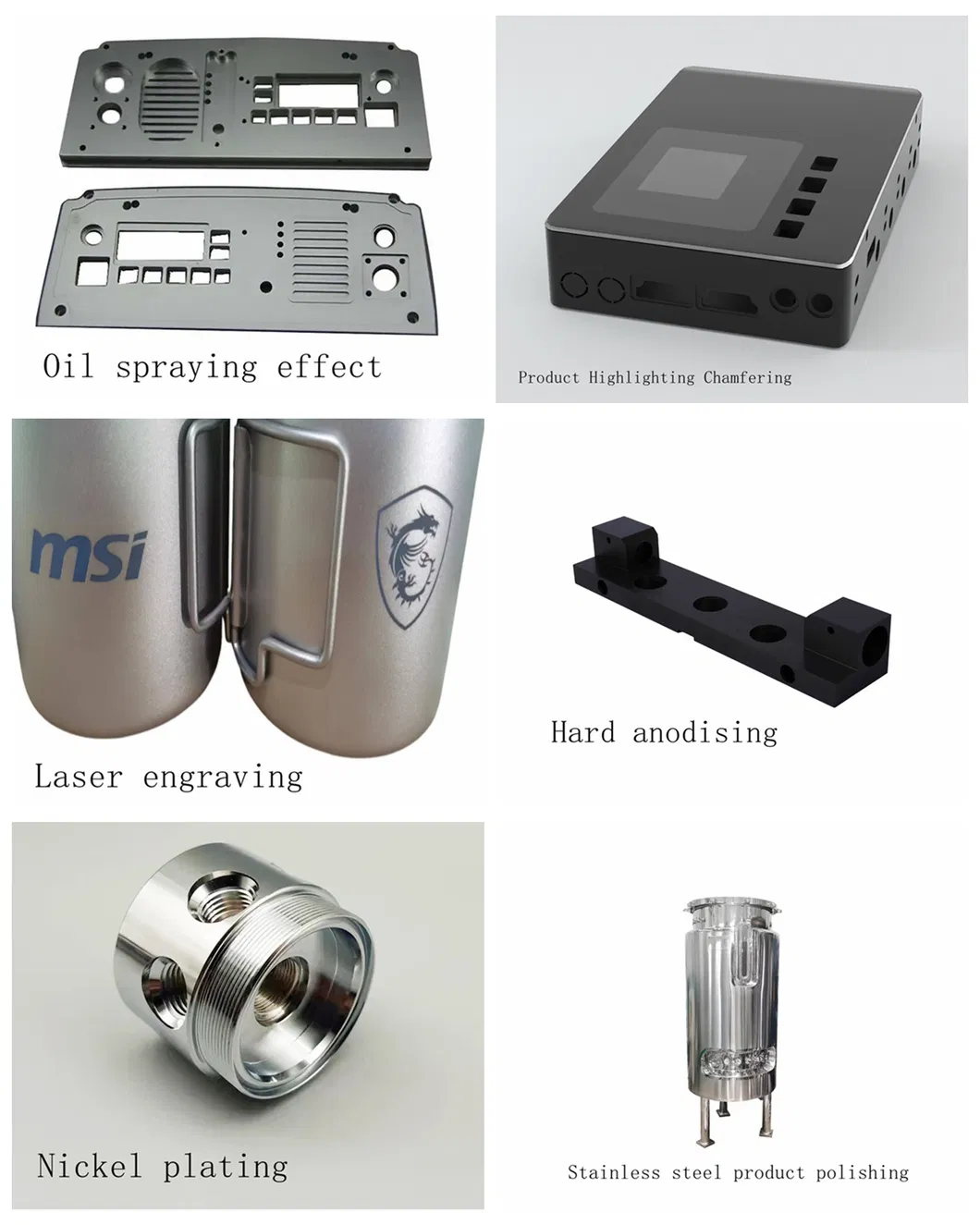

Workflows	CNC Machining/Turning/Milling/Lathe	Surface Treatment	Sandblasting, Oxidation, Powder Coating, Oil Spraying
Lead Time	3-7 days for samples, ~30 days for bulk	Drawing Format	2D (PDF/CAD), 3D (STP/STEP/X-T)

Scope of Services

CNC Machining: High-precision turning and milling components.
Materials: Aluminium (6061-T6, 7075), Stainless Steel (303, 304, 316L), Titanium, Brass, and specialized plastics (PEEK, POM).
Tolerances: High accuracy up to ±0.01mm.
Equipment: 5-Axis combined turning and milling, CNC Lathes, and Grinding Machines.

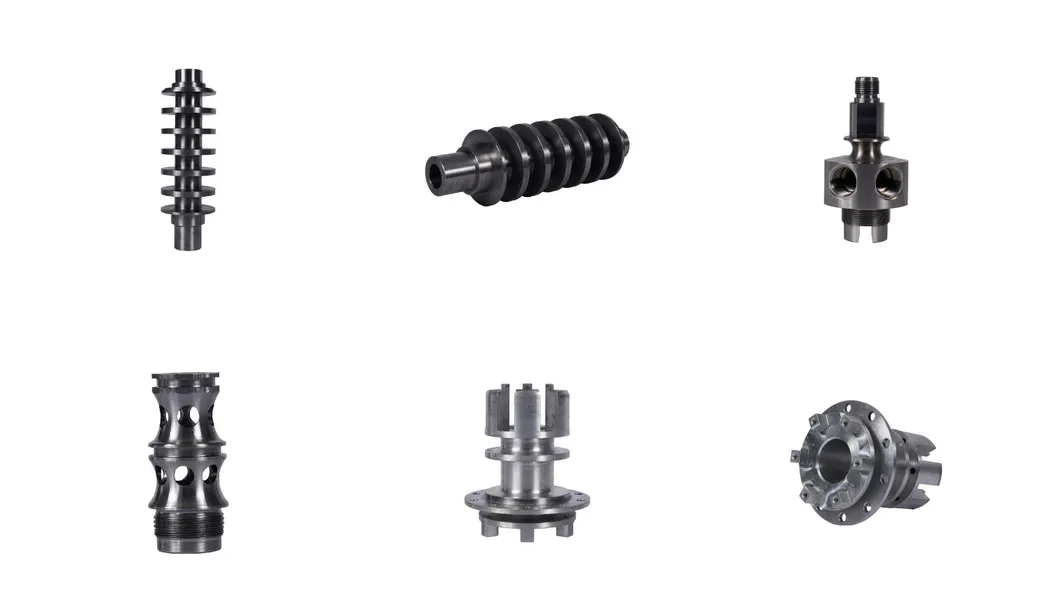

Detailed Photos

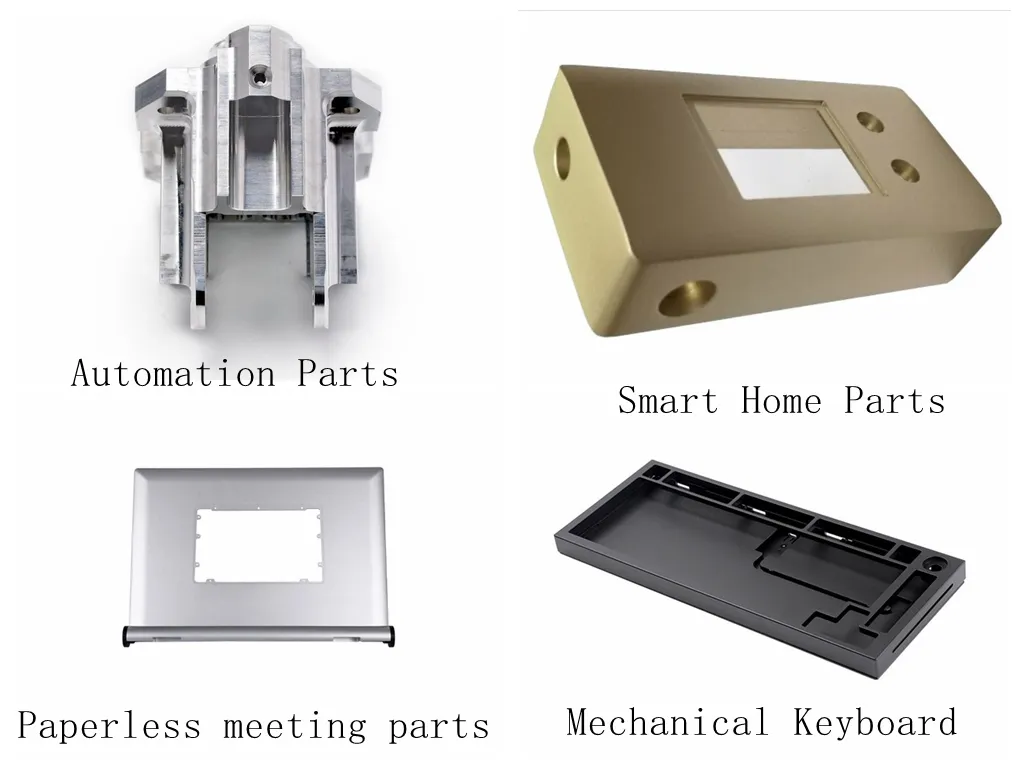

Industry Focus & Capacity

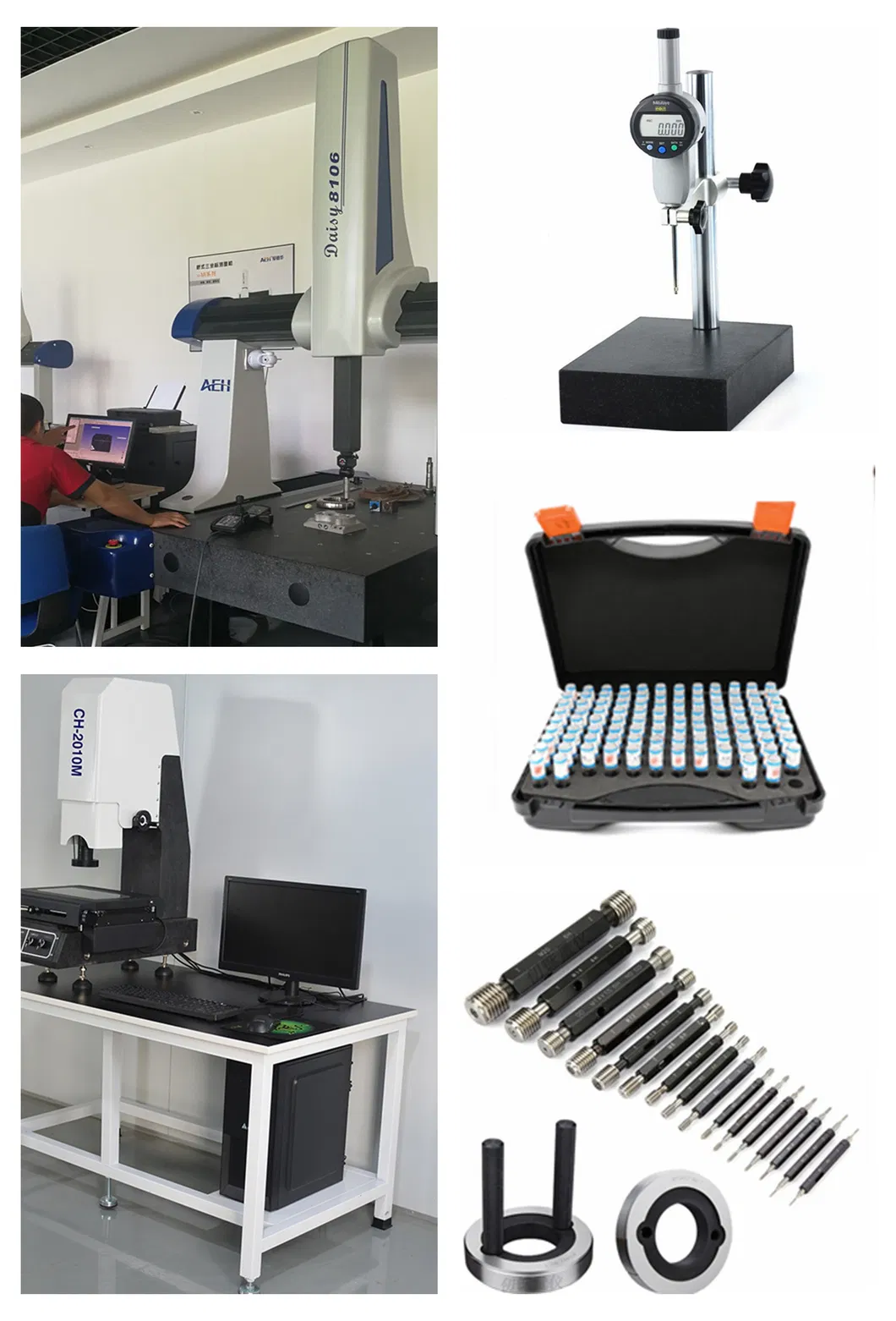

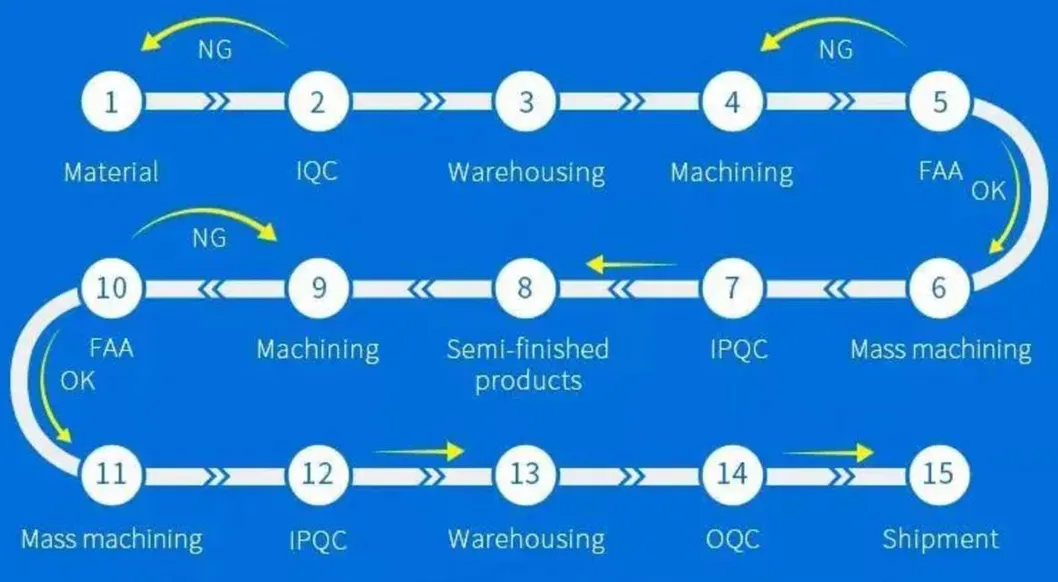

Quality Control & Inspection

Complete testing laboratory equipped with micrometers, optical comparators, calipers, CMM, and universal protractors to ensure dimensional accuracy.

CNC Machining Standard (ISO 2768 M)
Linear Size	±0.025mm	±0.001 inches
Bore Diameter	±0.025mm	±0.001 inches
Shaft Diameter	±0.025mm	±0.001 inches

Certifications & Packaging

Packing and dispatching are crucial links. We use wooden boxes, pallets, cartons, and PVC trays as required. Staff carefully check quantities and specifications to ensure consistency with orders.

Frequently Asked Questions

Q1: What kind of information is needed for a quotation? You can provide 2D/3D drawings (PDF, CAD, STP, STEP, X-T) or send your sample to our factory for evaluation.

Q2: Can we sign an NDA? Sure. We strictly protect our customers' information and do not divulge it to third parties.

Q3: Do you provide samples? Yes, we can provide samples for verification before proceeding with mass production orders.

Q4: How do you ensure product quality? We have a professional QC department and a complete testing laboratory including CMM and optical comparators to guarantee quality.

Q5: What is the typical delivery time? In-stock items take around 3 days. Mass production typically takes 20-25 days depending on specific item complexity and quantities.

Q6: Can you customize products according to specific requirements? Absolutely, we have strong R&D and production capabilities to meet various customization and prototyping needs.
