Automatic Tool Change (ATC) Wood CNC Router Machine with Syntec Motor for High-Volume Furniture Components MDF Door Production

1 / 5

Automatic Tool Change (ATC) Wood CNC Router Machine with Syntec Motor for High-Volume Furniture Components MDF Door Production

Customization:	Available
After-sales Service:	18months
Warranty:	18months

Send Inquiry

Product Description

⚙️

Product Overview

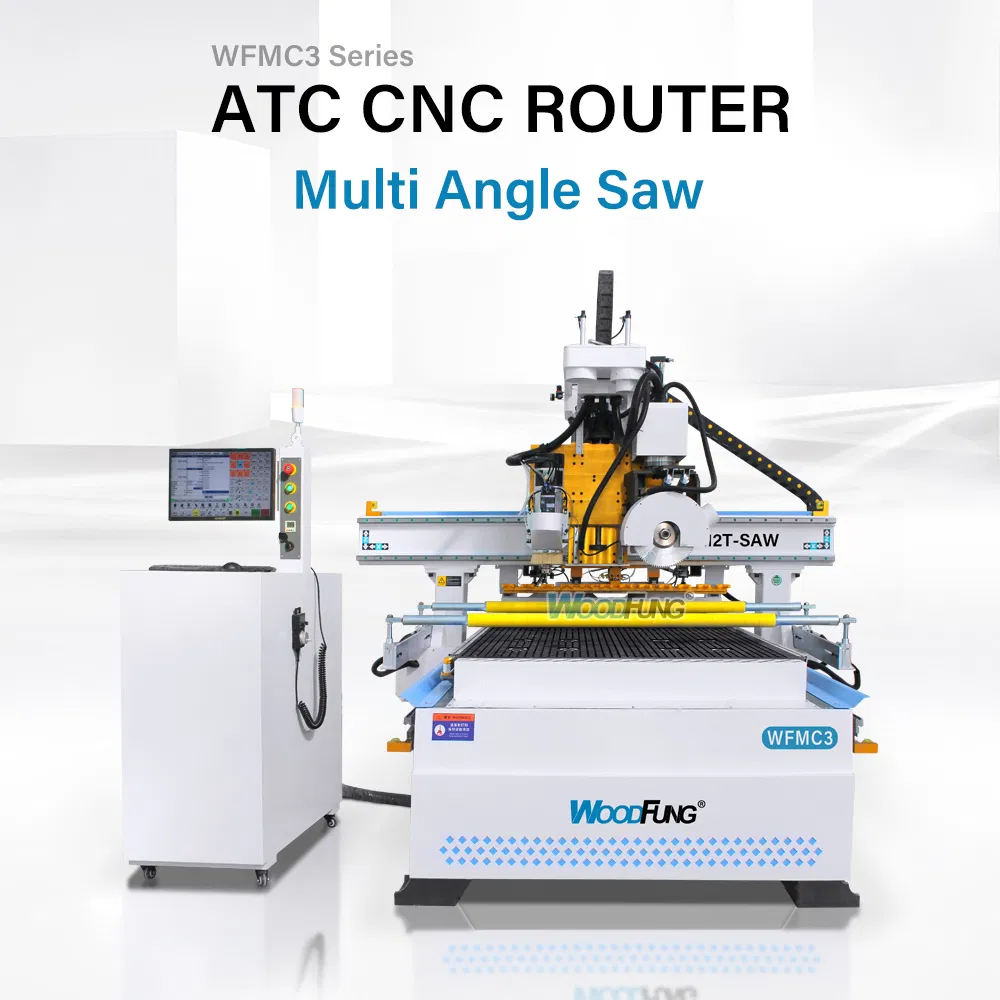

WFMC3 CNC Router with 5-Axis Saw - Fast & Precise Panel Cutting Solution

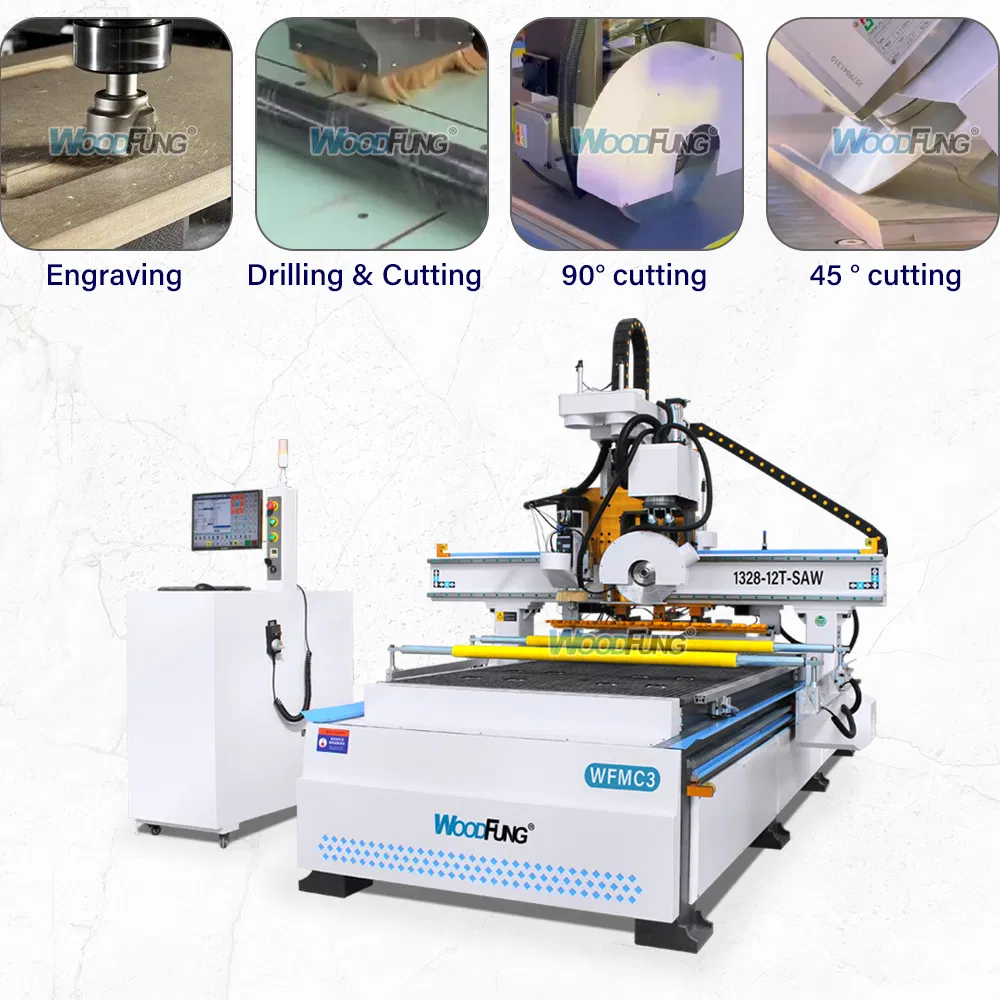

The WFMC3 CNC Router is a high-efficiency CNC cutting solution specifically designed for fast, clean, and accurate panel processing. It features a 5-axis rotating saw blade device, which enables both 360° horizontal rotation and 0-45° tilt cutting, combined with a 12-position automatic tool changer to handle engraving, grooving, drilling, and profiling all in one machine.

🚀

Key Features

✓ 5.5KW Saw Blade System: High-speed simultaneous multi-layer cutting.

✓ 360° Rotating & Tilt Cutting: Angular and horizontal precision.

✓ 9KW ATC Spindle + 12 Tools: Automatic tool switching for efficiency.

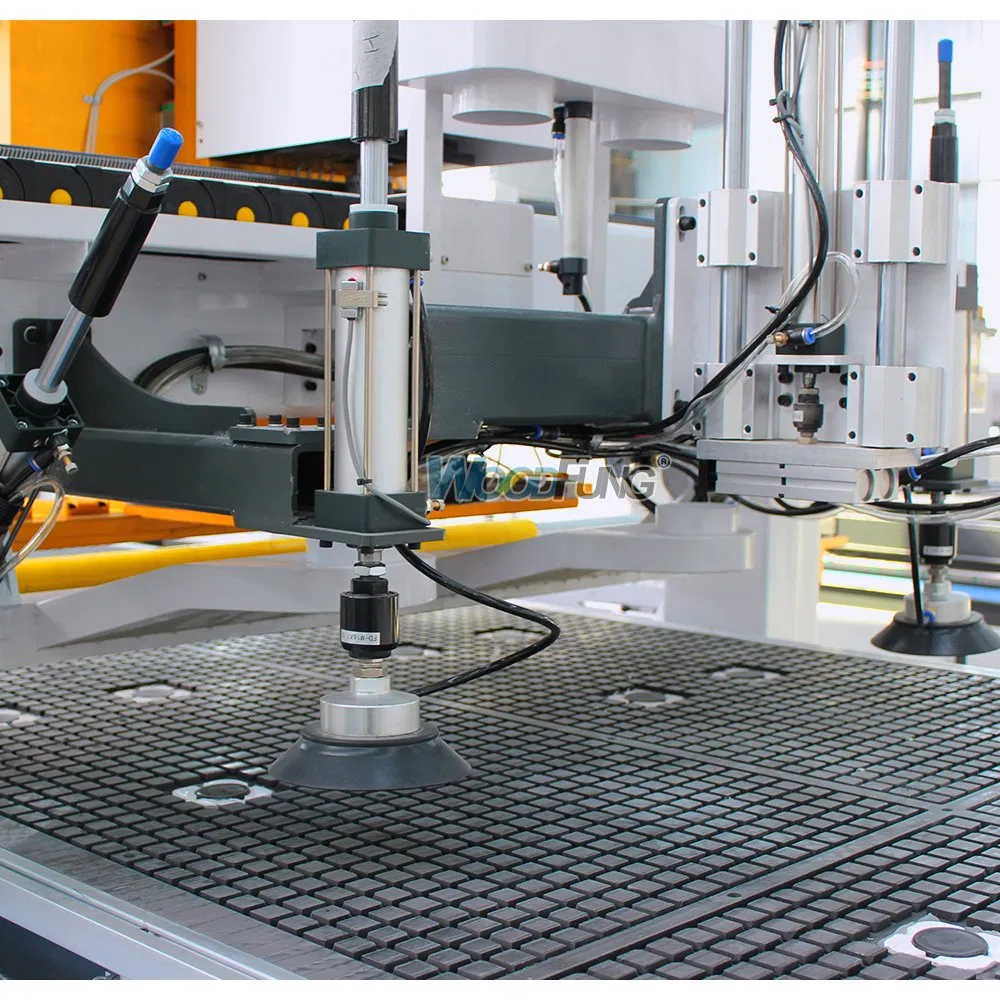

✓ Automatic Feeding & Pushing: Fully automated panel flow management.

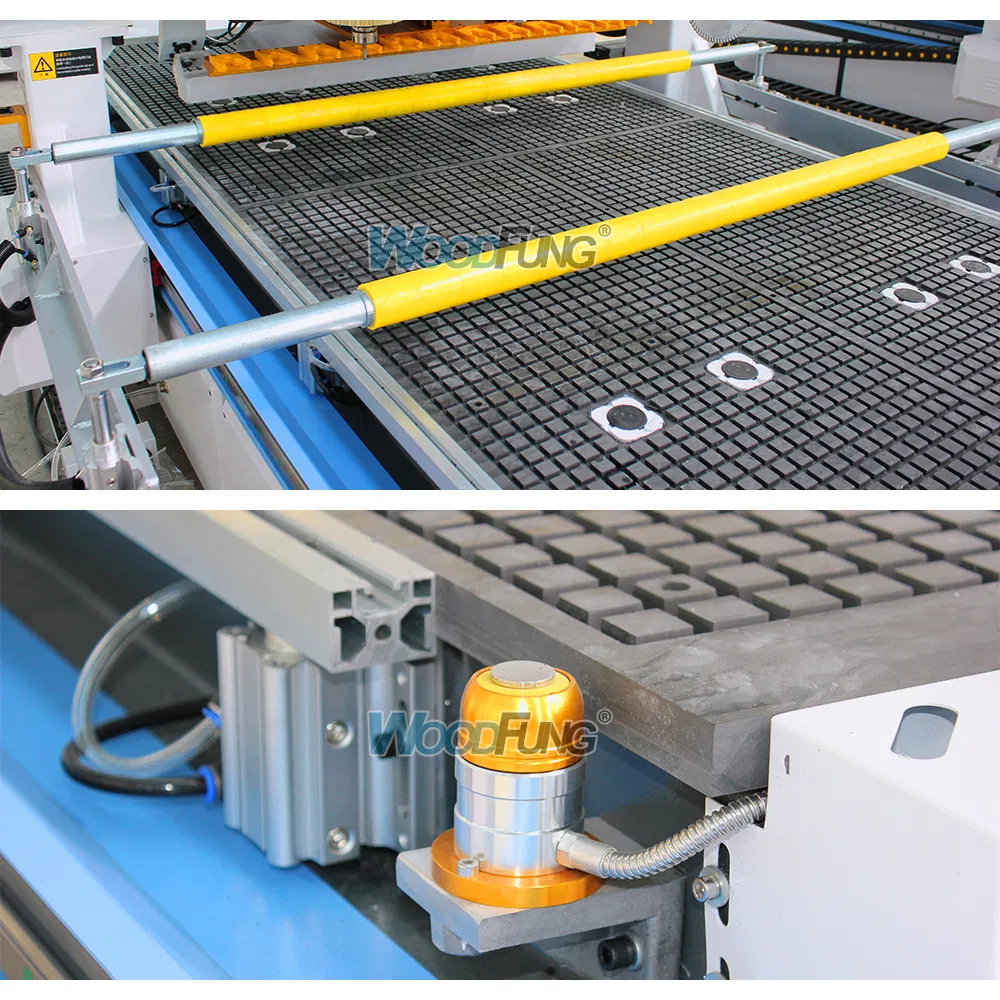

✓ 7.5KW Vacuum Pump: Exceptional suction for secure workpieces.

✓ Taiwan LNC Control: Intelligent and user-friendly operation.

📊

Technical Parameters

Parameter	Specification
Model	WFMC3-RD Series
Working Size (mm)	13002800 / 18002800 / 2100*3000
Structure	Heavy duty steel plate, 5-side milling

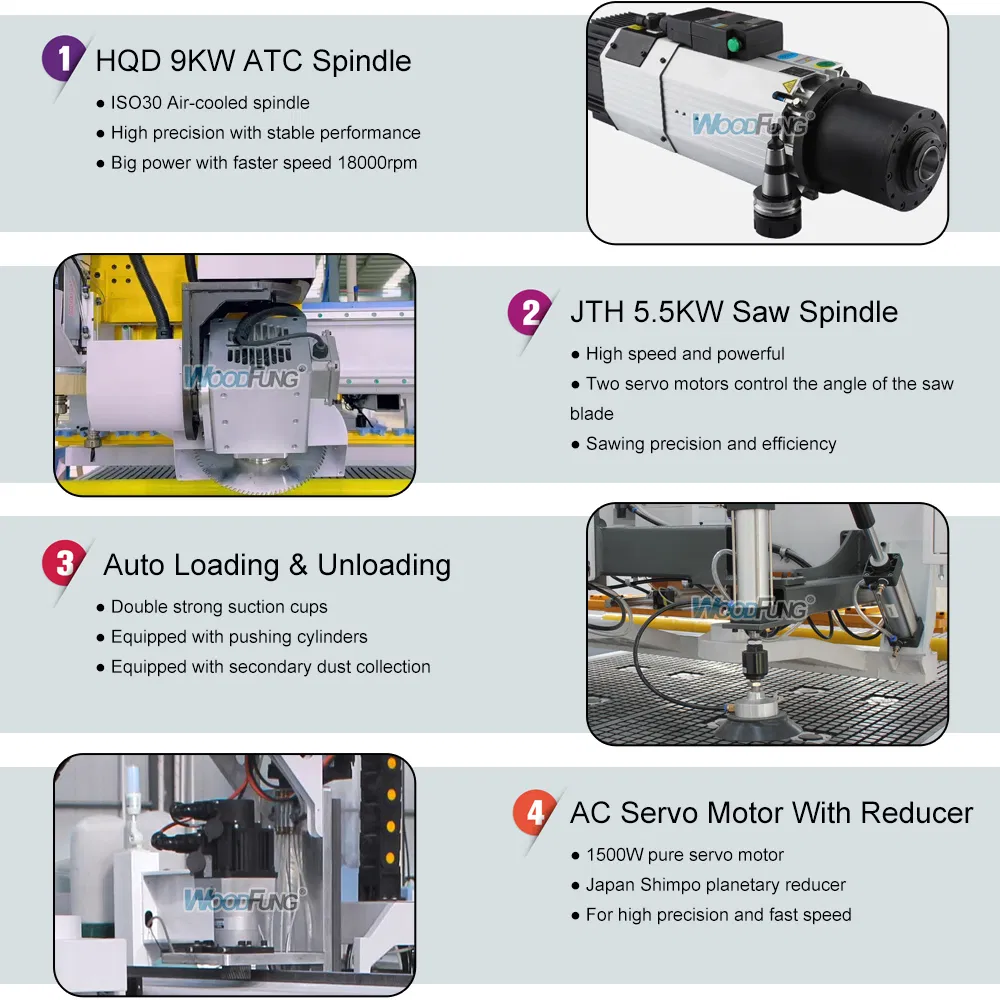

Spindle	9.0KW ATC Air-cooled (24000RPM)

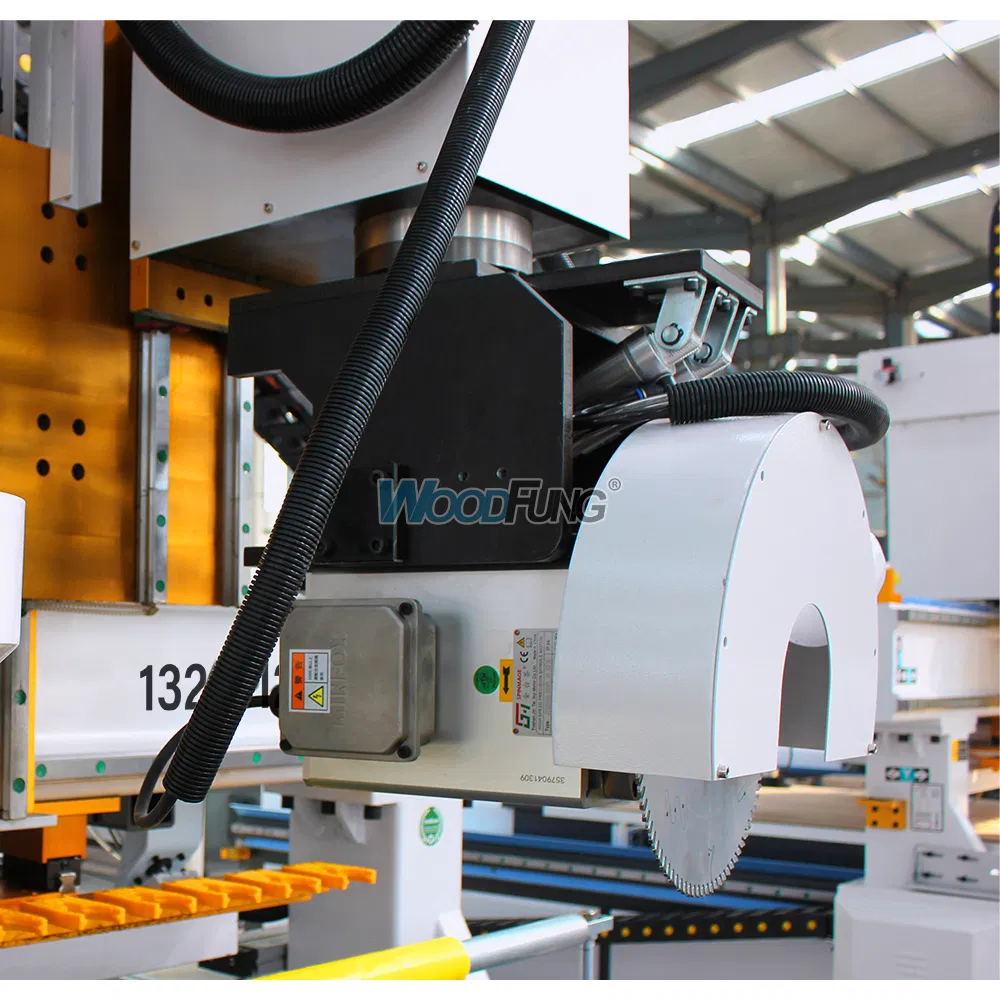

Saw Blade System	5.5KW (360° Rotation / 0-45° Tilt)
Tool Magazine	Linear 12 tools changer
Drive Motors	1500W AC Servo motor and driver
Accuracy	±0.05mm Repositioning / 0.05mm Positioning
Max. Working Speed	50,000mm/min
Control System	Taiwan LNC
Working Voltage	AC 380V/50/60Hz

🖼️

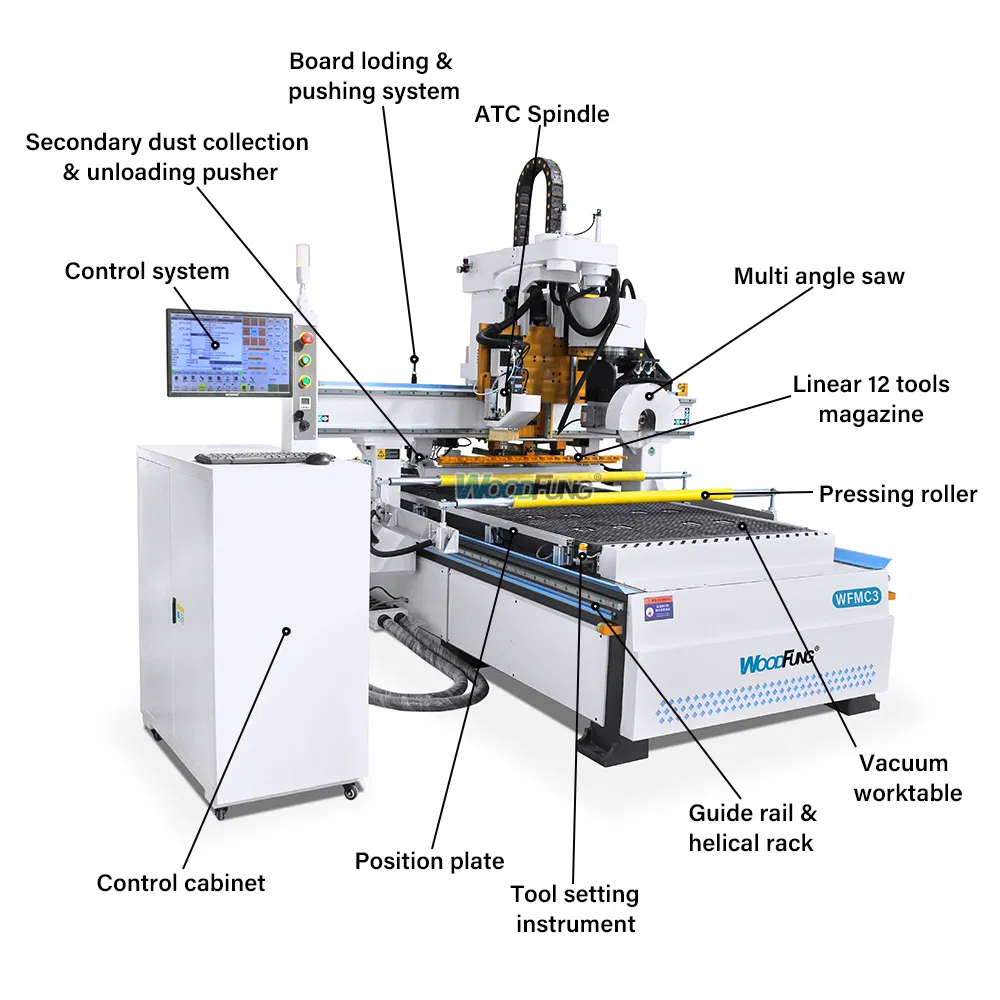

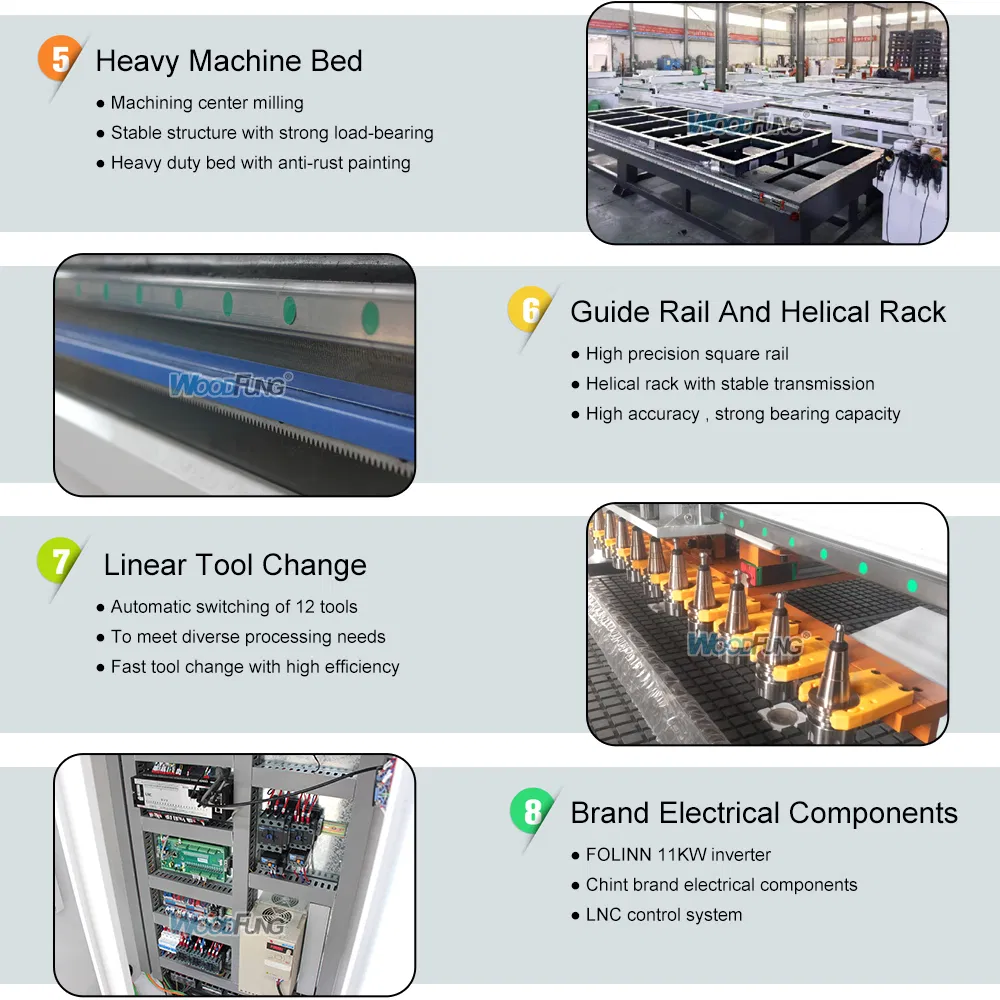

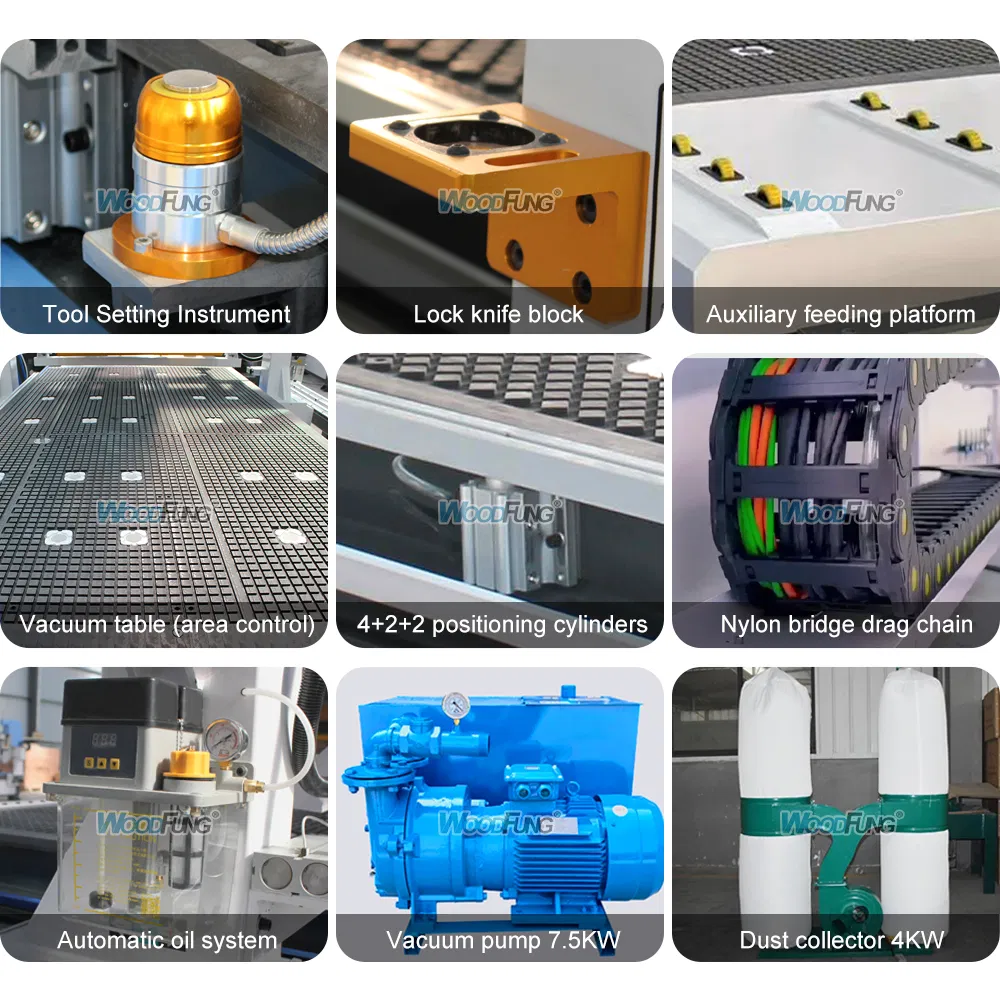

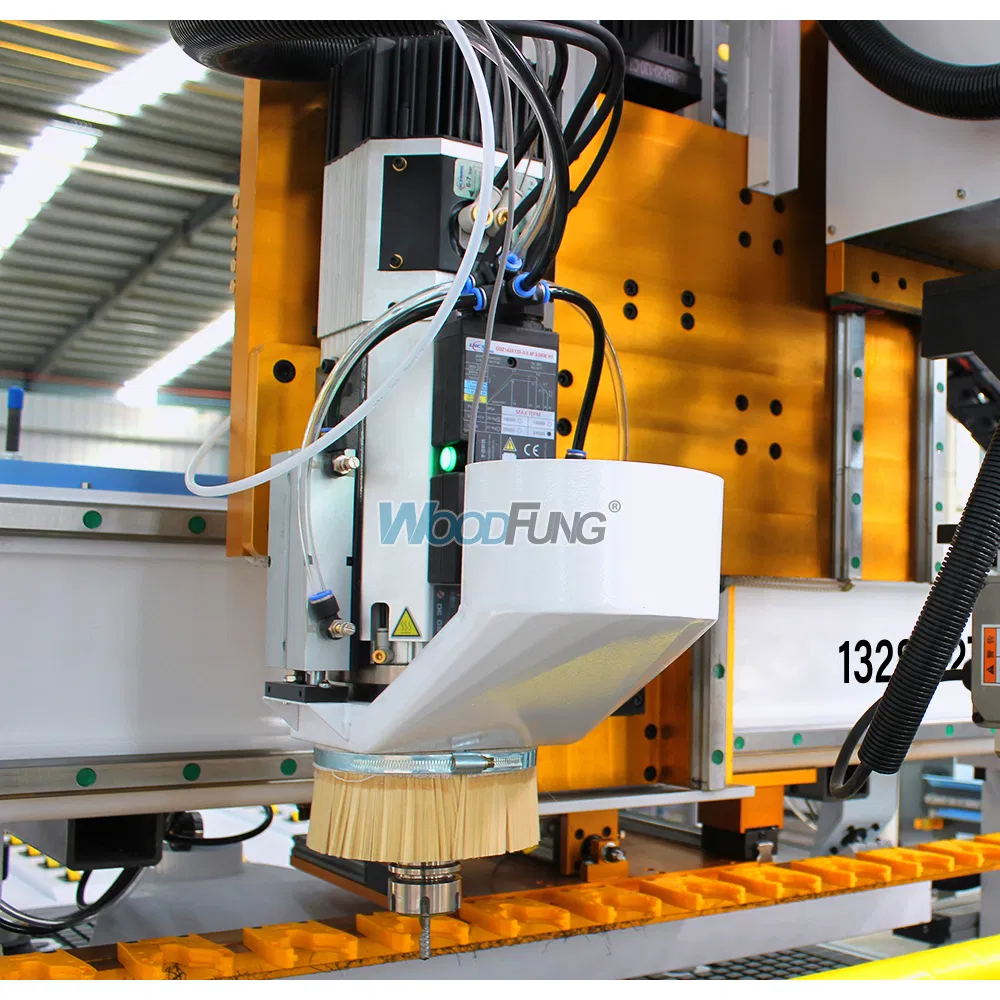

Detailed Photos

🛠️

Applications

Materials: MDF, particle board, OSB, plywood, PVC board, Foam board, melamine, rubber board, aluminum-plastic board, Gypsum board, ABS, PE, solid wood.
Products: Wardrobes, kitchen cabinets, office desks, door panels, wooden crates, pallets, TV cabinets, bookcases, and bathroom vanities.

🛡️

Service & Warranty

★ 18-month warranty for all customers.

★ Free normal spare parts during the warranty period.

★ 24-hour response time for technical problem resolution.

★ Lifetime technical support even after warranty expiration.

🏭

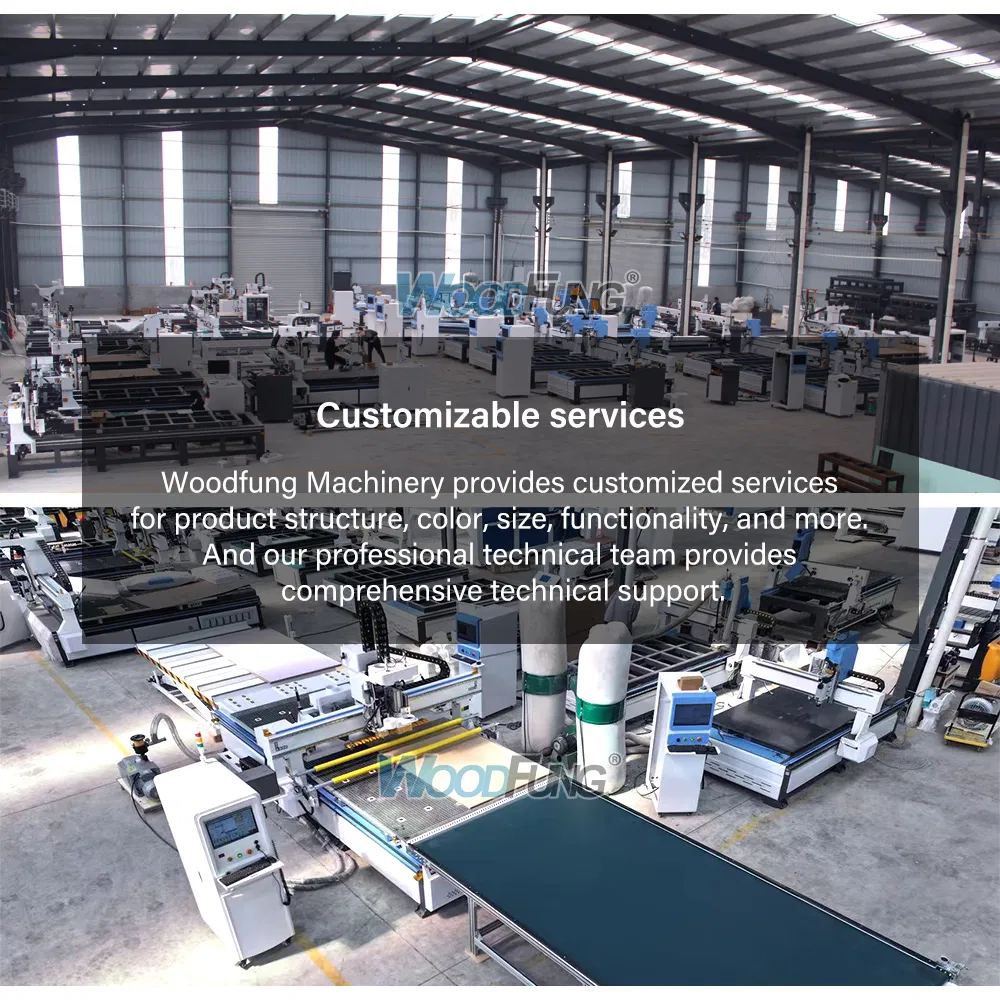

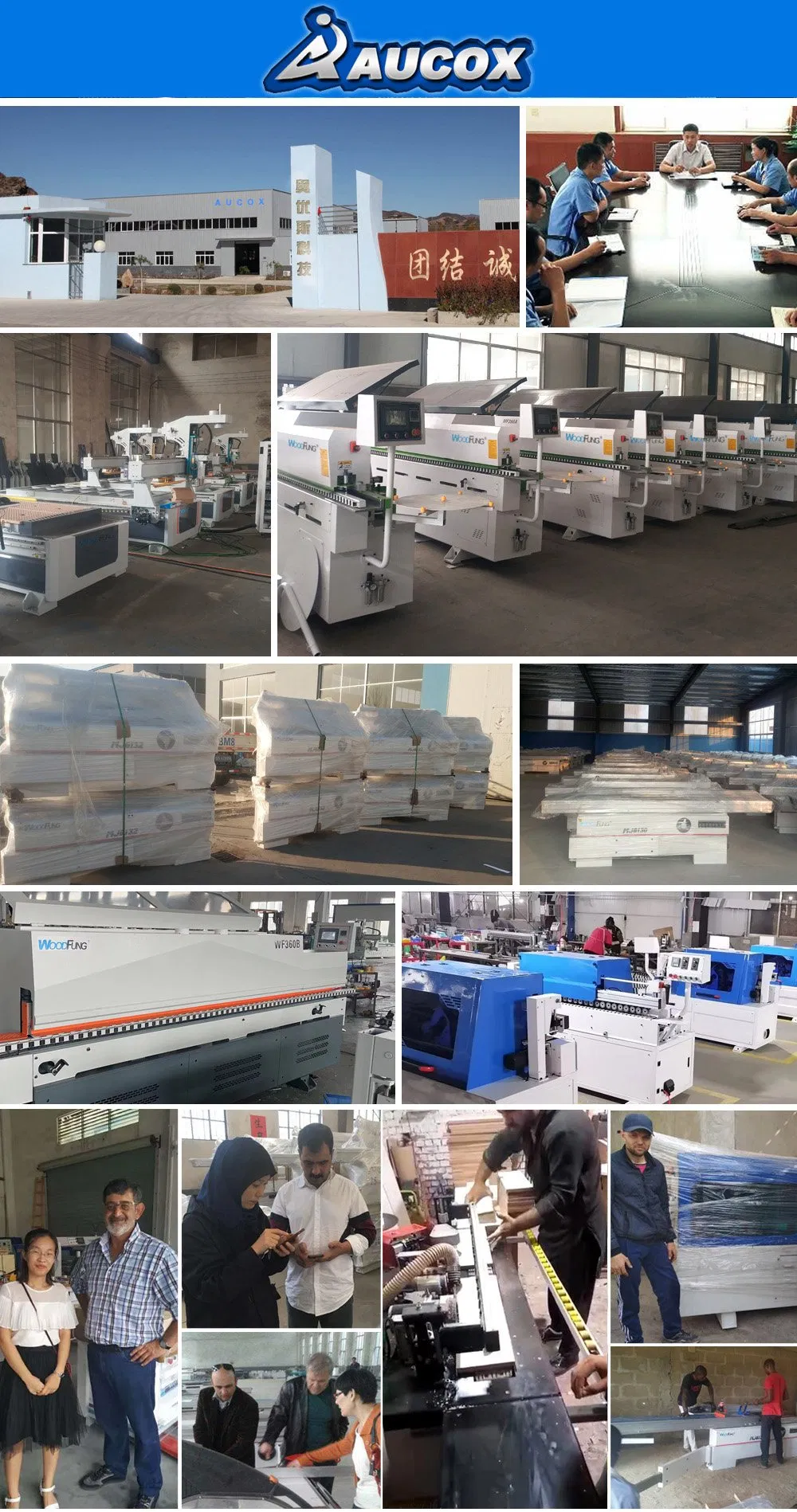

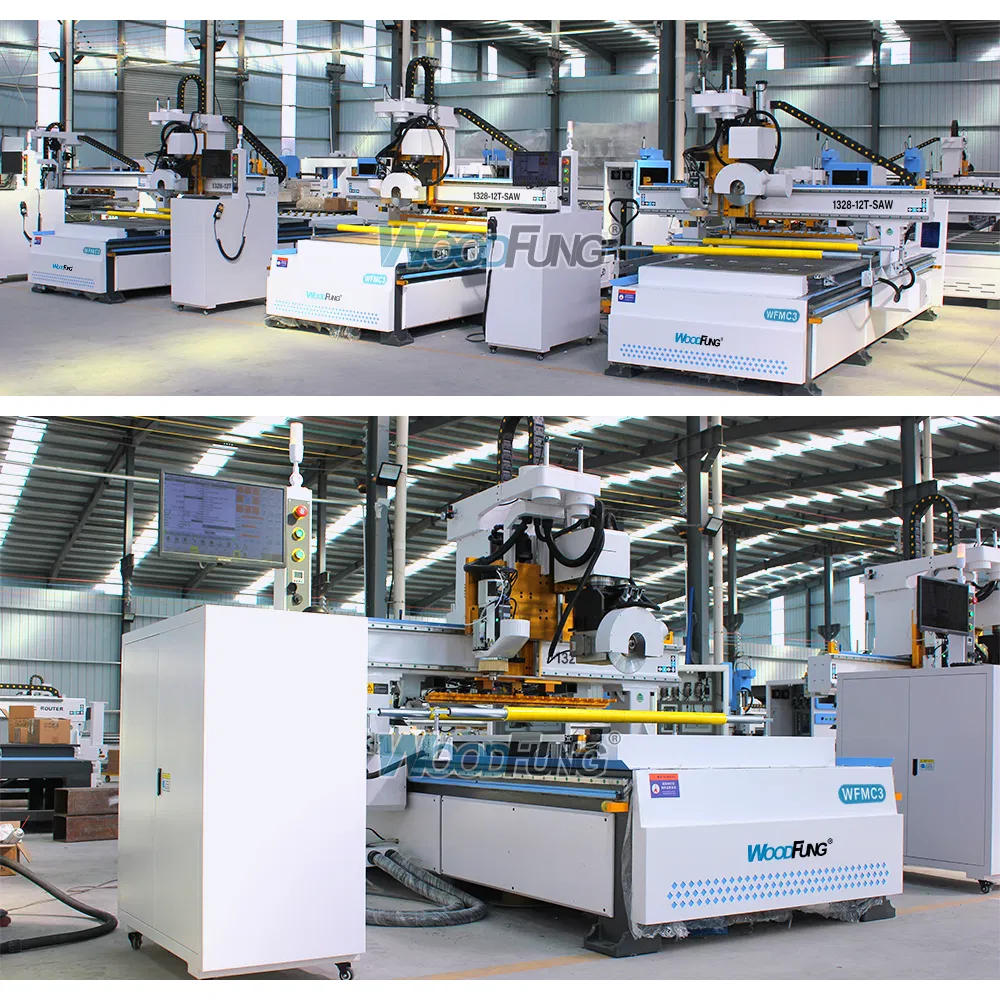

Factory Display

❓

Frequently Asked Questions

What are the capabilities of the 5-axis saw blade?

The 5-axis saw blade system allows for 360° horizontal rotation and a tilt range of 0-45°, enabling fast, angular, and horizontal cuts with high precision.

How many tools can the automatic changer hold?

The machine is equipped with a linear tool magazine that holds 12 tools, allowing for rapid automatic changes during complex processing.

Which control system is used in the WFMC3?

This machine utilizes the high-performance Taiwan LNC control system, known for its intelligence, stability, and ease of use in industrial environments.

Is the machine suitable for processing multi-layered materials?

Yes, the 5.5KW saw blade system is specifically designed to cut through multiple layers of boards simultaneously at high speeds, significantly increasing production efficiency.

What kind of maintenance support is provided?

We provide an 18-month warranty, free spare parts for normal issues during the warranty period, and a 24-hour response window for technical support.

Can this CNC router handle heavy non-wood materials?

Absolutely. In addition to wood-based panels, it efficiently processes PVC, ABS, PE, foam boards, and even aluminum-plastic composite panels.
