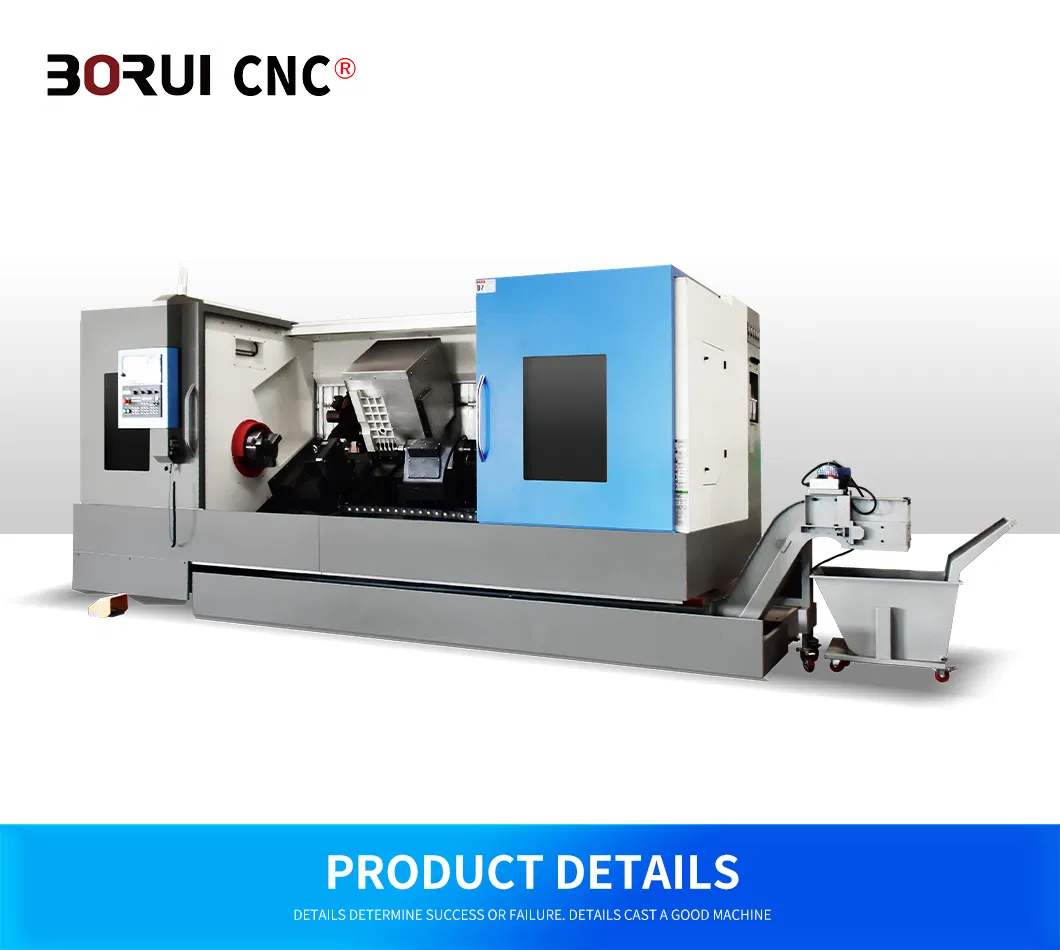

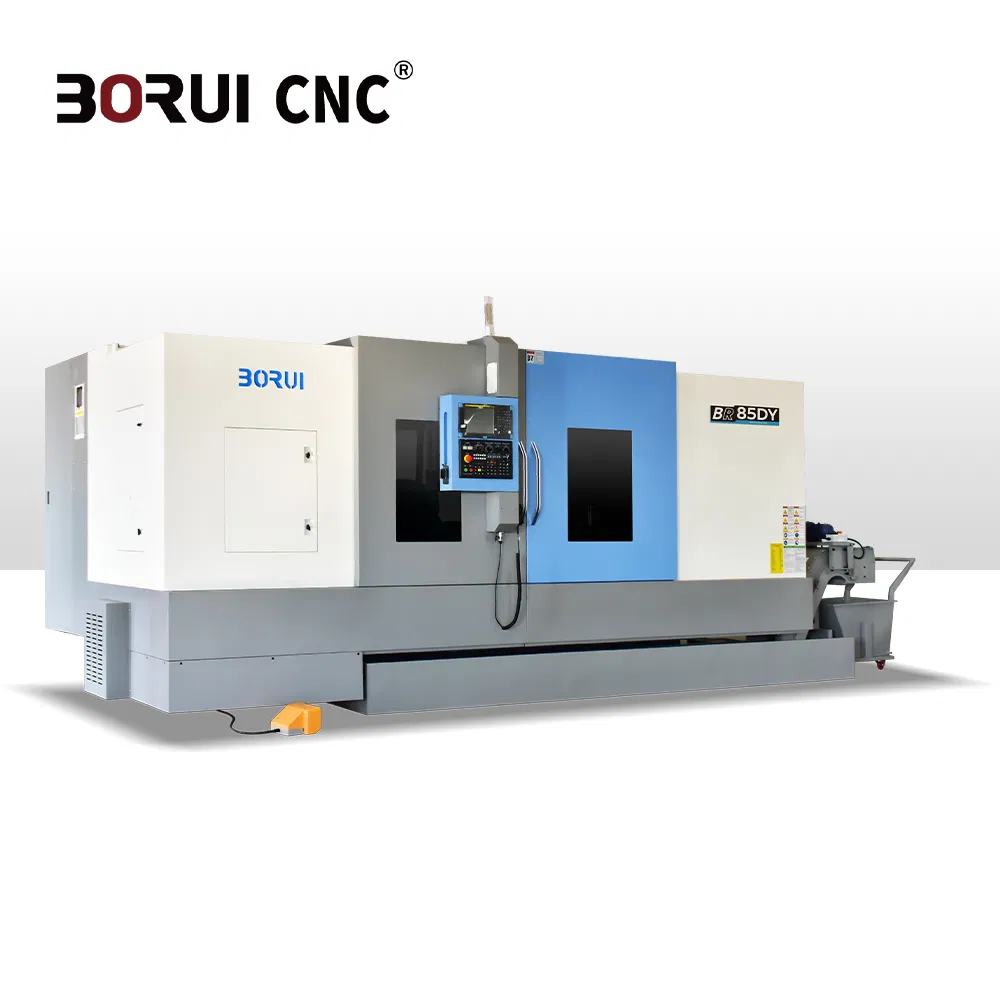

Br85dy Flexible Slant Bed CNC Lathe with Y Axis, Vdi 40 Tool Holders, and 0.2 Second Tool Index Time for High-Mix Low-Volume Production

Customization:	Available
After-sales Service:	2 Years
Warranty:	2 Years

📋 Basic Information

Model NO.

BR85DY

Application

Metal

Process Usage

Metal-Cutting CNC Machine Tools

Movement Method

Contour Control

Control Method

Closed-Loop Control

Numerical Control

CNC/MNC

Processing Precision

0.02~0.03(mm)

Performance Classification

Economical CNC Machine Tools

Certification

GS, CE, ISO 9001

Condition

New

Product Name

Slant Bed CNC Lathe

Machine Type

Slant Bed Lathe

Control System

Siemens GSK Fanuc (Optional)

HS Code

8428902000

Production Capacity

500 Pieces/Year

📦 Packaging & Delivery

Package Size

310.00cm * 290.00cm * 185.00cm

Package Gross Weight

6000.000kg

Transport Package

Wooded Box

💻 Product Description

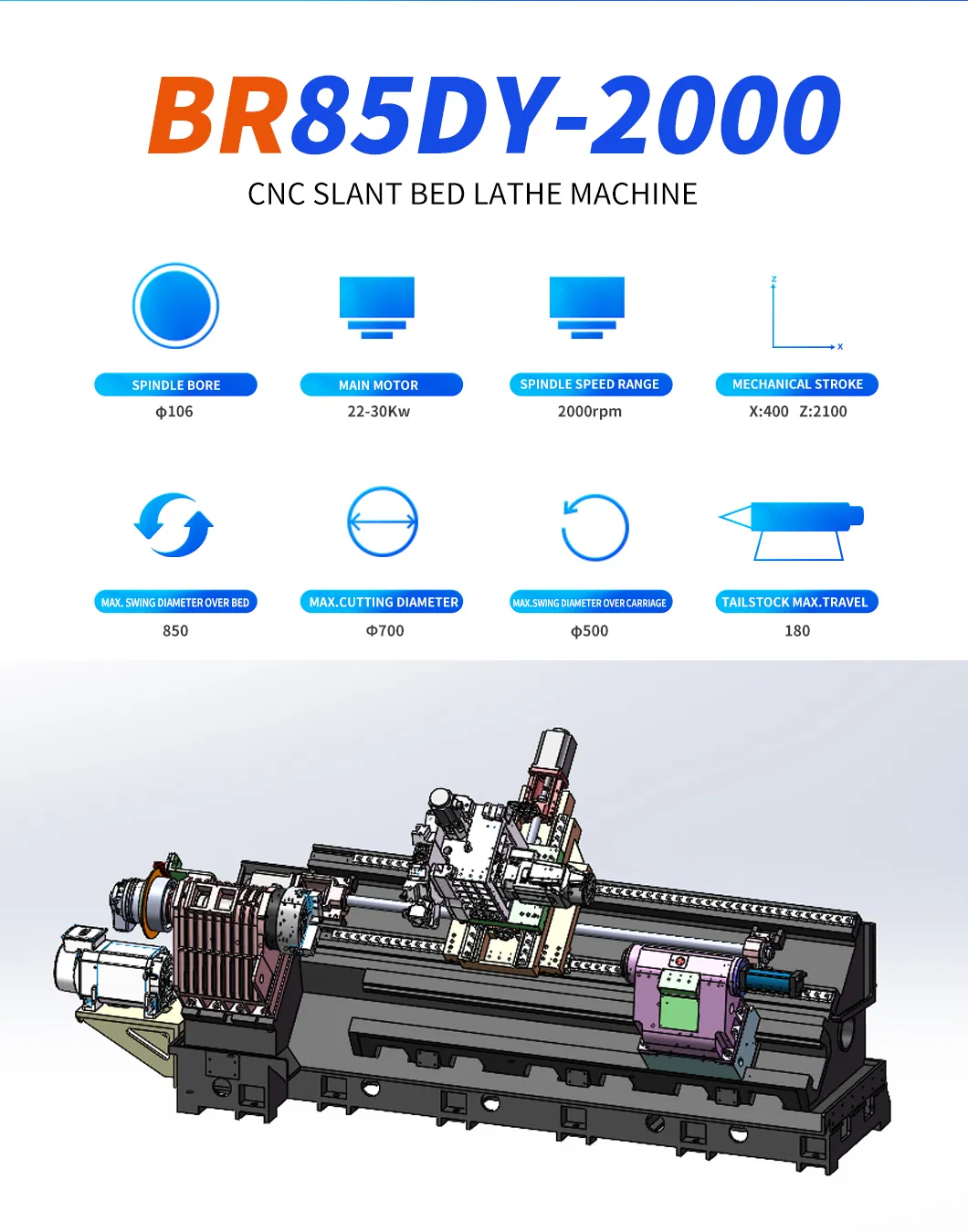

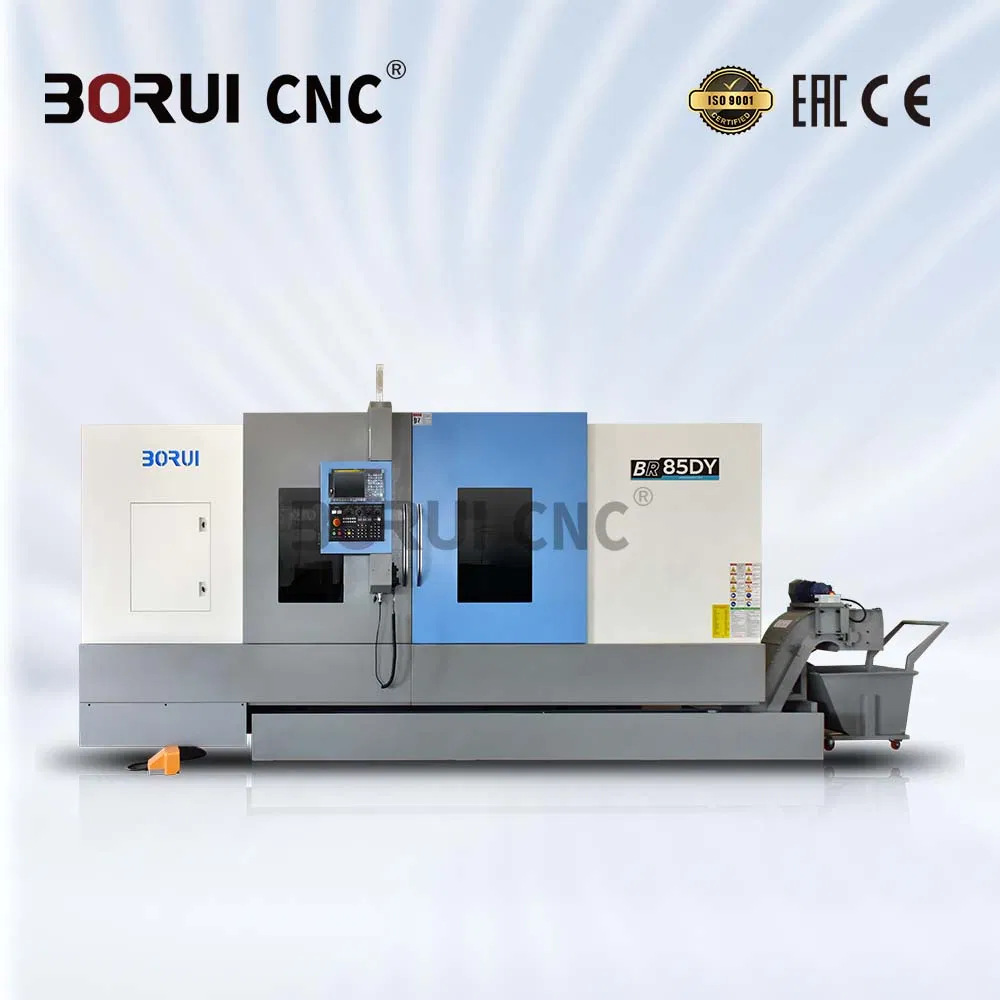

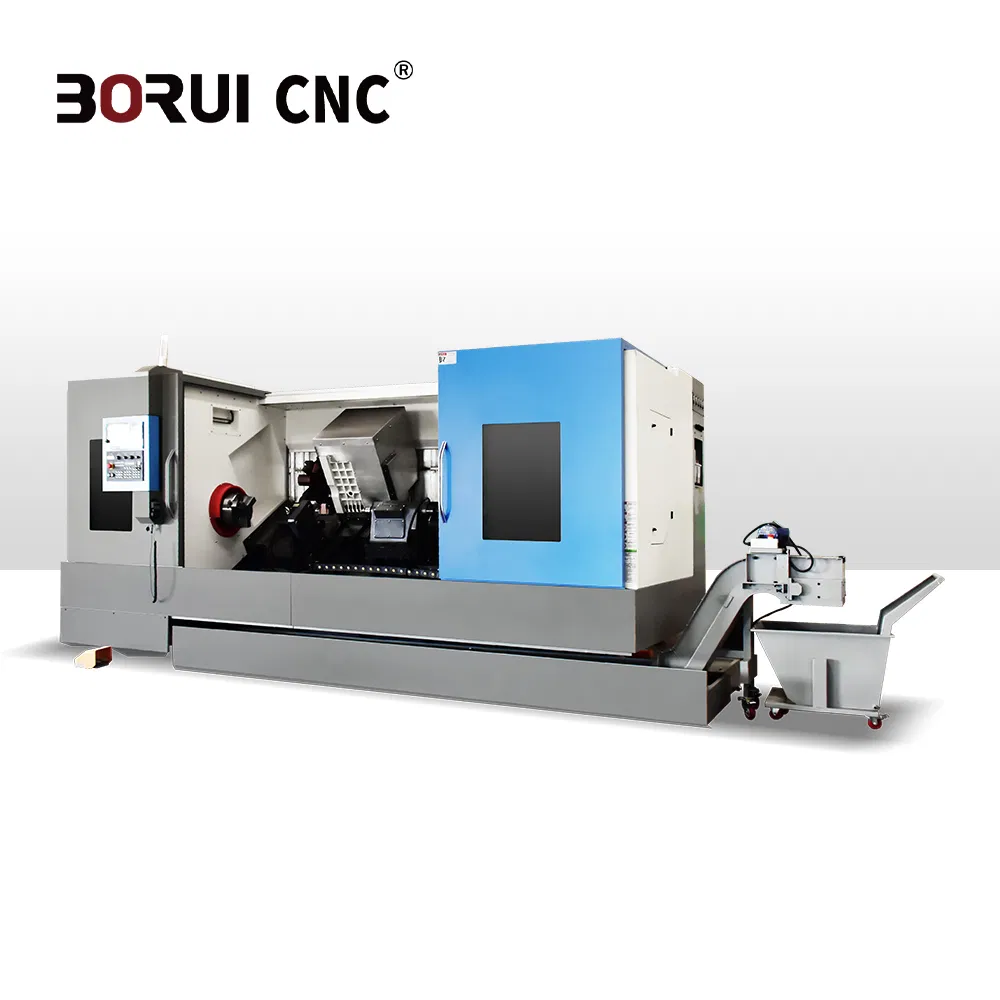

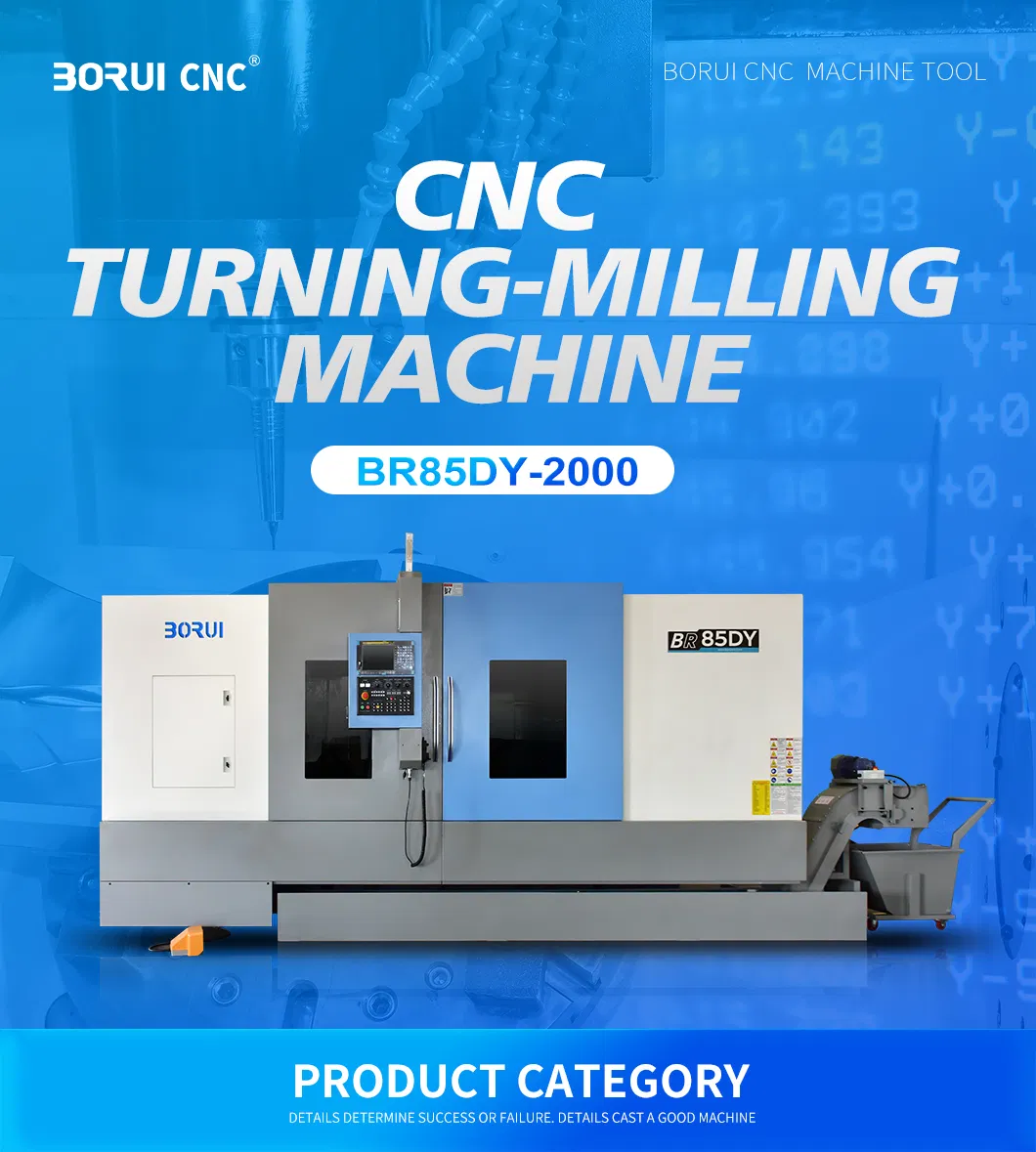

BR85DY CNC Slant Bed Lathe Machine

📊 Product Parameters

Category	Item	Specification
Processing Ability	Maximum Swing Diameter over Bed (mm)	Φ850
	Maximum Swing Diameter over Saddle (mm)	Φ500
	Maximum Turning Diameter (mm)	Φ720
	Center Distance (mm)	1010/1510/2010/3010/4010/5010
Travel	X-Axis Travel (mm)	400
Travel	Z-Axis Travel (mm)	1130/1630/2130/3130/4130/5130
Rapid Traverse	X/Z (m/min)	16/16
Spindle	Spindle Nose Type	A2 - 11
	Spindle Bore Diameter (mm)	106
	Max. Bar Capacity (mm)	90
	Maximum Spindle Speed (r/min)	2000
	Maximum Spindle Output Torque (NM)	580NM

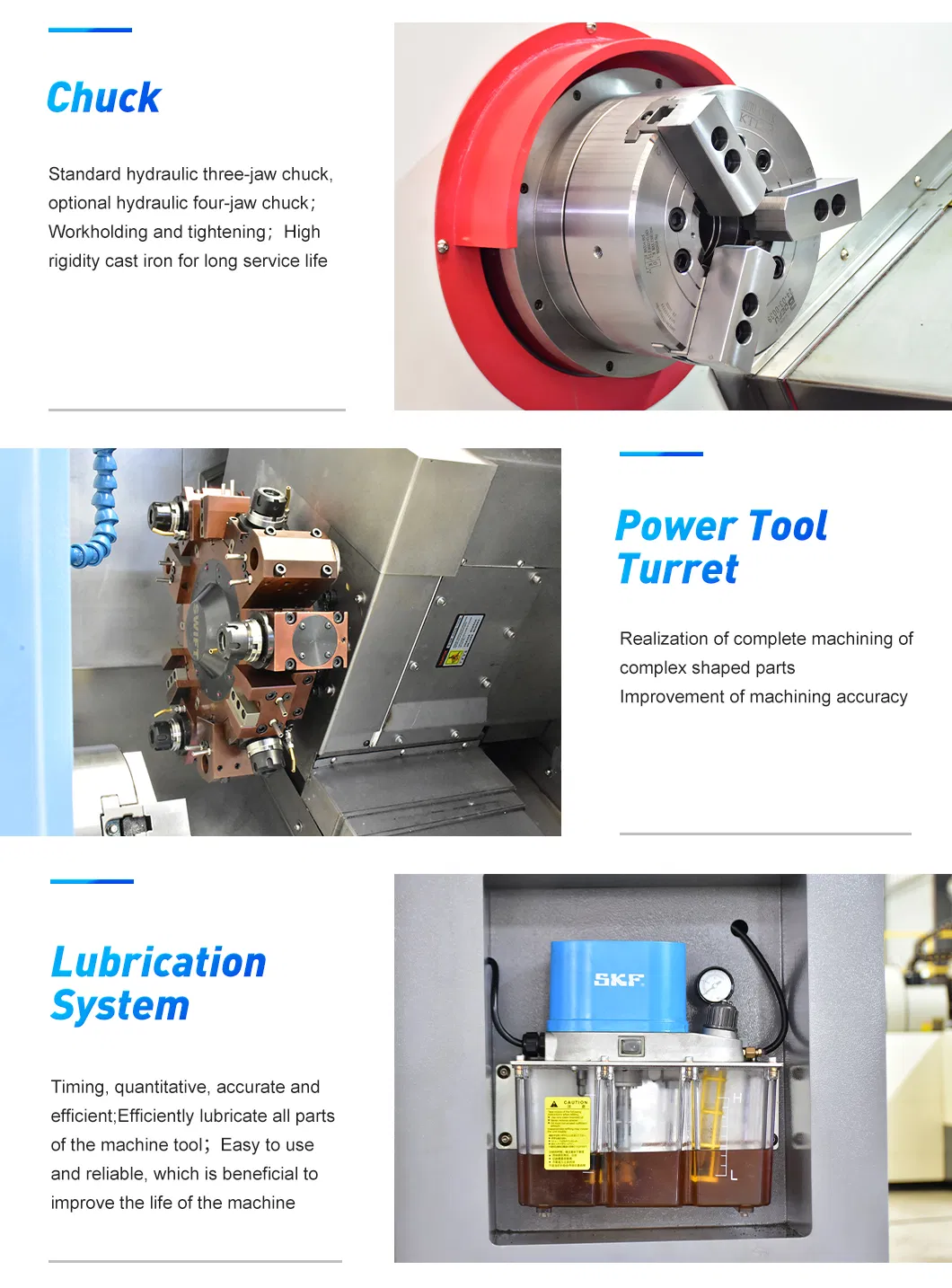

	Hydraulic Chuck (inch)	15/18/21

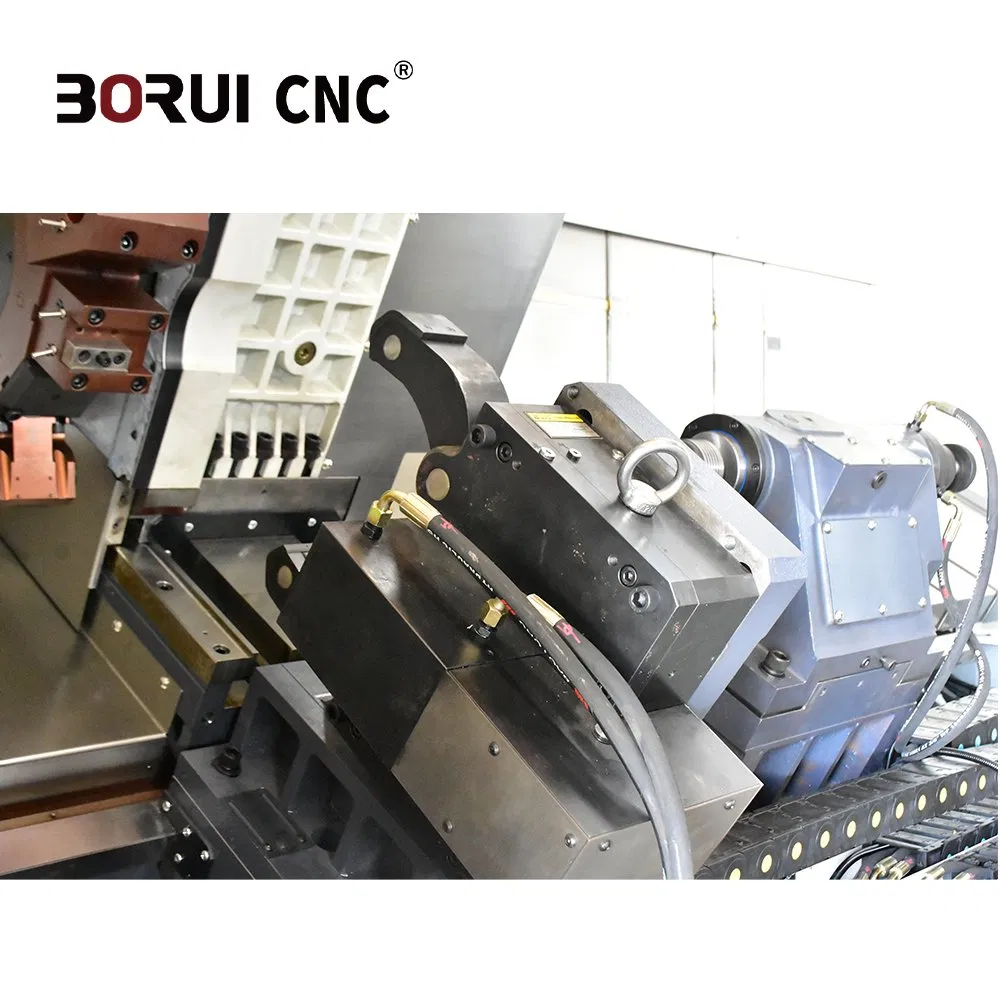

Tailstock	Tailstock Sleeve Taper	MT6
	Tailstock Sleeve Diameter (mm)	Φ160
	Tailstock Sleeve Travel (mm)	180
Motor Power	Main Motor (Kw)	22 - 30
	Servo Motor X/Z (KW)	3/3
	Power Turret Power (KW)	5.5

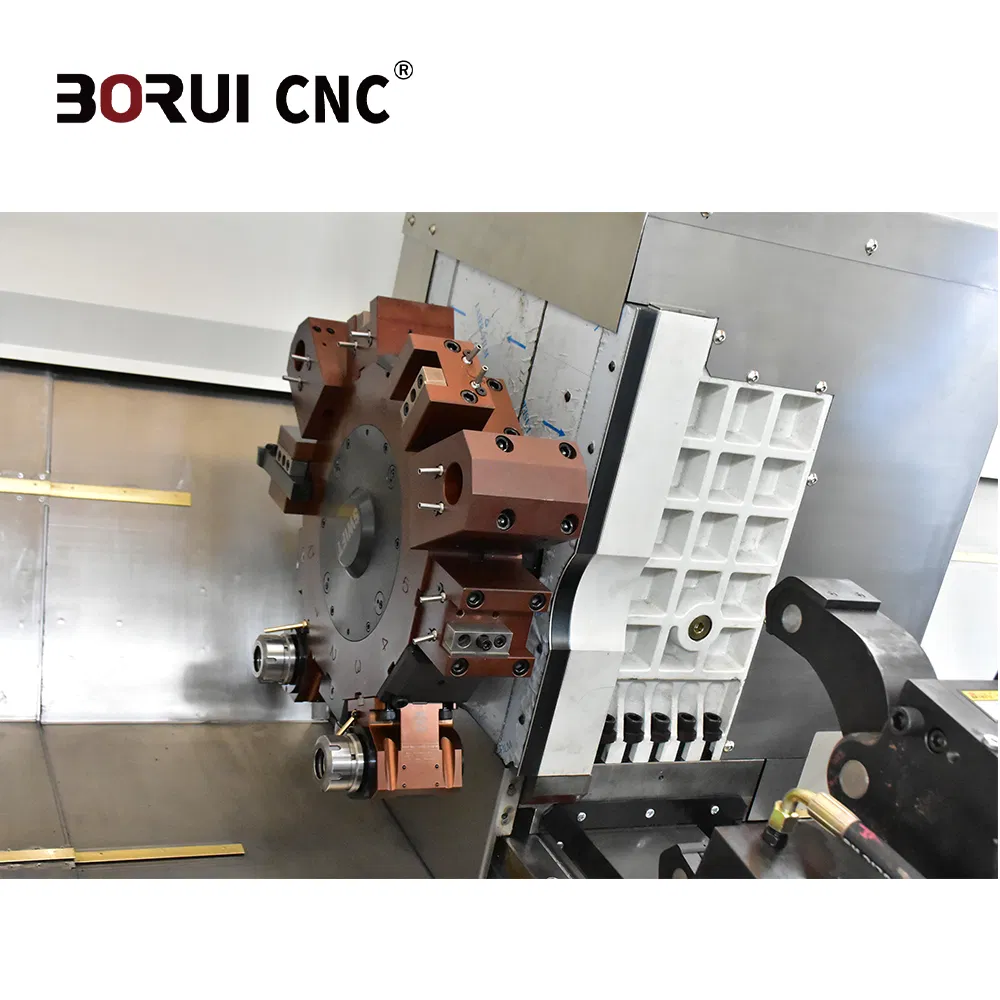

Turret	Turret Diameter and Number of Stations	480 - 12 stations
	Adjacent Tool Changing Time (s)	0.5
	Tool Size (Turning/Boring) (mm)	32*32/Φ50

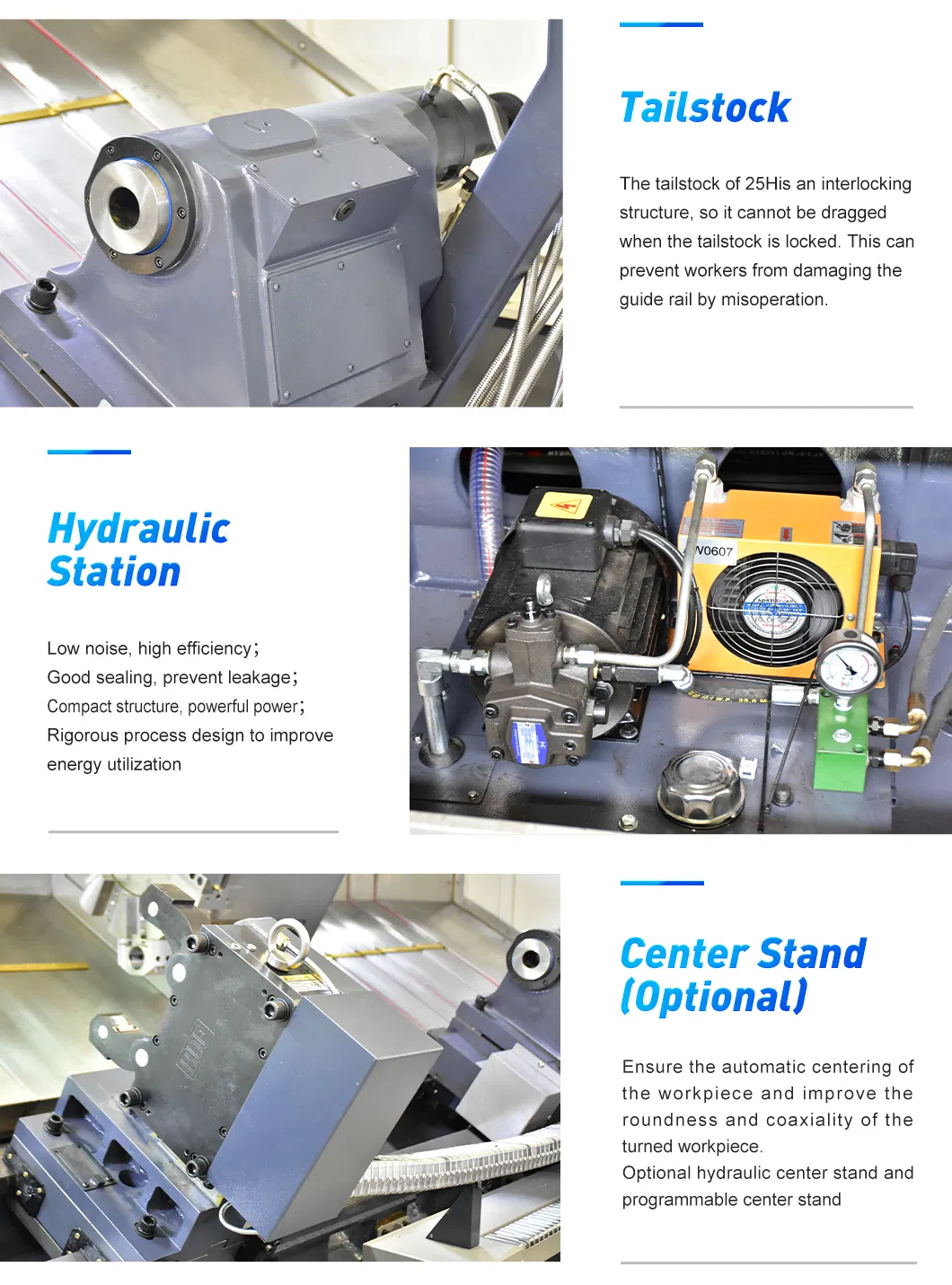

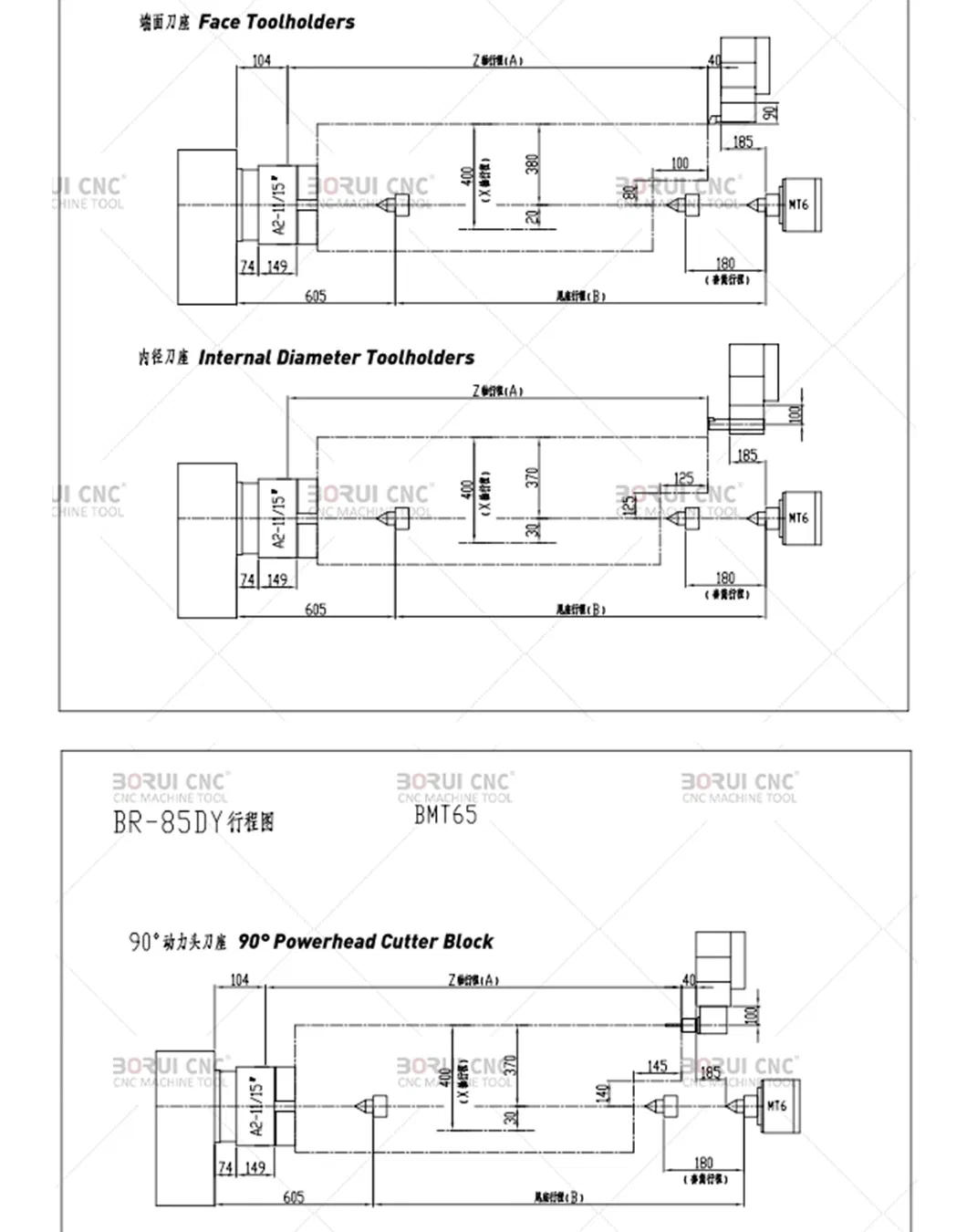

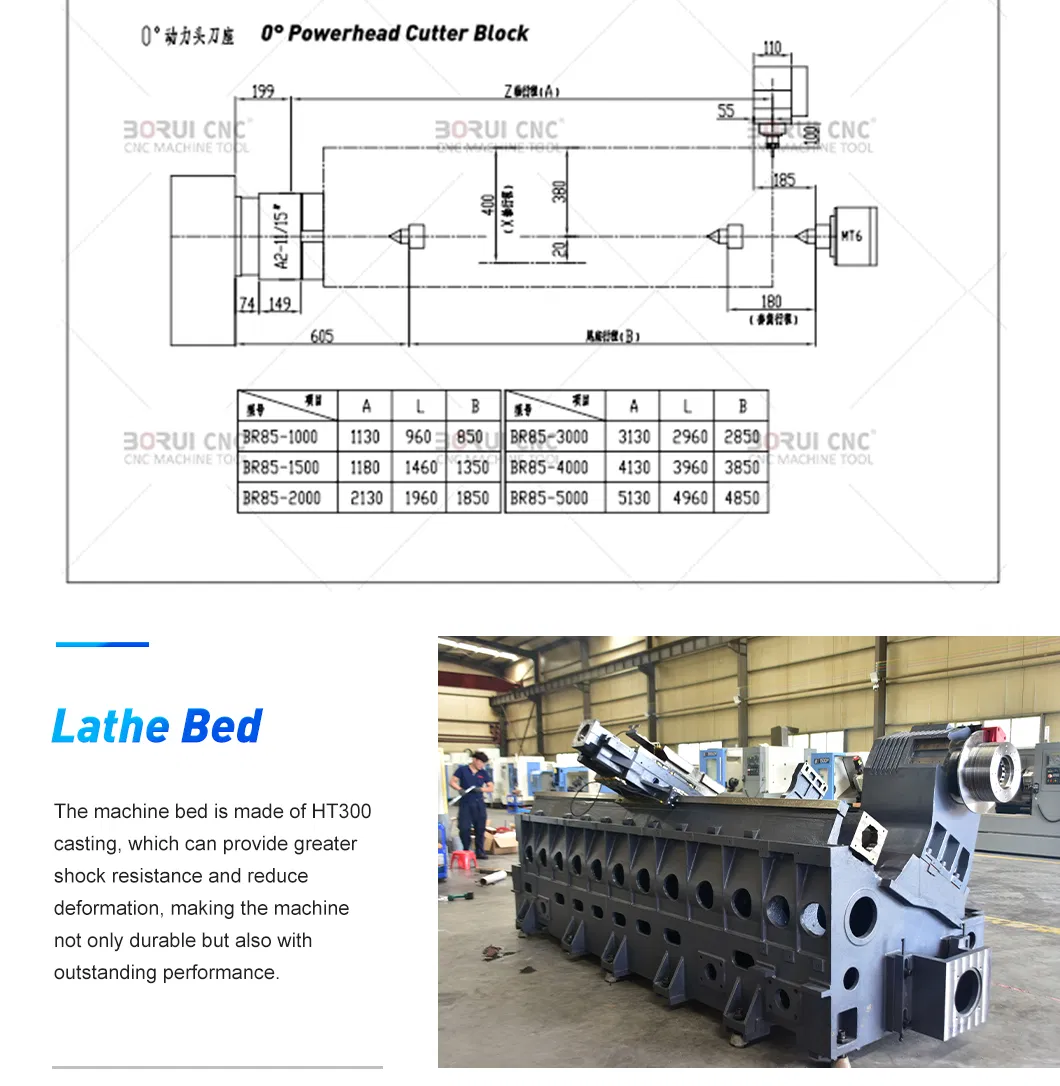

📷 Detail Gallery

❓ Frequently Asked Questions

How can I choose the most suitable machines?

Please tell us your specifications, we can choose the best model for you, or you can choose the exact model. You can also send us the products drawing, and we will choose the most suitable machines for you.

What are your main machine products?

We specialize in all kinds of machines, such as CNC Lathe Machines, CNC Milling Machines, Vertical Machining Centers, Lathe Machines, Drilling Machines, Radial Drilling Machines, Sawing Machines, Shapers, gear hobbing machines, and more.

What are your trade terms?

FOB, CFR, and CIF are all acceptable trade terms for our shipments.

What are the payment terms?

We typically accept T/T (30% initial payment when ordering, 70% balance payment before shipment) or Irrevocable LC at sight.

What is the Minimum Order Quantity (MOQ)?

The MOQ is 1 set. For some specific low-cost machines, the MOQ might be higher.

Do you offer technical support?

Yes, we provide 24 hours online technical support as part of our after-warranty service to ensure your machine continues to operate efficiently.
