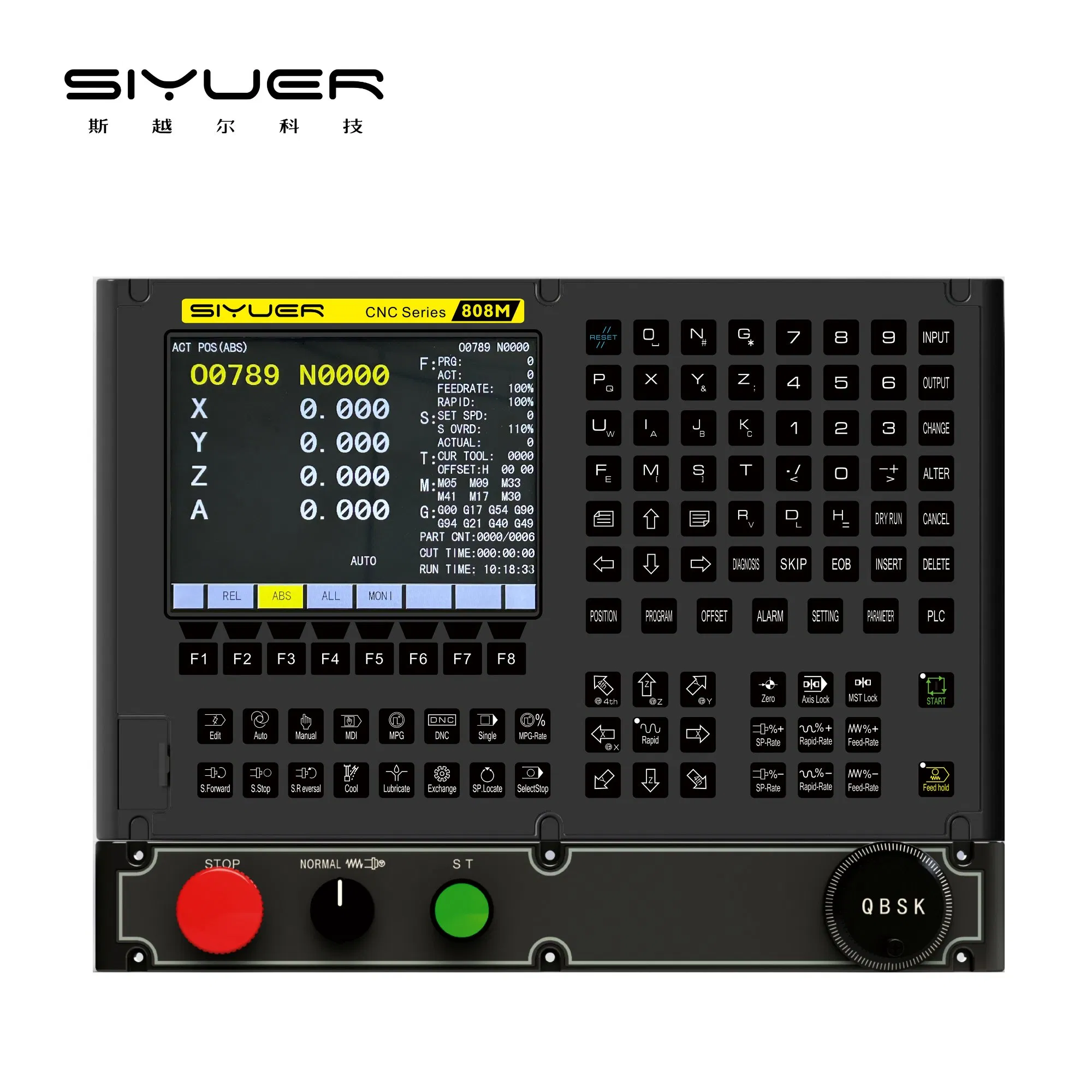

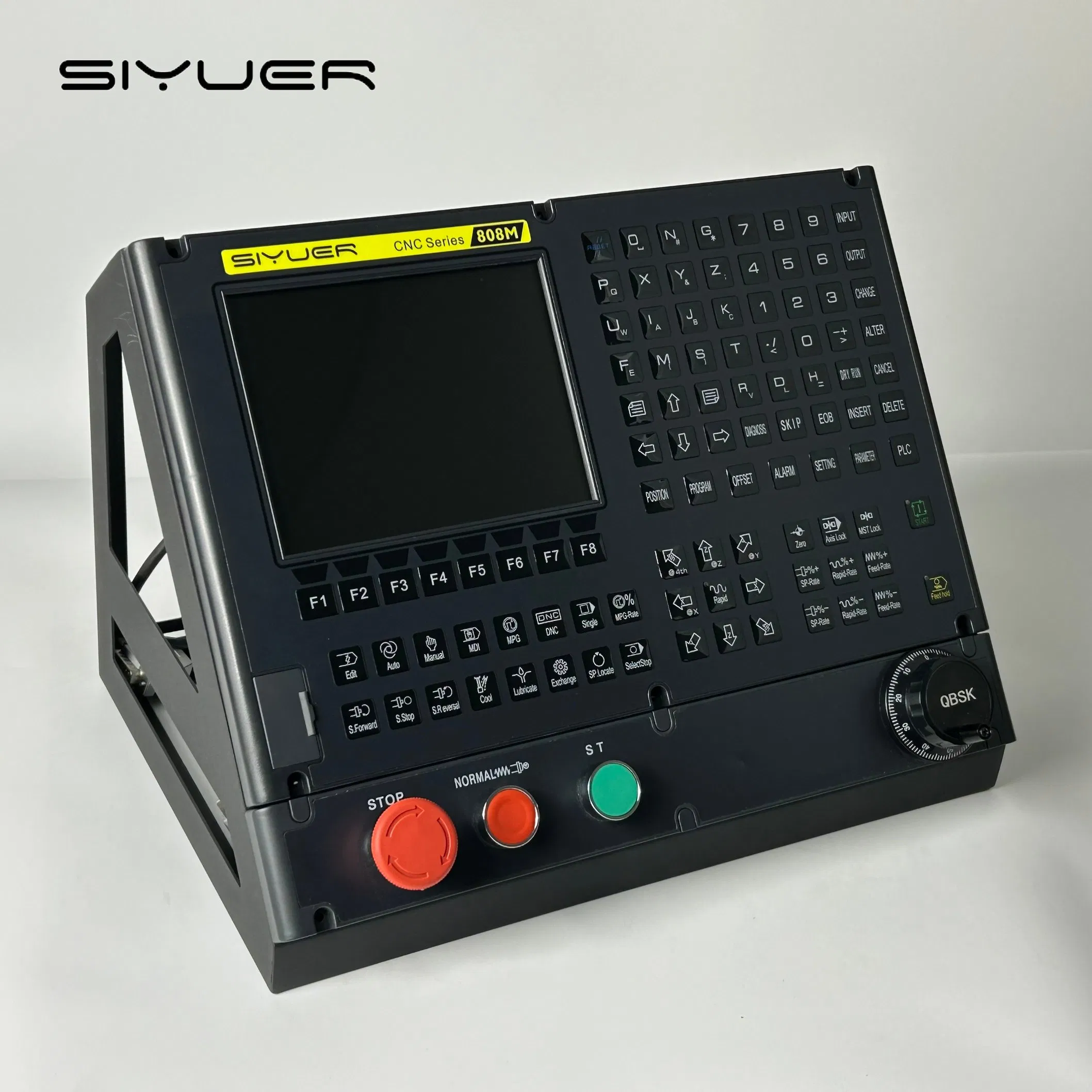

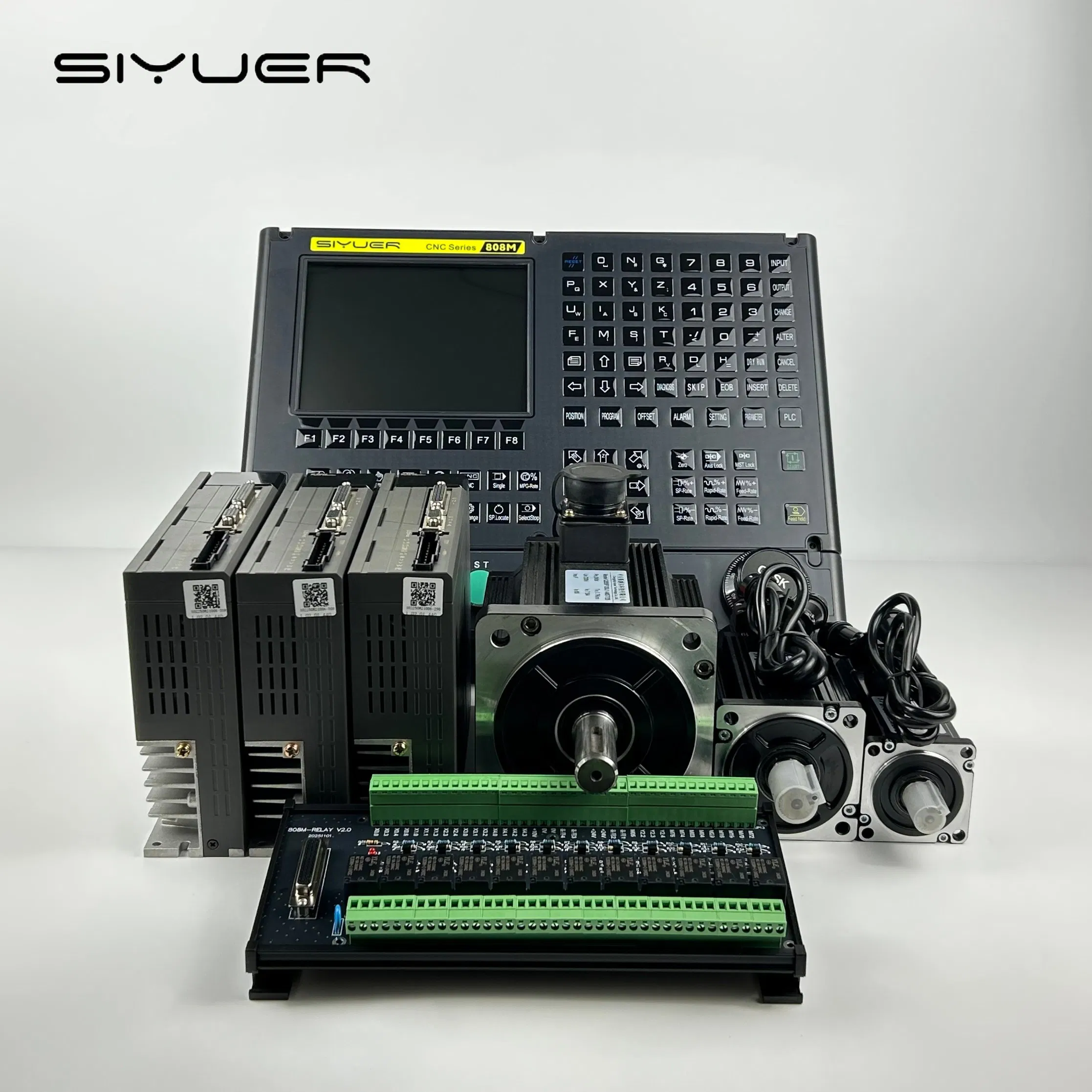

High-Volume Production CNC Controller with Pallet Changer Integration

Customization:	Available
Warranty:	3 Years
Logo Printing:	with Logo Printing

Overview & Basic Info

Model NO.

808M

Size

Large

Type

CNC Controller

Material

Stainless Steel

Certification

GS, CE

Axis Num

3-5 Axis

CPU

32bits+Fpga

Display Screen

8.4 Inch

I/O Num

32/32

Accuracy

0.1um

Interpolation Cycle

1ms

Panel Material

Aluminum Alloy

Package Gross Weight

9.000kg

HS-Code

8537101101

Product Description

Technical Specification

Axis number	5 feed axis (X, Y, Z, A, B), 3 axis linkage for arc, 5 axis for straight line, 1 analog spindle
Interpolation cycle	1ms interpolation cycle, 0.1um control accuracy
Spindle	1 path-10V ~ 10V analog voltage output, support servo spindle control

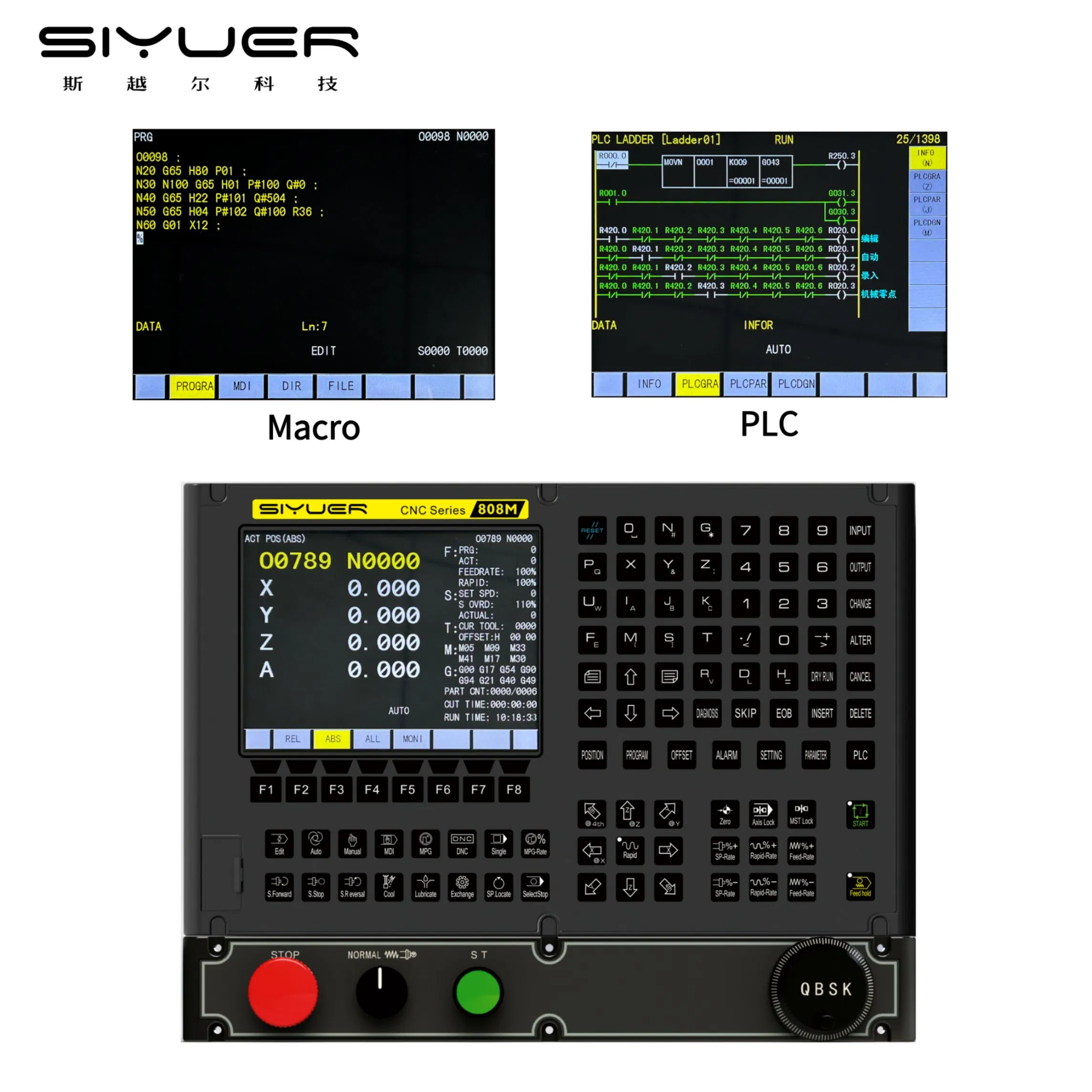

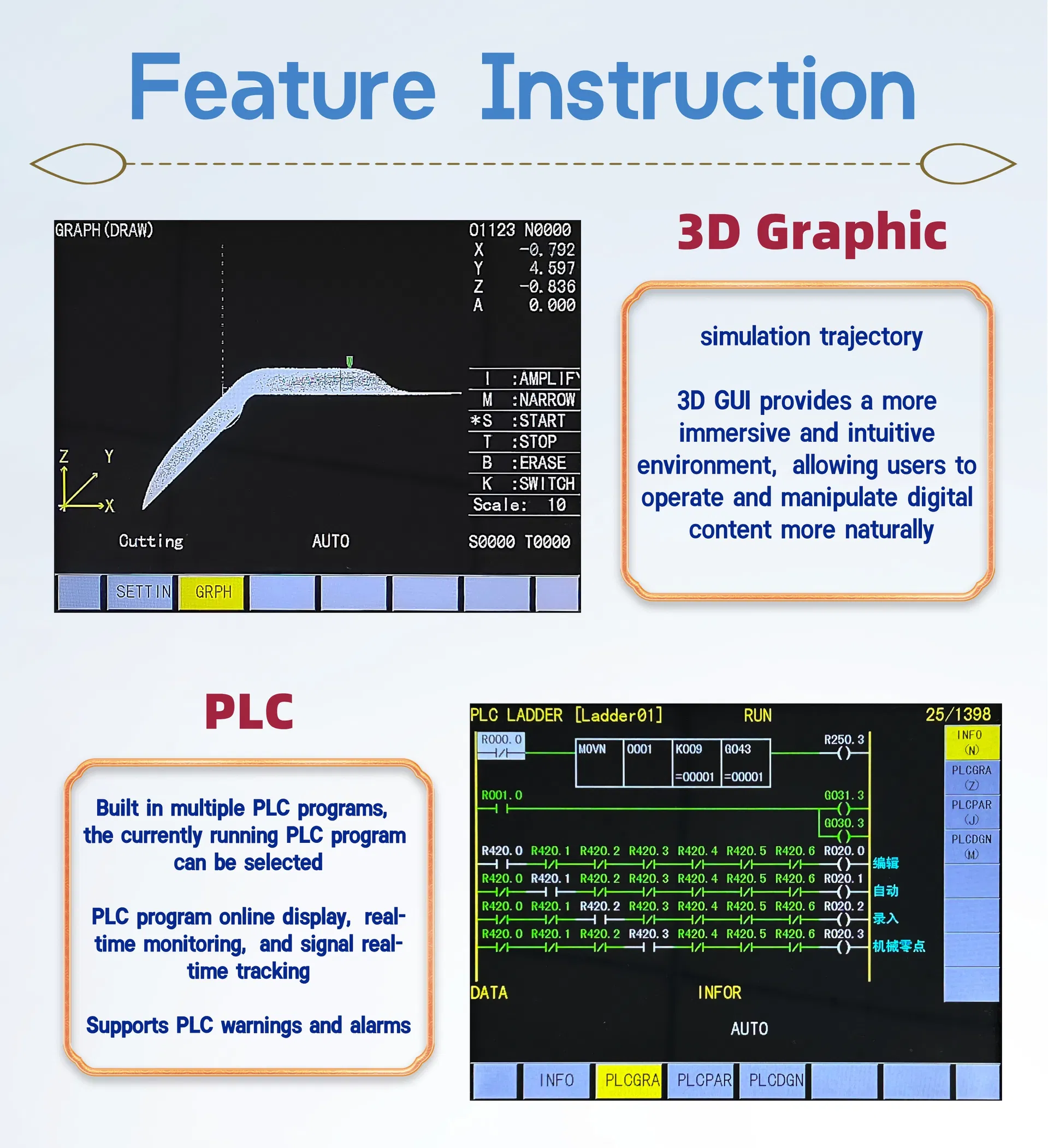

PLC	Built-in multiple PLC programs, real-time monitoring and signal tracking

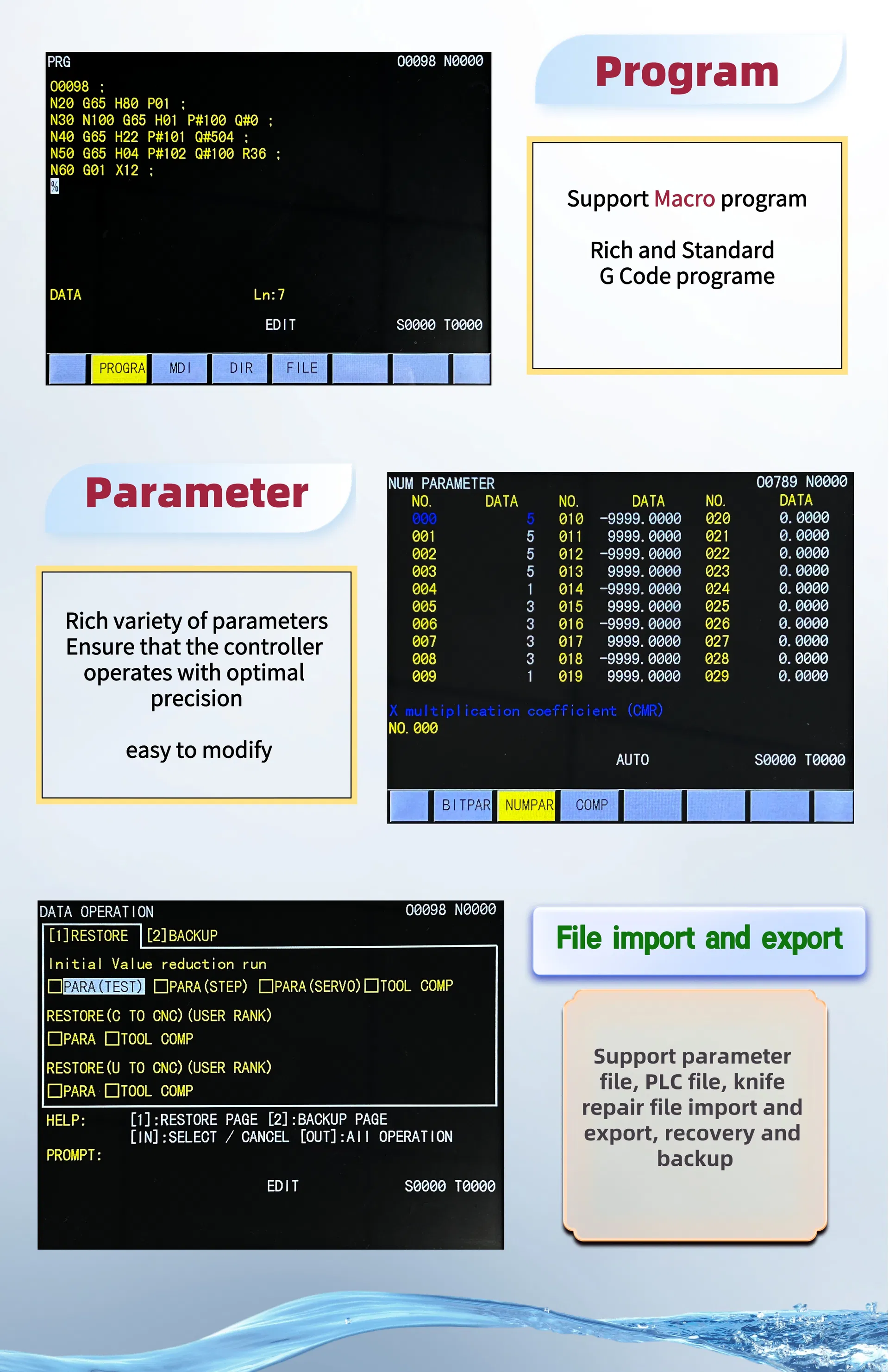

Macro	Supports statement macro code programming and parameterized macro program calls
Acceleration/Deceleration	Linear, exponential and S type modes available
IO	32 universal inputs / 32 universal outputs
Program Capacity	56MB, up to 400 programs

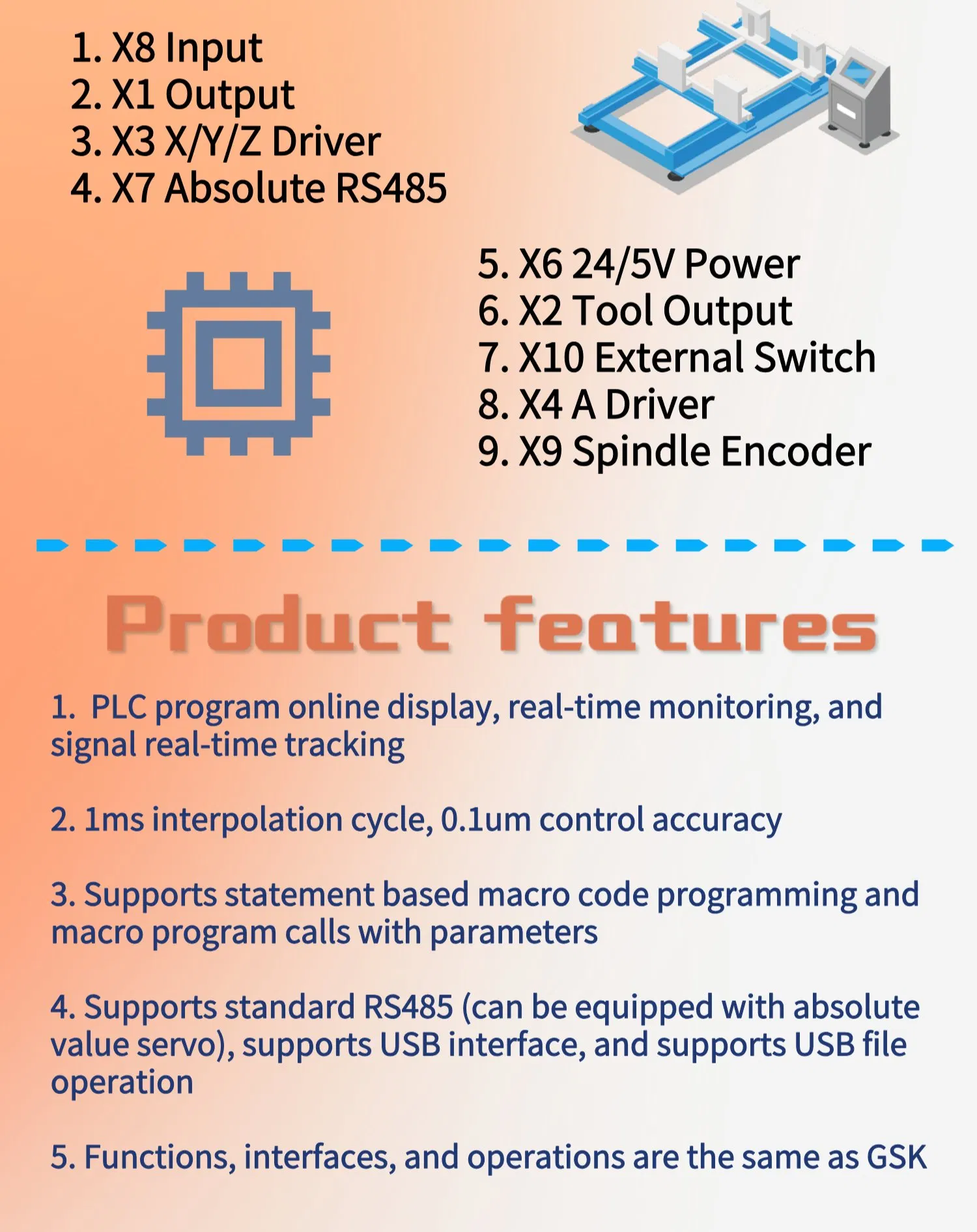

Product Features & Technical Details:

Control Axis Number: 5 axes (X, Y, Z, A, B)

Fast moving speed: up to 60m/min

Cutting feed speed: up to 15m/min (G94) or 500.00mm/r (G95)

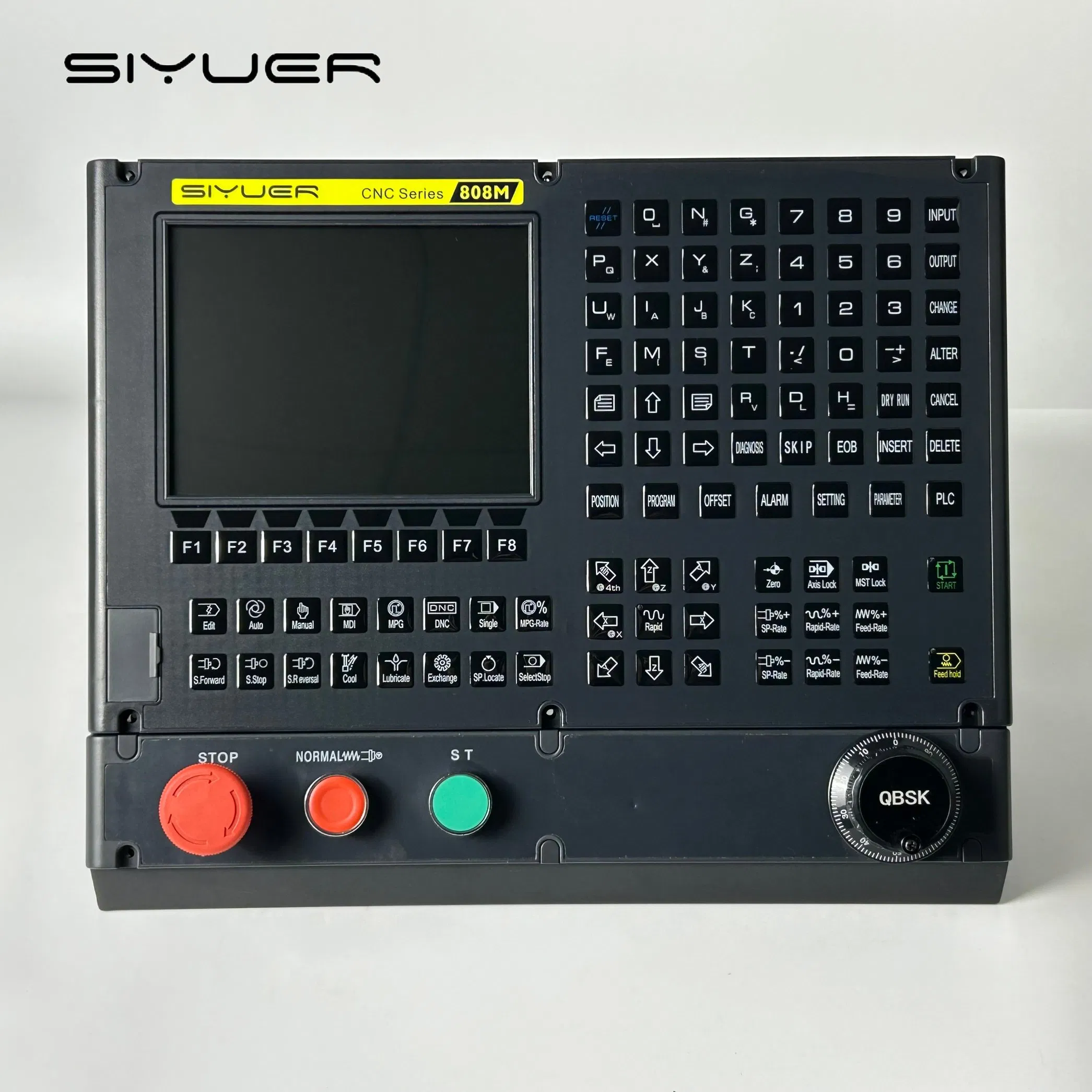

8.4 inch LCD screen with 800 x 600 resolution

Supports USB and RS232 communication for data transfer

Rigid and flexible tapping supported by parameters

Pitch error and reverse clearance compensation

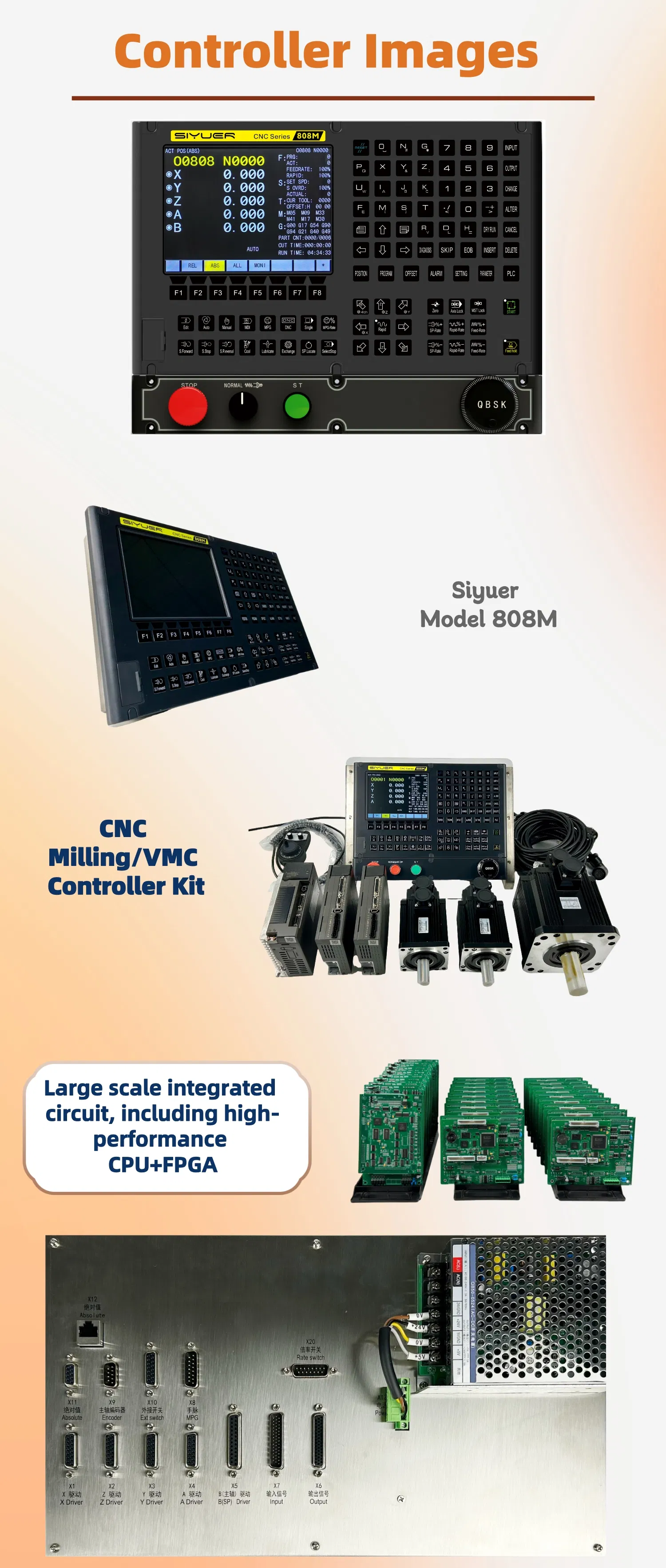

Product Gallery

Packaging & Shipping

CNC Controller Package

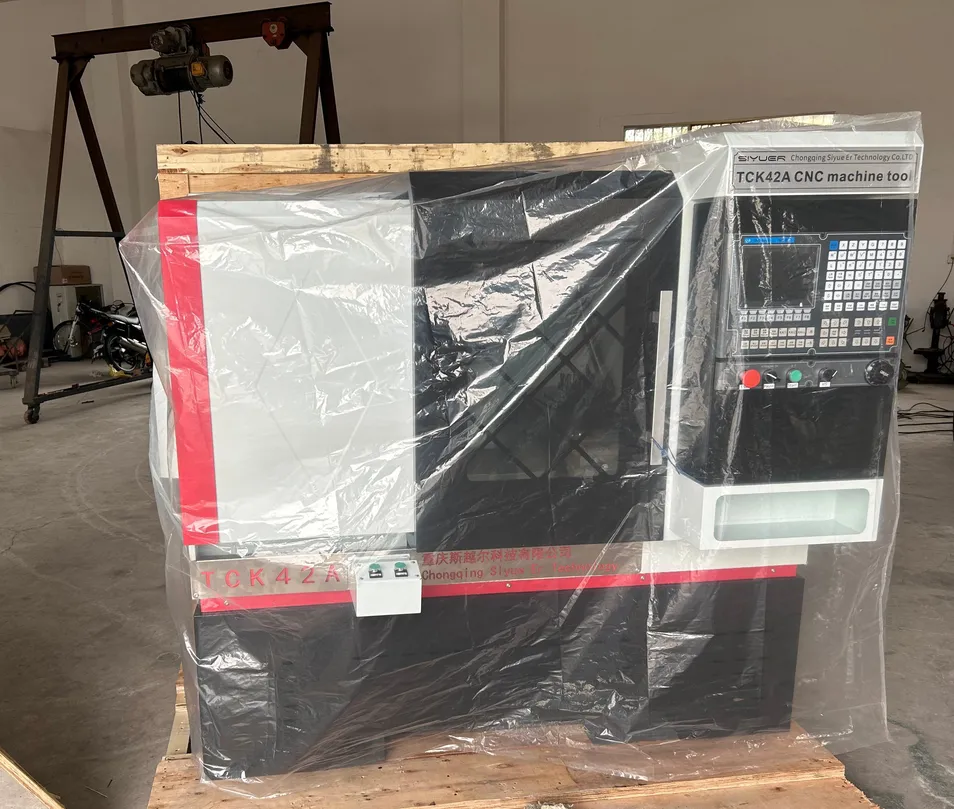

Standard Lathe Package

To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided. Export wooden crate packaging is standard for complete CNC lathe units.

Frequently Asked Questions

1. What is the control capability of the 808M CNC system?

The system supports up to 5 feed axes (X, Y, Z, A, B) with 3-axis linkage for arcs and 5-axis linkage for straight line feed functions, achieving 0.1um control accuracy.

2. Does the system support Automatic Tool Changers (ATC)?

Yes. For CNC lathes, it supports electric, servo, and counting turrets via custom macros. For CNC milling, it supports linear, umbrella, arm, and turret-type tool magazines.

3. What communication interfaces are available for file transfer?

The controller is equipped with RS232 and USB interfaces. It supports U-disk file operations, direct processing from U-disk, and system software upgrades via USB.

4. What spindle control modes are supported?

It provides 1 channel of 0-10V analog voltage output for speed control and supports servo spindle control for high-precision operations.

5. Can the boot logo be customized for my own brand?

Yes, we support custom boot logos to meet your specific branding requirements.

6. What is the standard lead time for orders?

Standard orders typically have a lead time of 5–7 workdays. Customized solutions are subject to negotiation based on complexity.
