Reliable CNC Deep Hole Gun Drill for High-Volume Production Needs

Customization:	Available
After-sales Service:	Life Warranty
Warranty:	5

Send Inquiry

Product Description

Basic Information

Model NO.

ZK2108

Structure

Horizontal Drilling Machine

Controlling Mode

CNC

Number of Shaft

Hole Diameter

<50mm

Precision

High Precision

Main Shaft Power

22 Kw

Spindle Speed

50-3000 R/Min

Product Description

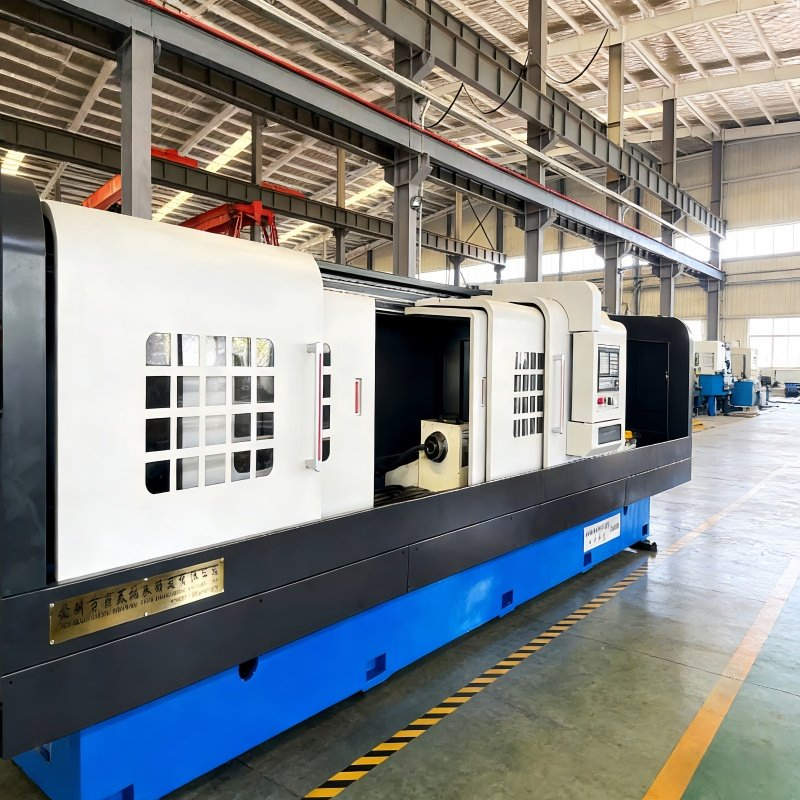

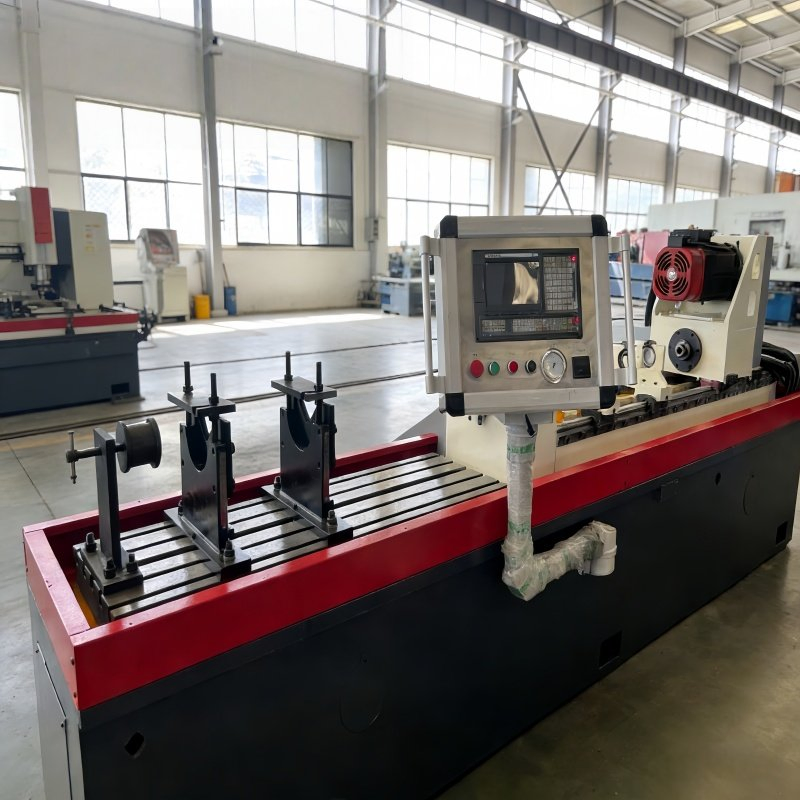

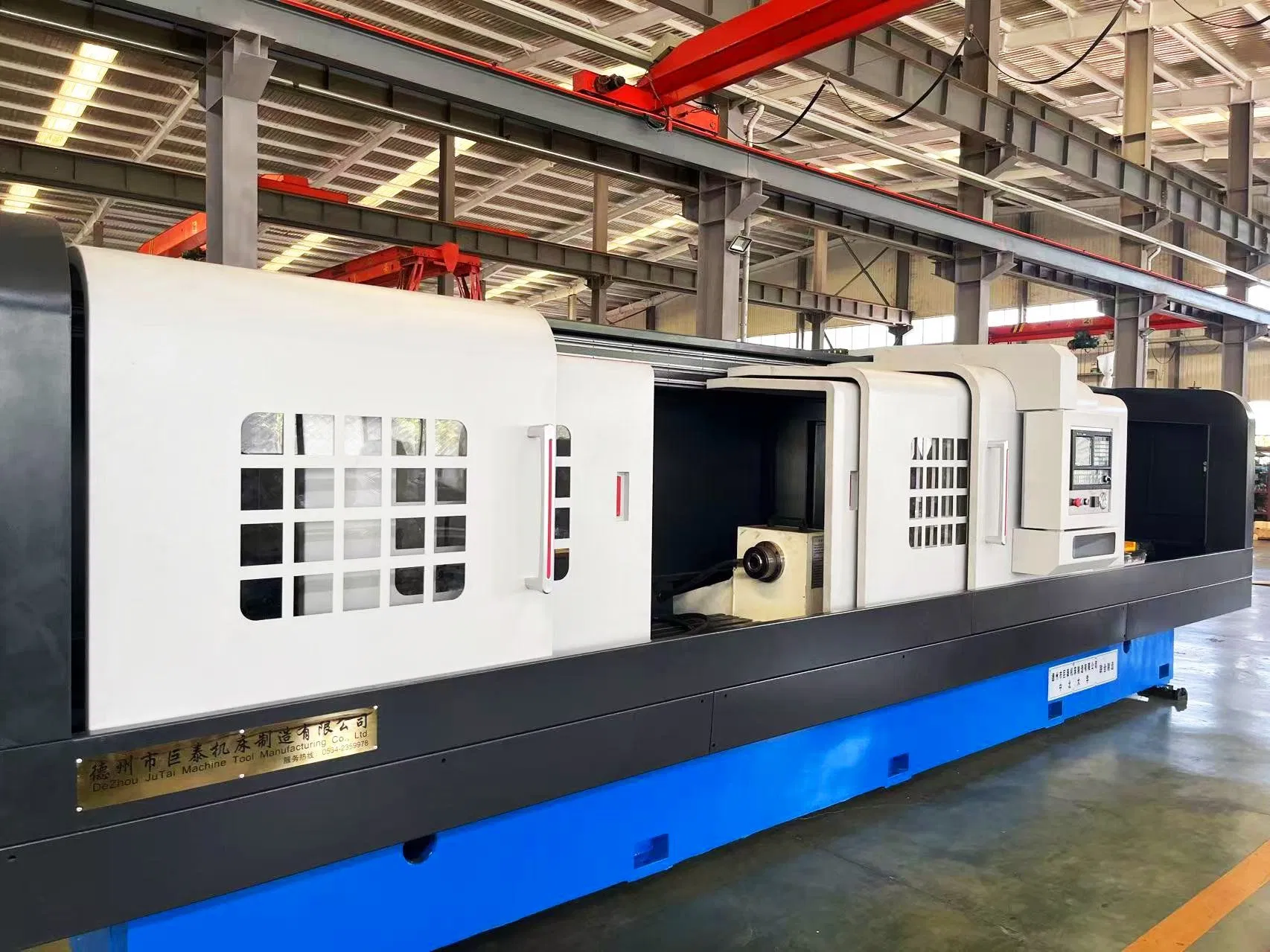

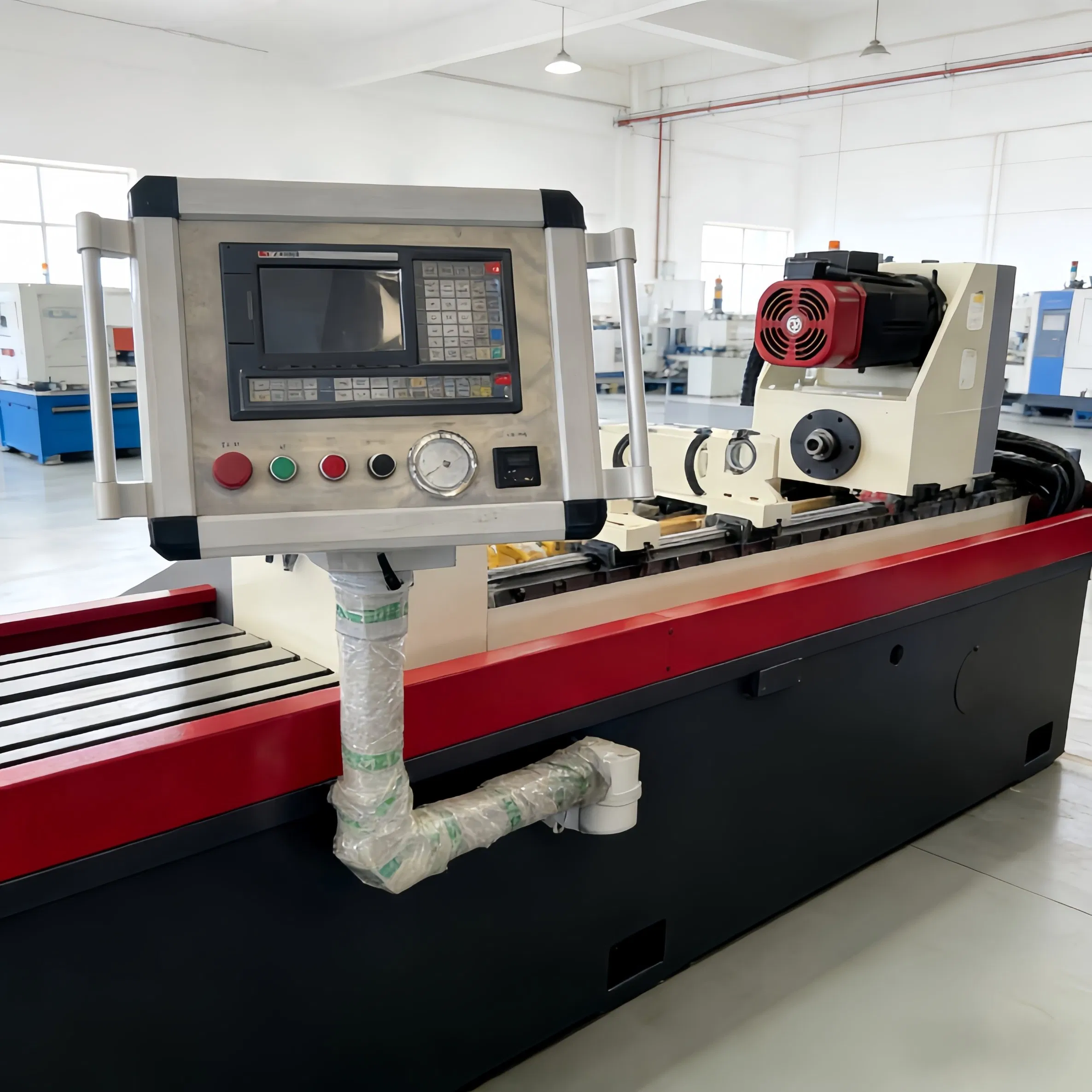

This machine tool is a specialized deep hole drilling machine with high efficiency, high precision and high automation. It adopts the external chip removal drilling method (gun drilling method), and through a single continuous drilling operation, it can replace the processing accuracy and surface roughness that usually require a series of drilling, reaming and hobbing processes to achieve.

Controlled by a digital control system, it features both single-action and automatic cycle functions, making it ideal for small-batch processing and high-volume mass production. It is capable of drilling through holes, blind holes, and stepped holes.

Technical Specifications

Parameter	ZK2103 (Gun Drill)	ZK2108 (Combined)
Drilling Diameter Range (mm)	3-30	3-30 (Gun) / 30-80 (BTA)
Max Machining Depth (mm)	600 - 2500	600 - 2500
Spindle Speed (r/min)	50-3000	50-3000
Z-axis Feed Speed (mm/min)	10-500	10-500
Spindle Motor Power (Kw)	5.5/7.5	22
CNC System	KND	KND

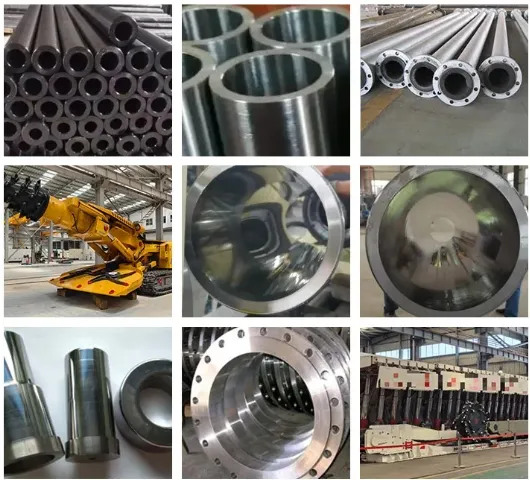

Industrial Applications

1. Mold & Die: Cooling channels, ejector holes, and hot runners.

2. Hydraulic & Pneumatic: Cylinders, valve bodies, and manifold blocks.

3. Automotive: Engine parts, crankshafts, and steering knuckles.

4. Oil & Petroleum: Drill pipes, downhole tools, and oilfield valves.

5. Aerospace: Landing gears, turbine shafts, and hydraulic pipelines.

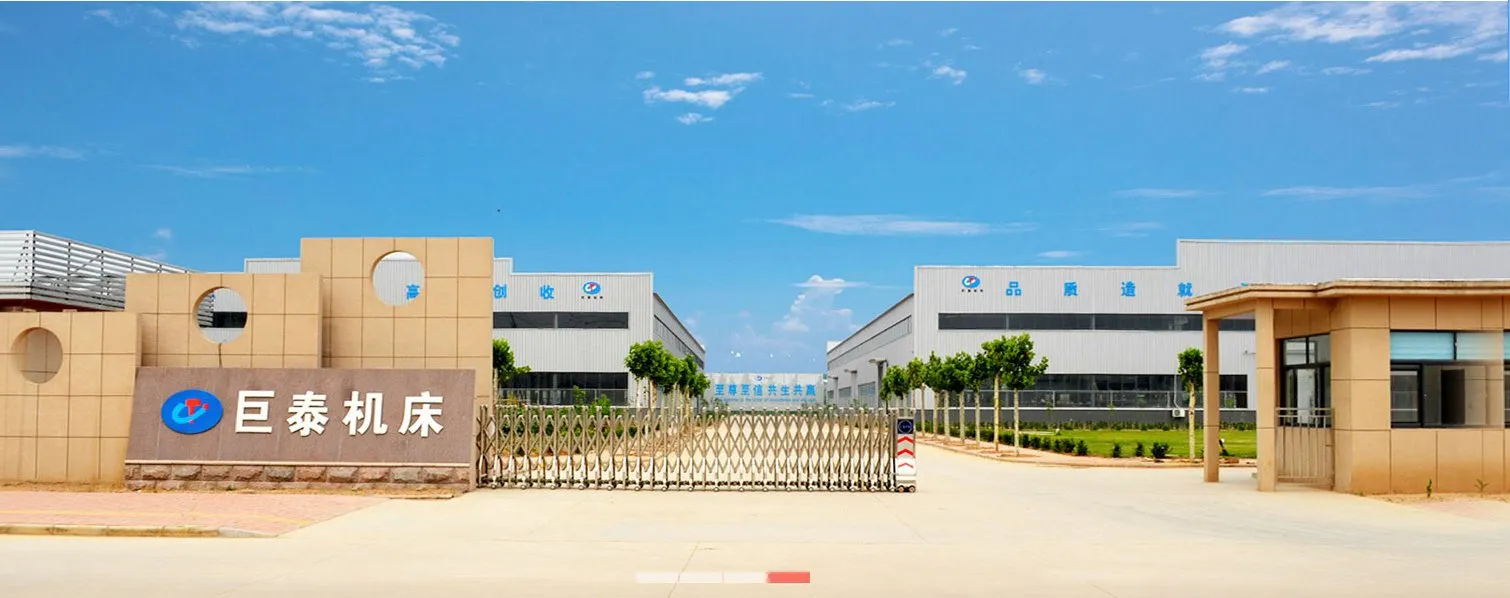

Manufacturing Excellence

Equipped with over 80 types of high-end machinery including grinding machines, lathes, and large-scale gantry planers (up to 9000mm). We specialize in a wide range of deep hole solutions including ordinary drilling and boring machines, honing machines, and advanced Numerical Control (CNC) systems.

Packing & Delivery

Package Size

1203.20cm * 258.20cm * 269.80cm

Gross Weight

26000.00kg

Package Type

Frame, Wooden Box

Frequently Asked Questions

How about the after-sales service?

We provide free training at our facility. Additionally, our engineers are available to provide machinery service overseas if required.

What is the warranty period?

The complete machine comes with a one-year warranty and lifetime maintenance support.

How do you ensure product quality?

Each machine is rigorously tested before packing. We use international well-known brand spare parts and perform layer-by-layer testing from R&D to production.

What is the typical lead time?

It depends on order quantity. Usually, small quantities ship within 7-15 days, while larger orders take approximately 30 days.

Can I request a customized machine?

Yes, we undertake the design and manufacturing of non-standard deep hole tools and special hole machining tools according to your specific production needs.

Why should we choose your equipment?

We offer quality assurance through branded components, strong R&D capability, and 24/7 intimate after-sales service to ensure zero downtime.
