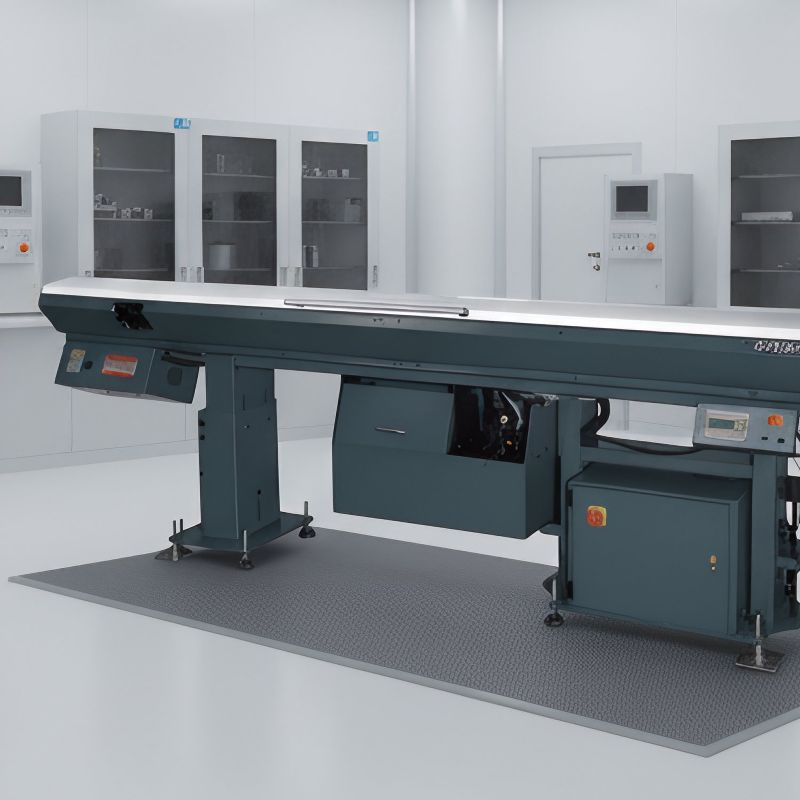

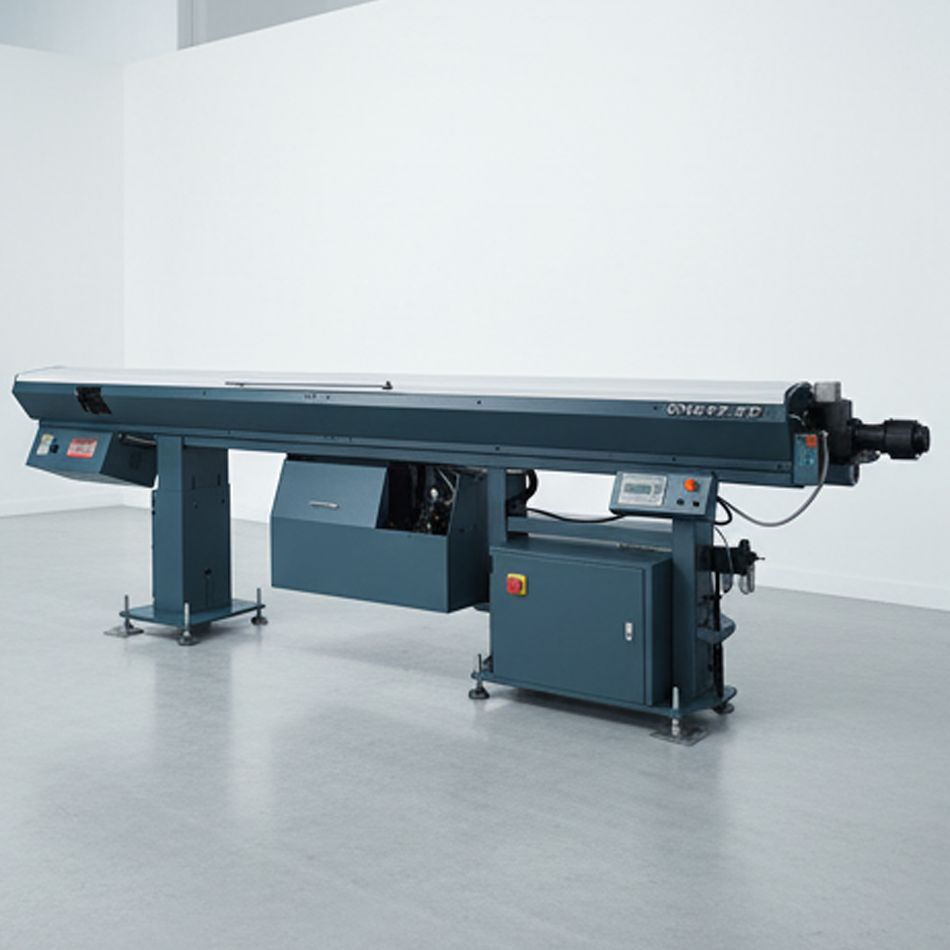

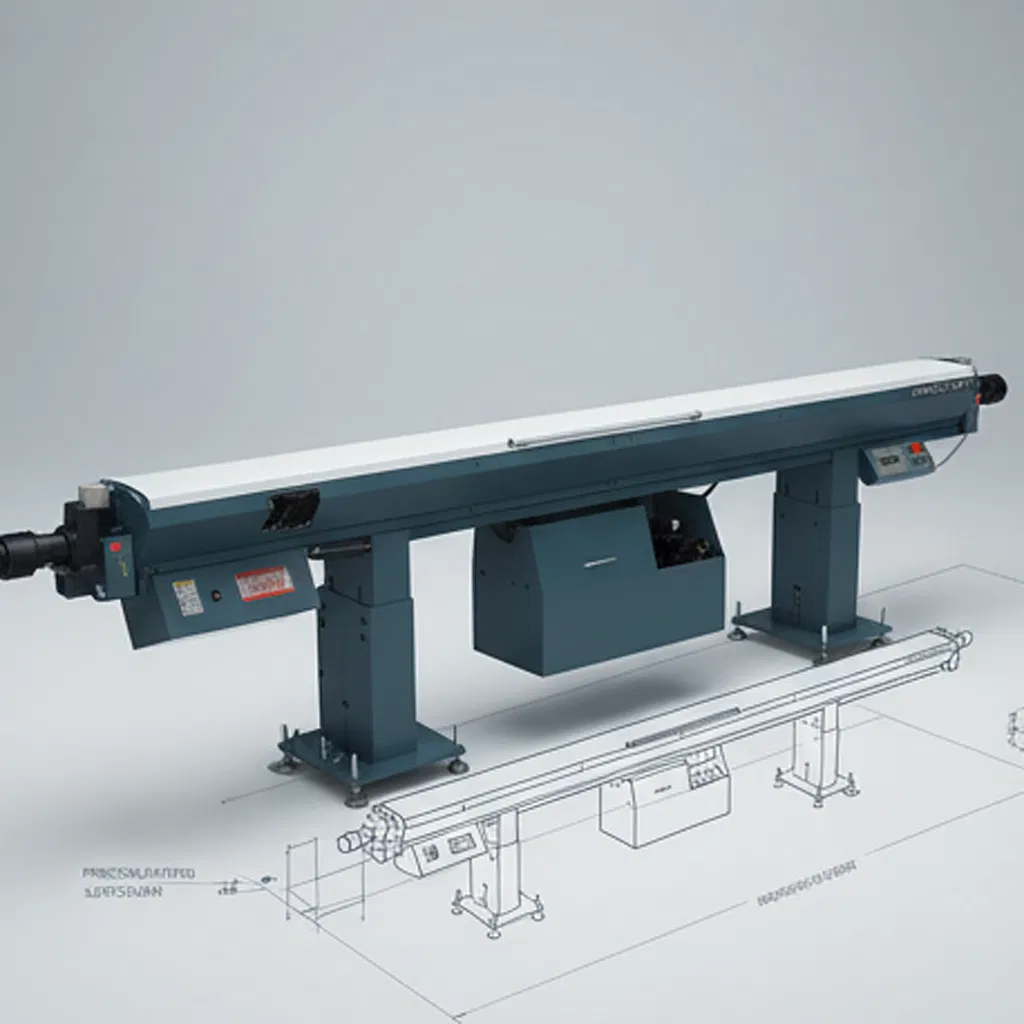

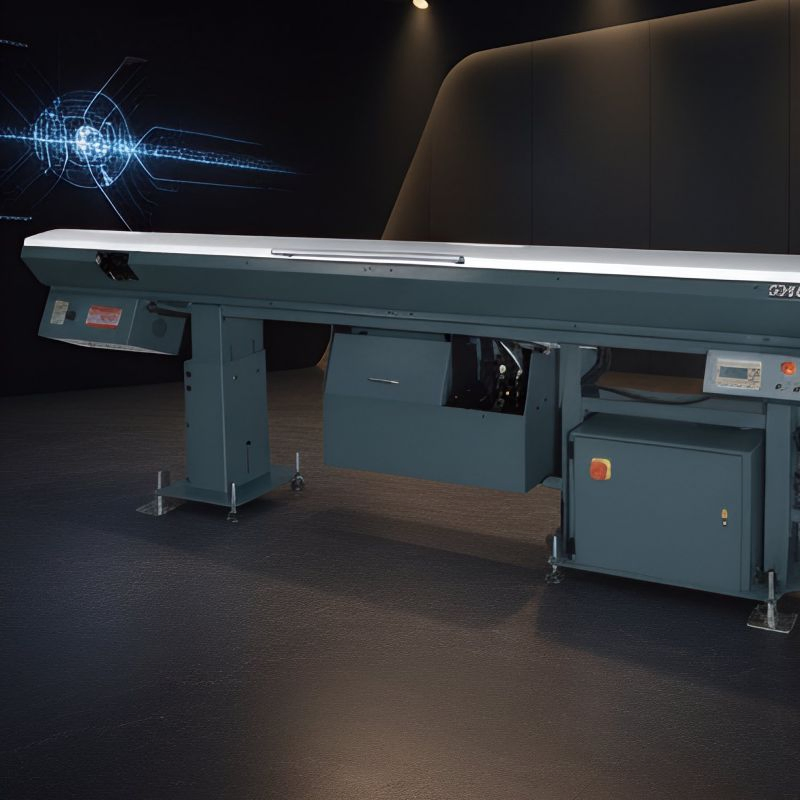

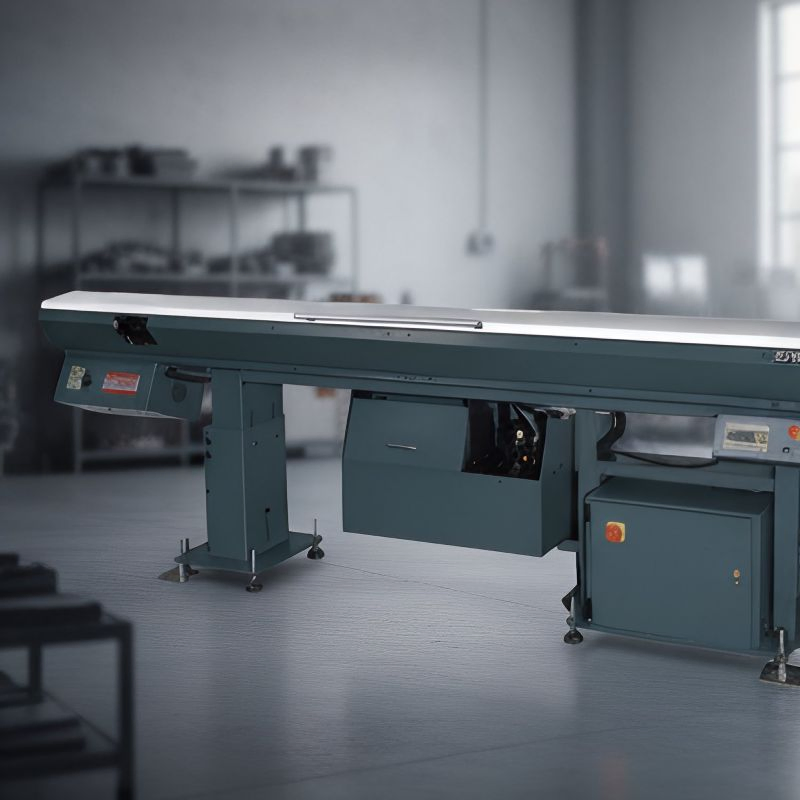

Precision CNC Lathe Bar Feeder for High-Volume Production

1 / 5

Precision CNC Lathe Bar Feeder for High-Volume Production

After-sales Service:	One Year
Warranty:	1 Year
Logo Printing:	Can Be Customized

Send Inquiry

Product Description

Basic Information

Model NO.

LNS SN 551 S2

Size

Large

Type

Bar Feeder

Material

Metal

Certification

ISO 9001:2000

Weight (Kg)

880~1130

Diameter Range

5-51mm

Spindle Height

900~1195 mm

Condition

New

Origin

China

★

Product Description

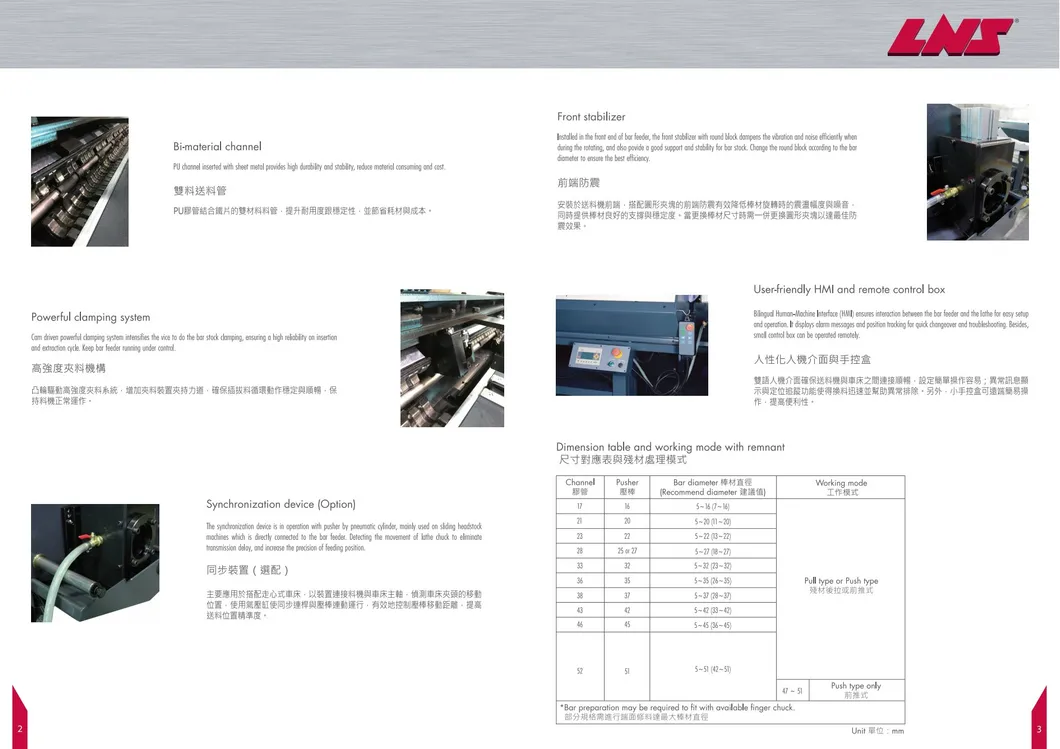

Product Advantages

1. BI-MATERIAL CHANNEL
PU channel inserted with sheet metal provides high durability and stability, reducing material consumption and cost.

2. POWERFUL CLAMPING SYSTEM
Cam driven powerful clamping system intensifies the vice to do the bar stock clamping, ensuring high reliability on insertion and extraction cycles.

3. SYNCHRONIZATION DEVICE (OPTION)
Operated with pusher by pneumatic cylinder, mainly used on sliding headstock machines. Detects lathe chuck movement to eliminate transmission delay and increase feeding precision.

4. USER-FRIENDLY HMI AND REMOTE CONTROL BOX
Bilingual Human-Machine Interface (HMI) ensures interaction between the bar feeder and the lathe for easy setup. Displays alarm messages and position tracking.

5. FRONT STABILIZER
Installed in the front end, it dampens vibration and noise efficiently during rotation, providing excellent support and stability for bar stock.

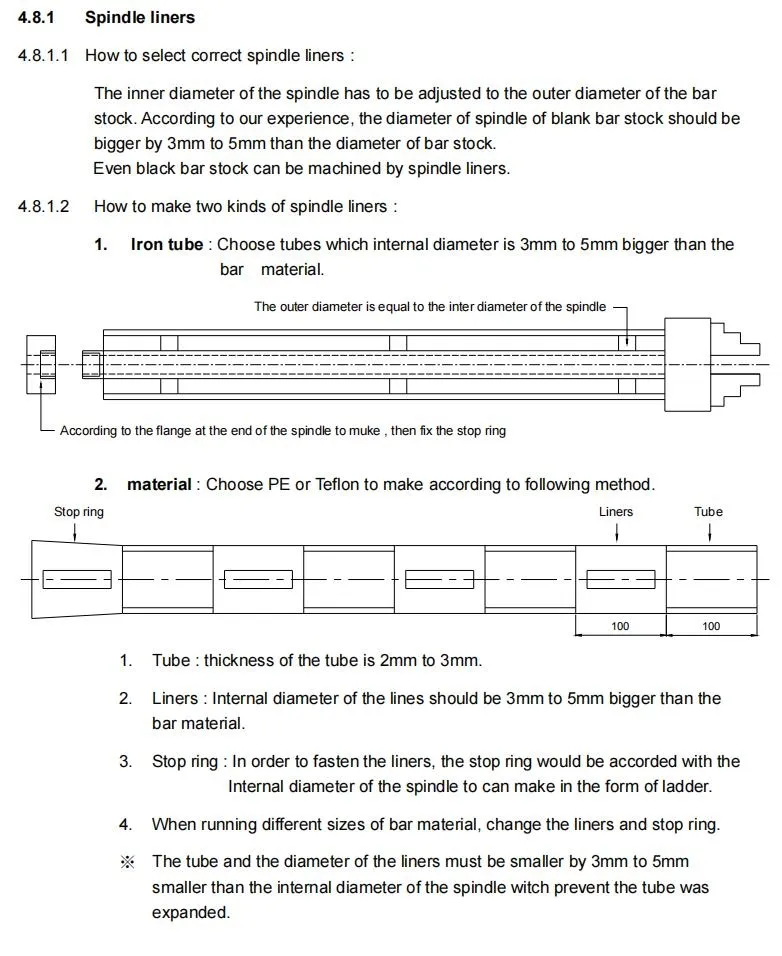

How to choose the right spindle bushing?

⚙

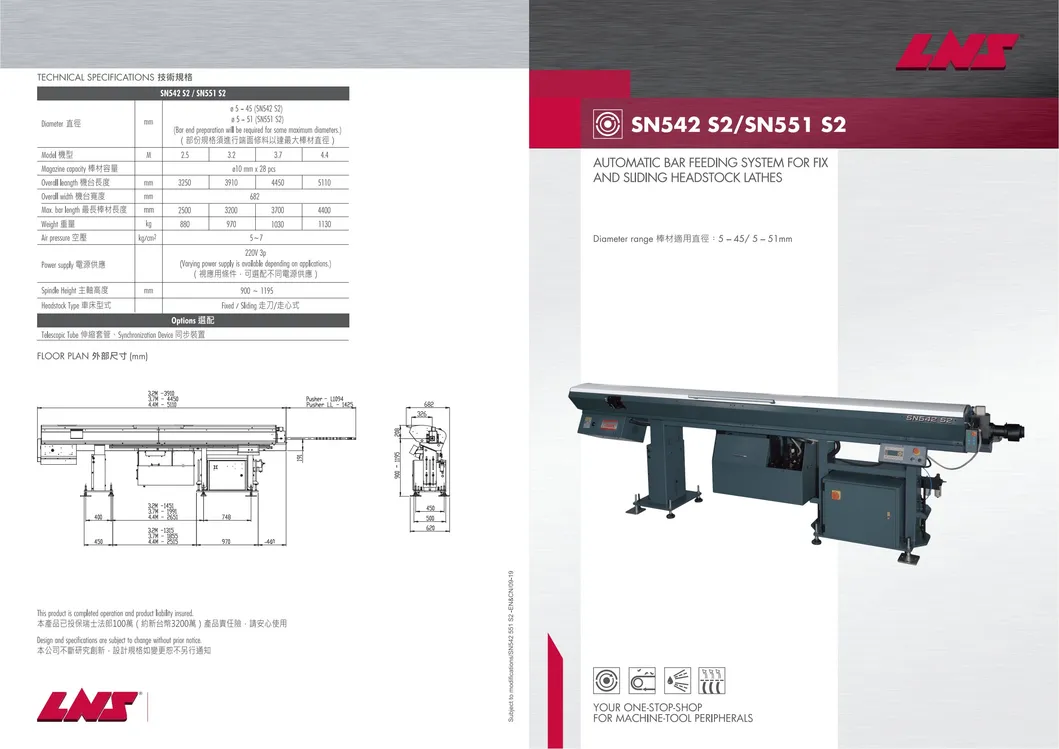

Technical Specifications

SN542 S2 / SN551 S2
Diameter (mm)	φ 5 - 45 (SN542 S2) / φ 5 - 51 (SN551 S2)
Model M	2.5	3.2	3.7	4.4
Max. Bar Length (mm)	2500	3200	3700	4400
Weight (kg)	880	970	1030	1130
Magazine Capacity	φ10 mm x 28 pcs
Air Pressure	5~7 kg/cm²
Power Supply	220V 3p (Varying options available)
Spindle Height	900 ~ 1195 mm

✔
