Efficient CNC Lathe Turning Service for High-Volume Production Needs

i

Overview & Basic Info

Model NO.:TCK50A

Application:Metal

Movement Method:Linear Control

Control Method:CNC Control

Numerical Control:CNC/MNC

Processing Precision:0.01~0.02(mm)

Certification:CE, ISO 9001

Condition:New

Origin:China

Production Capacity:300

✔

Product Description

Introducing the TCK Series High Precision CNC Turning Center Slant Bed: a semi-closed, slant-bed turning and milling marvel equipped with X, Y, Z, and C axes servo control. Its compact, rational design ensures a perfect blend of functionality and space efficiency. The spindle (C axis), driven by a powerful servo motor, effortlessly handles the turning of outer circles, end surfaces, and threads across various materials, including shafts and discs. Experience unparalleled versatility with radial and axial surface milling and drilling capabilities, making it an ideal choice for the efficient machining of small parts.

Stability & Precision: The inclined guide rail is innovatively designed to counteract gravity, offering enhanced stability and elevating the precision of the machine tool to new heights.

Efficiency: The inclined machine tool design maximizes space utilization, significantly reducing the footprint of the machine, thus achieving remarkable efficiency.

Auto-Cleaning: The inclined guide rail also streamlines the process of iron chip collection, directing them efficiently to the chip conveyor for automatic removal.

⚙

Product Parameters

Specifications	Units	TCK50A/500	TCK50A/800
Max. Swing over bed	mm	560	560
Swing over cross slide	mm	260	260
Distance between center	mm	500	800
Max. turning length	mm	500	800
Spindle end type	-	A2-6	A2-8
Spindle through hole diameter	mm	Φ66	Φ86
Hydraulic chuck	inch	10	10
Rail form	-	Linear Guides	Linear Guides
Spindle limit speed	rpm	3000	3000
Tool post/Turret Position	Pos	8	8
Main motor power	KW	11	15
Dimensions (L×W×H)	mm	270020002000	330020002000

📷

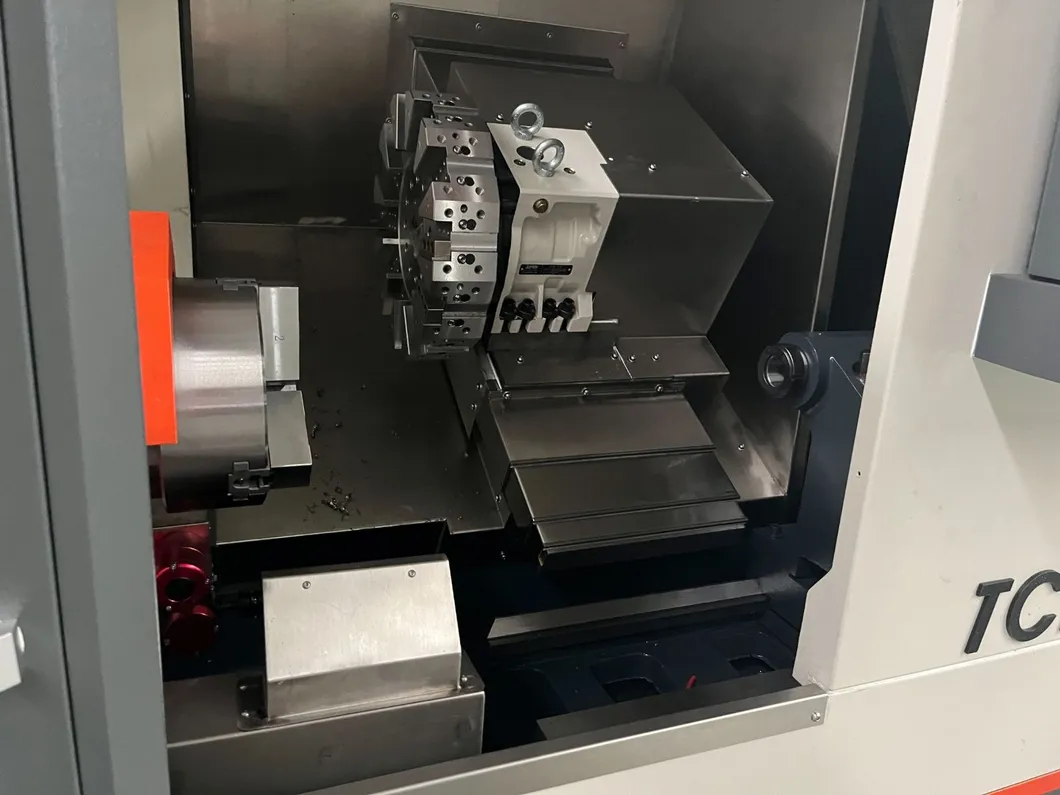

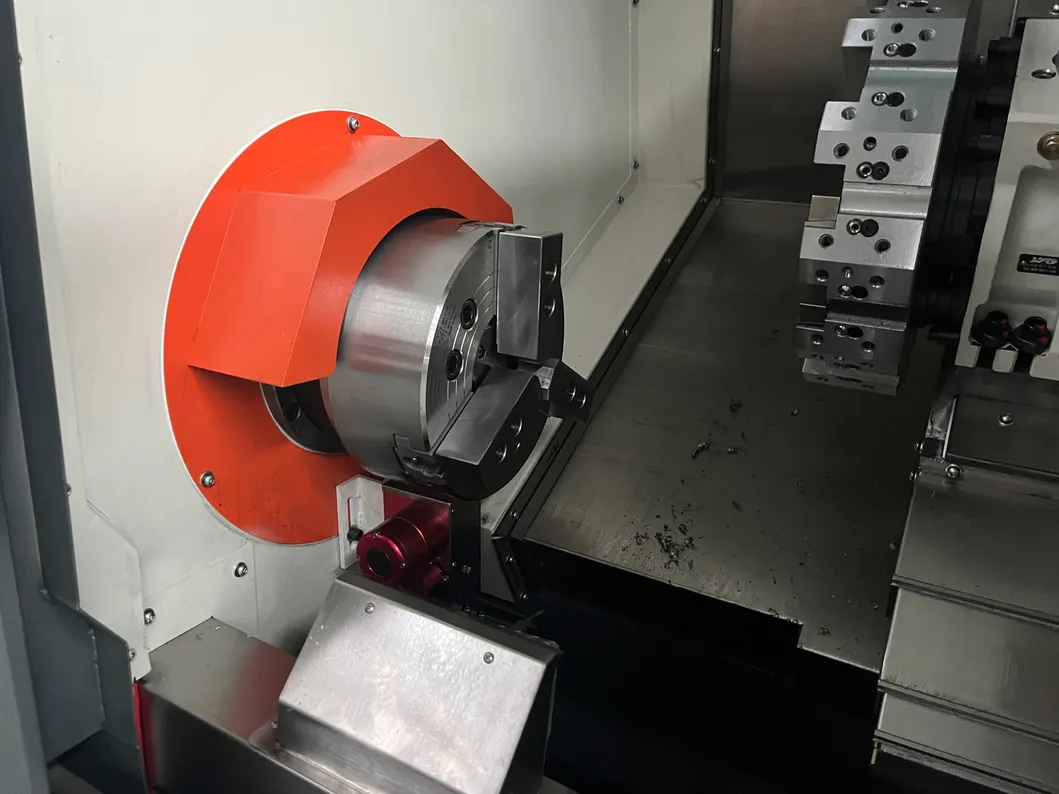

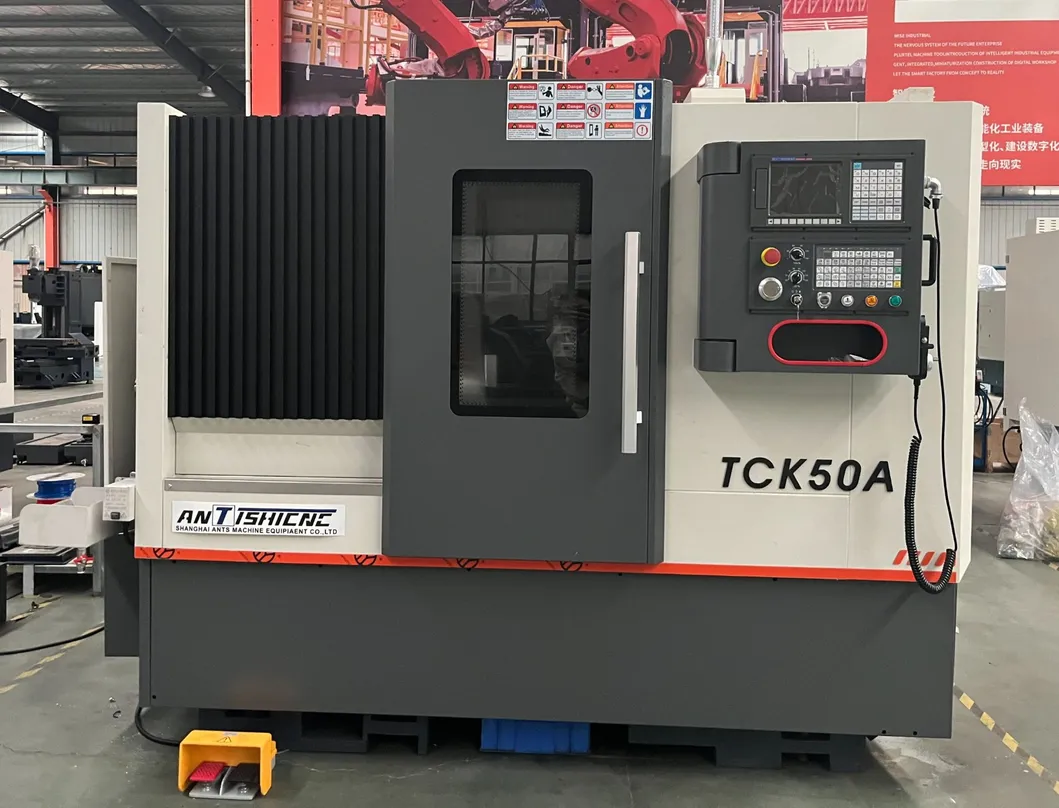

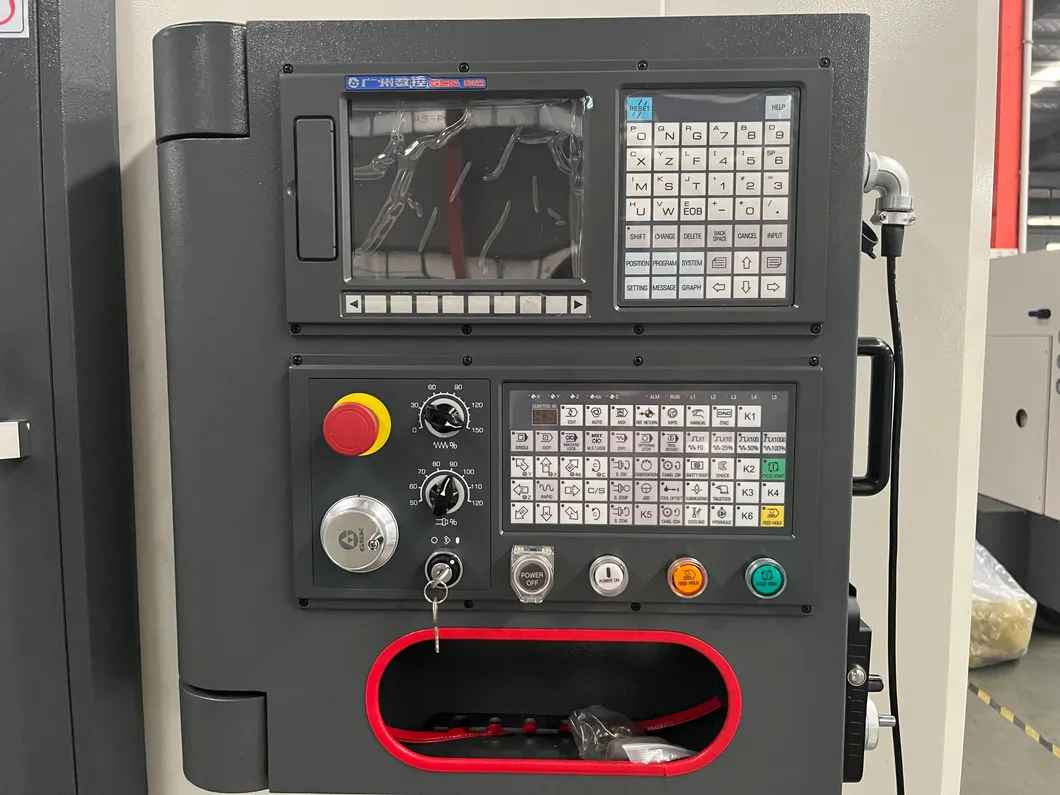

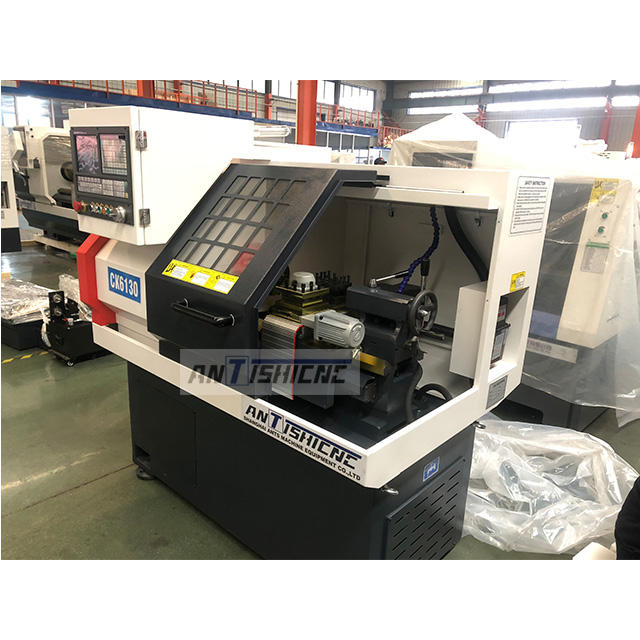

Detailed Photos

🏢

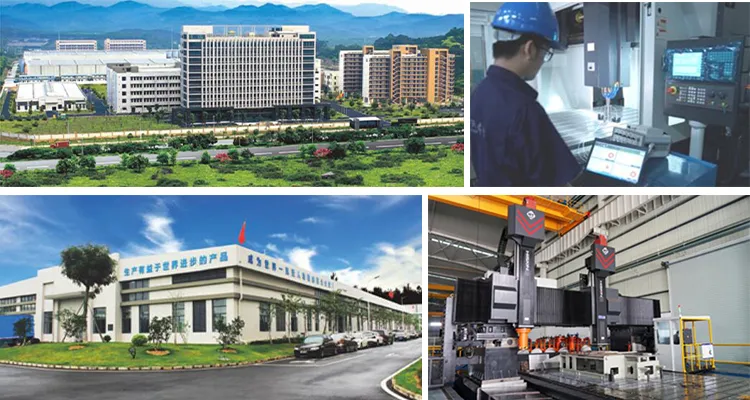

Company Capability

This industrial machine expert stands as a leading bastion of industrial lathe machinery and tooling machines in China. We are steadfast in our commitment to presenting the finest Chinese manufacturing equipment to the global stage. Our vision is to embody a brand synonymous with absolute trust and unwavering reliability for our customers.

Mission: Presenting top-tier Chinese manufacturing equipment globally.

Values: Service, Integrity, Professionalism, and Focus.

With an impressive annual sales volume, including grinding machines, lathe machines, and saw machines, we have acquired the expertise and excellence to stand tall among global competitors. Our professional international sales team facilitates seamless order fulfillment to approximately 30 countries and numerous regions worldwide.

?

Frequently Asked Questions

Q1: What is the processing precision of the TCK50A CNC lathe? A: The machine offers high precision with a range of 0.01 to 0.02 mm, suitable for high-quality metal components.

Q2: What are the main benefits of the slant bed design? A: The slant bed counteracts gravity for better stability, optimizes space efficiency, and allows for automatic chip removal.

Q3: Can this machine handle milling as well as turning? A: Yes, it is a turning and milling center equipped with X, Y, Z, and C axes servo control for versatile machining.

Q4: What certifications does the equipment hold? A: Our CNC machine tools are fully certified with CE and ISO 9001 standards.

Q5: How many tool positions are available on the turret? A: The standard configuration includes an 8-position tool post/turret for efficient tool changes.

Q6: What materials is the TCK Series suitable for? A: It is primarily designed for metal processing, including various materials for shafts and disc-shaped parts.
