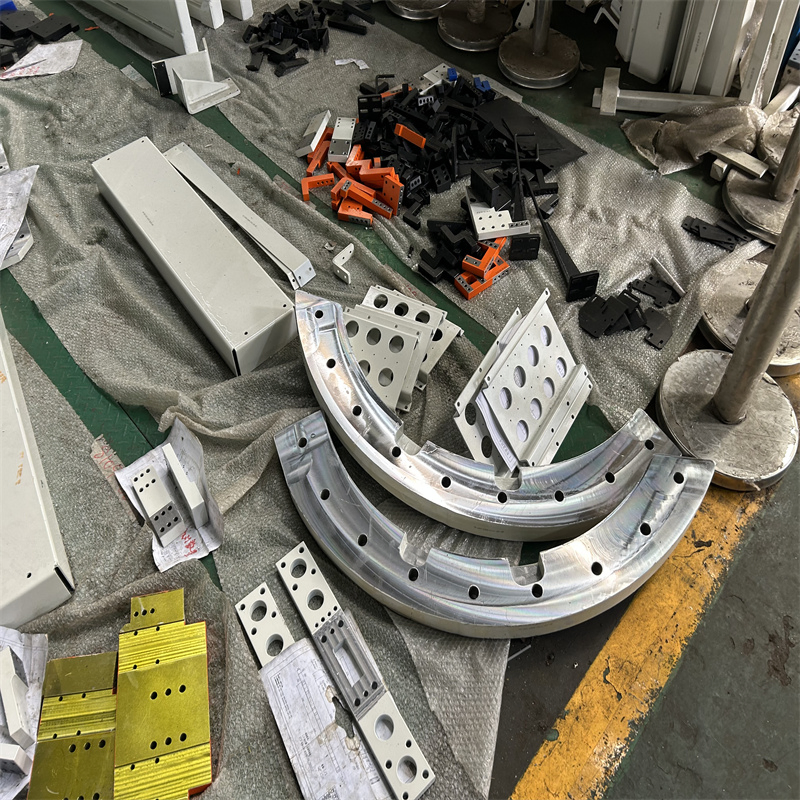

CNC-Machined Welding Jig for Vehicle Floor Pan & Roof Panel Assembly

Product Overview of Automotive Welding Jigs and Fixture

Car door welding jigs and fixtures are the key process equipment for precise positioning, clamping, and welding of body parts in the automotive manufacturing process. With high precision, high stability, and modular design, our welding fixtures are widely used in the welding process of body assembly, chassis, doors, bonnets, and other core components, helping achieve high efficiency, high quality, and low consumption of intelligent manufacturing.

Core Composition:

• Base frame: High-strength steel or aluminium alloy, heat-treated and precision-machined.
• Positioning unit: Pins, jaws, V-block, etc., achieving ±0.05mm repeatable accuracy.
• Clamping mechanism: Pneumatic/hydraulic drive with self-locking devices for stable force.
• Quick mold change: Modular design supports rapid production line adjustment.
• Safety devices: Integrated sensors and intelligent alarms for real-time monitoring.

• Precise positioning: Adopting 3D simulation design for zero deviation.
• High-efficiency: Multi-station synchronous clamping; efficiency increased by >30%.
• Durable: Surface-hardened components with a lifespan of >100,000 cycles.
• Flexible: Matches fuel, new energy, and commercial vehicle models.
• Cost optimization: Reduces maintenance and downtime, saving 15%-20% overall cost.

KD Parts Supply: Self-produced stamping and auto parts with production process guidance. Access to ready-made molds for thousands of components.

Technical Guidance: Customized equipment suggestions based on production plans and local labor costs to realize automotive manufacturing goals.

Specializing in the design and building of automotive fixtures and welding automation systems. Skilled in precision machining for whole vehicle cubing, arc welding fixtures, spot welding workstations, and fixtures for doors, roofs, and bumpers.

Developing modular electric platforms specifically engineered to maximize interior space and customizable use, catering to diverse consumer and business needs globally.
