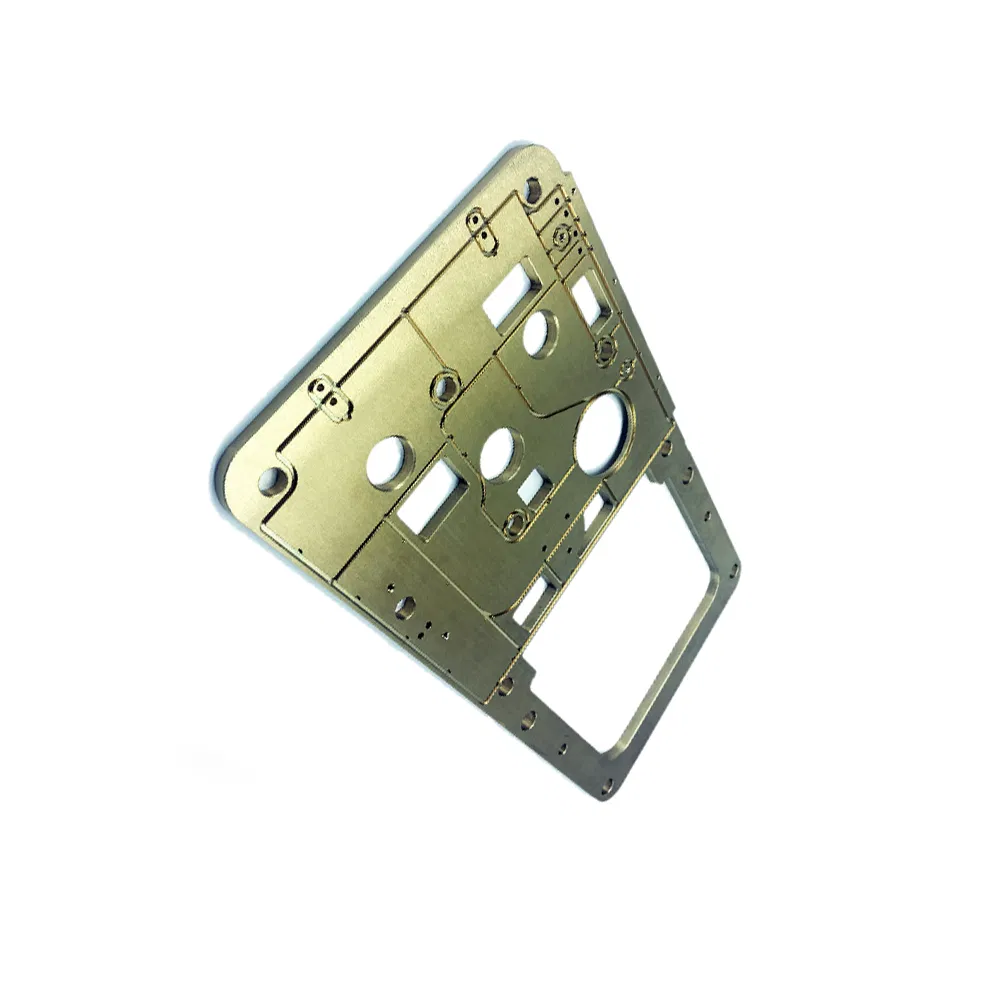

CNC Milled Aluminum Fixtures Jigs  3D Scanning & Reverse Engineering Services Included

1 / 5

CNC Milled Aluminum Fixtures Jigs 3D Scanning & Reverse Engineering Services Included

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.	hhmx098
Surface Treatment	Polishing
Production Type	Custom Production
Machining Method	CNC Machining
Material	Nylon, Steel, Plastic, Brass, Alloy, Copper, Aluminum, Iron, As Drawing
Tolerance	±0.001mm
Standards	IATF 16949:2016, ISO 9001, ISO 14001
Available Colors	Black, Silver, Blue, Gray (Anodized), Natural
Production Capacity	900,000 pieces/Day
Package Size	10.00cm * 10.00cm * 10.00cm

Service Profile

Specializing in custom non-standard metal parts, we provide comprehensive solutions including CNC machining, MIM, PM, prototyping, and surface finishing. Our precision-engineered parts are widely applied in automotive, medical, electronics, and telecom industries.

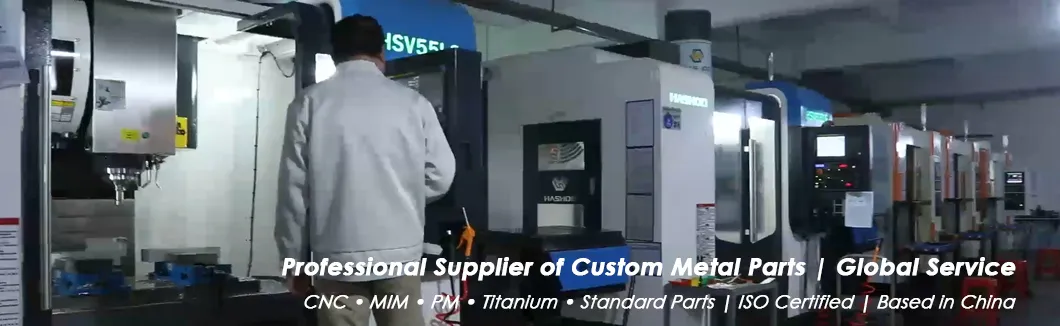

Equipped with advanced 5-axis CNC machines, CMMs, and automated inspection systems, we prioritize quality, reliable delivery, and efficient service to partners across Europe, Asia, and the Americas.

Our Strengths

★

One-stop manufacturing: From raw material to machining, finishing, and assembly—all in-house to reduce cost and lead time.

★

Precision Machining: 5-axis machines and high-speed CNCs with tolerances up to ±0.005mm.

★

Customization Expert: Specialized in non-standard parts, complex geometries, and low-volume production.

★

Strict Quality Control: Full-process QC with COC, RoHS, and CMM reports available.

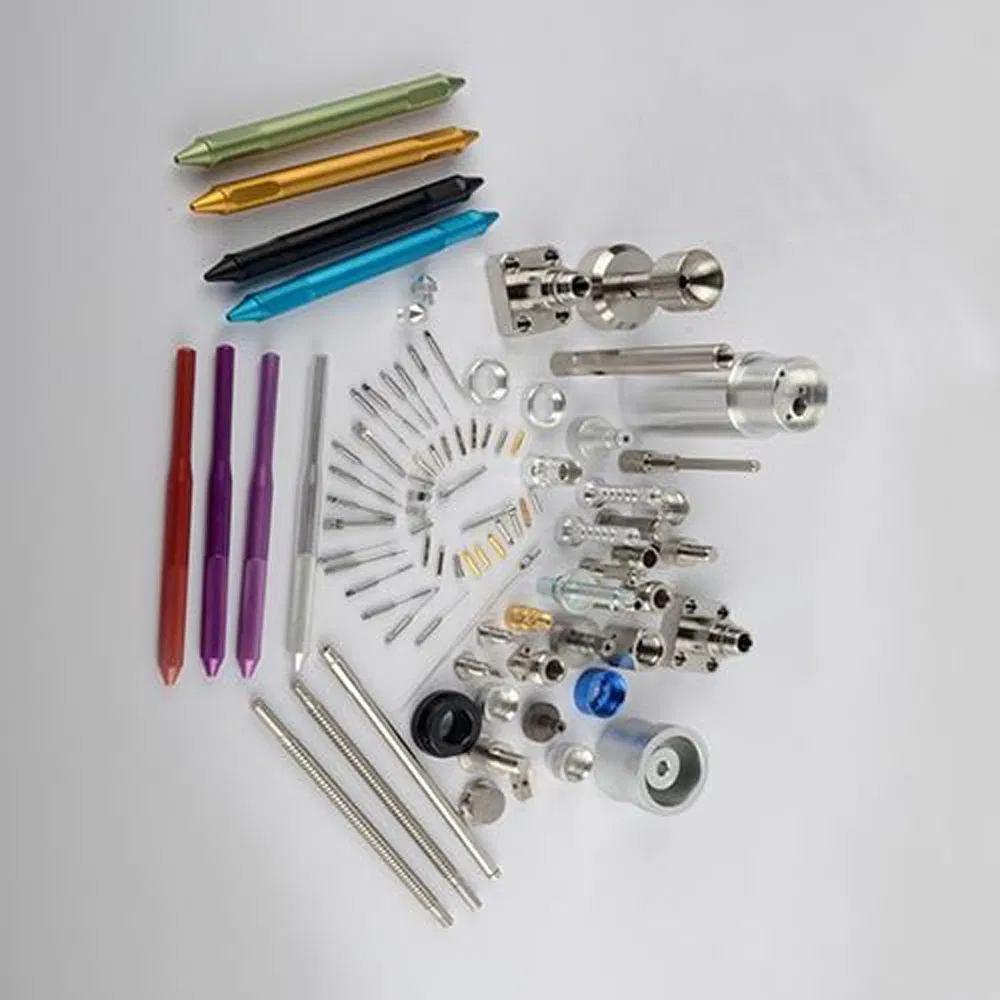

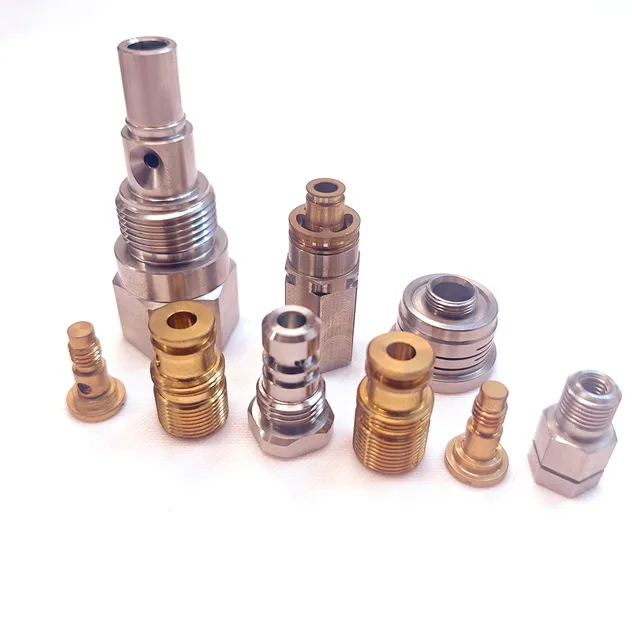

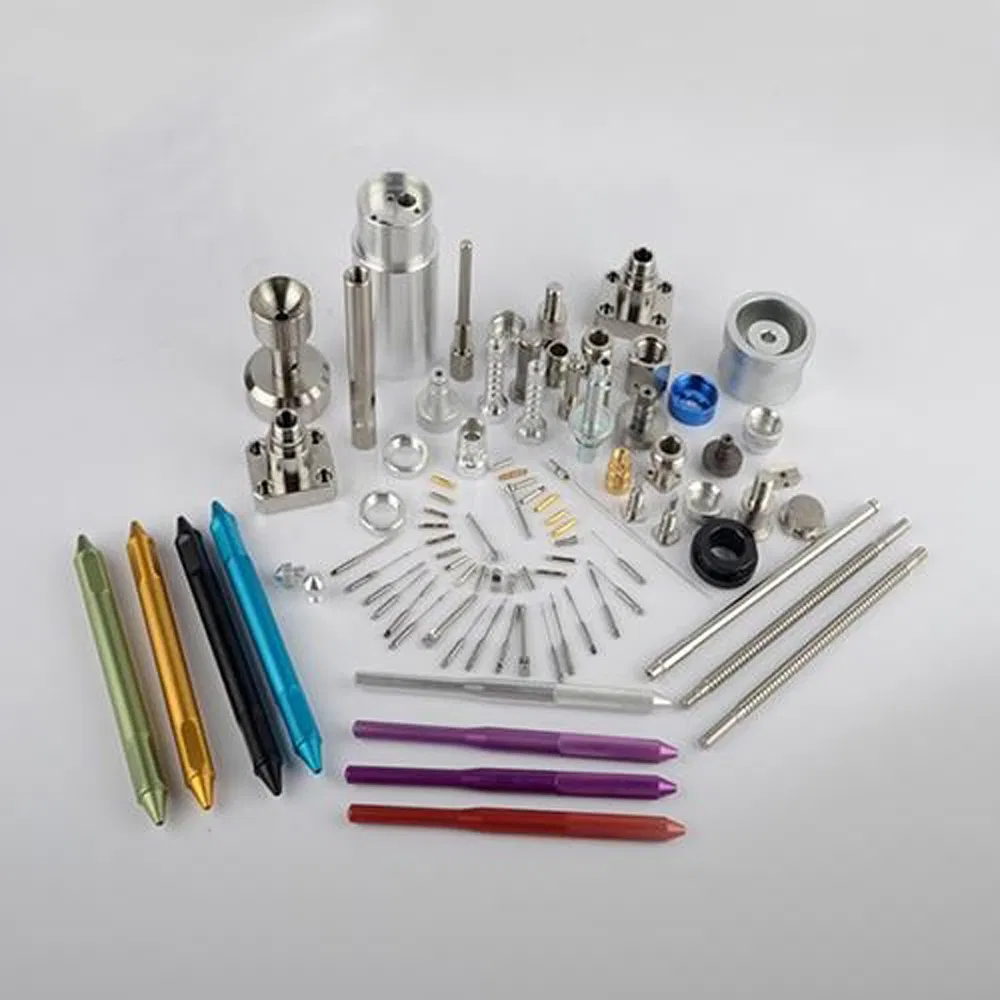

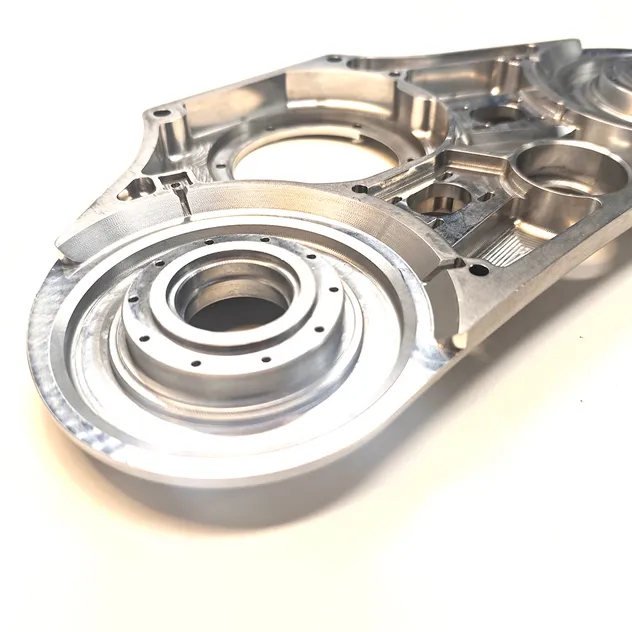

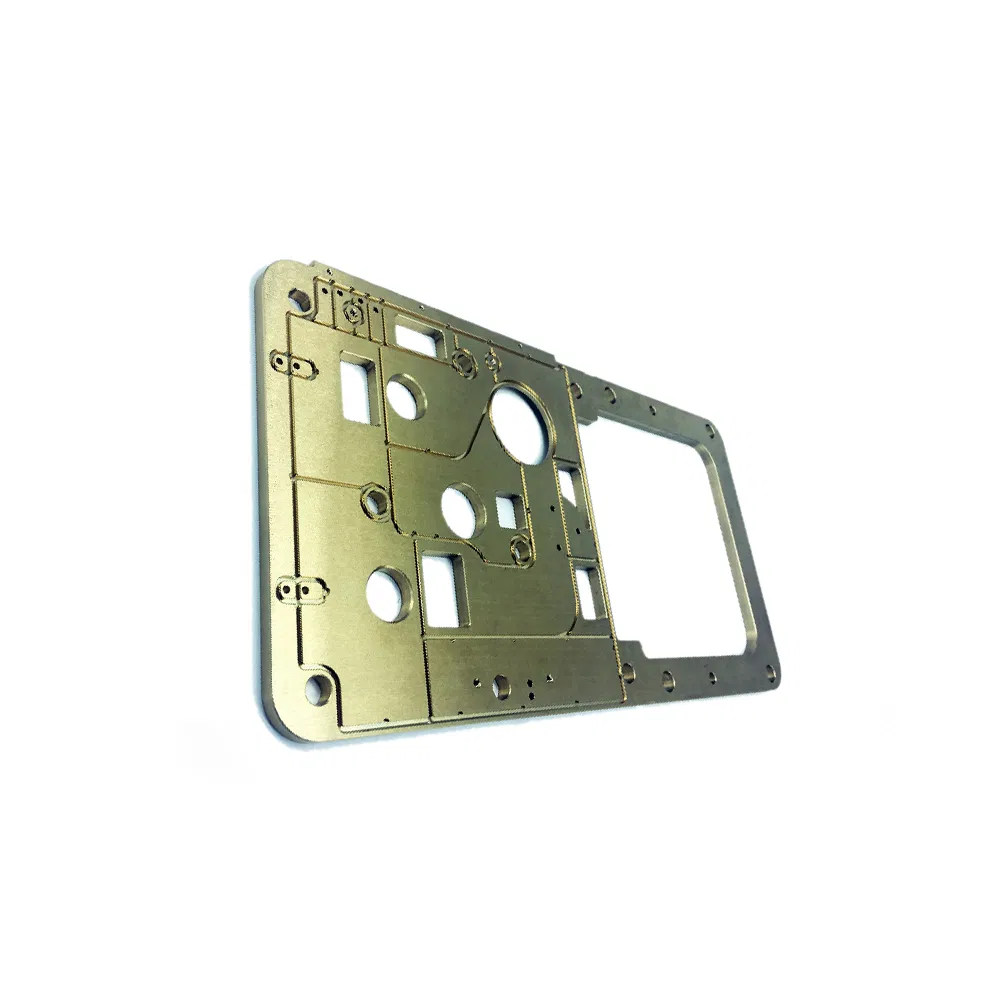

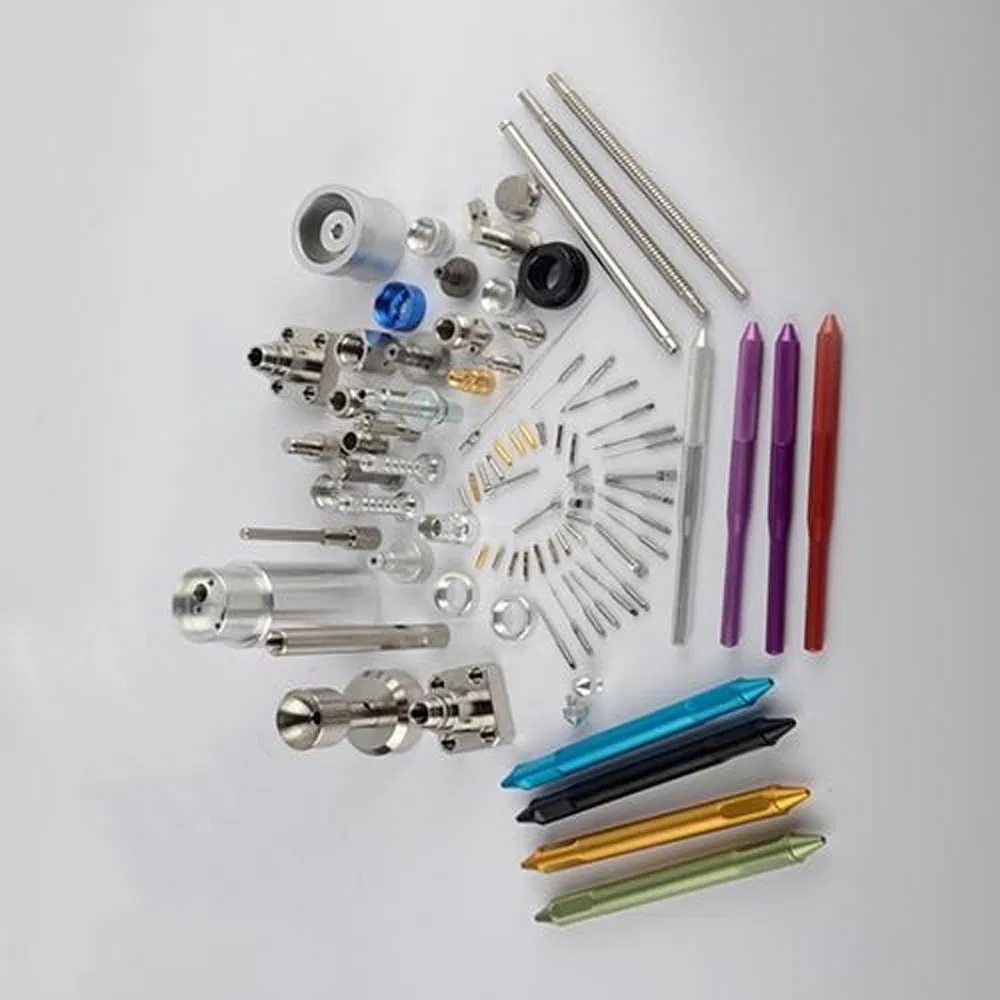

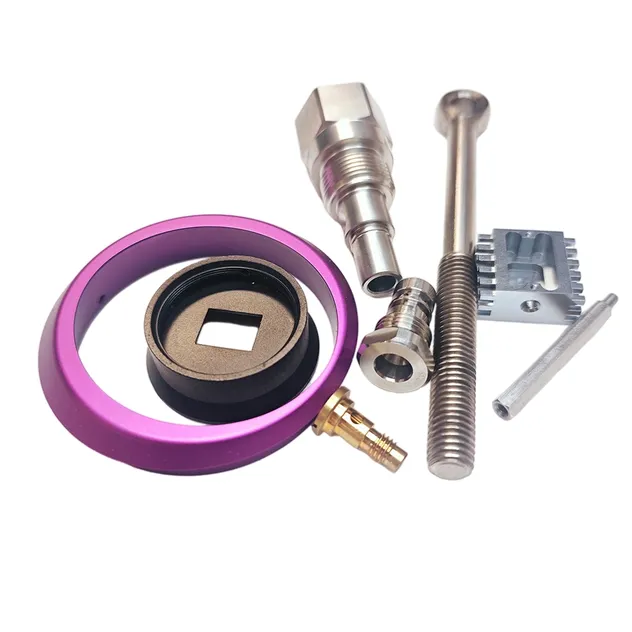

Sample Showcase

Manufacturing Capabilities

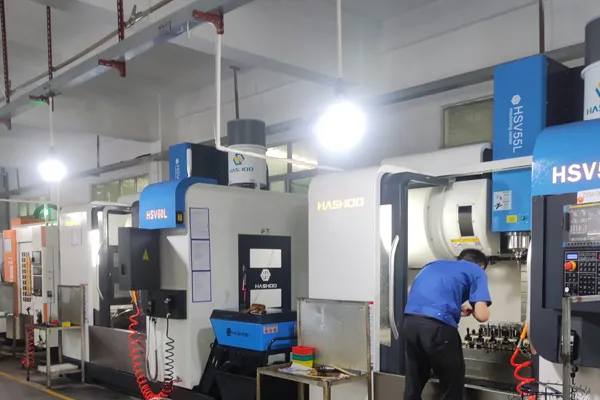

CNC Machining

3-, 4-, and 5-axis capabilities for high-precision machining of complex geometries with tolerances up to ±0.005mm. Materials include titanium, stainless steel, aluminum, and copper alloys.

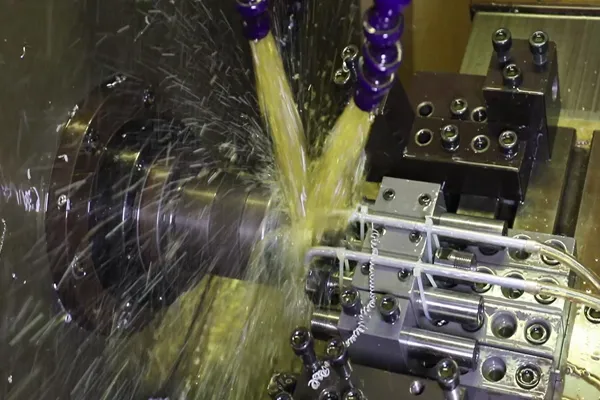

Turning & Milling

Equipped with high-speed CNC lathes for precision small-diameter shafts, threads, and structural components used in instrumentation and medical devices.

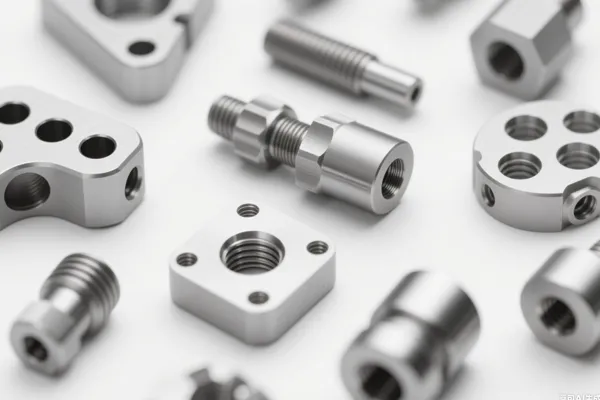

Rapid Prototyping

Sample delivery in 1–3 days to accelerate R&D. We support low-volume orders with strict confidentiality for all customer drawings.

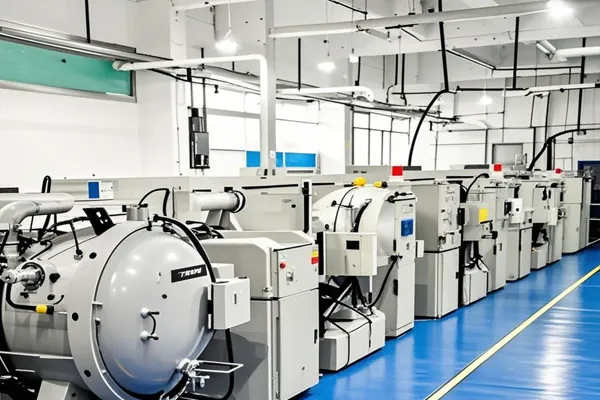

Metal Injection Molding (MIM)

Combining metal powder with binders for complex, high-precision small parts in stainless steel and titanium alloys.

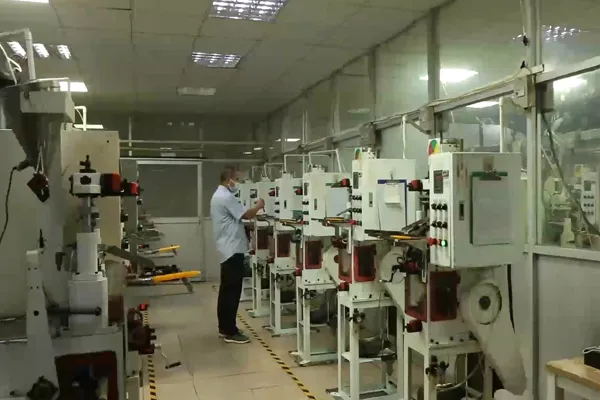

Powder Metallurgy (PM)

High-volume production for cost-sensitive structural parts like gears, sliders, and worm wheels with high consistency.

Surface Finishing

Full-range treatments: anodizing, plating, sandblasting, polishing, and passivation to meet aesthetic and functional needs.

Quality & Project Management

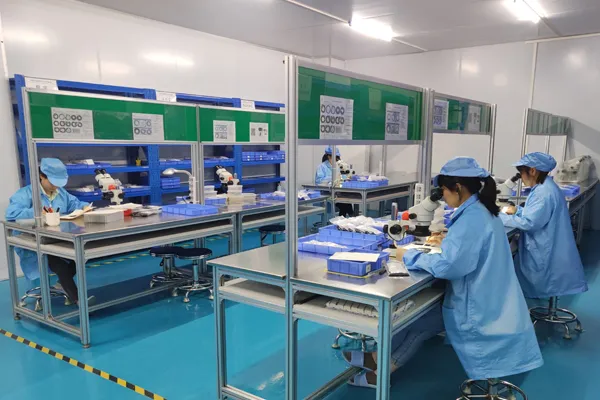

Strict Quality Control

IATF 16949 / ISO 9001 Certified System

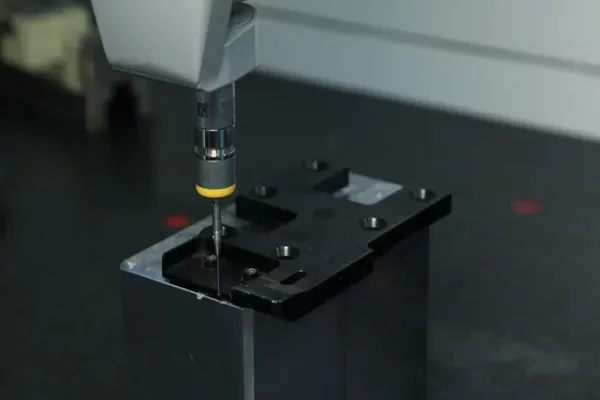

Equipment: CMM, Projector, Salt Spray Tester
Reports: FAI, Dimension Reports, RoHS/REACH
100% inspection on key dimensions

Professional Support

ERP system for real-time order tracking
Dedicated project managers for end-to-end support
PPAP, MSA, and FMEA documentation
Design optimization and manufacturing feedback

Packaging & Shipping

Packaging Details: Custom protective solutions including foam inserts, vacuum bags, and export-standard wooden crates. All products include clear part numbers and QR tracking if required.

Shipping Options: Global delivery via DHL, FedEx, UPS, air freight, or sea freight. Most orders are dispatched within 3–7 working days after final inspection.

Data Security & Quotes

NDA & Compliance

We strictly protect intellectual property through mutual NDAs and encrypted data management. Drawings are only accessible to assigned project teams.

Fast Quote Process

Accepted formats: PDF, STP, STEP, IGES, DWG. Quotes are typically provided within 24-48 hours depending on complexity.

Frequently Asked Questions

Q1: What materials can you process with CNC machining?

A: We work with a wide range of materials including Aluminum, Stainless Steel, Steel alloys, Brass, Copper, Titanium, and various plastics like Nylon.

Q2: What is your typical lead time for prototype samples?

A: Our rapid prototyping service can deliver high-quality samples in as little as 1 to 3 working days.

Q3: Do you provide quality certification for parts?

A: Yes, we are IATF 16949 and ISO 9001 certified. We provide CMM dimension reports, FAI, and RoHS/REACH certificates upon request.

Q4: Can you handle low-volume production?

A: Absolutely. We specialize in both rapid prototyping and small-to-medium batch production for custom metal components.

Q5: How do you ensure the safety of my intellectual property?

A: We offer mutual Non-Disclosure Agreements (NDA) and use encrypted systems to ensure your drawings and data remain confidential.

Q6: What surface treatments are available?

A: We offer anodizing, plating, sandblasting, polishing, passivation, and custom coatings to meet your aesthetic and corrosion resistance requirements.
