Heavy Duty Vertical CNC Lathe for High Volume Production

1 / 5

Heavy Duty Vertical CNC Lathe for High Volume Production

Customization:	Available
After-sales Service:	on Site / Online
Warranty:	1 Year

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

H-VL

Type

Vertical Lathe

Controlling Mode

CNC

Automatic Grade

Automatic

Precision

Certification

GS, CE, RoHS, ISO 9001

Core Advantage

Heavy Duty, Customized, High Rigidity, High Torque

Function

Metal Turning

Product Description

Expertly Professional Manufacturer: Specializing in cutting-edge metal turning vertical CNC lathe machines, delivering precision and innovation in every product. Our solutions are precision-engineered to yield innovative results that meet and exceed expectations.

Key Technology Highlights

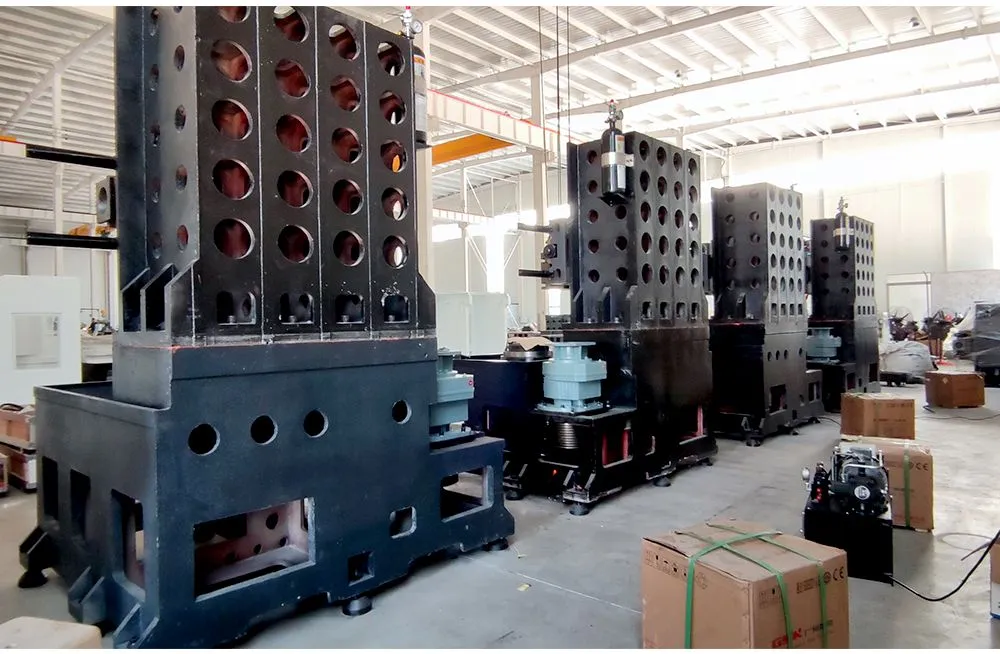

Robust and Rigid Bed Design: Integral casting process fortified by rib structures and high-precision 3+2 heavy-duty cylindrical roller screw guide rails for unparalleled anti-deformation.
High-Torque Intelligent Drive System: Customizable high-torque servo motors delivering low-speed cutting torque of 3000N·m for materials like titanium alloy.
Intelligent Production Module: Features automatic tool setting, breakage detection, and cloud data management for 24-hour unmanned production.

Product Parameters

MODEL	SWING DIAMETER (mm)	TURNING DIAMETER (mm)	WORKPIECE LENGTH (mm)
H-VL700	770	700	650/750
H-VL850	920	850	650/1000
H-VL1000	1100	1000	800/1200

Technical Specifications

ITEM	UNIT	H-VL700	H-VL850	H-VL1000
SPINDLE SPEED	RPM	50-1500	50-1500	30-800
X/Z AXIS STROKE	MM	580/650-750	580/650-1000	700/800-1200
POSITIONING ACCURACY	MM	0.008/0.01	0.008/0.01	0.008/0.01
SPINDLE POWER	KW	18.5	22	30
CHUCK SIZE	INCH	18/21/24	21/24/28	24/28/32

Detailed Photos & Customization

Tailored Customization Options

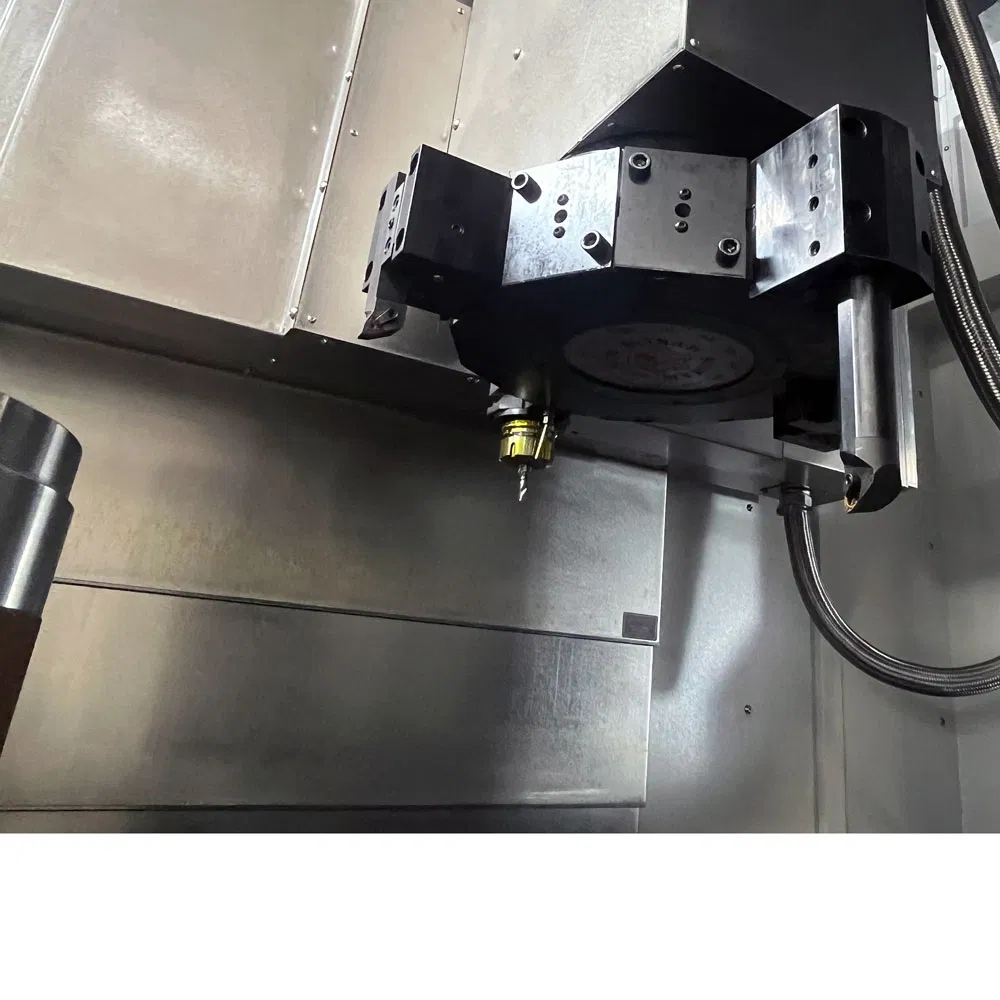

Tool Rest: Multi-turret, four-axis/five-axis linkage, or static pressure guide tool rests.
Automation: Automatic tool change systems (12-40 stations), robot integration (FANUC/KUKA).
Accuracy: Laser interferometer pitch compensation (±0.005mm/m) and online measurement probes.
CNC Systems: Basic (GSK/KND) or High-End (Siemens 828/840, Fanuc 0I-MF PLUS, Mitsubishi).

Quality Assurance & Manufacturing

Our facility is a beacon of innovation, recognized for crafting CNC machine tools tailored for double-sided processing. Empowered by a vast portfolio of technical patents, our expertise achieves unmatched precision in drilling, milling, and turning.

About Our Factory

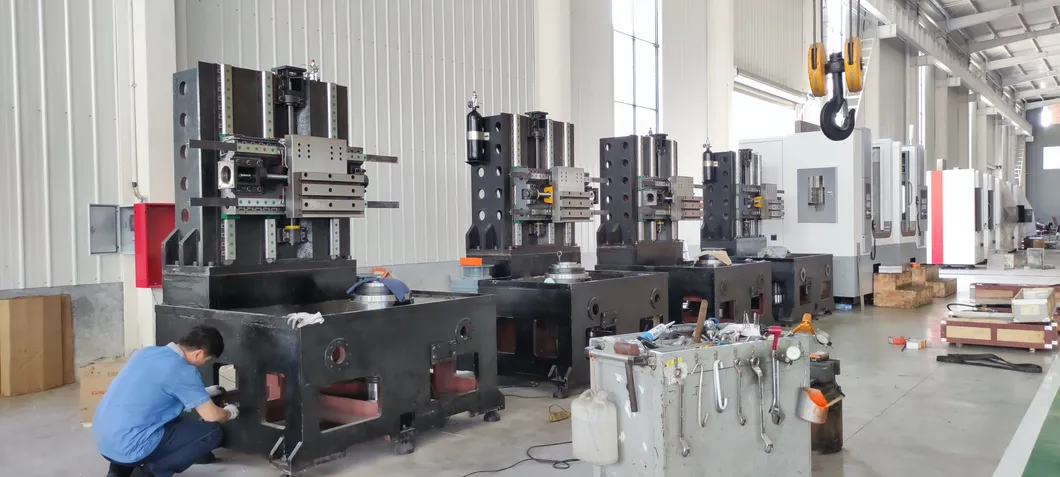

Established in 2011, our manufacturing center is a technology-centric hub dedicated to top-tier CNC machine tools. Spanning over 30,000 square meters of advanced workshops, we utilize gantry machining centers and high-precision measuring devices to ensure superior quality.

More Models Recommended

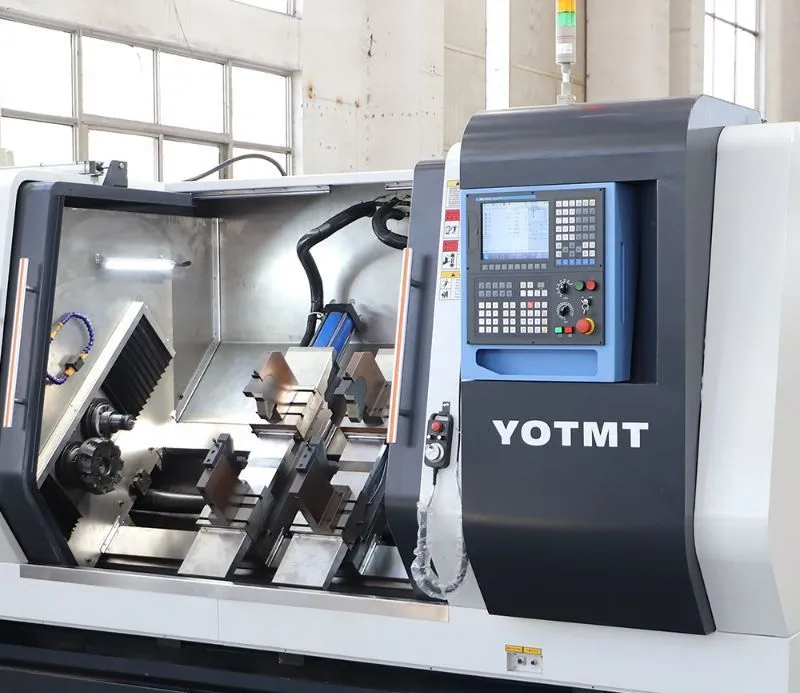

Elevate your manufacturing prowess with our Double Side Machining Centers and Facing and Centering Machines.

Frequently Asked Questions

1. What materials can the Heavy Duty Vertical CNC Lathe process? The machine is designed to handle high-strength materials including cemented carbide, titanium alloy, and other heavy-duty metals used in aerospace and shipbuilding.

2. What is the maximum cutting torque available? Equipped with high-torque servo motors, the system can deliver an astounding low-speed cutting torque of up to 3000N·m.

3. Does the machine support unmanned or automated production? Yes, with optional intelligent modules like automatic tool setting, tool breakage detection, and cloud data management, 24-hour unmanned production is supported.

4. Which CNC control systems are compatible? We offer a range of options from basic systems like GSK and KND to high-end solutions from Siemens (828/840), Fanuc (0I-MF PLUS), and Mitsubishi.

5. What industries typically use these vertical lathes? Our machines are widely used in shipbuilding, wind power energy, rail transportation, aerospace, and heavy machinery for processing large rotating or complex shaped parts.

6. Can the tool rest configuration be customized? Absolutely. Options include multi-turret configurations, side tool rests, and advanced four-axis or five-axis linkage tool rests for integrated milling and drilling.
