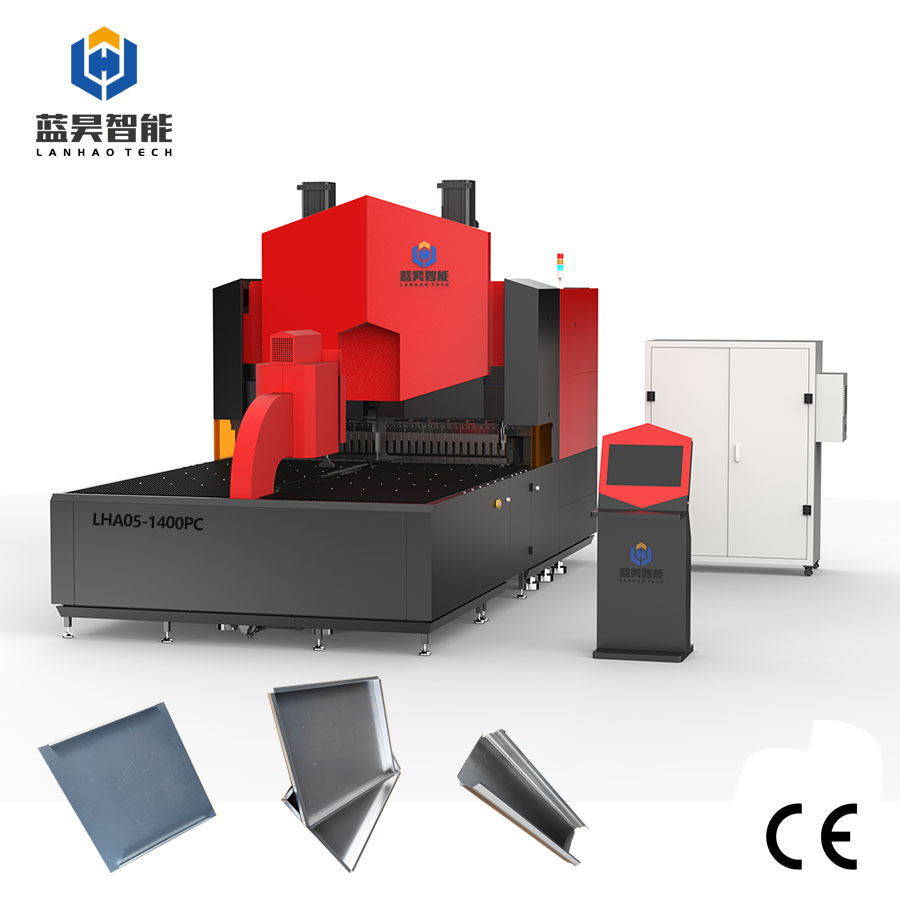

Lanhao Precision CNC Servo-Driven Panel Bender for High-Volume Sheet Metal Production

1 / 5

Lanhao Precision CNC Servo-Driven Panel Bender for High-Volume Sheet Metal Production

Customization:	Available
Waterproof Rating:	IPX-5
Warranty:	1-year

Send Inquiry

Product Description

◈

Basic Info & Overview

Model NO.:LHA-1400PC

Condition:New

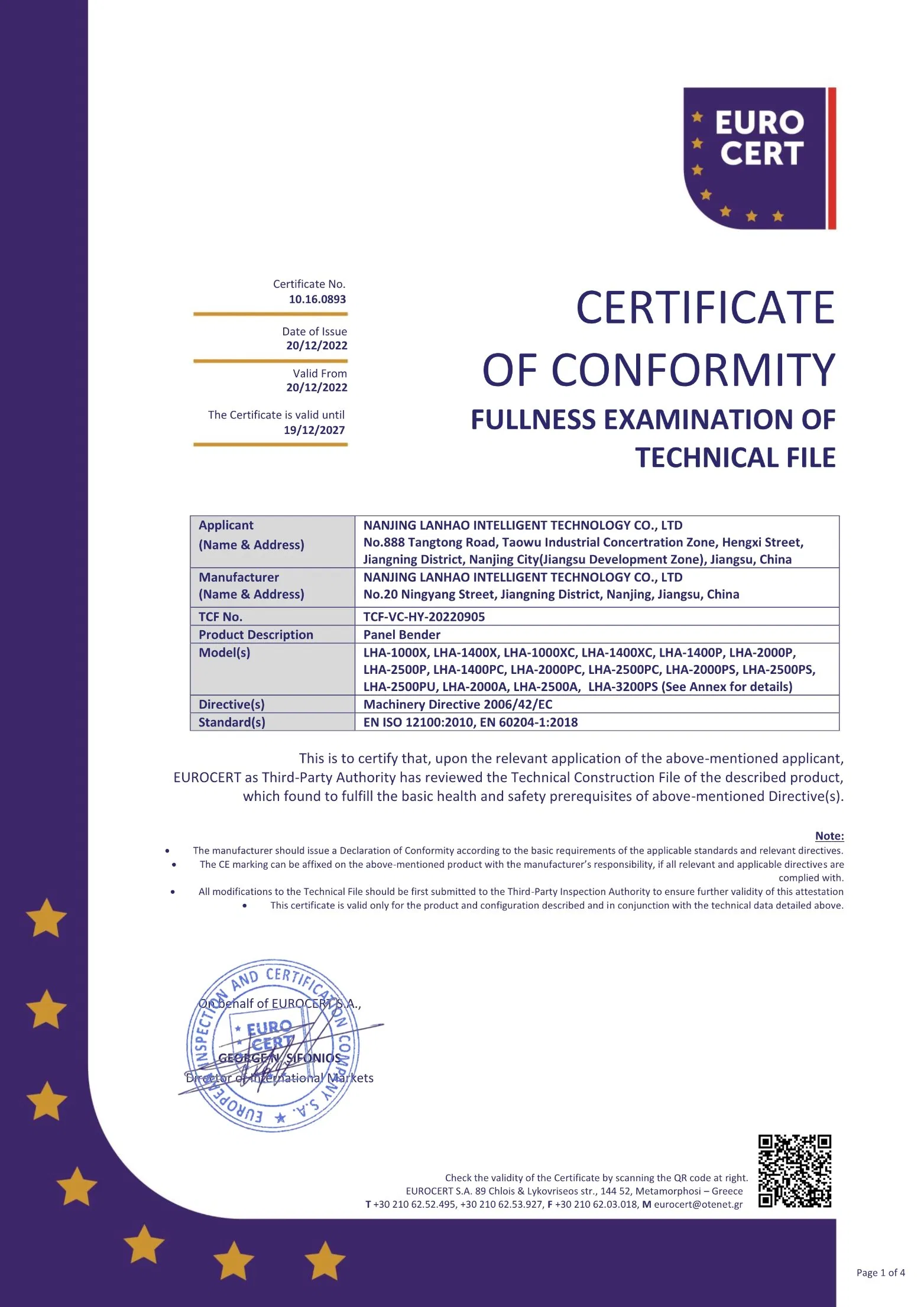

Certification:ISO 9001:2000, ISO 9001:2008, CE

Automation:Automatic

Suitable for:Aluminum, Carbon Steel, Stainless Steel

Type:CNC Bending Machine

Max. Bending Size:1400mm*1400mm

Max. Bending Thickness:3mm

Accuracy:0.001mm

HS Code:8462230000

Origin:China

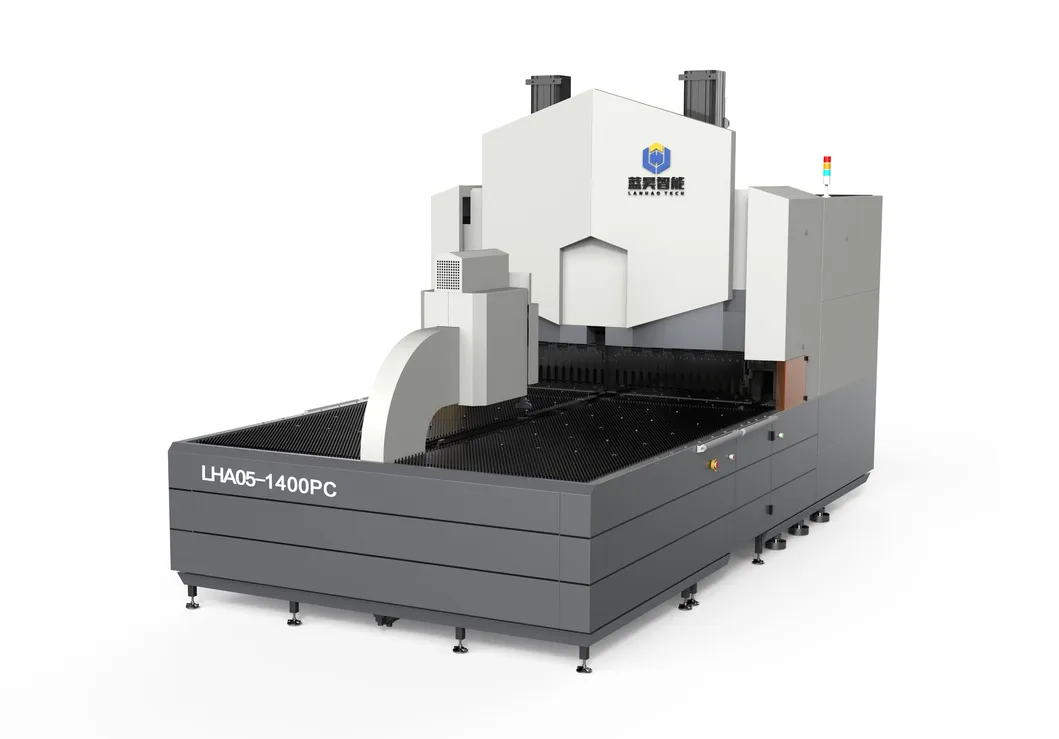

LHA05-PC series intelligent panel bender adopts pressing arm loading method, designed according to high-precision machine tool standards. Suitable for mesh, corrugated, hollow, and various flat or special-shaped workpieces. It features automatic reposition, oblique reposition, double C-axis rotation, and offers outstanding performance in stability and reliability.

⚙

Technical Parameters

LHA-1400PC-03 Technical Specifications
Feeding Structure	Pressing arm
Work Table Structure	Brush
System Minimum Accuracy	0.001mm
Max Bending Speed	0.2 second/time
Max Feeding Speed	90m/min
Max Bending Width	1400mm
Max Bending Size	L 1400mm x W 1400mm
Max Bending Height	170mm (300mm customizable)
Min Bending Height	3mm
Min Arc Radius	0.5mm
Motor Power	40KW
Average Power	About 1.9KW
Machine Weight	About 12 tons
Bending Thickness (Stainless)	1.5mm (304 Stainless Steel)
Bending Thickness (Cold Panel)	2.0mm
Bending Thickness (Aluminum)	3.0mm
Bending Angle	0-180 degree
Axis Count	15

★

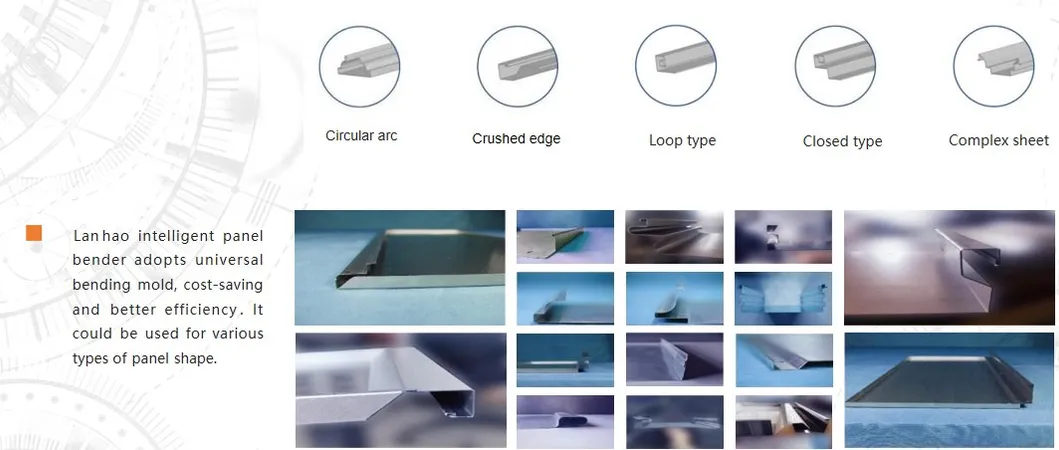

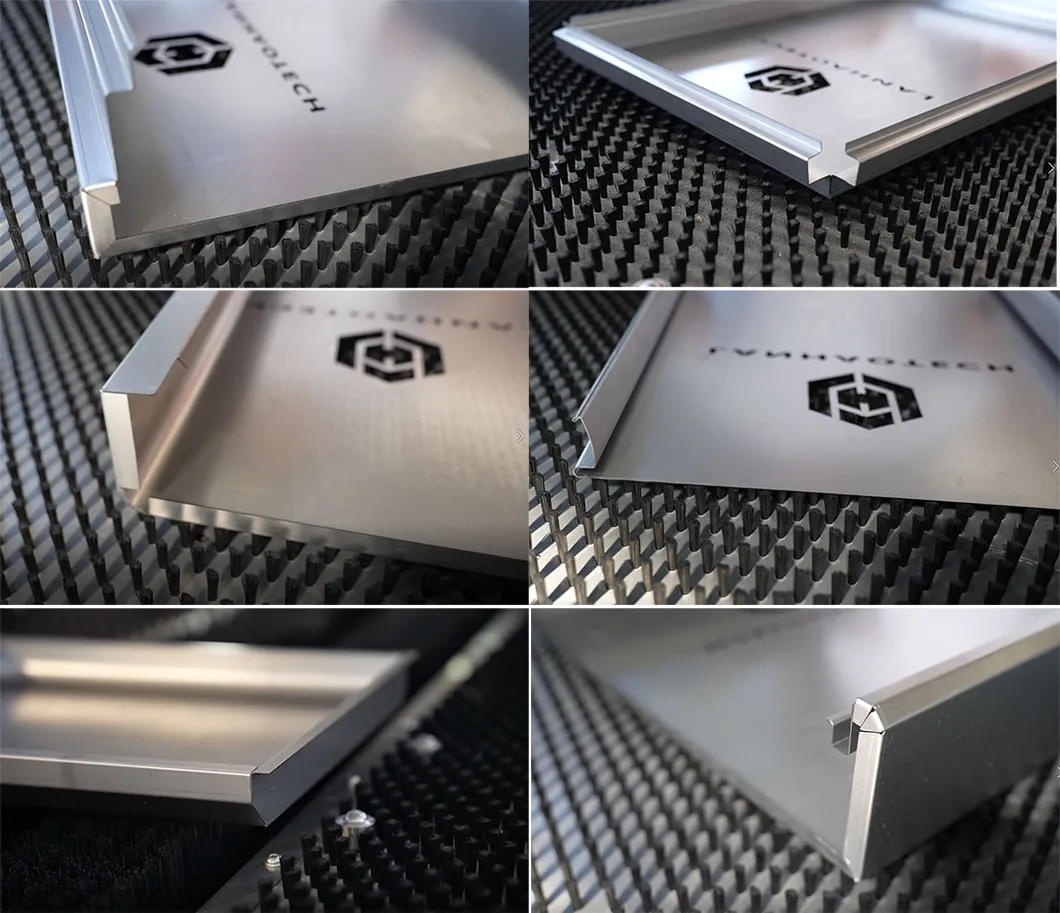

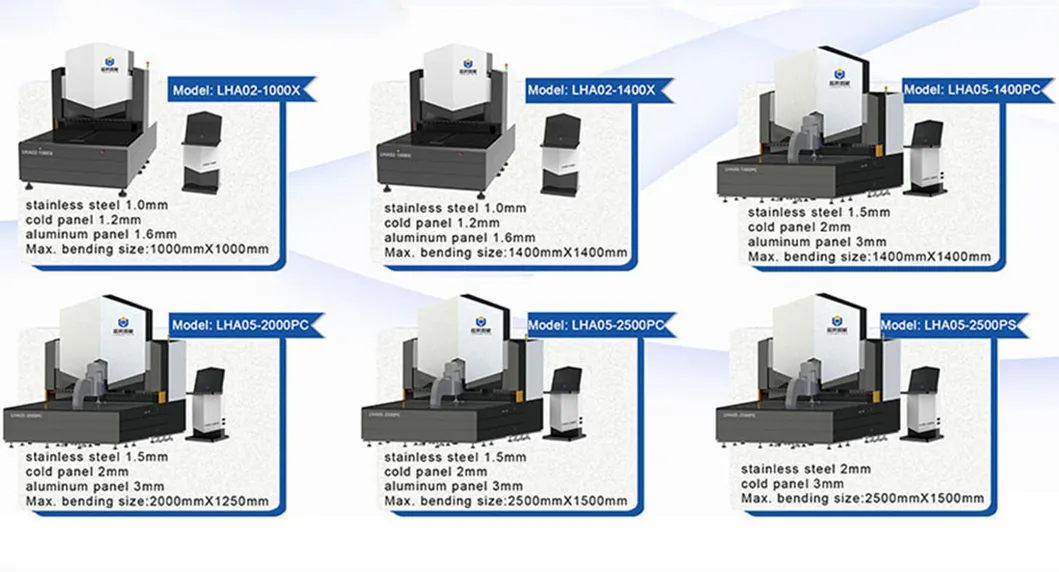

Hot Sale Models & Bending Cases

✔

Applications & Industrial Use

🏆

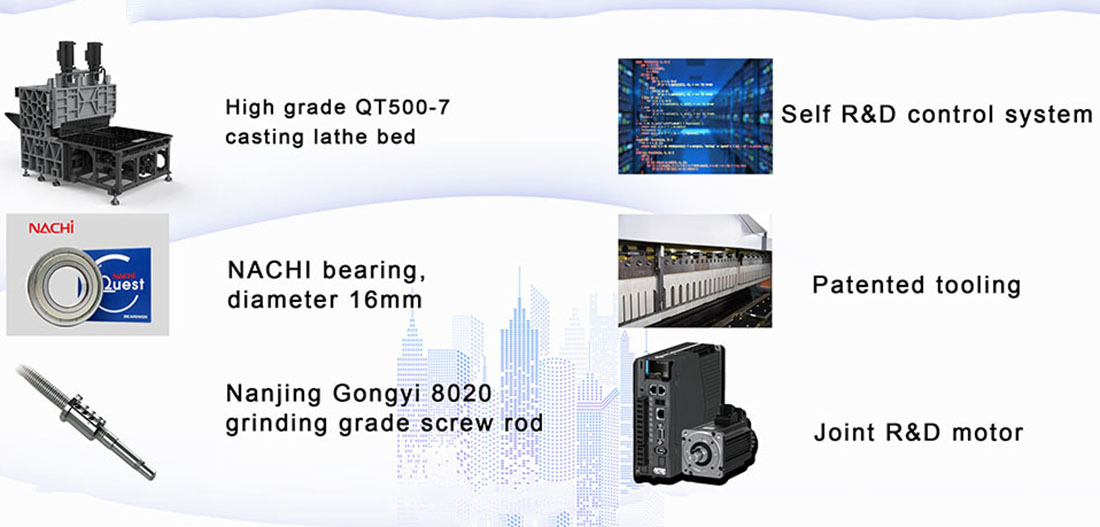

Quality Assurance & Advantages

❓

Frequently Asked Questions

1. What materials can the intelligent panel bender process? The machine is designed to handle Aluminum (up to 3.0mm), Cold-rolled Steel (up to 2.0mm), and Stainless Steel (up to 1.5mm).

2. What is the maximum bending size for the LHA-1400PC? The maximum bending size is 1400mm x 1400mm, with a standard bending height of 170mm, customizable up to 300mm.

3. How accurate is the CNC bending system? The system provides a minimum accuracy of 0.001mm, ensuring high precision for complex industrial components.

4. Is the loading process automatic? Yes, the LHA05-PC series utilizes a specialized pressing arm loading method for fully automatic operation.

5. What industries are these machines suitable for? They are widely used in furniture, elevators, electrical cabinets, kitchen equipment, and any industry requiring high-volume precision sheet metal production.

6. What operating system does the machine use? The user operating environment is compatible with Windows 7 or above systems for easy integration and control.
