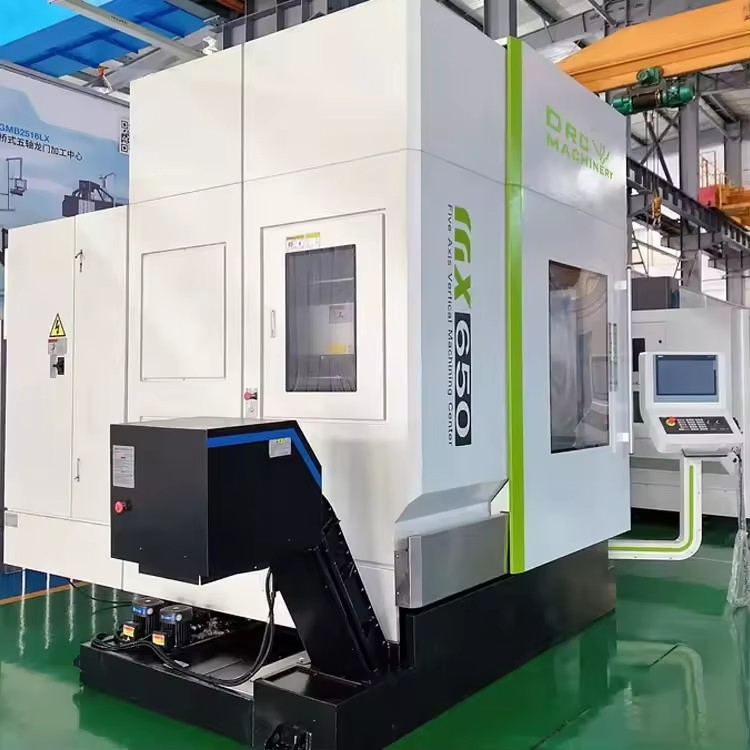

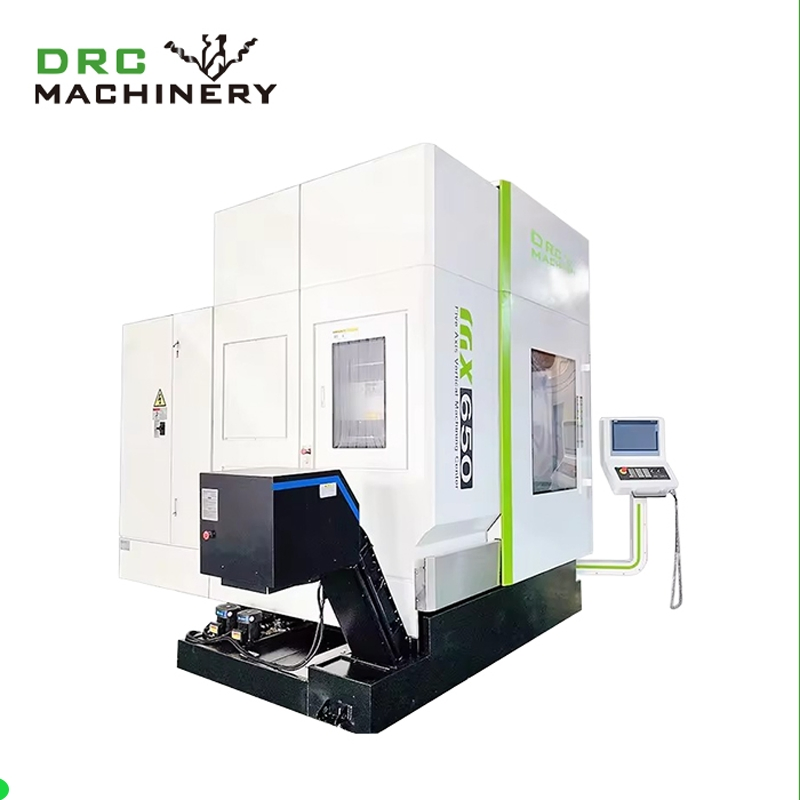

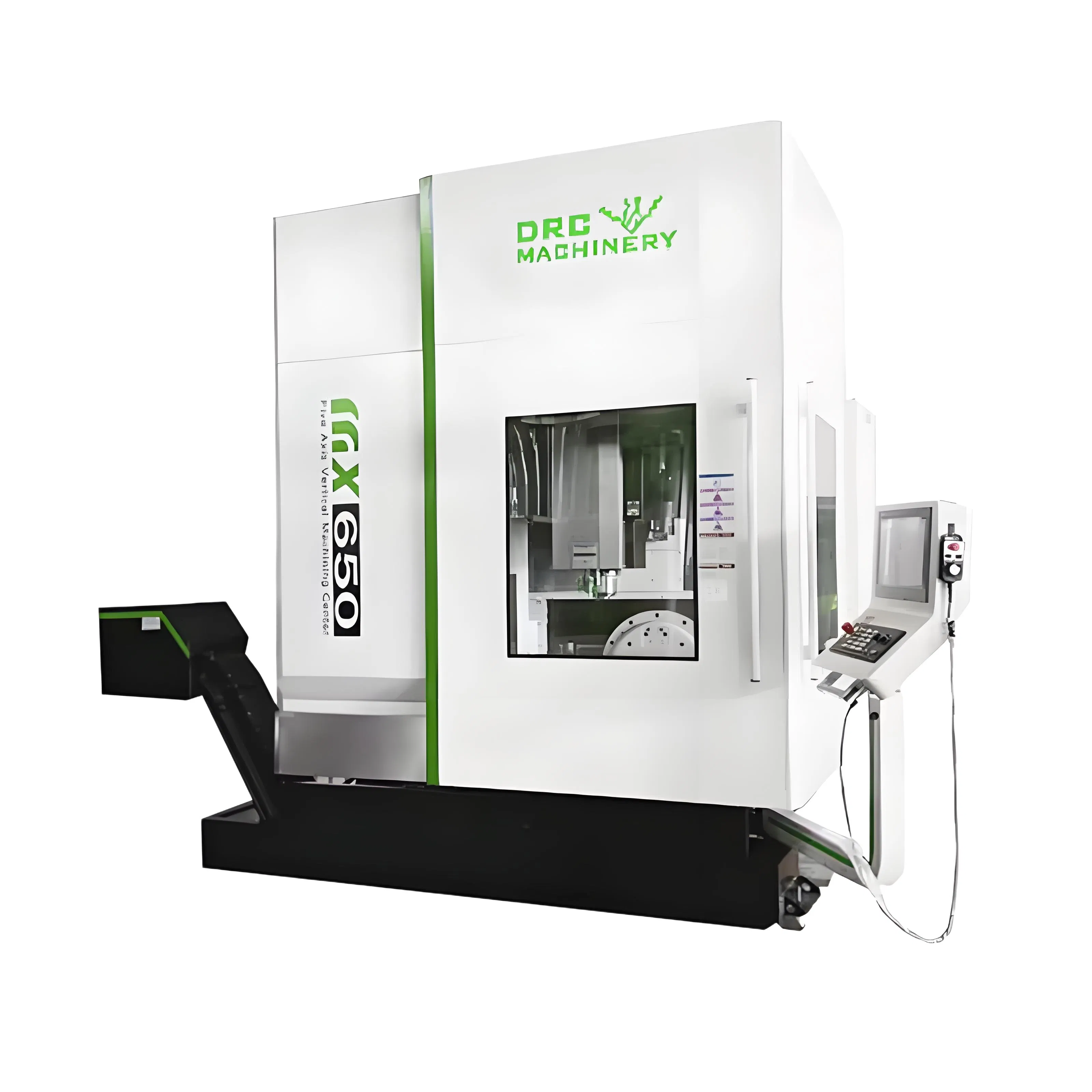

Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
1 / 5
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining
Multi Axis CNC Mx600 Vertical Complex Surface Machining

Multi Axis CNC Mx600 Vertical Complex Surface Machining

Customization: Available
After-sales Service: 1 Year
Warranty: 1 Year
Send Inquiry

Product Description

i

Basic Info.

Model NO.
MX600
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance
High-End CNC Machine Tools
Certification
CE
Condition
New
Core Capability
Complex Surface High-Precision Machining
Positioning Accuracy
±0.0015 mm
Suitable Materials
Alloys, Composites, Mold Steel
Axis Configuration
3/5-Axis Linkage
P

Product Description

MX600 CNC vertical milling machine center for complex surface processing

MX600 Vertical Complex Surface Machining
CNC Machining Center

MX600 5 Axis CNC Vertical Metal Milling Machining Center Features:

  • 5-axis linkage, full closed-loop control, suitable for complex surface machining of precision molds.
  • Forward cantilever and longitudinal cradle layout, separated straight spindle for best dynamic performance and convenient operating space.
  • B and C axis driven by precision worm gear transmission with Heidenhain circular grating for superior accuracy.
  • Worktable equipped with tailstock unit to maintain high precision under full load.
  • High torque and quick response, ideal for automobile, aerospace, mould, and hardware industries.

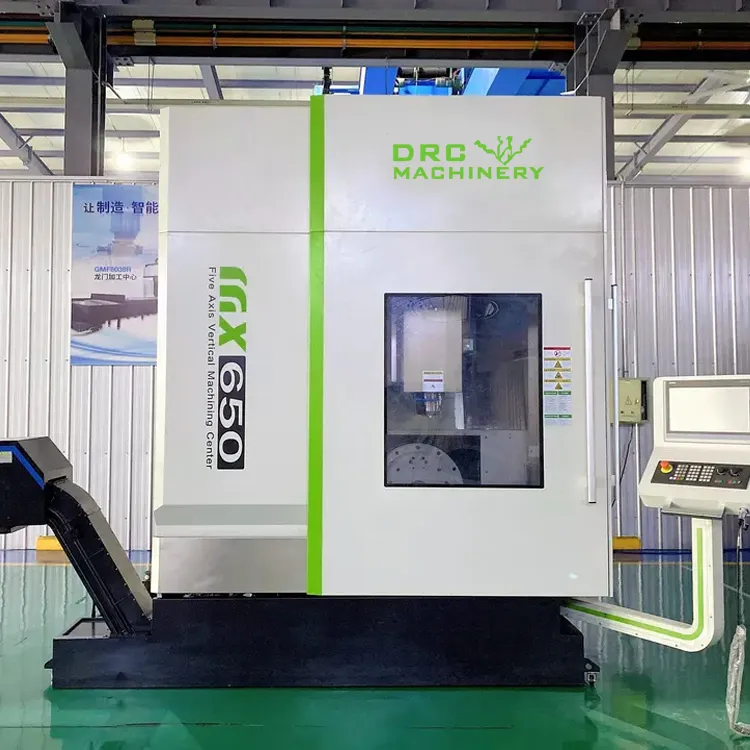

MX600 Detail

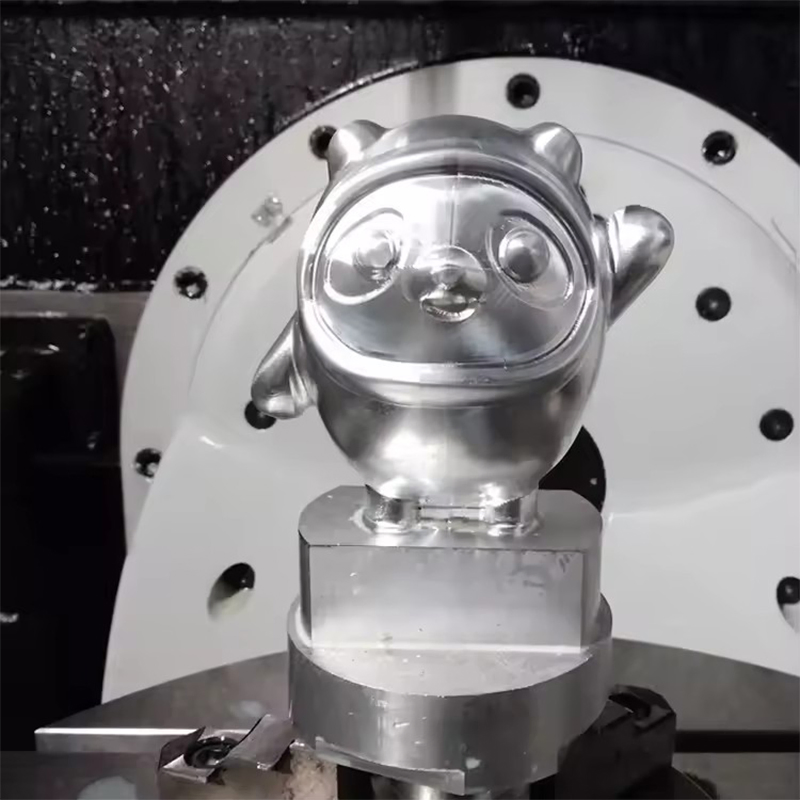

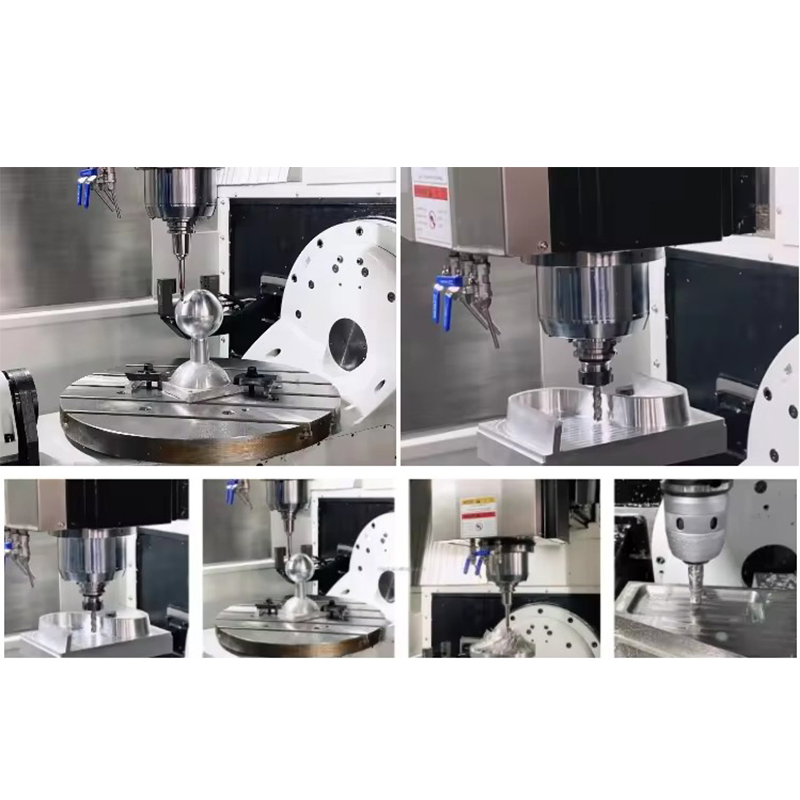

CNC Process
T

Technical Specifications

Machine Type Unit MX600
Worktable
Table sizemm600
Max. load on worktablekg350
T-slotmm5-14*100
Travel
X/Y/Z-axismm650 / 550 / 500
B-axisdeg-40° / +110°
C-axisdeg360°
Spindle
Spindle taper-BT40
Rotating spindle speedrpm15000
Spindle motorkw11
Feed Speed
Fast feed speedm/min36
Max rotation speed (B/C axis)rpm25
Tool Magazine
Capacitypcs40
Max. tool weight/length/diameterkg/mm8 / 200 / 75
Precision
Positioning accuracy (X/Y/Z)mm0.008
Repeated Positioning (X/Y/Z)mm0.005
Control System
Control System-Siemens 840DSL
D

Packaging & Delivery

Package Size
4520.00cm * 3960.00cm * 3340.00cm
Gross Weight
8000.000kg
Transport Package
Seaworthy Wooden Cases
?

Frequently Asked Questions

What are the primary applications for the MX600 CNC center?
The MX600 is specifically designed for high-precision machining of complex surfaces, making it ideal for the aerospace, automotive, mold making, and precision hardware industries.
Which control system does this machine utilize?
The machine is equipped with the high-end Siemens 840DSL control system, ensuring stable and precise 5-axis linkage operations.
What is the positioning accuracy of the MX600?
The MX600 offers an impressive positioning accuracy of ±0.0015 mm with a repeated positioning accuracy of 0.005 mm for the X/Y/Z axes.
How many tools can the tool magazine hold?
The tool magazine has a capacity of 40 tools, with a tool change time of approximately 2.5 seconds.
What materials are suitable for processing with this machine?
The MX600 is highly versatile and can process various materials, including alloys, composites, and high-hardness mold steel.
Is the machine capable of 5-axis simultaneous machining?
Yes, the MX600 supports 3/5-axis linkage and features full closed-loop control for complex geometric surfaces.
