OEM Excavator Spare Parts - Custom CNC Machined Components From 2D/3D Drawings

1 / 5

OEM Excavator Spare Parts - Custom CNC Machined Components From 2D/3D Drawings

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

⚙️ Basic Information

Model NO.

Customized

Condition

New

Certification

RoHS, ISO9001

Standard

DIN, ASTM, GOST, GB, JIS, ANSI, BS

Material

Iron

Application

Cranes

Machining Type

CNC Turning, Milling, Drilling, Grinding

Tolerance

+/-0.01mm

Capacity

5,000,000 PCS/Year

Origin

China

📦 Product Description

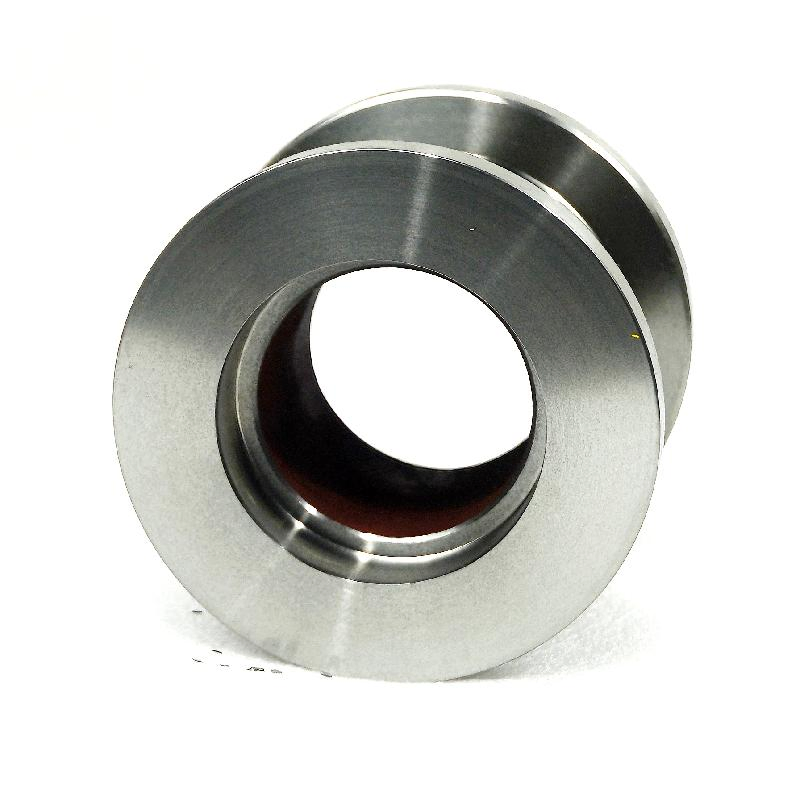

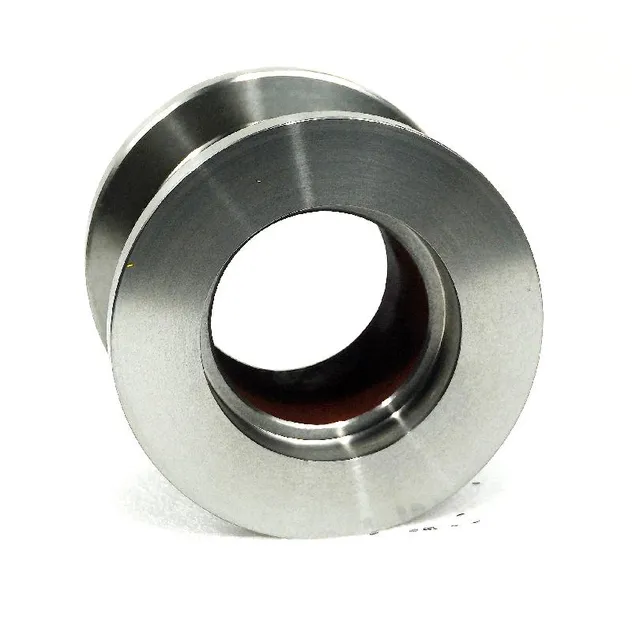

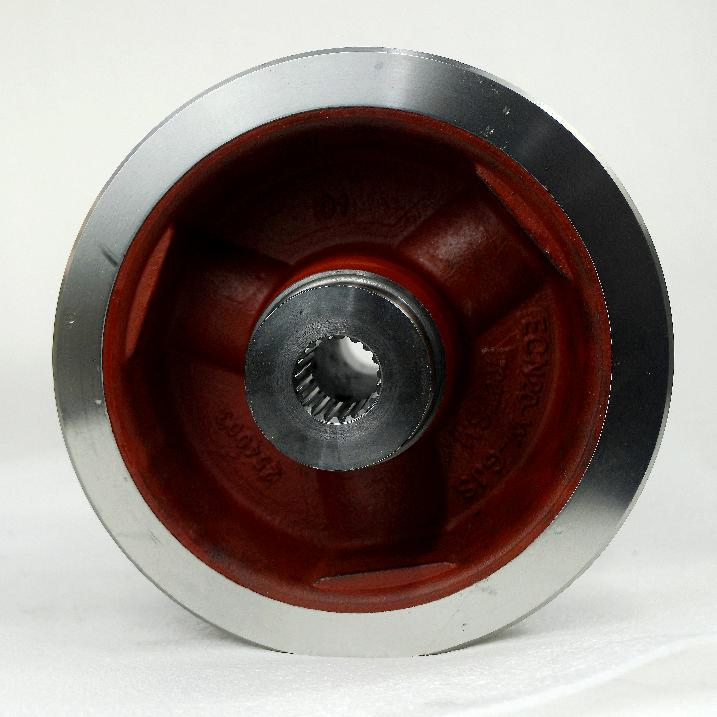

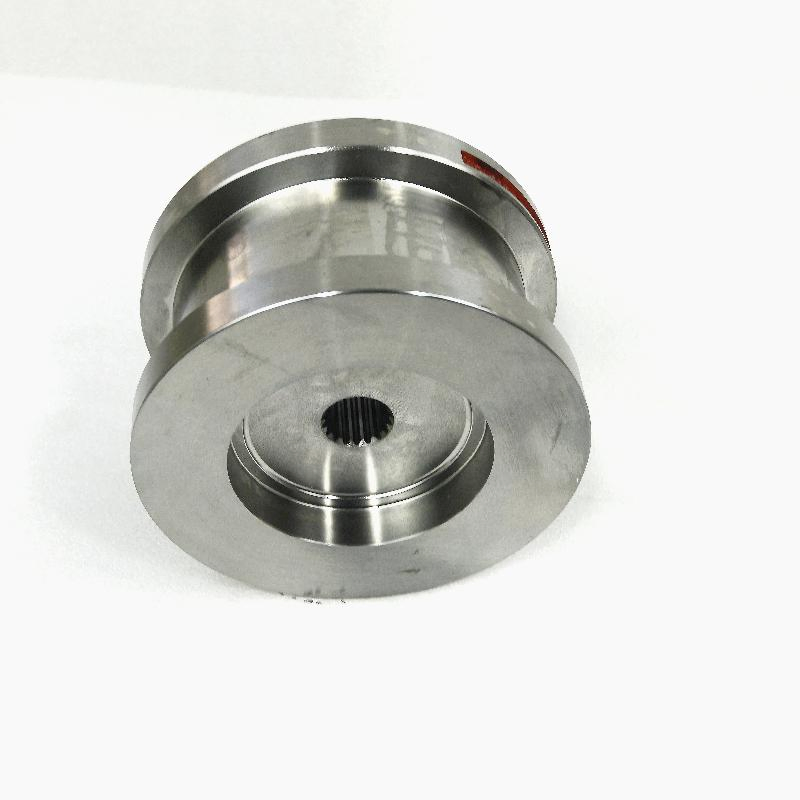

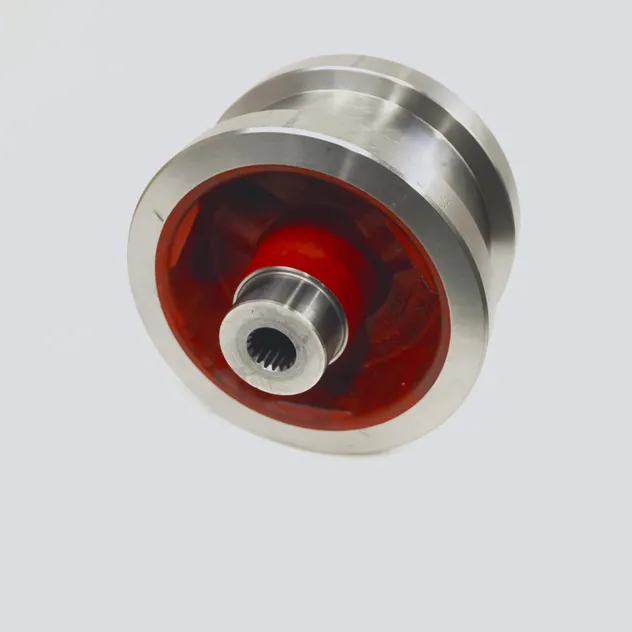

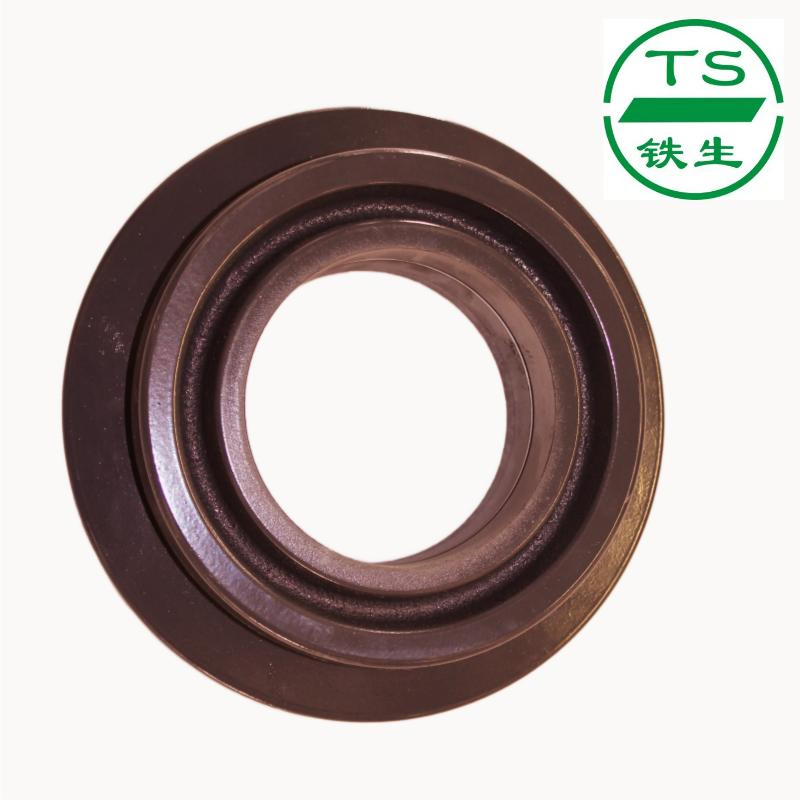

Product Name: Travel Wheel

Material Options: GJS400-700; GJL150-300 Cast Iron Components

Dimensions: 100mm ~ 1200mm

Process: Casting – Machining – Heat Treatment – Assembly – Coating

Applications: Crane pulleys, rollers, outriggers, motor covers, motor frames, wire rope guides

🛠️ Manufacturing Capabilities

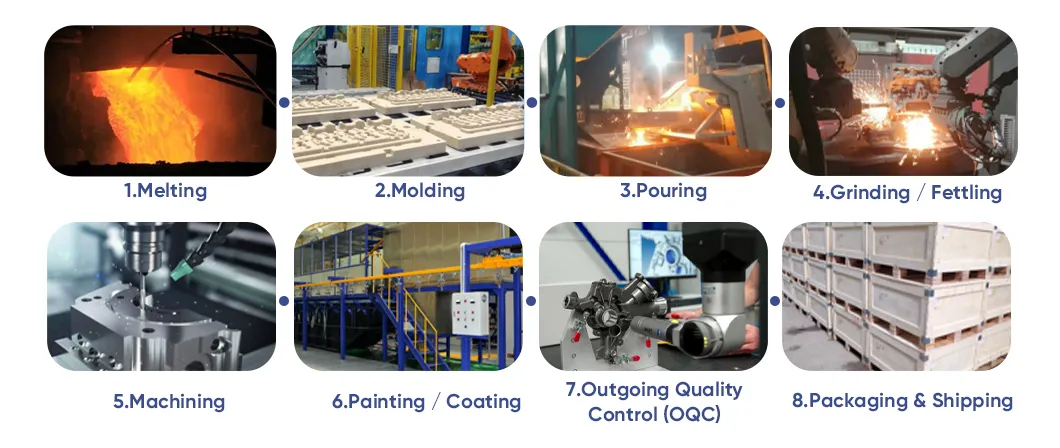

Process Flow

Surface Finish	Anodizing, Oxidation, Polishing, Plating, Laser Engraving, Carbonization, Nitriding, Normalizing, Annealing, Quenching, Tempering
CNC Service	CNC Turning, Milling, Drilling, Grinding, EDM Wire Cutting, Gear Broaching & Hobbing
Material	Iron, Aluminum, Steel
Quality Control	ISO9001, TS16949
Tolerance	+/-0.01 mm

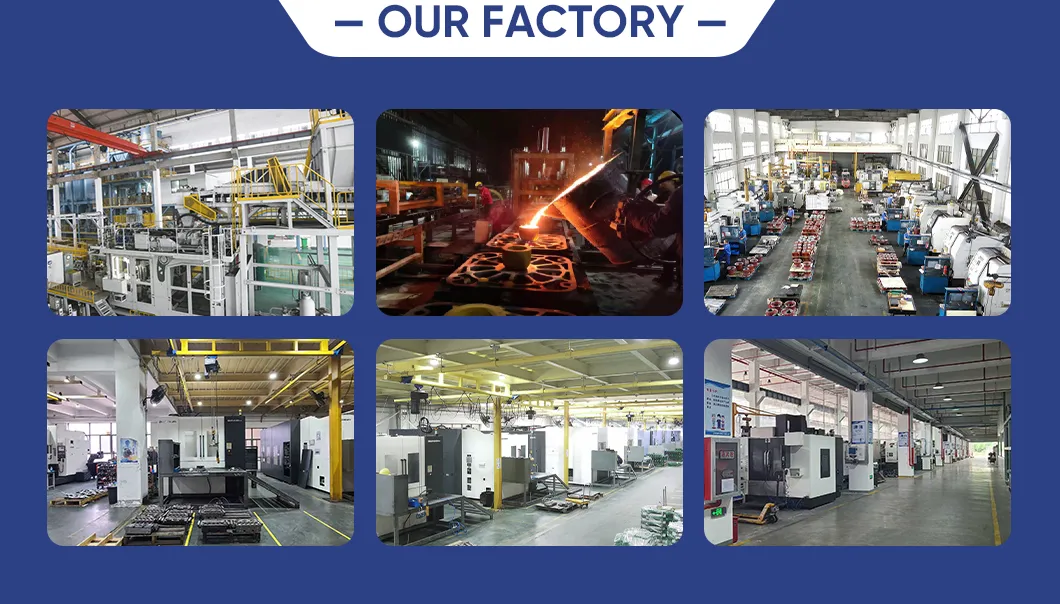

🔬 Advanced Equipment & Inspection

Automatic Casting Line: Japan Sintokogio (Flask size 800mm×600mm)
Vertical Lathes: Taiwan Youji (Stroke 250mm~1000mm)
Vertical Machining Centers: Dongtai (Stroke 600mm~1800mm)
Horizontal Machining Centers: Japan Okuma (Stroke 700mm~1350mm)
CMM Inspection: 6 Units (Zeiss Germany, Hexagon USA) - Max Travel 3000mm

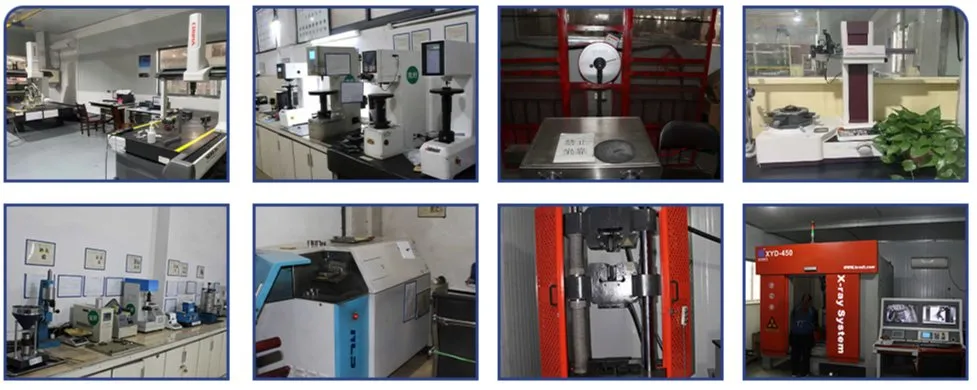

Precision Testing: Roundness testers, Profilometers, Surface roughness testers (Mitutoyo Japan)

🏆 Certifications & Global Presence

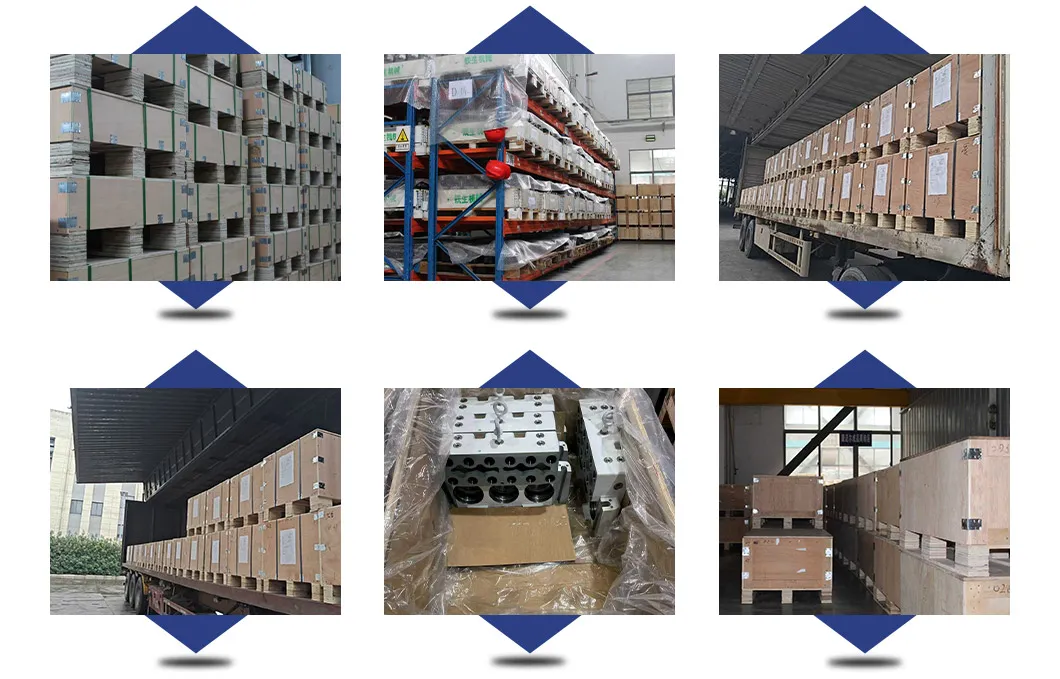

🚢 Packaging & Shipping

Package Size

120.00cm * 80.00cm * 60.00cm

Gross Weight

800.000kg

Package Type

Plywood Box

❓ Frequently Asked Questions

What manufacturing processes do you offer?

We specialize in a wide range of processes including CNC Machining (Milling and Turning), Sheet Metal Fabrication, Stamping, and Injection Molding.

What materials can you work with?

We work with a vast selection of materials, including various metals such as Aluminum, Steel, Stainless Steel, and Iron.

Can you work with my existing CAD drawings?

Absolutely. We prefer to work from CAD files such as .STEP, .IGES, or .SLDPRT. Please ensure they include critical dimensions and tolerances.

How do I get a quote for my project?

You can request a quote by submitting your CAD files and specifications, including part name, quantity, material, and surface finish requirements.

What is your typical machining tolerance?

Our standard high-precision CNC machining tolerance is +/-0.01mm, ensuring high accuracy for critical components.

What information is needed for an accurate quotation?

We typically require 3D CAD drawings, 2D engineering drawings (PDF/DWG) with tolerances, material specifications, surface treatment details, and order quantities.
