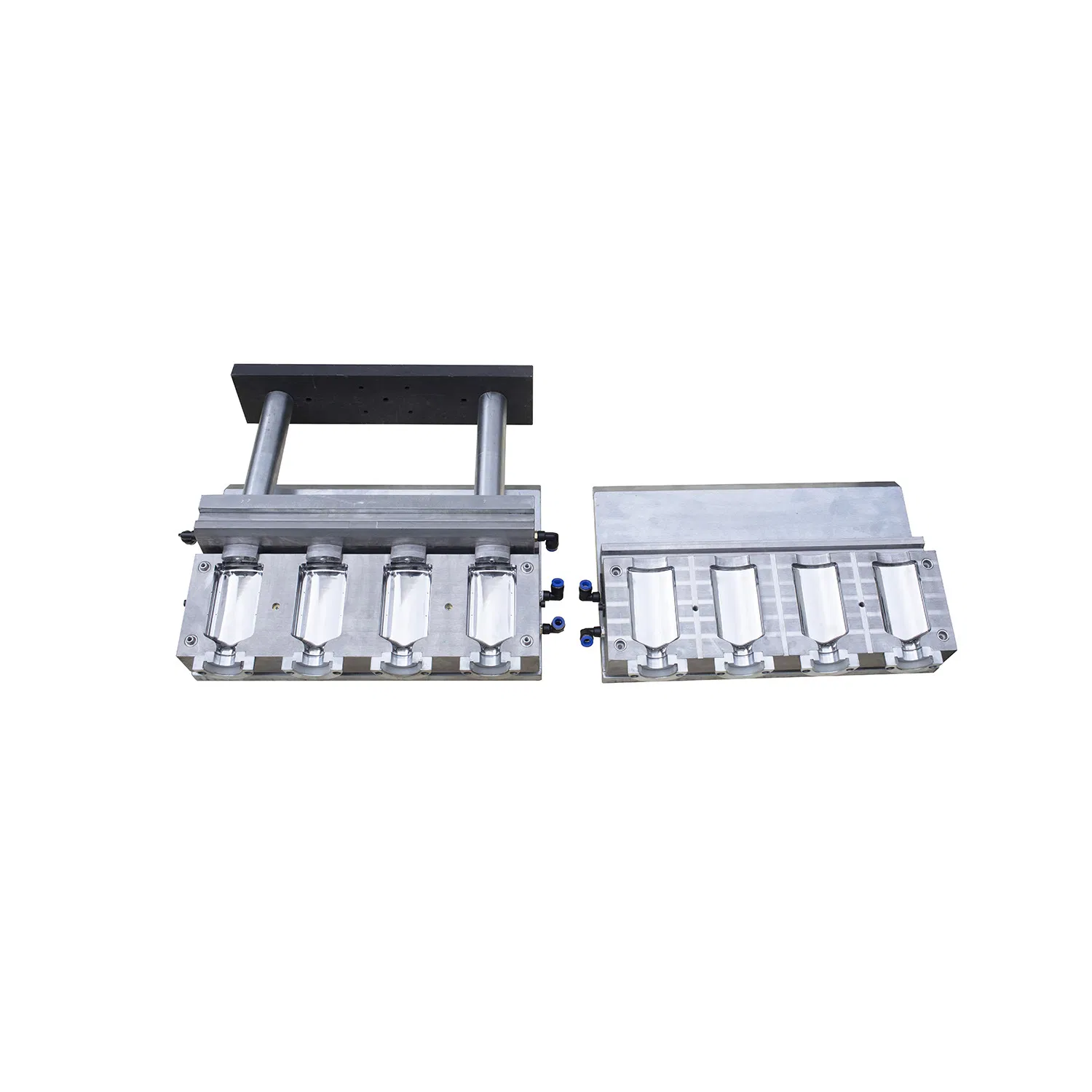

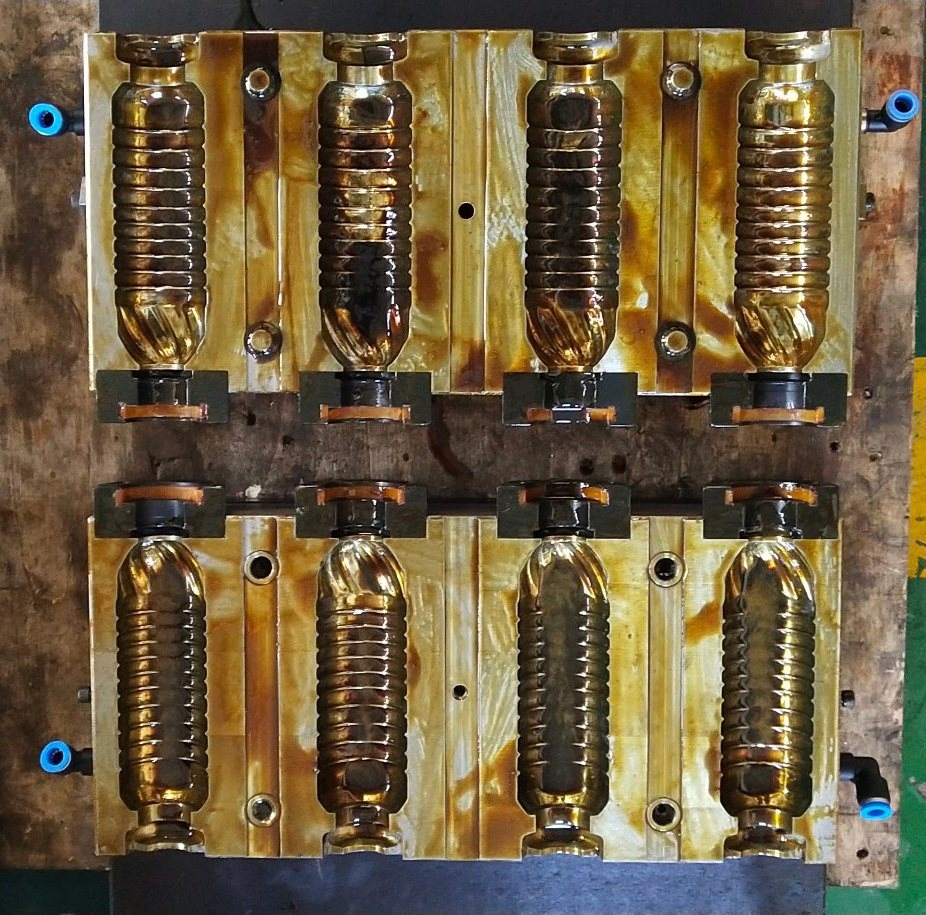

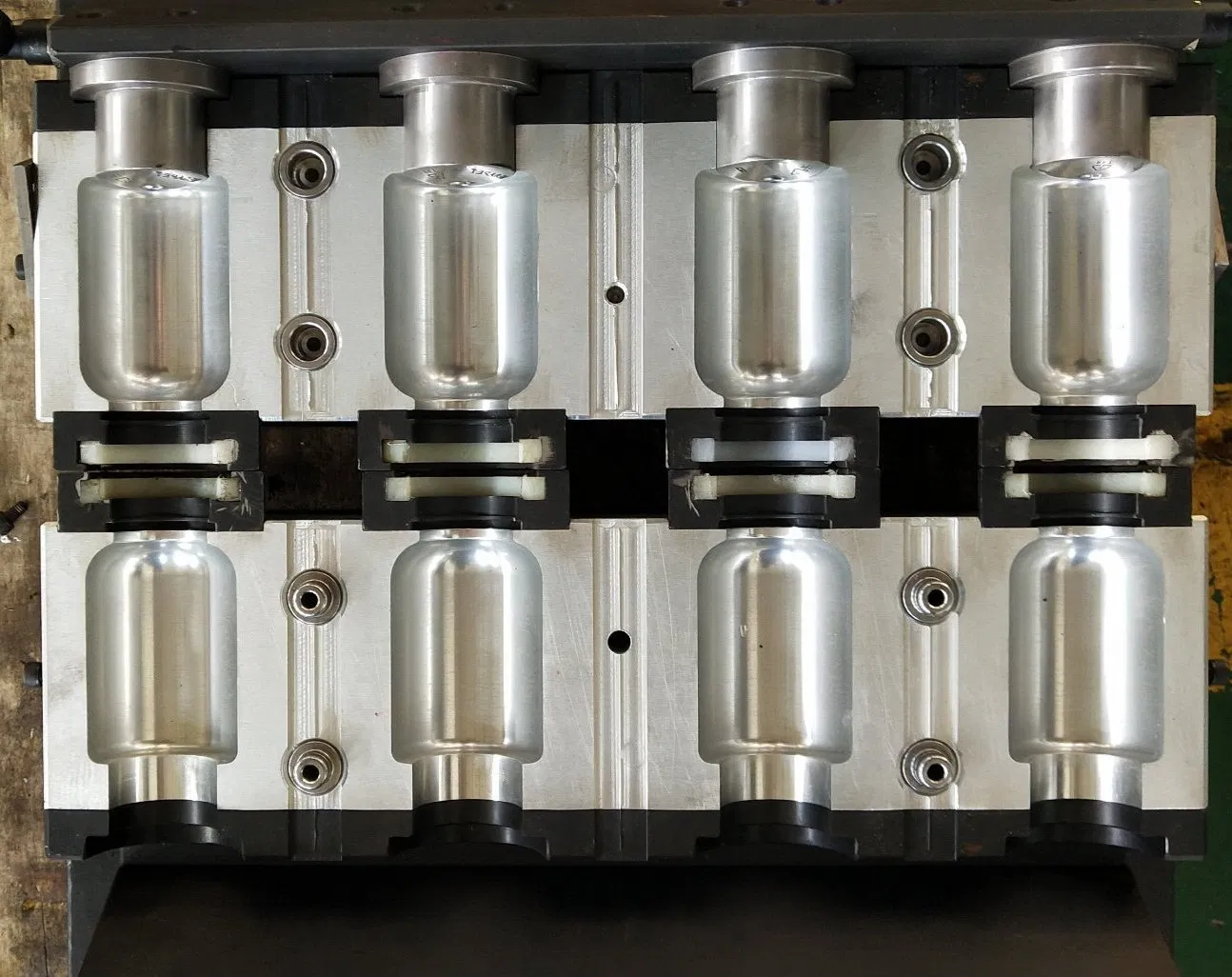

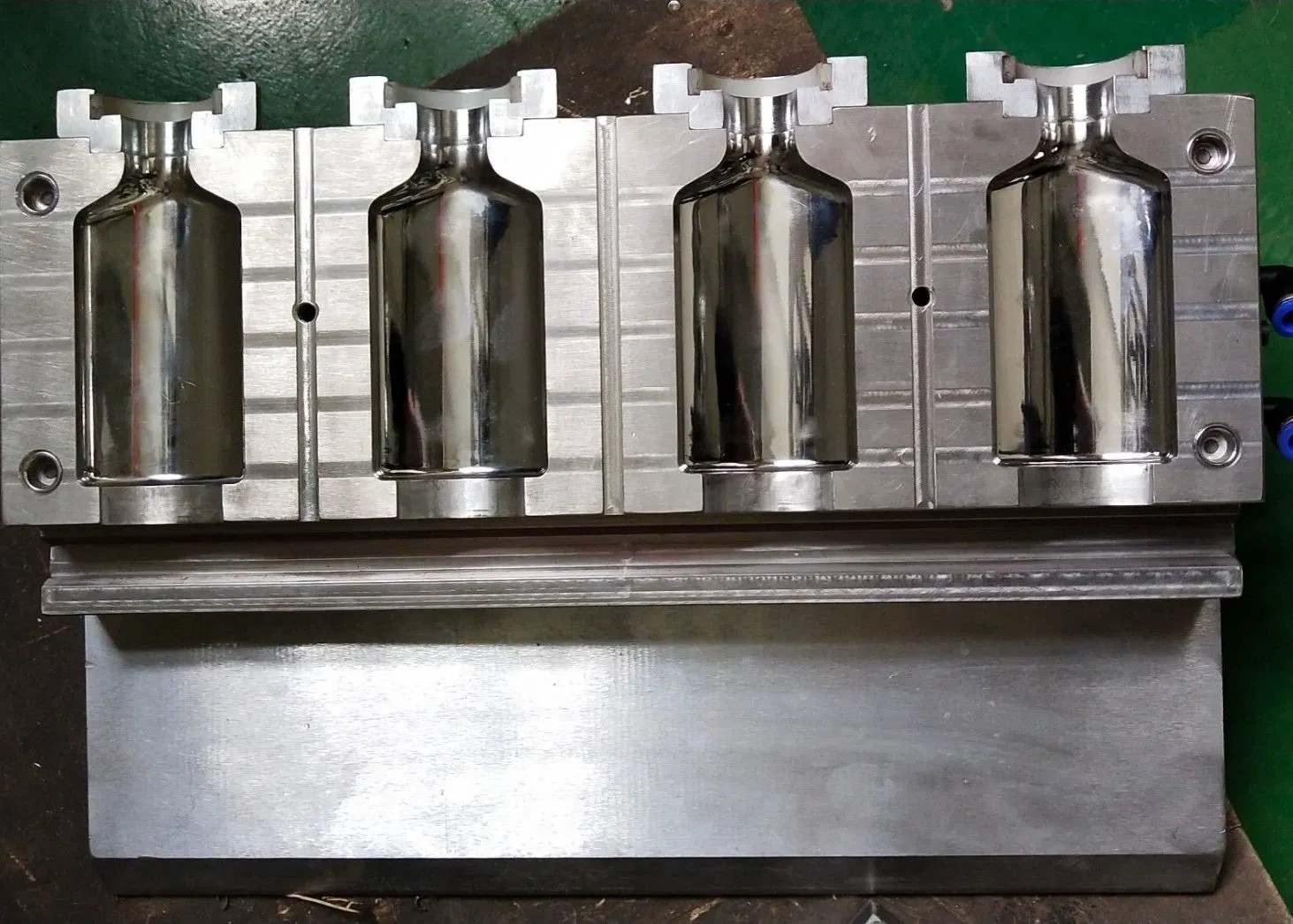

Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
1 / 5
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold
Pet Oil Bottle Water Bottle Jar Food Container Blow Mold

Pet Oil Bottle Water Bottle Jar Food Container Blow Mold

Customization: Available
Shaping Mode: Plastic Molding Die
Surface Finish Process: Polishing
Send Inquiry

Product Description

📋 Basic Information

Mould Cavity
Multi Cavity
Plastic Material
PET
Process Combination
Single-Process Mode
Application
Water Bottle
Design Software
AutoCAD
Installation
Fixed
Customized
Available
Bottle Liter
0.2L - 20L
Machine Cavity
1 / 2 / 4 / 6
Transport Package
Wooden Box
Specification
SGS, CE
HS Code
84773090
Production Capacity
400-6000 PCS/H

Pet Oil Bottle Water Bottle Jar Food Container Blow Mold

Pet Oil Bottle Water Bottle Jar Food Container Blow Mold

✨ Key Features & Capabilities

We provide PET PP blow moulds, preform moulds, cap moulds, and plastic injection moulds of any capacity and material.

01
Use advanced 3D stereo modeling technology.
02
A variety of materials for customers to choose, including steel, stainless steel, aluminum, P20, etc.
03
The mould made is beautiful in appearance and accurate in capacity.
04
The volume can make 10ml to 20L, and the cavity is 1cav to 12cavities for bottle mould. For preform mould and cap mould can make 72cavities for customers.
05
Trusted quality and competitive value.

🛠️ Technical Specifications

Product Name Plastic bottle blow mold, plastic preform mold
Shaping Mode Blowing Mould
Mould Size Customized
Product Material Steel
Application Water, juice, cooking oil bottles
Mould Material Steel, Stainless Steel, Aluminum, etc.
Design Software UG, Pro E, Solidworks, AutoCAD, Mould Flow
Mould Cavity Single / Multi Cavity
Standard Parts DME, HASCO, etc.
Surface Treatment EDM, Texture, High Gloss Polishing
Steel Hardness 20-60 HRC
Plastic Material PET, PP
Inspection Full bottle samples provided for client check after production
Lead Time 7-10 Weeks

More Blowing Mould Designs

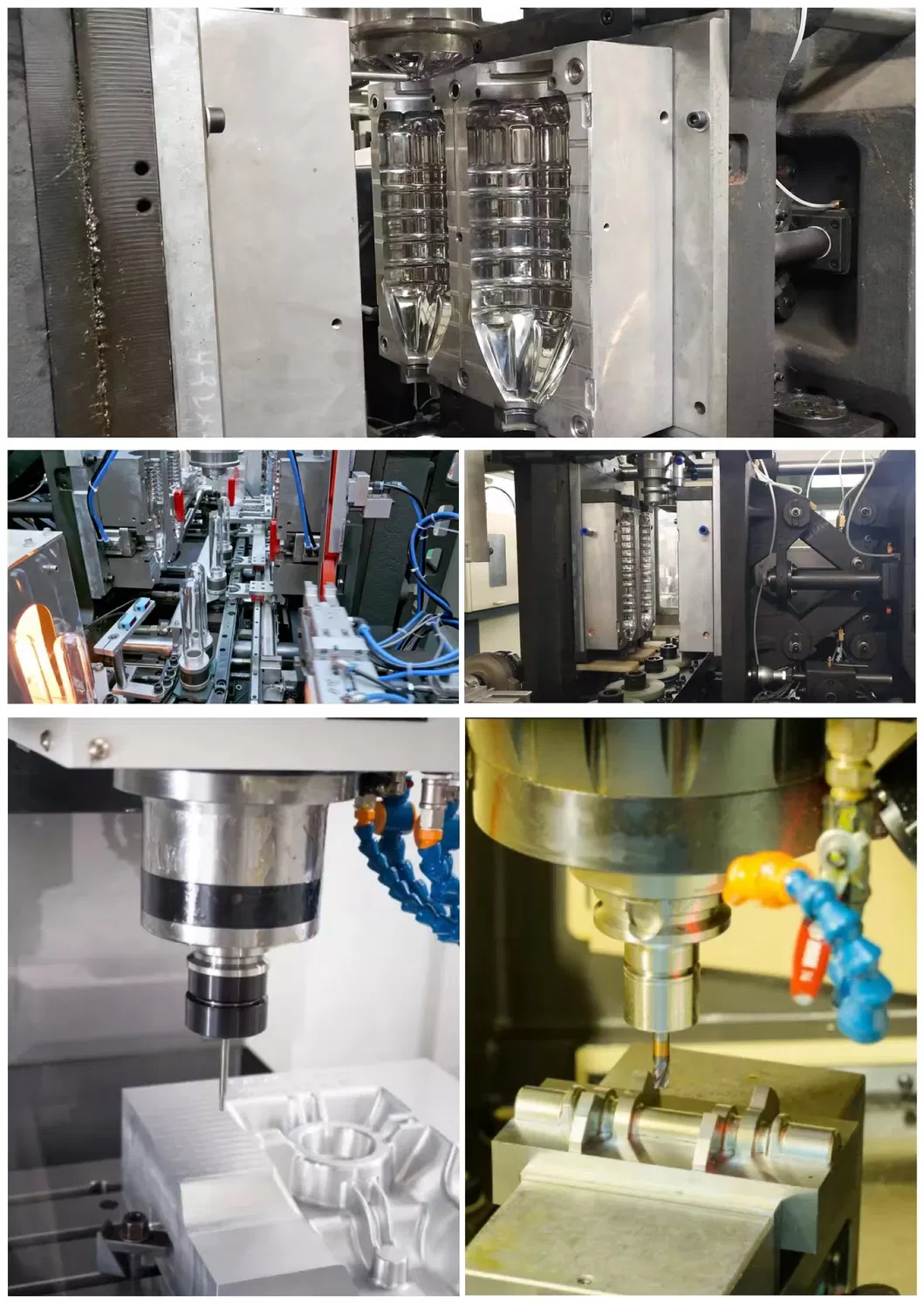

Blow Mould Variety

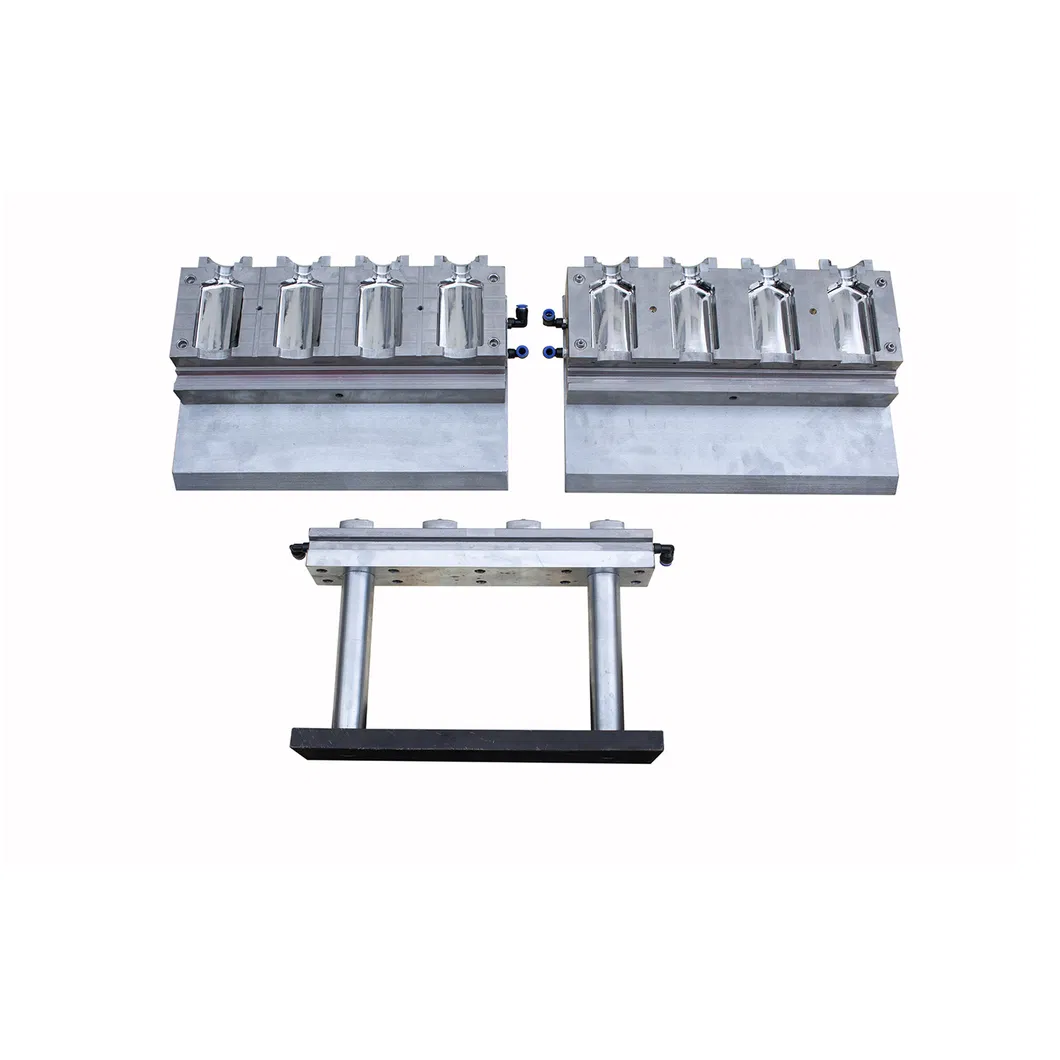

Mold Sample 1
Mold Sample 2

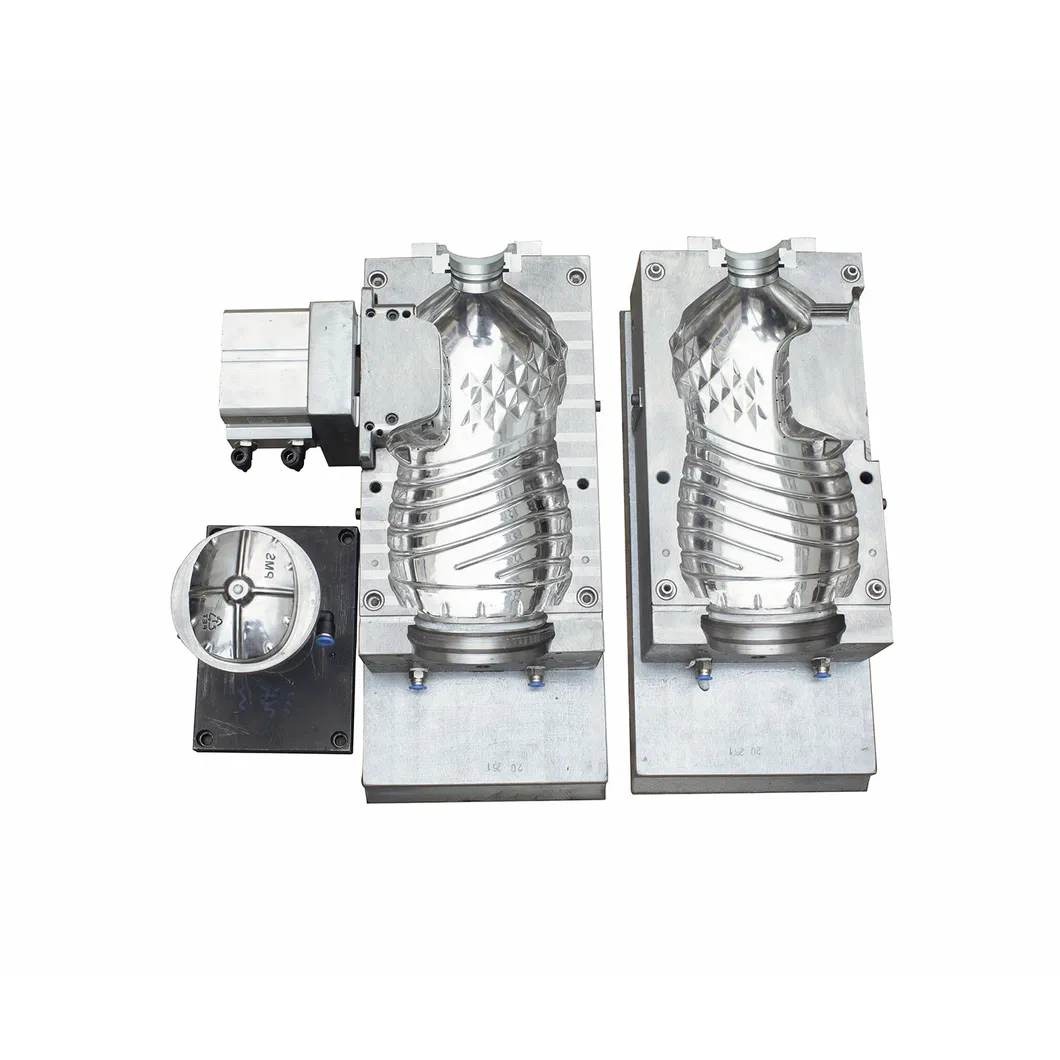

Mold Sample 3

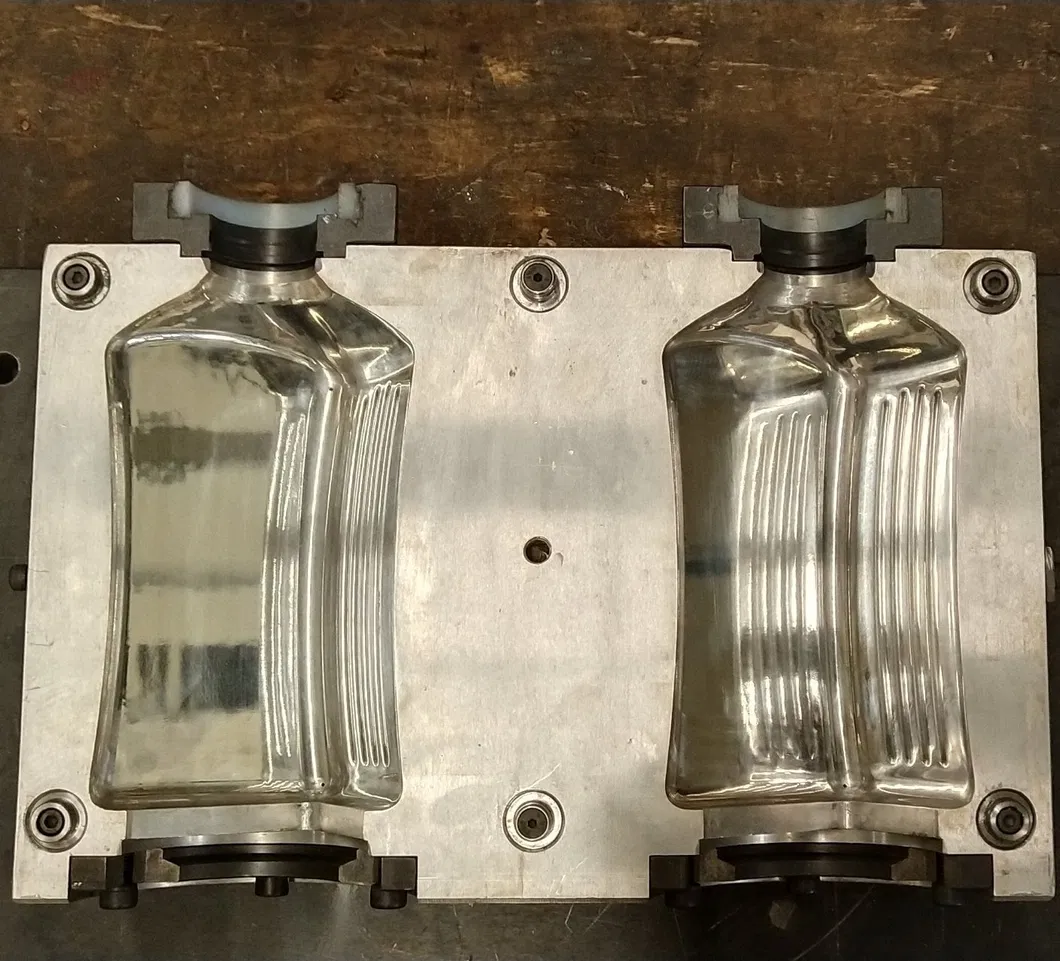

Mold Detail 1

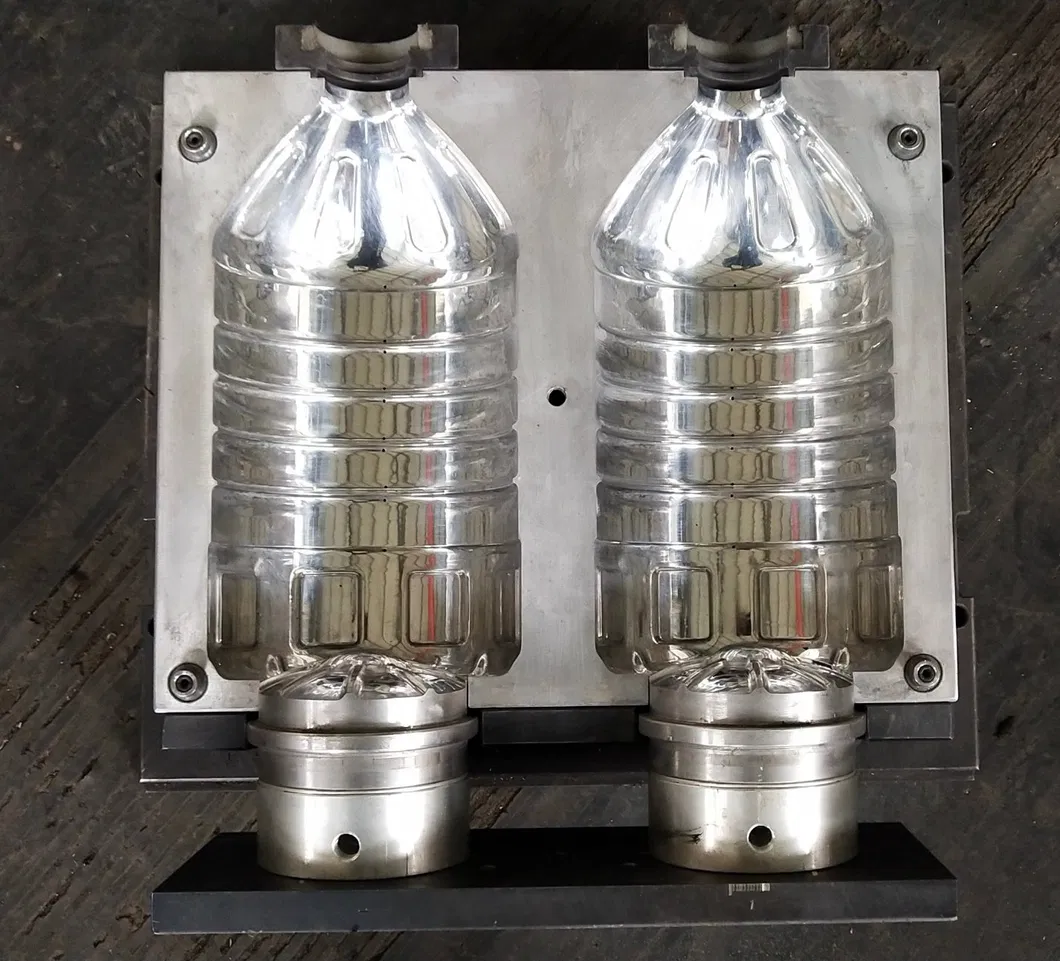

Mold Detail 2

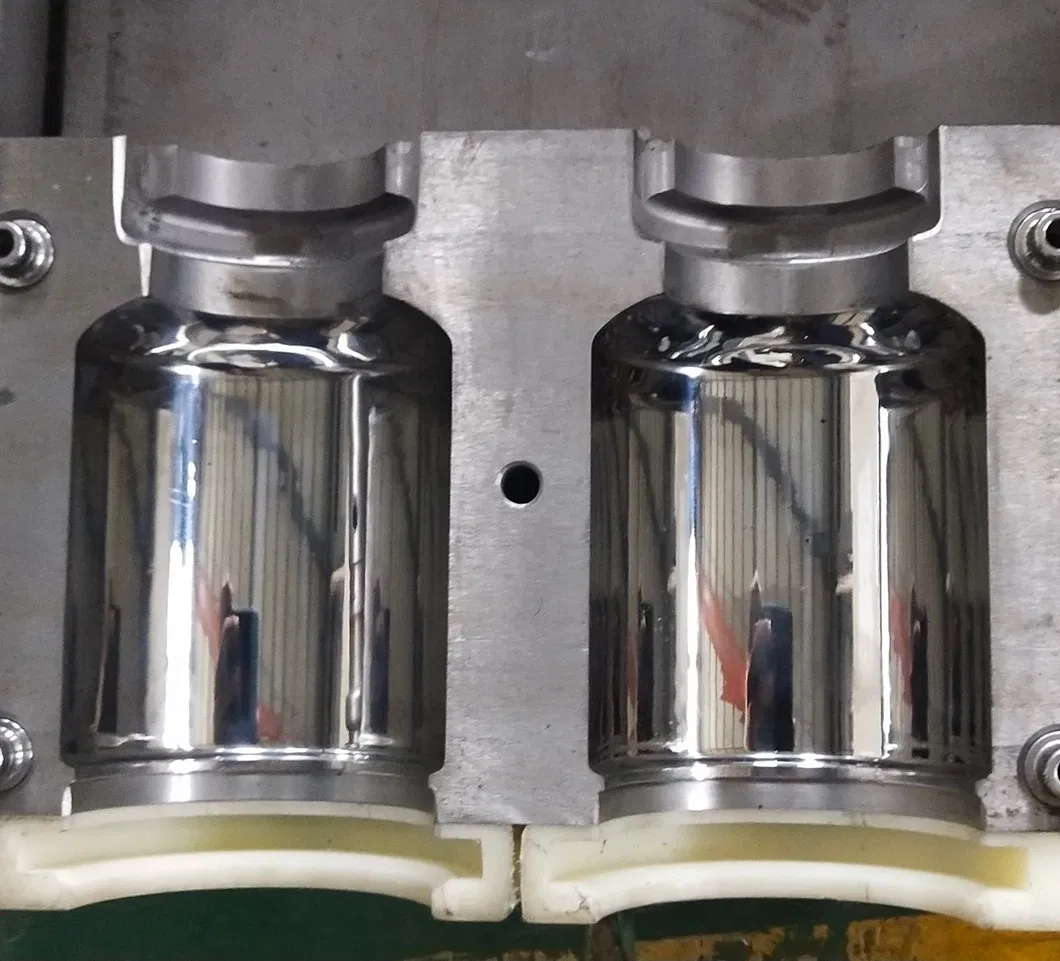

Mold Detail 3

Bottle Sample Showcase

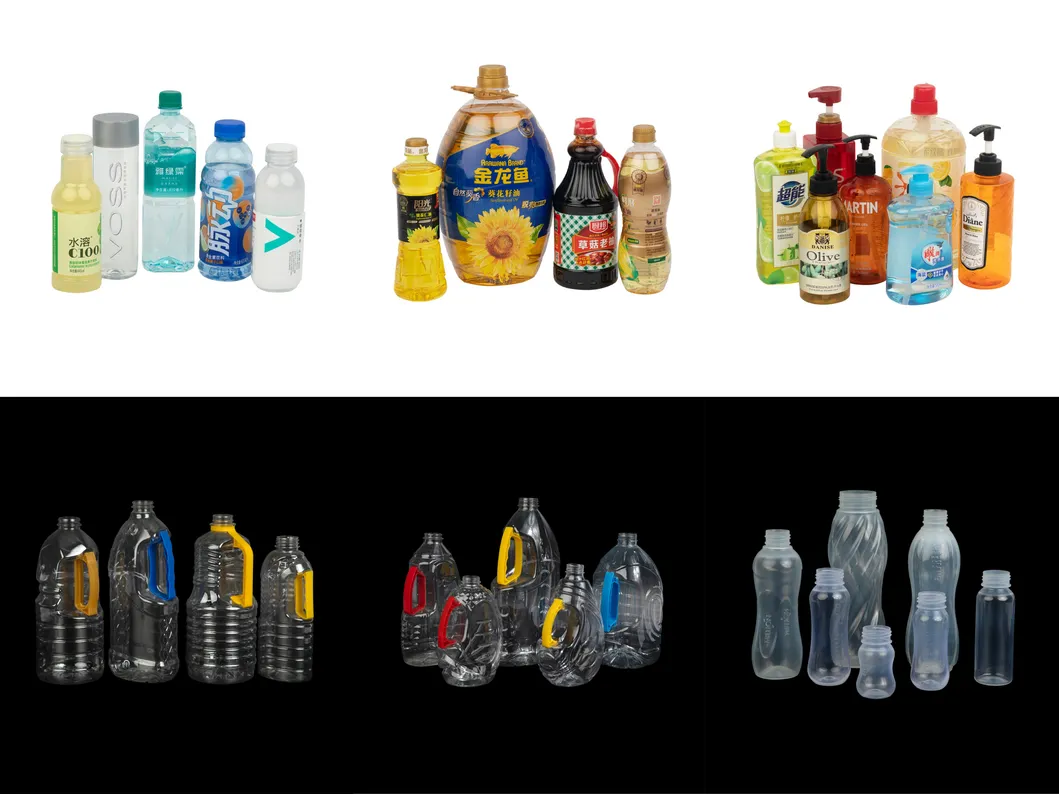

Bottle Sample

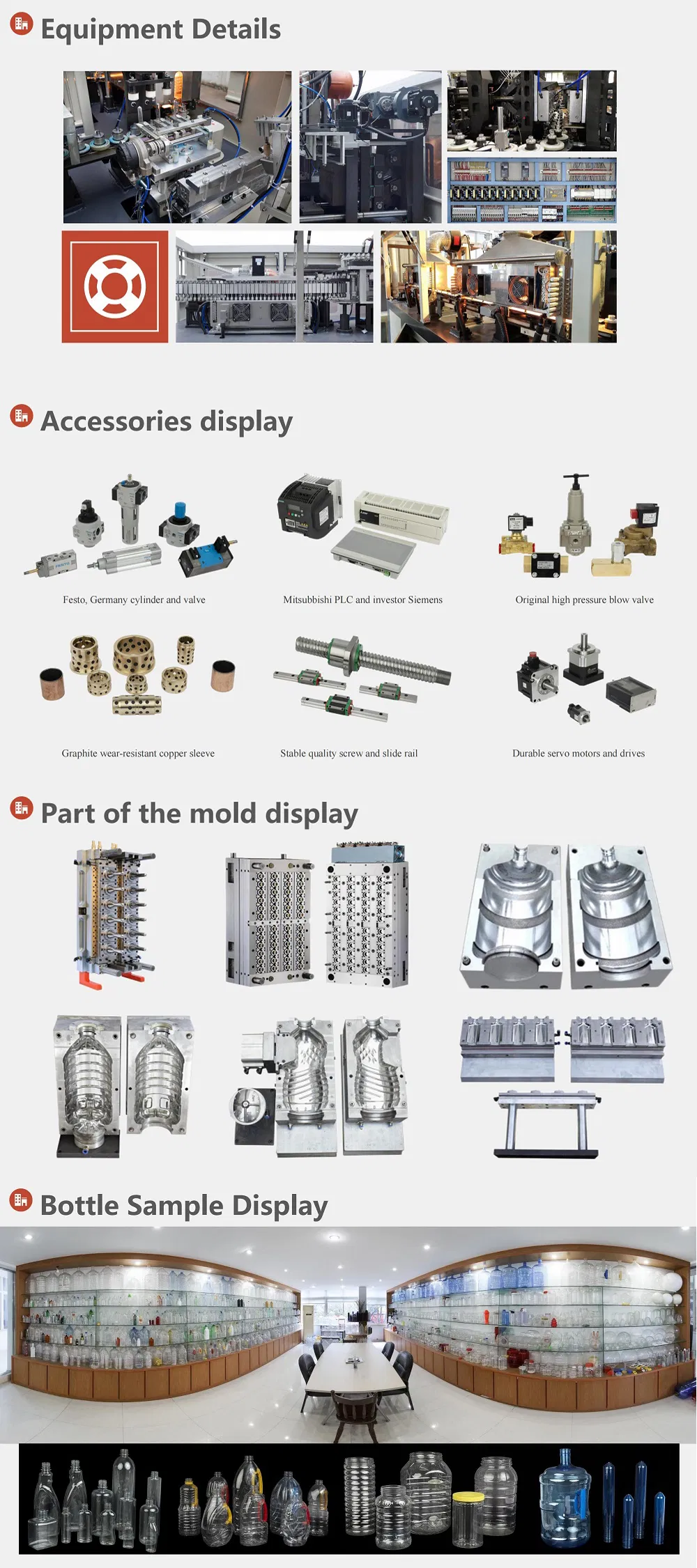

Technical Drawing 1 Technical Drawing 2 Technical Drawing 3

❓ Frequently Asked Questions

🔹 What materials are used for the blow molds?
We offer a variety of high-quality materials including steel, stainless steel, aluminum, and P20, depending on your production requirements and budget.
🔹 What volume range can these molds accommodate?
Our molds can produce containers ranging from small 10ml bottles up to large 20L containers.
🔹 How many cavities can be included in a single mold?
For bottle molds, we typically offer 1 to 12 cavities. For preform and cap molds, we can provide up to 72 cavities.
🔹 Is custom design service available?
Yes, we use advanced 3D stereo modeling technology and software like UG and AutoCAD to provide fully customized mold designs based on your samples or drawings.
🔹 How is the quality of the mold verified before shipping?
Once the mold is finished, we perform trial blows and send the resulting bottle samples to clients for final inspection and approval.
🔹 What is the typical lead time for a custom mold?
The standard lead time for production is between 7 to 10 weeks, depending on the complexity and cavity count of the mold.
