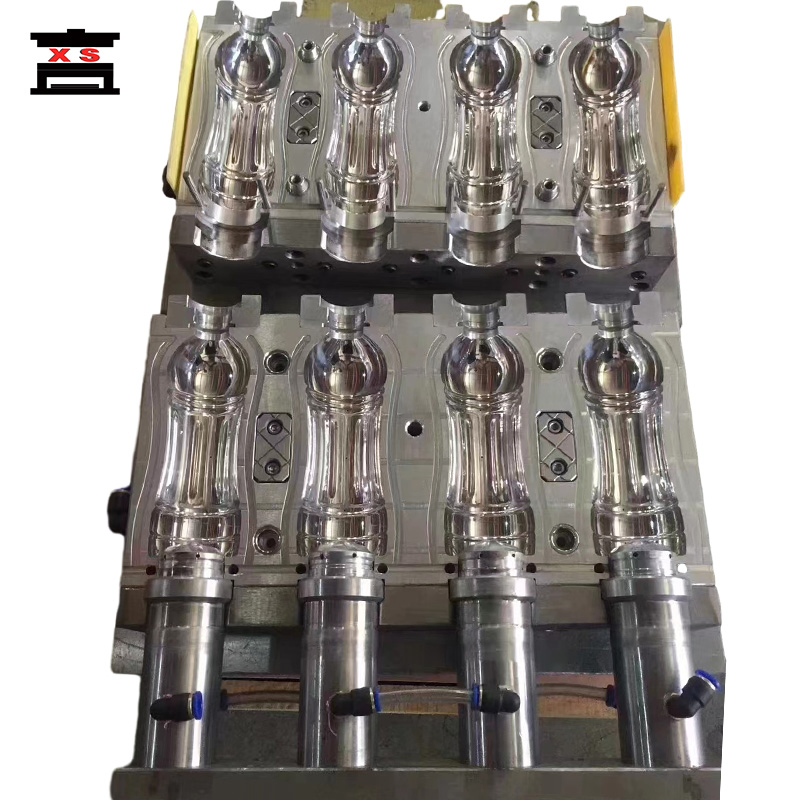

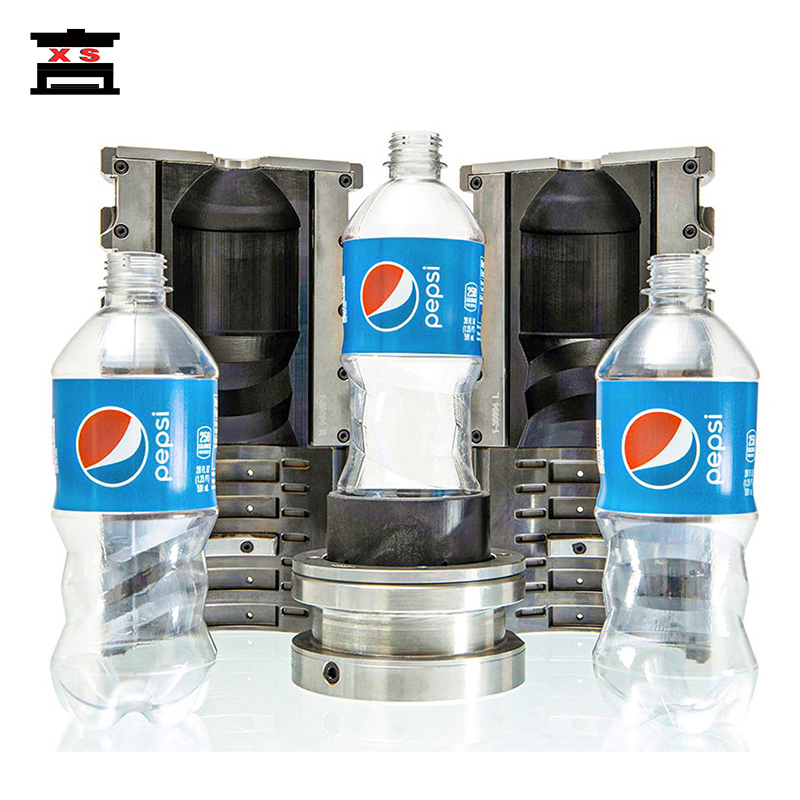

Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
1 / 5
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier
Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier

Plastic Pet Bottle Blow Molding Mold Water Beverage Juice Bottle Blow Mould Supplier

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

📑 Basic Information
Model NO.
XS202405149
Surface Finish
Texture
Mould Cavity
Multi Cavity
Plastic Material
PE
Runner
Hot Runner
Design Software
UG
Certification
ISO
Mould Life
1 Million Shots
Mould Steel
P20h, 718h, 2316, S136, 2738, etc.
Production Capacity
200sets/Year
📦 Packaging & Delivery
Package Size
60.00cm * 60.00cm * 60.00cm
Package Gross Weight
300.000kg
Transport Package
Wooden Case
🔍 Product Overview
Blow Mould Part 1

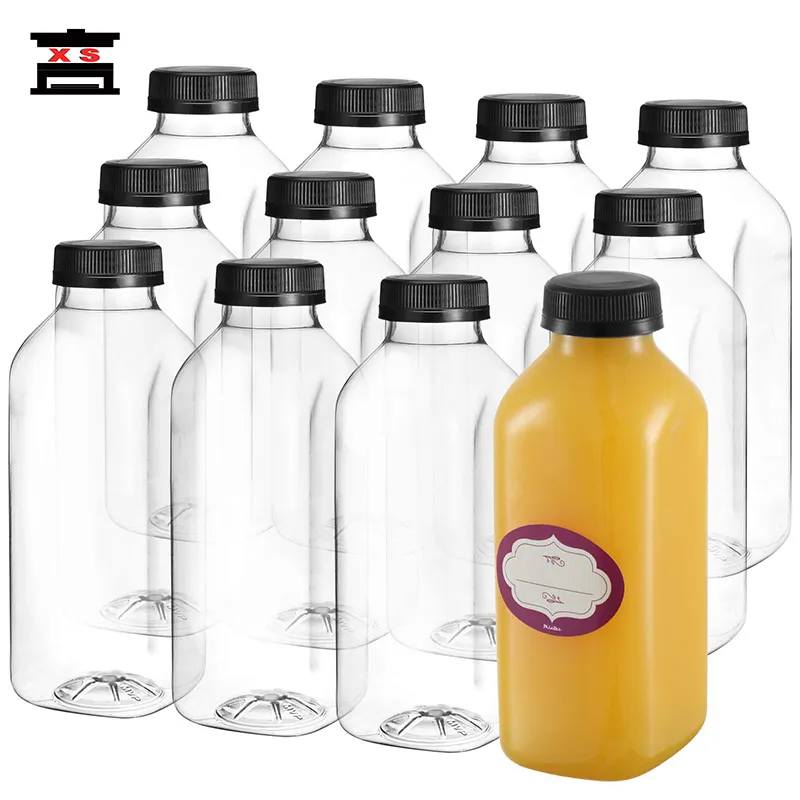

Blow Mould Part 2

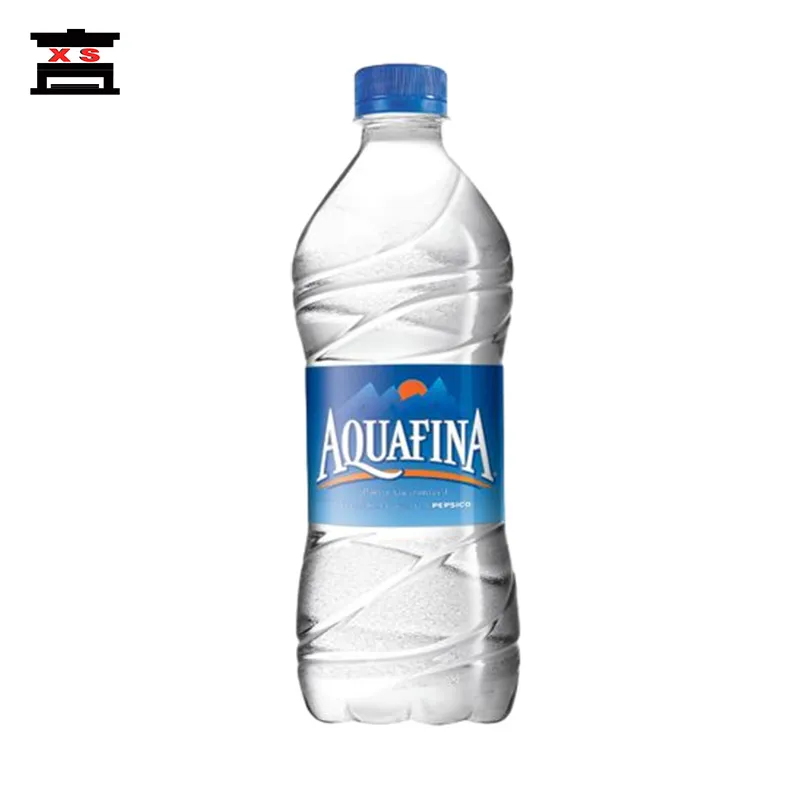

Blow Mould Part 3

Since 2009, we have focused on high-quality beverage bottle blow moulds. Our solutions offer efficient running with a 12s shot cycle time and zero flash production. Clients value our fast production capabilities and superior mould quality.

Blow Moulding Machine Part 1

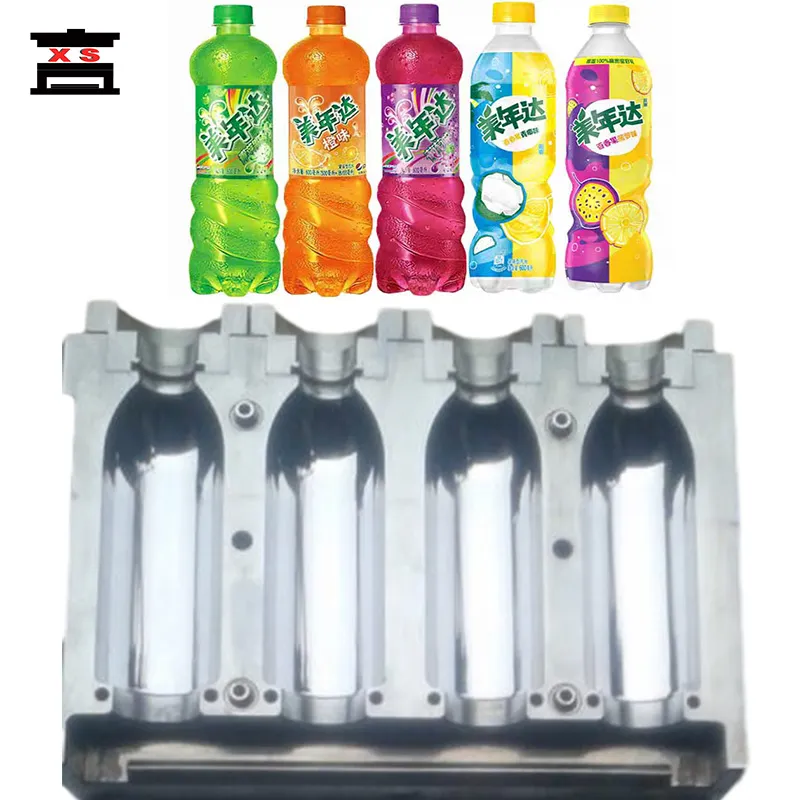

Blow Moulding Machine Part 2

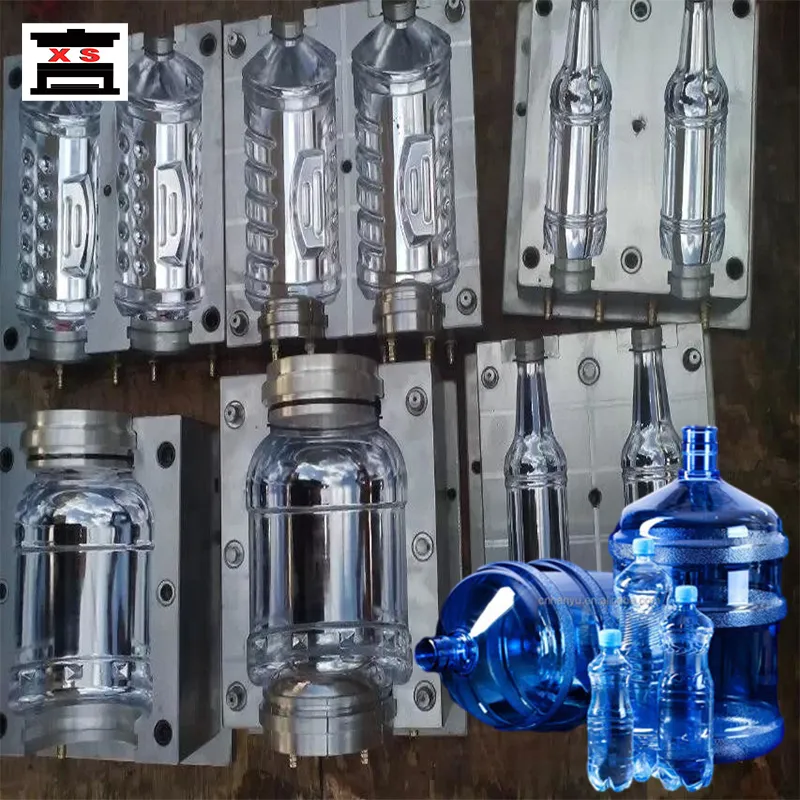

Blow Moulding Machine Part 3
⚙️ Technical Parameters
Mould NamePlastic PET Bottle Blow Molding Mold
Mould Cavity NumberMulti Cavity
Runner SystemHot Runner / Cold Runner
Mould T1 Time40 Days
Mould Life1 Million Shots
Core & Cavity SteelS136, 3Cr13, 4Cr13
Mould Base Steel45#, P20
💎 Key Features & Engineering

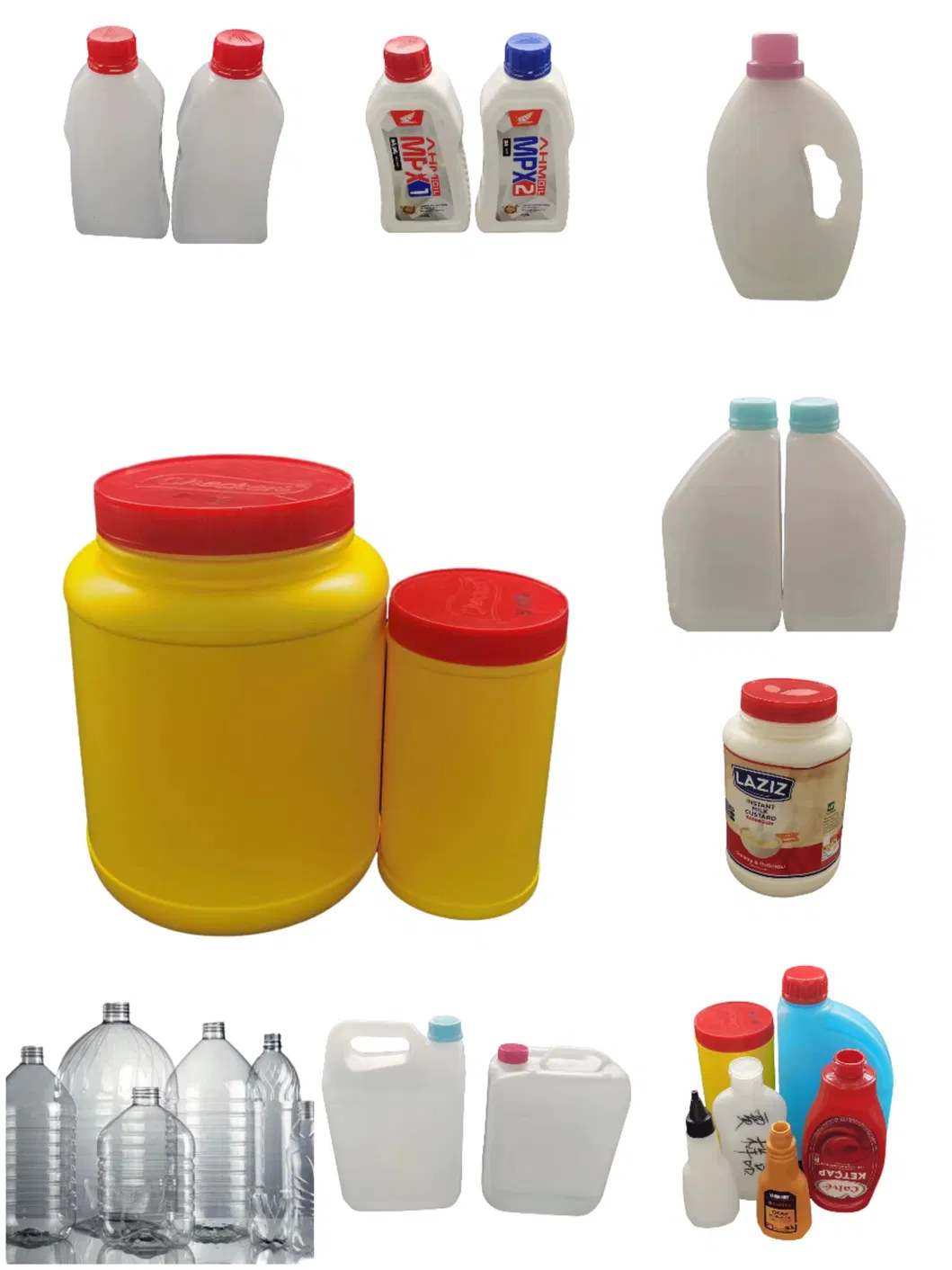

Blow Mould Detail
Blow Mould Design

●Mould Steel: Core and cavity use high-hardness steel such as S136, 2316, or H13, treated to HRC48 - HRC52 for durability.

●Design Precision: Comprehensive 2D/3D drawing processes ensure optimal structure. We provide CMM inspection for key inserts and cavity parts.

●Advanced Machining: Utilizes CNC tooling centers, milling, engraving, and EDM machines to ensure schedule-compliant, high-precision delivery.

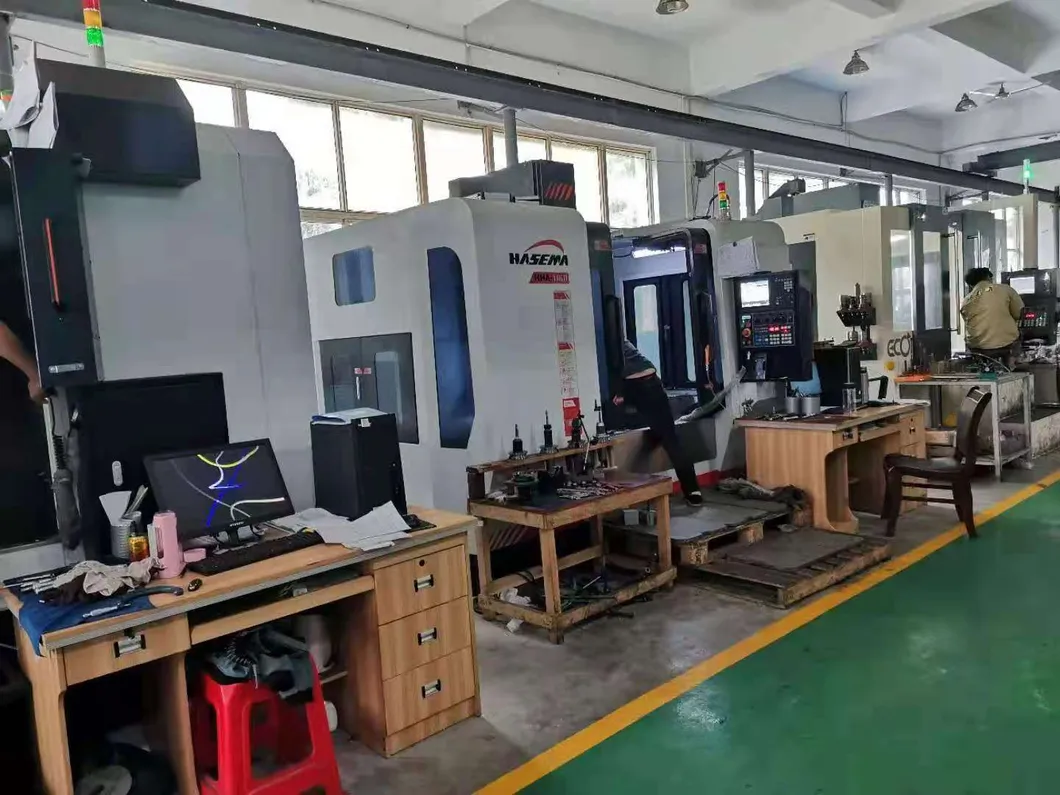

Workshop 1

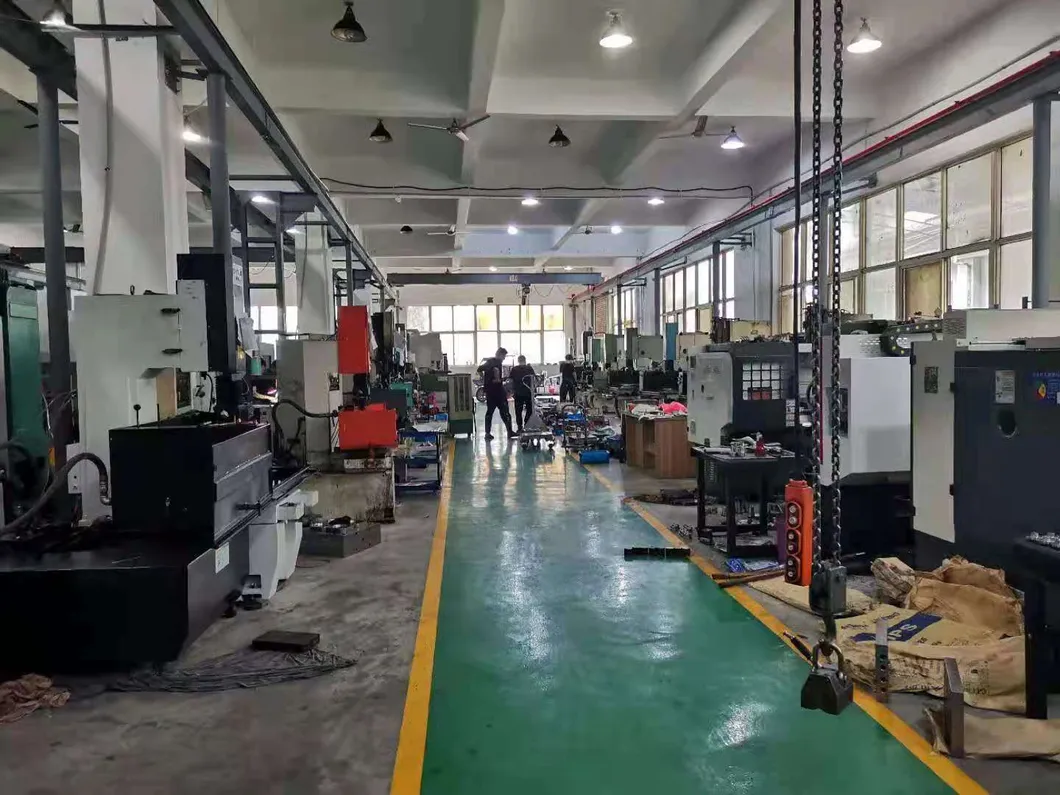

Workshop 2

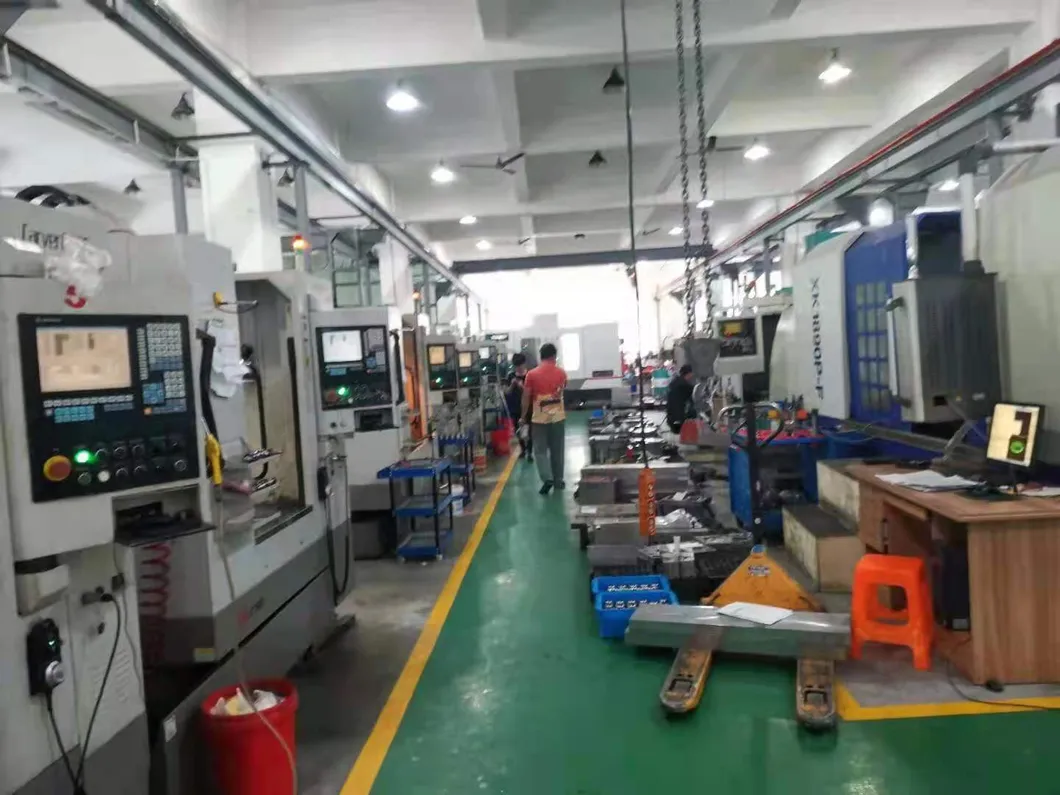

Workshop 3
🔄 Production Process

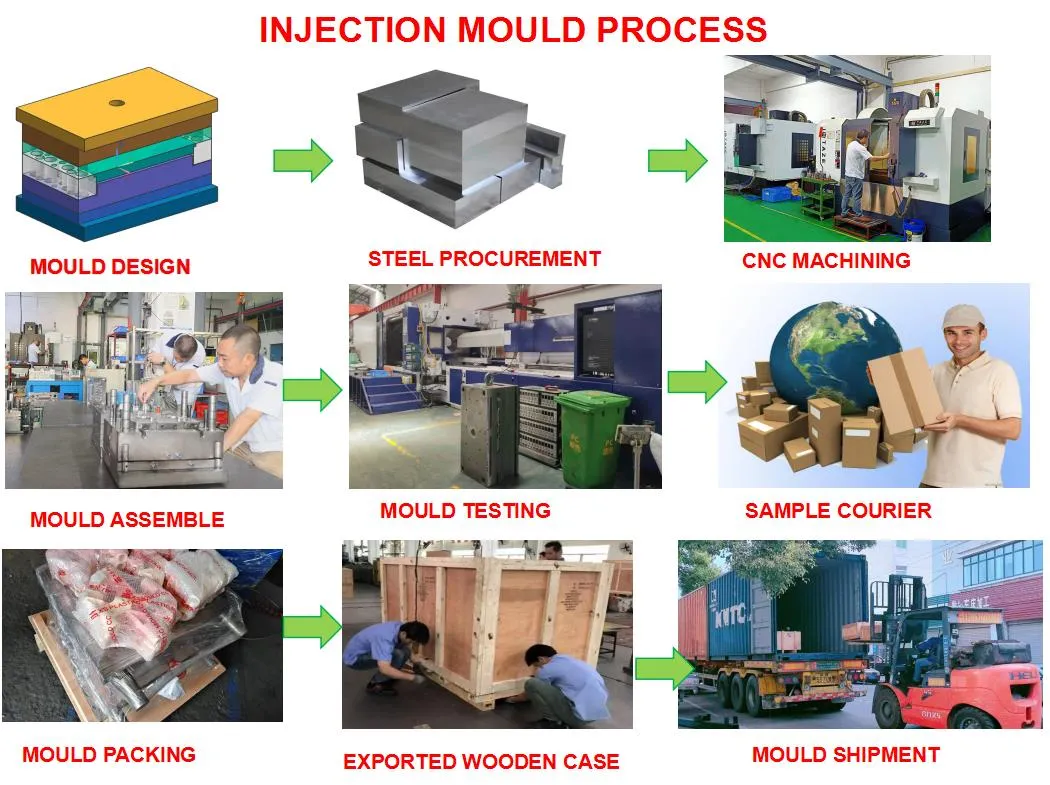

Mould Production Process
❓ Frequently Asked Questions
Q1: Are you a mould factory or trader?
Answer: We are a specialized plastic injection mould factory located in China, focusing on high-precision industrial solutions.
Q2: What is the typical payment term?
Answer: Our standard terms are 40% advance payment via TT, with the balance amount to be paid before mould shipment.
Q3: How do you ensure product design satisfaction?
Answer: We can work from rough ideas or drawings, developing them into completed, satisfied 3D designs through effective communication and engineering expertise.
Q4: What is the expected delivery time?
Answer: T1 trials normally take 25-70 days depending on complexity. Once trial samples are approved, shipment occurs within one week.
Q5: What comprehensive services do you offer?
Answer: Our services include product drawing improvement, mould 2D/3D design, prototype samples, mould flow analysis, DFM reports, and after-sales support.
Q6: How can I visit your facility?
Answer: Our location is accessible via high-speed train from major transport hubs. We provide pickup services from the local station for all visiting clients.
