Plastic Injection Mould Kitchenware Oil Funnel Mould Household Mould Maker

Warranty:	12 Months
Shaping Mode:	Injection Mould
Surface Finish Process:	Polishing

Basic Information

Model NO.

injection mold

Mould Cavity

Multi Cavity

Plastic Material

PP

Process

Progressive Die

Application

Commodity, Home Use

Runner

Hot Runner

Design Software

UG

Standard

DME

Steel

S136 (48-52HRC)

Hot Runner System

Yudo

Production Capacity

300+ Per Year

Origin

Taizhou China

Product Overview

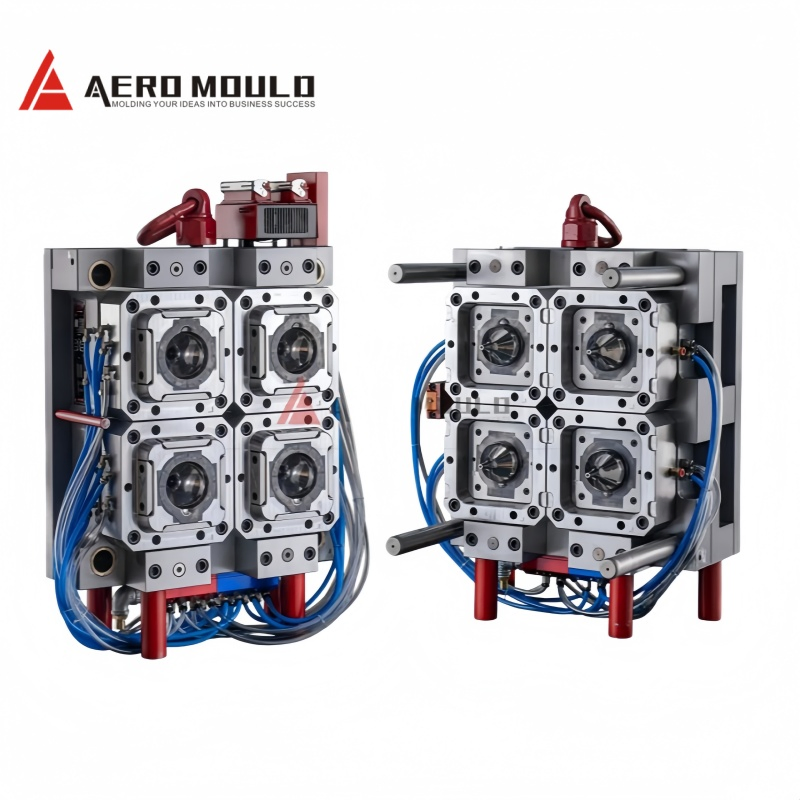

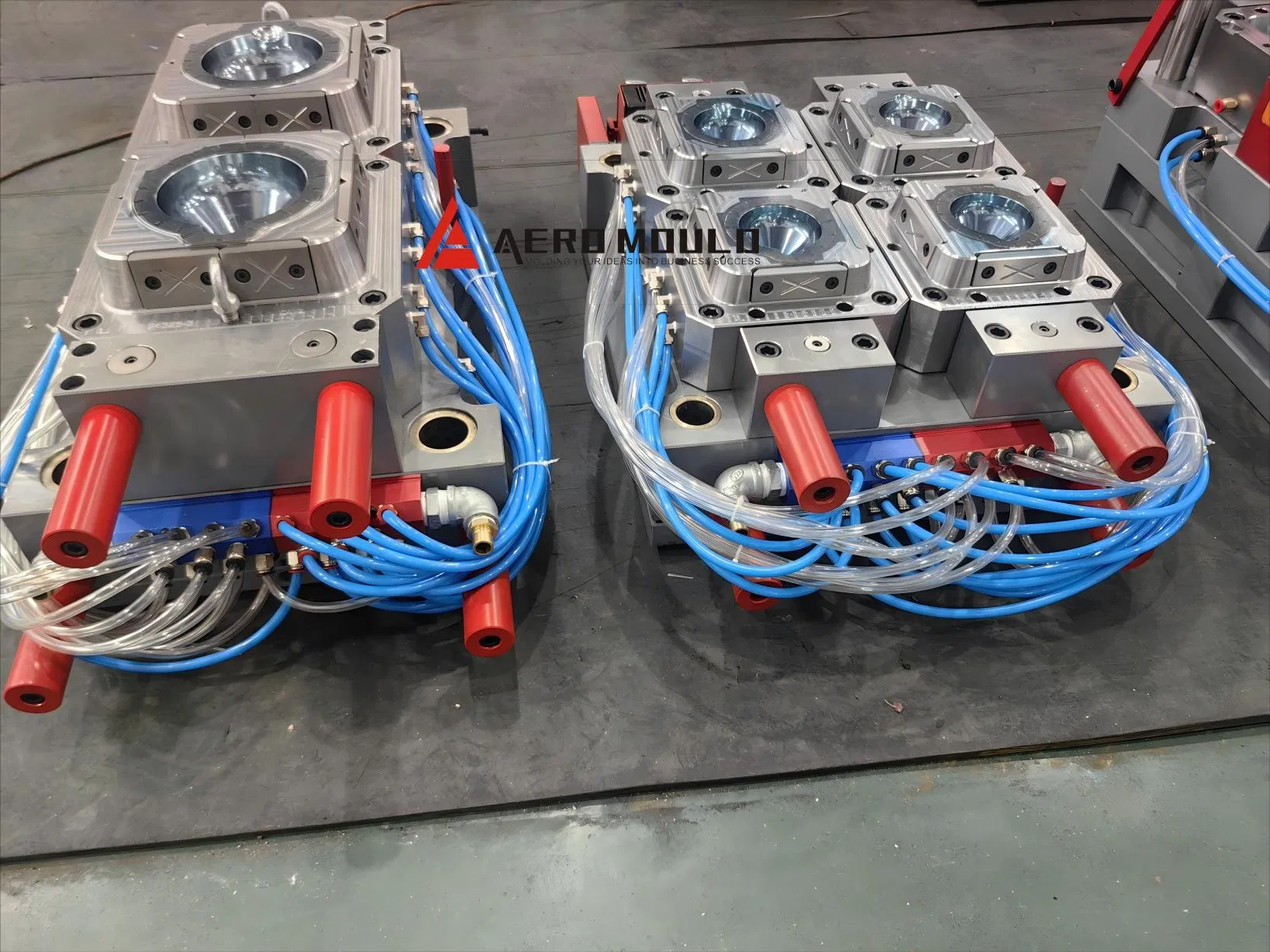

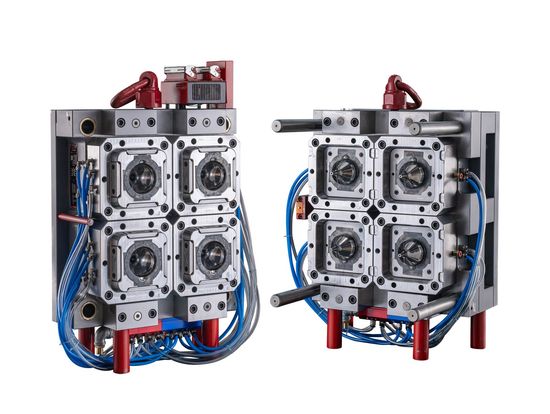

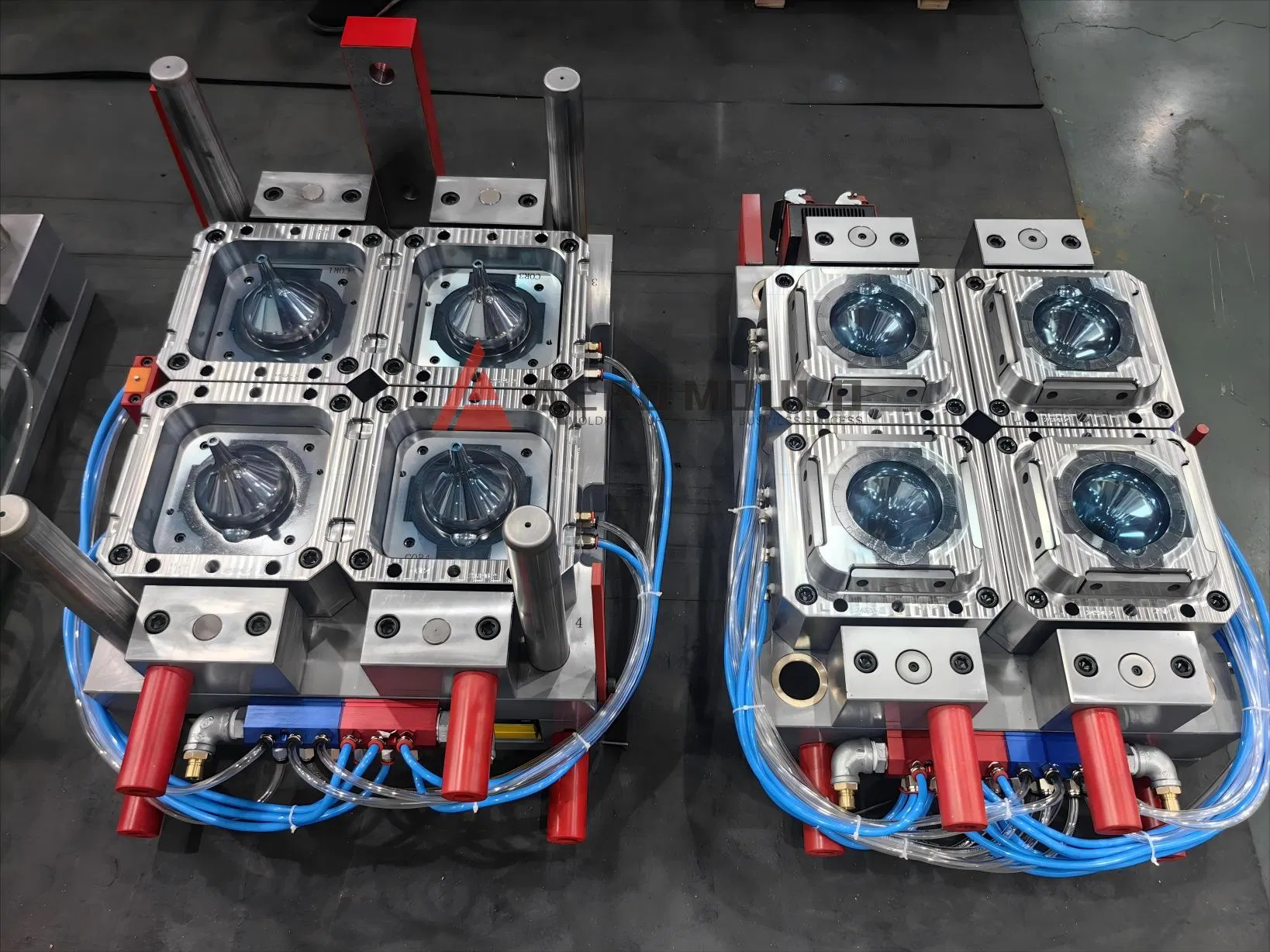

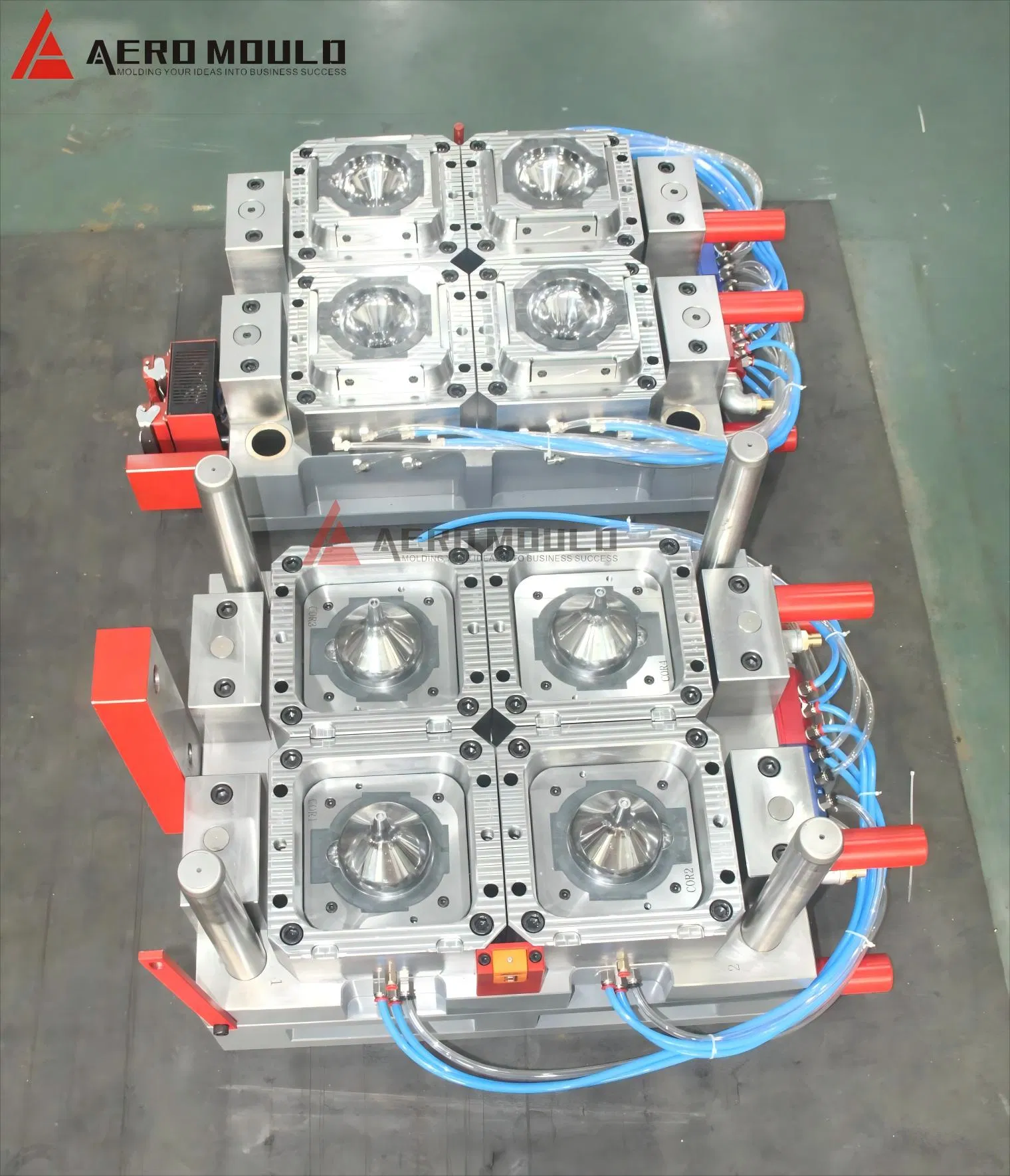

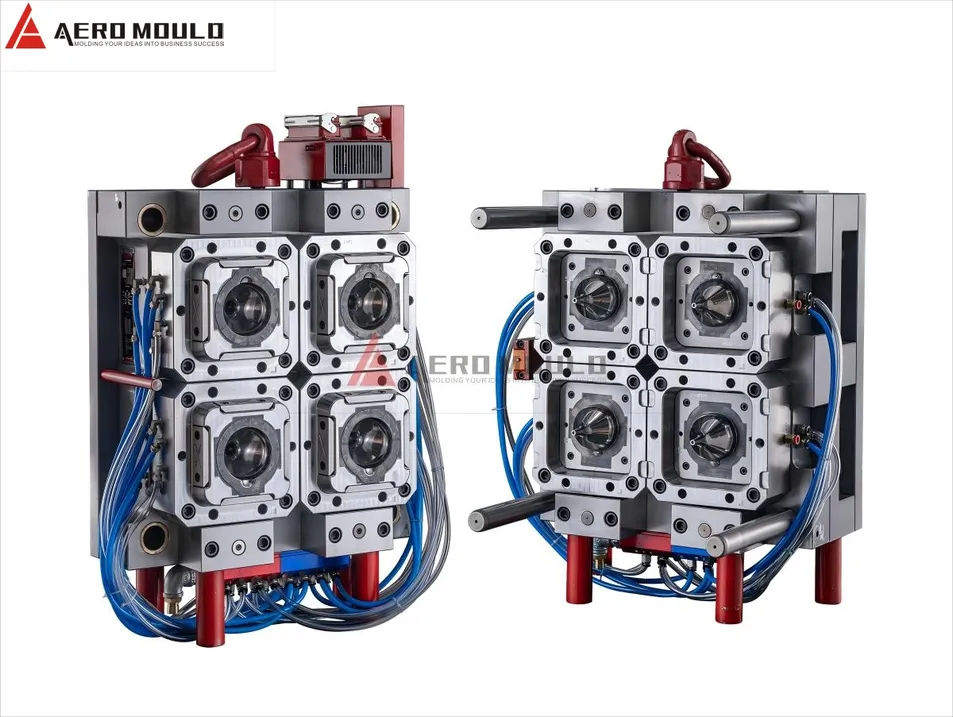

High-Quality 4-Cavity Plastic Funnel Mold for Efficient Production
Our plastic funnel mold is engineered to deliver consistent performance and high precision, making it an ideal choice for mass production of plastic funnels. With advanced design and premium material selection, this mold ensures long service life and excellent product quality.

Technical Specifications

Cavity Number: 4 cavities, enabling high-volume production to meet large-order requirements.
Core & Cavity Material: S136 steel for excellent corrosion resistance, high hardness, and superior polishability.
Hot Runner System: Equipped with YUDO hot runner system for uniform plastic melting and precise injection.
Mold Dimensions: 300*570*445mm, compact structure easy to adapt to standard machines.

Product Advantages

High Precision: Advanced machining ensures precise dimensions and consistent funnel shapes.
Durable Performance: Premium S136 and S45C steel with professional heat treatment for wear resistance.
Efficient Production: 4-cavity design combined with YUDO hot runner system to shorten production cycles.
Easy Maintenance: Designed for easy disassembly to reduce downtime and maintenance costs.

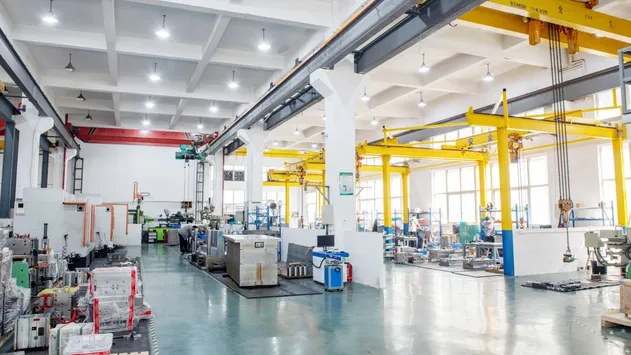

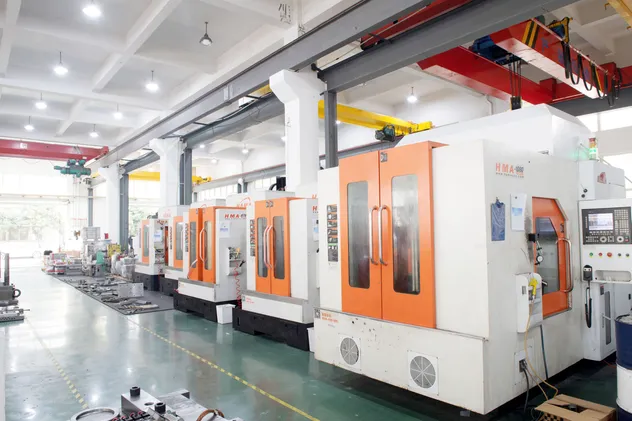

Manufacturing Excellence

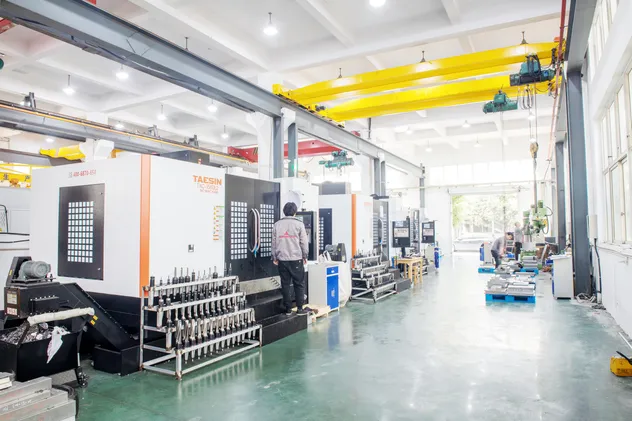

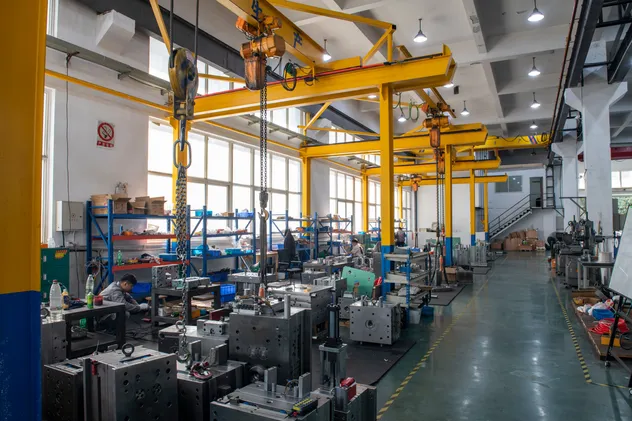

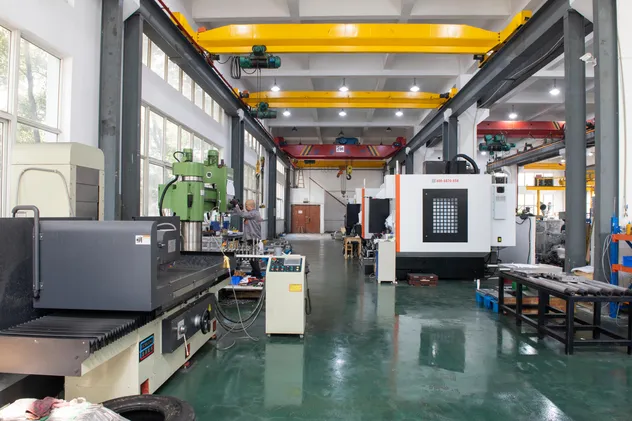

Established in 2014 in China's premier mold-making hub, we are a globally trusted manufacturer of high-precision injection molds. With an annual output of ~300 molds and exports to nearly 30 countries, we power production for industries worldwide.

Medical Product Molds: For strict compliance requirements.

Packaging Molds: For high-clarity and efficient production.

Daily Necessity Molds: For durable consumer goods.

PET Preform Molds: For high-efficiency beverage packaging.

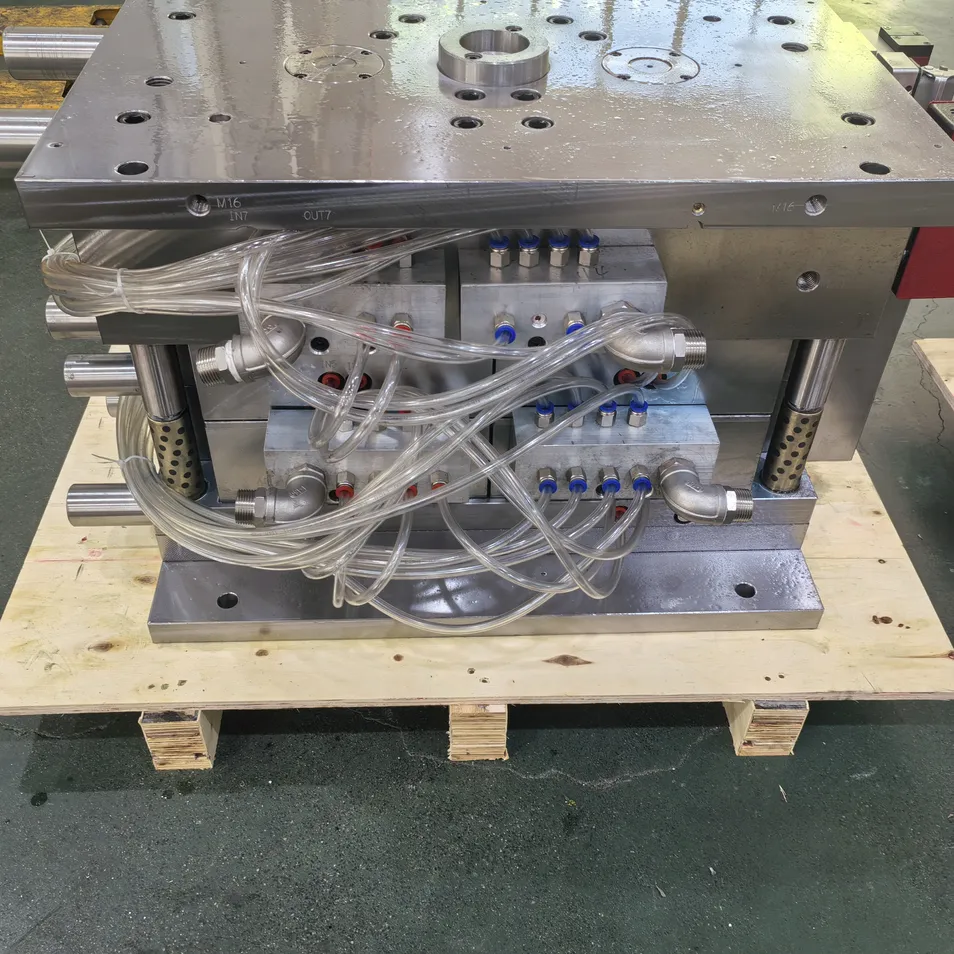

Packing and Delivery

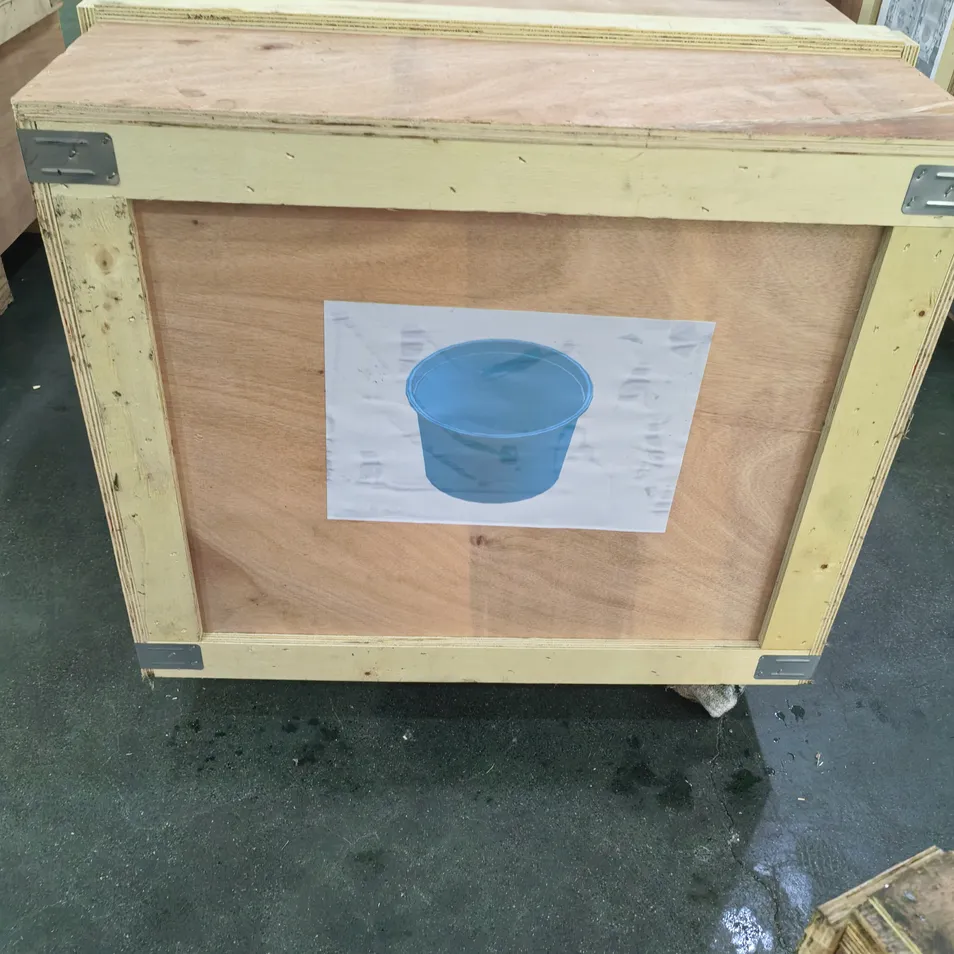

We ensure flawless delivery with a strict pre-shipment protocol: comprehensive inspection, hydrostatic and hardness testing, anti-rust treatment, protective film wrapping, and final packing in custom, reinforced wooden crates.

After Sales Service

Standard Warranty: 12 months or 2,000 operating hours.
Global Support: 24/7 technical assistance and spare parts supply.
Training: On-site or remote operation and maintenance training.

Frequently Asked Questions

Q1: How do you ensure consistent quality control?

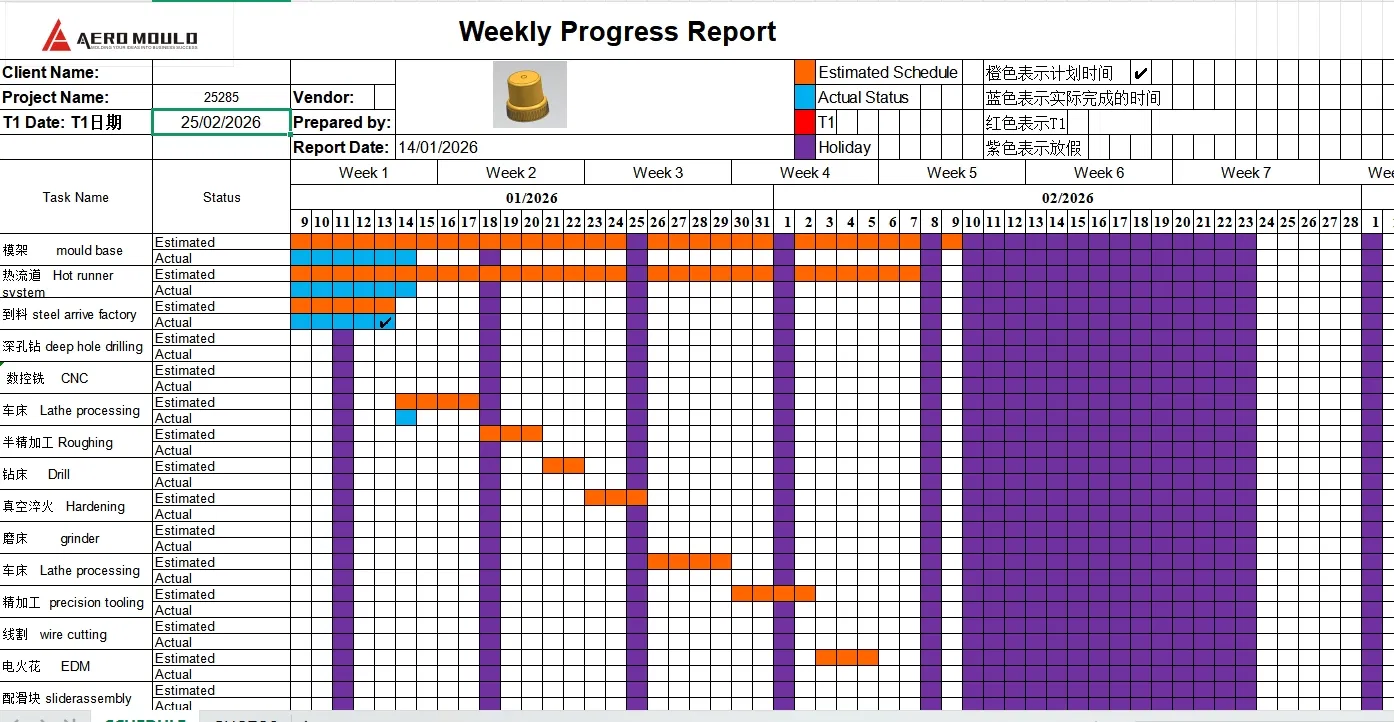

We follow a fully documented QC process including DFM analysis, in-process stage inspections, and final assembly checks with mold testing and sample parts.

Q2: Can you produce molds according to specific standards like DME or HASCO?

Yes. We are experienced with international standard mold bases and components. We adapt to your technical requirements for materials, finishes, and tolerances seamlessly.

Q3: What after-sales support do you provide?

We provide technical assistance during commissioning, modifications based on feedback, warranty coverage, and long-term spare parts supply.

Q4: Are your molds cost-effective compared to local suppliers?

Yes. Leveraging advanced manufacturing and efficient supply chains, we typically offer prices 20%-40% lower than Western counterparts without compromising precision.

Q5: How do you protect design IP and confidentiality?

We sign a formal NDA before project initiation. All design files are stored securely with restricted access and are never shared or reused.

Q6: Can you help with part design optimization?

Absolutely. Our engineering team offers free DFM feedback to optimize manufacturability, reduce cycle time, and enhance product quality.
