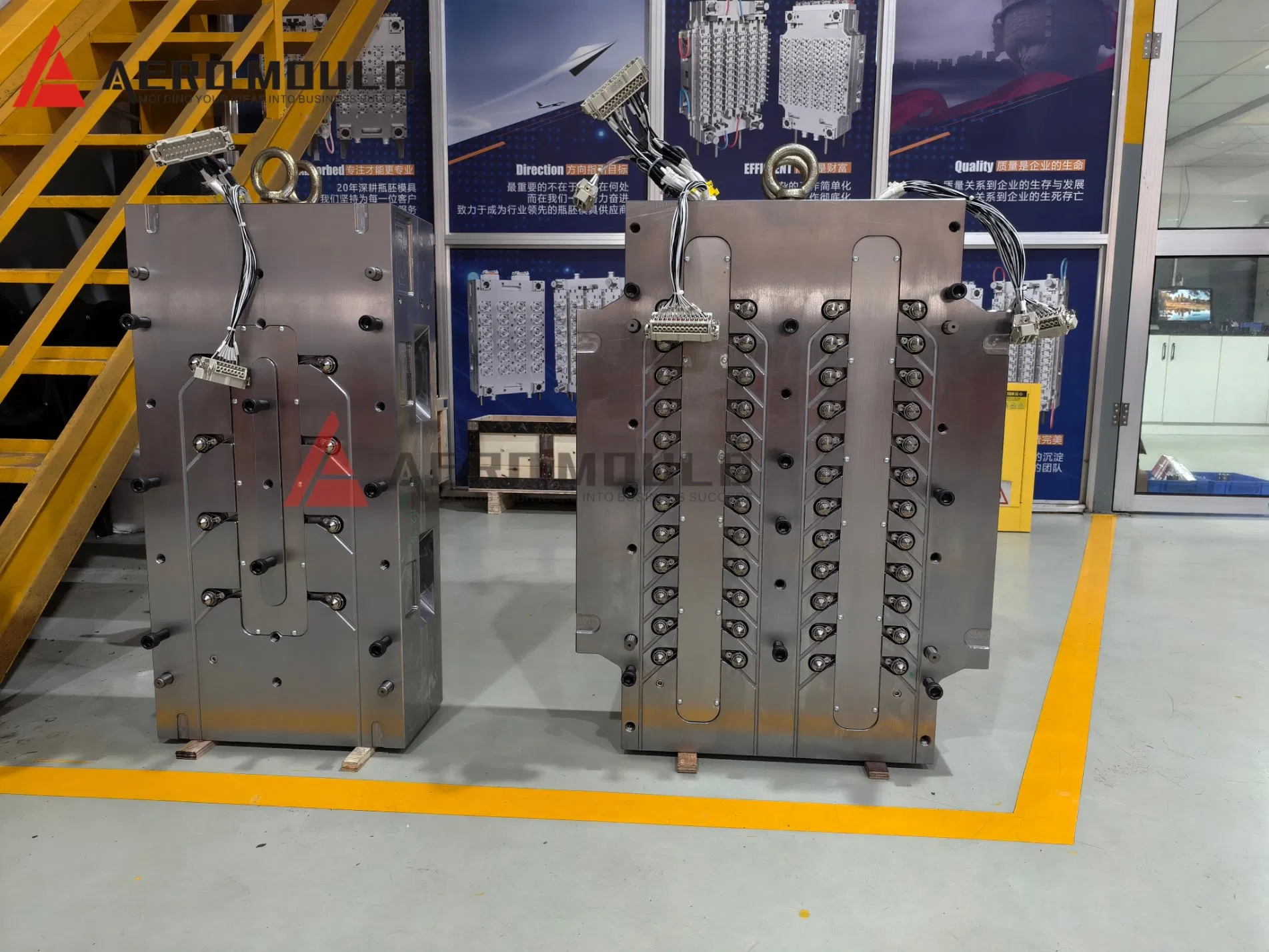

Specialized Preform Mold for Blow Molding Bottle Production

1 / 5

Specialized Preform Mold for Blow Molding Bottle Production

Warranty:	12 Months
Shaping Mode:	Injection Mould
Surface Finish Process:	Polishing

Send Inquiry

Product Description

Basic Specifications

Model NO.

injection mould

Mould Cavity

Multi Cavity

Plastic Material

Process Combination

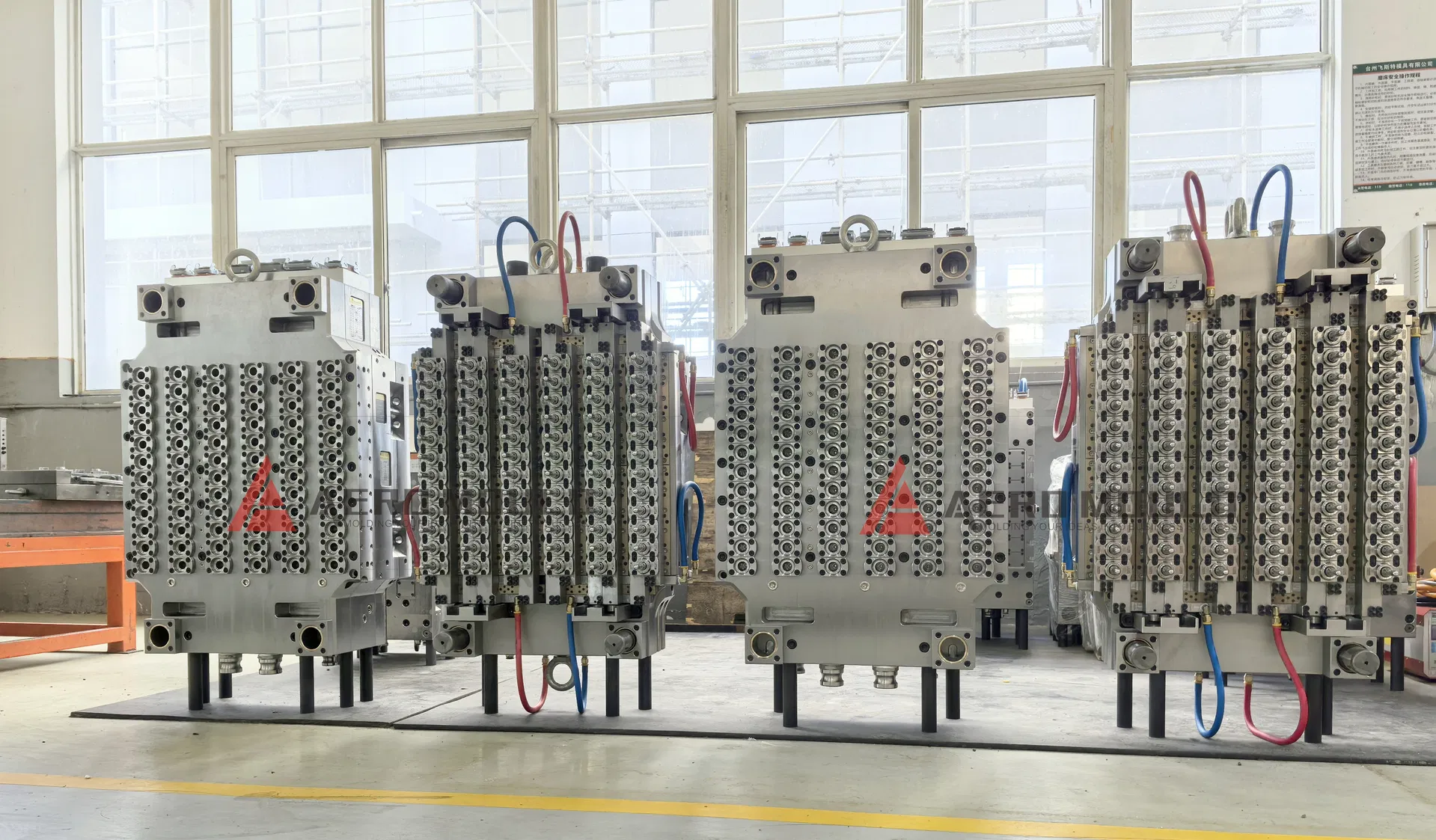

CNC Machining + EDM + Polishing + Injection Molding

Application

Commodity, Home Use, Packaging

Runner System

Hot Runner

Design Software

Standard

DME

Guarantee

12 Months

Steel Spec

S136 HRC 48-52

Production Capacity

300+ Sets Per Year

Origin

Taizhou China

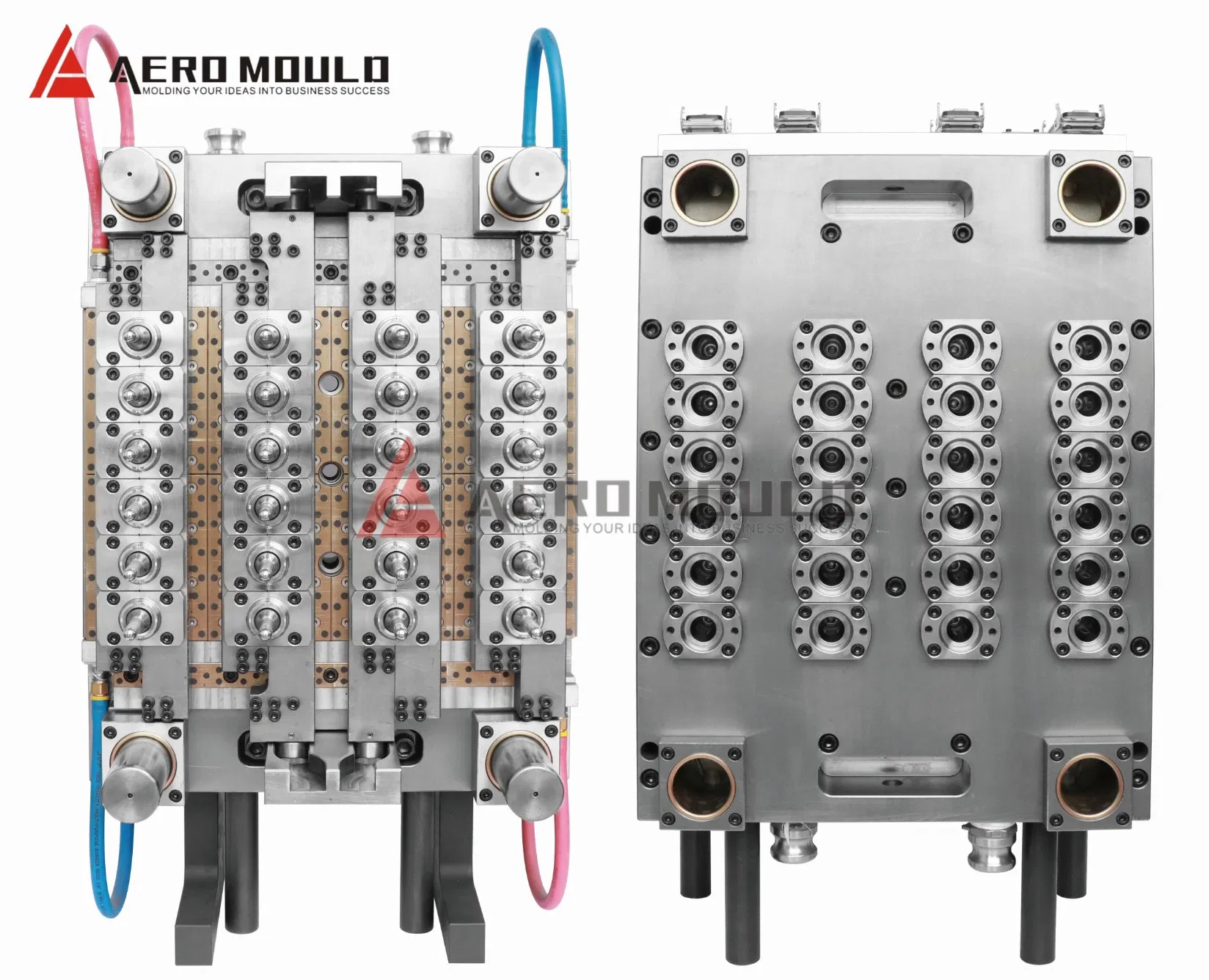

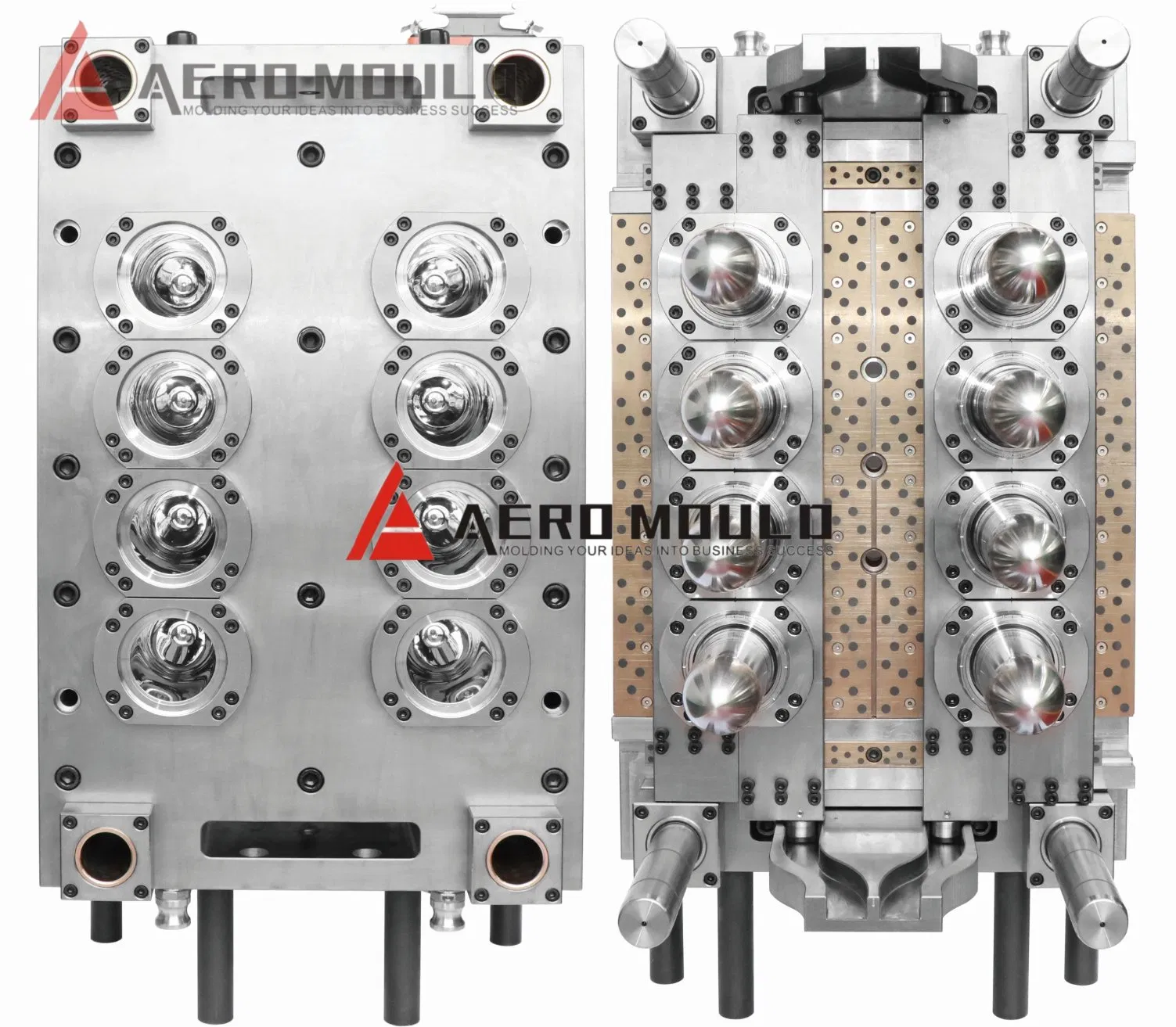

Precision PET Preform Molds

We specialize in the design and manufacture of high-precision PET preform molds for the global packaging industry. As a leading manufacturer in China, we are committed to delivering superior quality, exceptional durability, and reliable performance. Our expertise caters to the diverse needs of beverage, food, pharmaceutical, and consumer goods packaging worldwide.

⚙️

Engineered for Longevity and Maximum ROI
Molds are constructed from premium-grade, hardened steels such as SS420, H13, and S136. Featuring advanced hot runner systems and optimized cooling channels, our construction withstands high-cycle, high-pressure environments, minimizing downtime and ensuring a high return on investment.

📦

Comprehensive Range of Mold Specifications

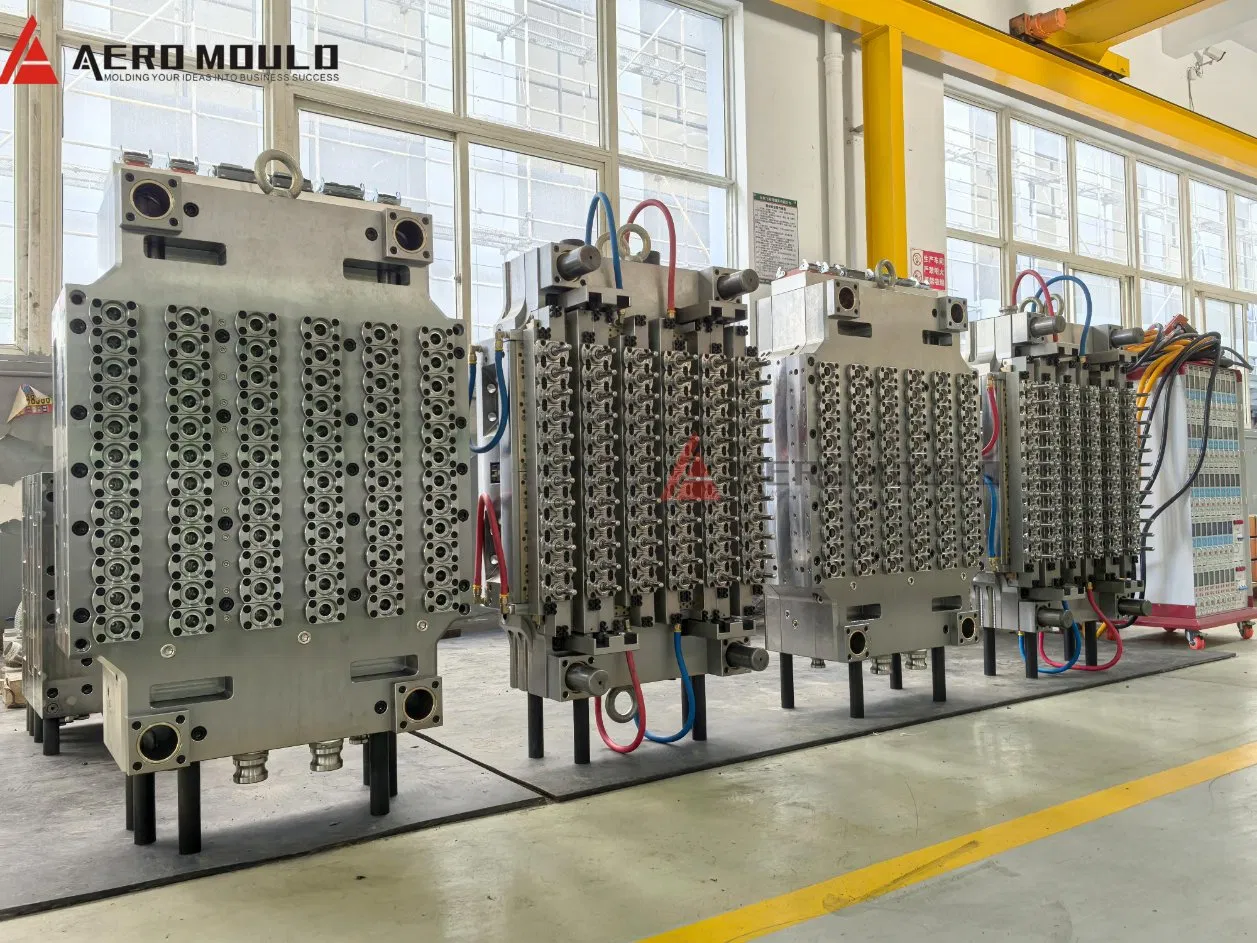

From single-cavity prototypes to high-cavitation production molds, we offer: Standard & Lightweight Preform Molds, Hot-Fill & Pasteurization Molds, Custom Neck Finish Molds (PCO, BPF), and High-Speed Production Molds (72, 96+ cavities).

🕒

On-Time Delivery Guarantee
Streamlined production management ensures strict adherence to schedules. From design review to final shipment, we provide regular updates to ensure your production remains on track.

Technical Specification

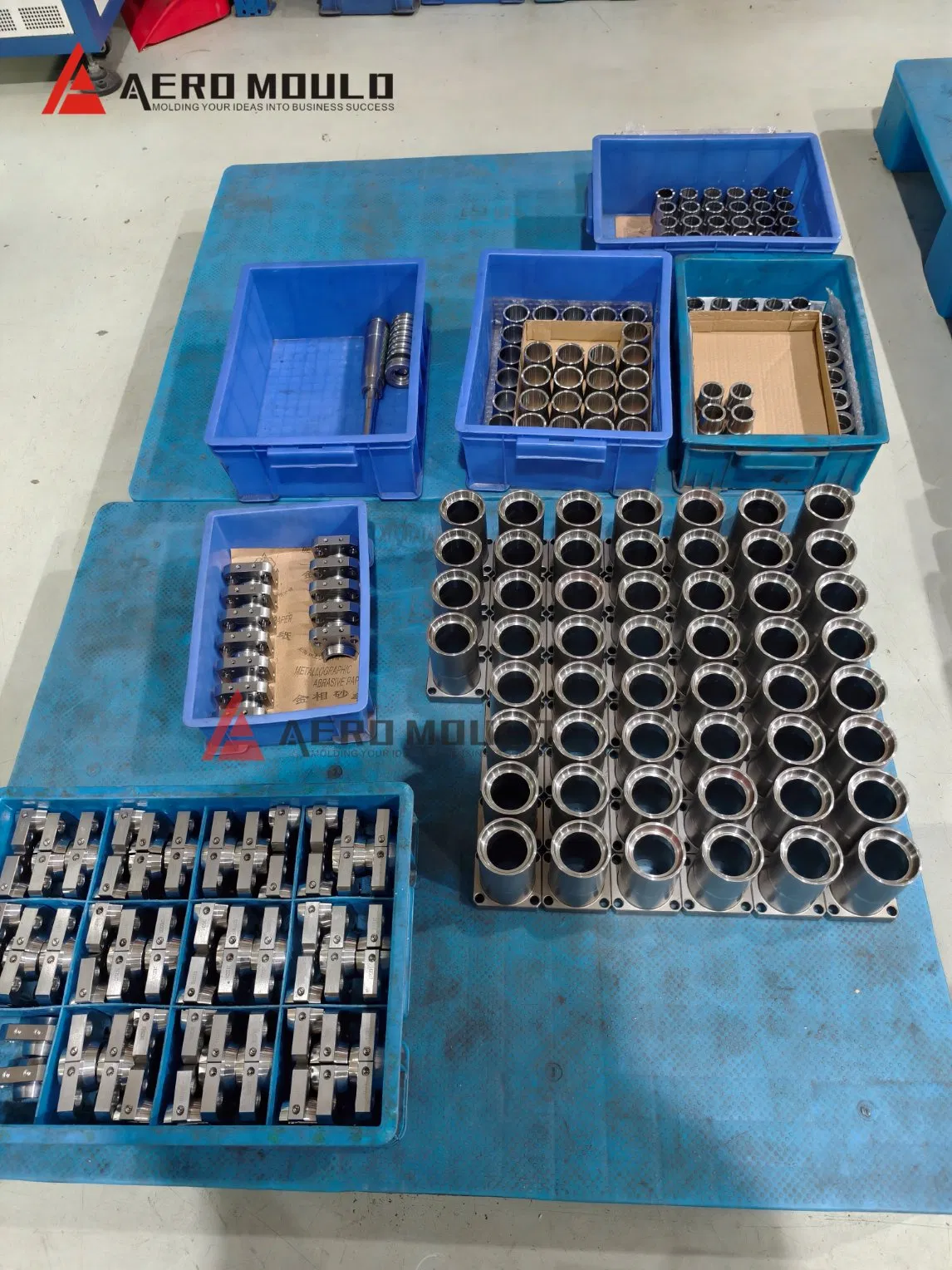

Mould Material & Parameters
Mould Cavity	S136 from Sweden ASSAB with HRC 48-52
Mould Core	S136 from Sweden ASSAB with HRC 48-52
Mould Core Sleeve	DC11 from Japan
Ejector Way	Stripper plate / Ejector sleeve
Mould Manifold Plate	H13
Mould Plates	P20/4CR13H
Guarantee	1 year or 1 million shot times
Mould Life	3 Million shots
Delivery Time	50 days after design approval

Our Professional Advantage

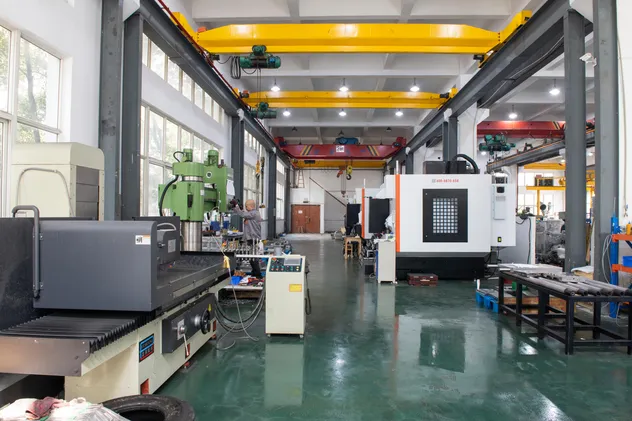

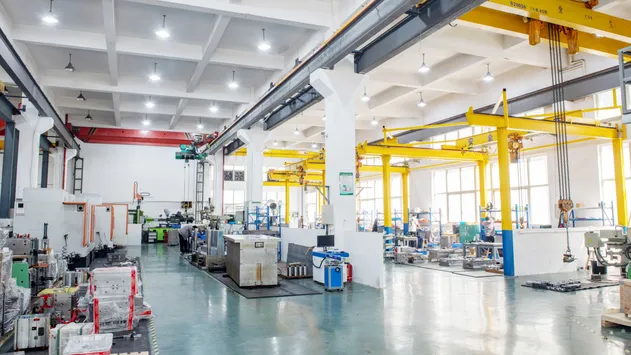

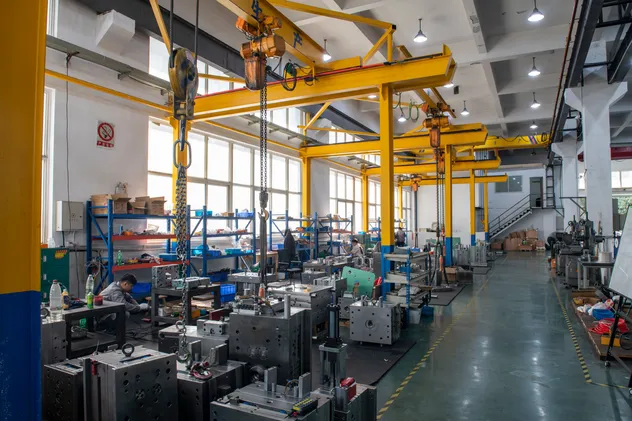

Established in 2014, our facility is located in China's premier mold-making hub. With an annual output of approximately 300 molds and exports to nearly 30 countries, we power production for industries worldwide.

Medical Product Molds: Strict compliance for devices and packaging.
Packaging Molds: High-clarity and efficient production.
Daily Necessity Molds: Durable, high-volume consumer goods.
PET Preform Molds: High-efficiency beverage and liquid packaging.

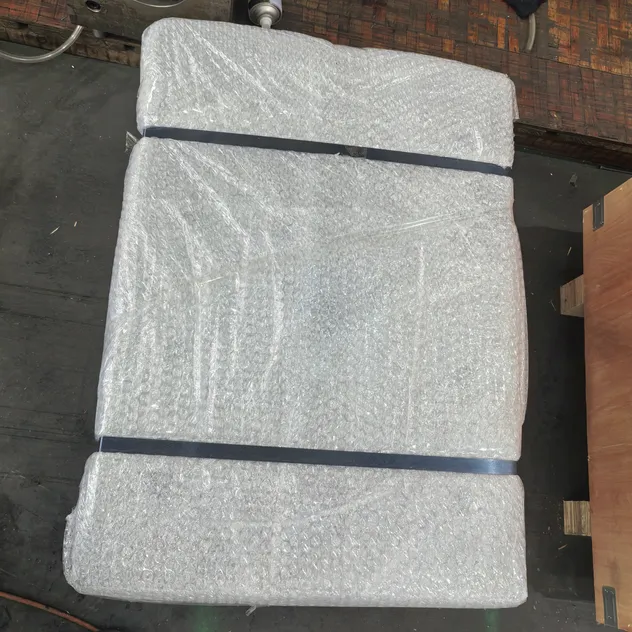

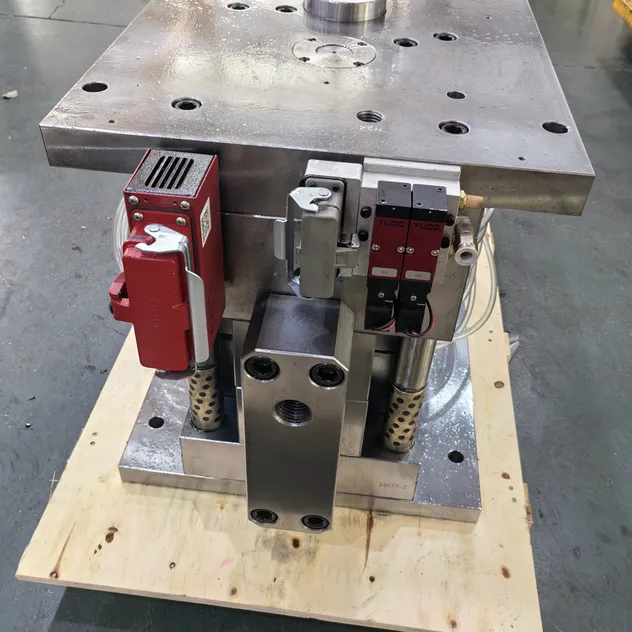

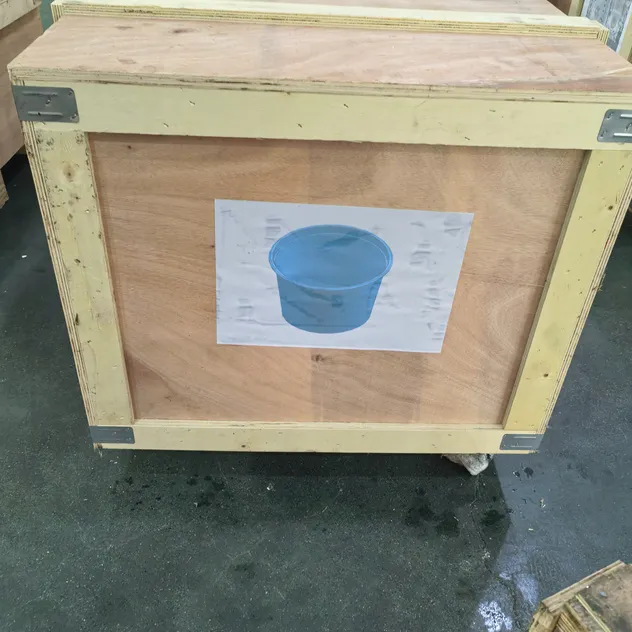

Packing & Delivery

Package Size

120.00cm * 80.00cm * 75.00cm

Gross Weight

1250.000kg

Packing Type

Export Plywood Box

Frequently Asked Questions

Q1: What is your typical lead time for mold manufacturing? A: For a standard single-cavity mold, lead time is 35-40 working days after final design approval. Multi-cavity or complex molds may require 45-60 days.

Q2: What is your mold warranty and lifespan guarantee? A: We provide a 12-month warranty against manufacturing defects. Depending on the steel grade, we guarantee a lifespan of up to 3 million shots.

Q3: What mold steels do you standardly use? A: We use premium steels like S136, 2344, H13, and SS420 from reputable mills. Customers can specify their preferred steel grade based on requirements.

Q4: Do you provide DFM (Design for Manufacturability) analysis? A: Yes. Before manufacturing, our engineering team provides a free DFM report to optimize your part design for quality and mold longevity.

Q5: What is the process for mold trials and samples? A: We conduct 2-3 mold trials in our factory. We send trial videos and 5-10 sample parts by express for your approval before final shipment.

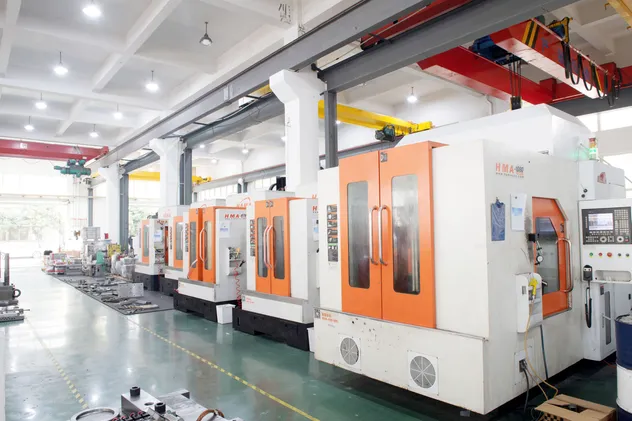

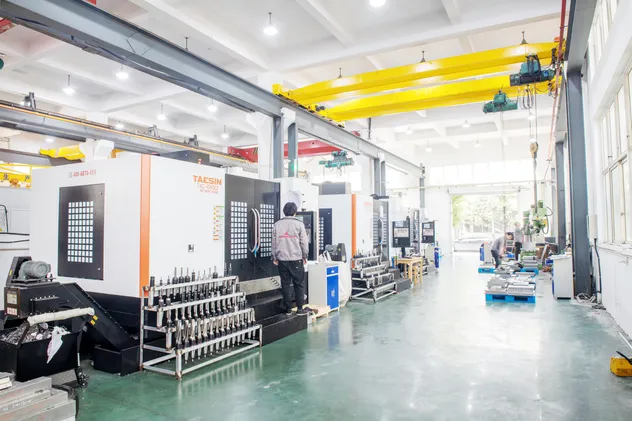

Q6: How do you ensure mold quality and precision? A: We utilize CNC, EDM, and high-speed machining centers. Precision is verified via CMM inspection and strict quality checklists to match your 3D data.
