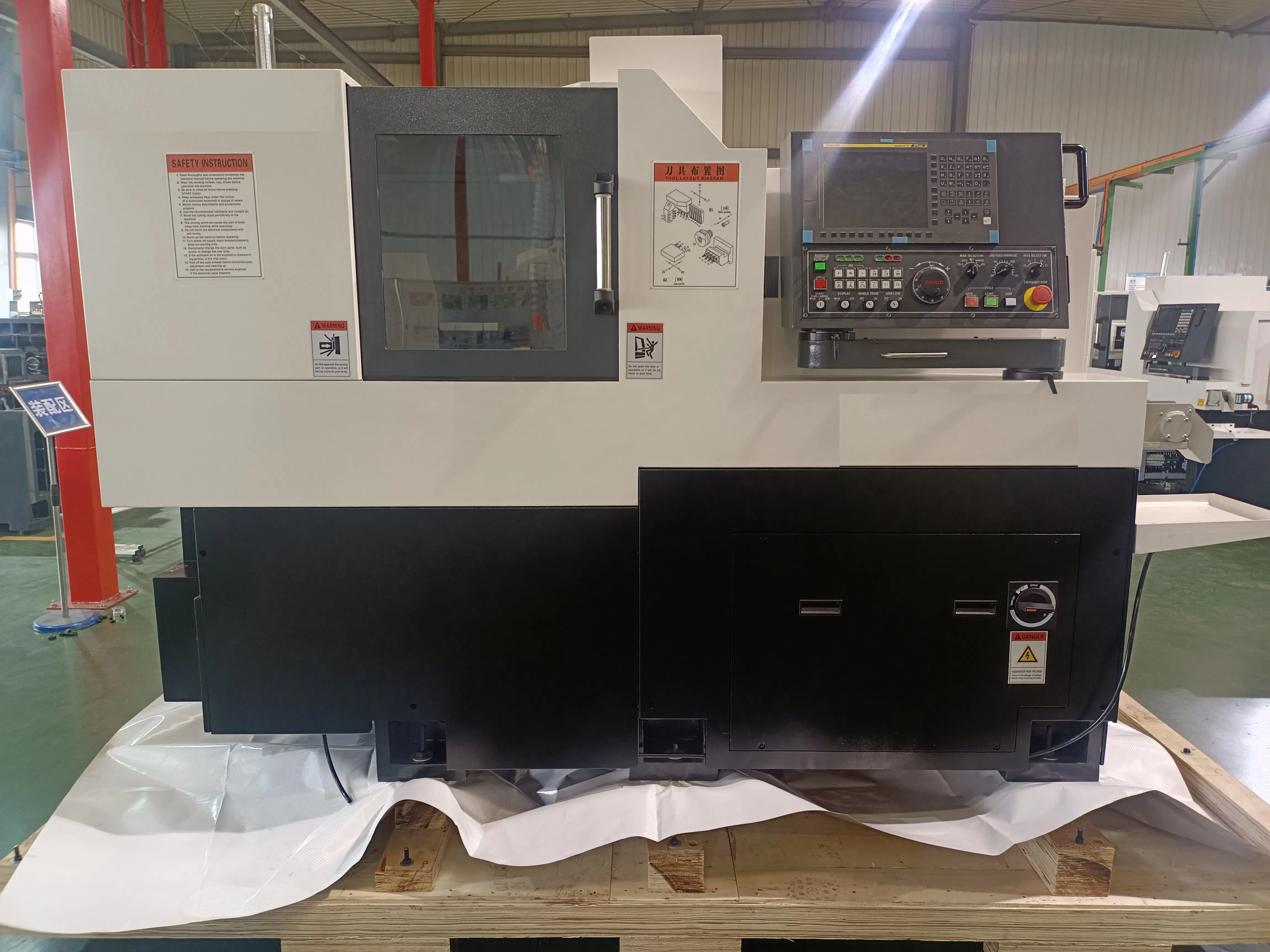

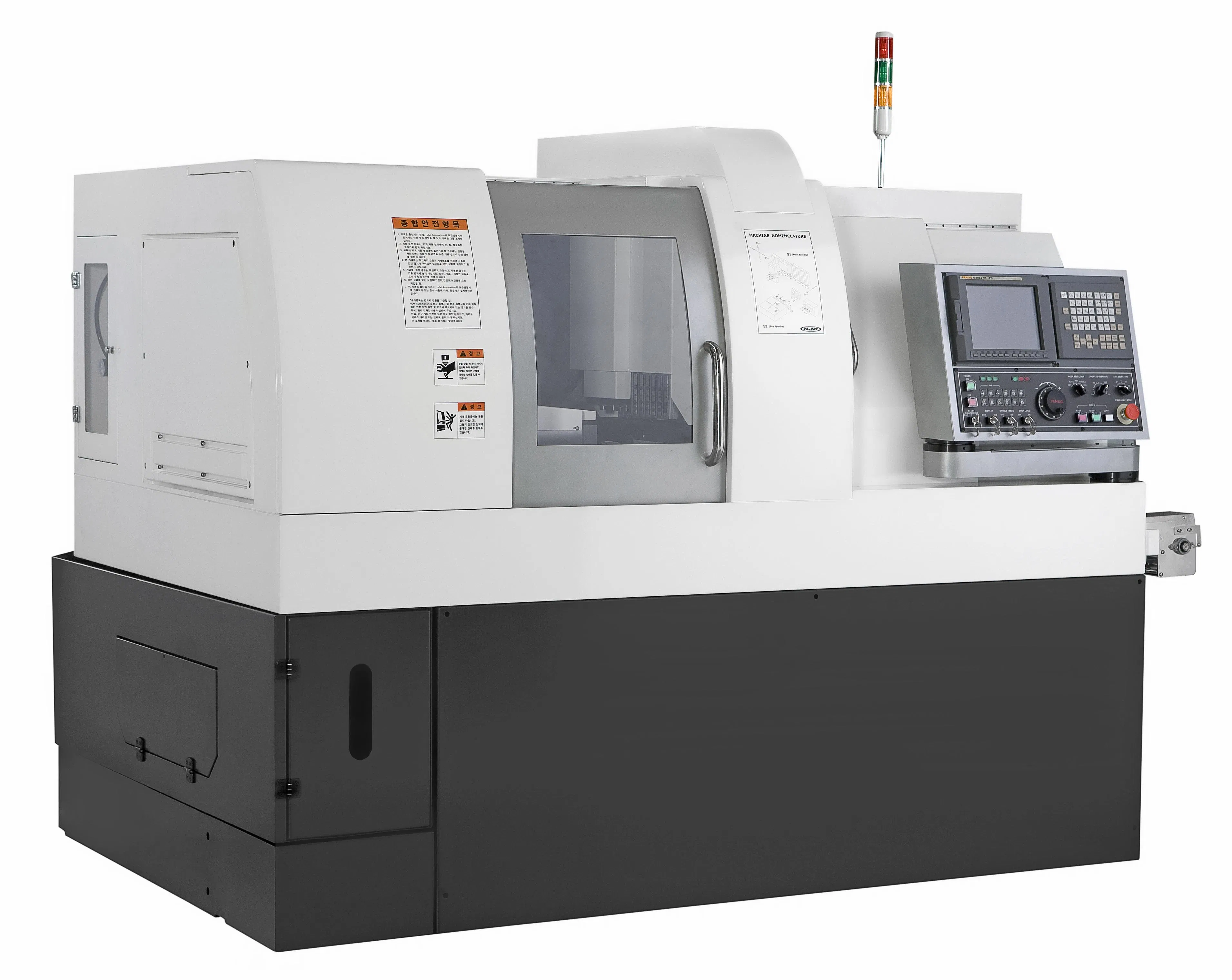

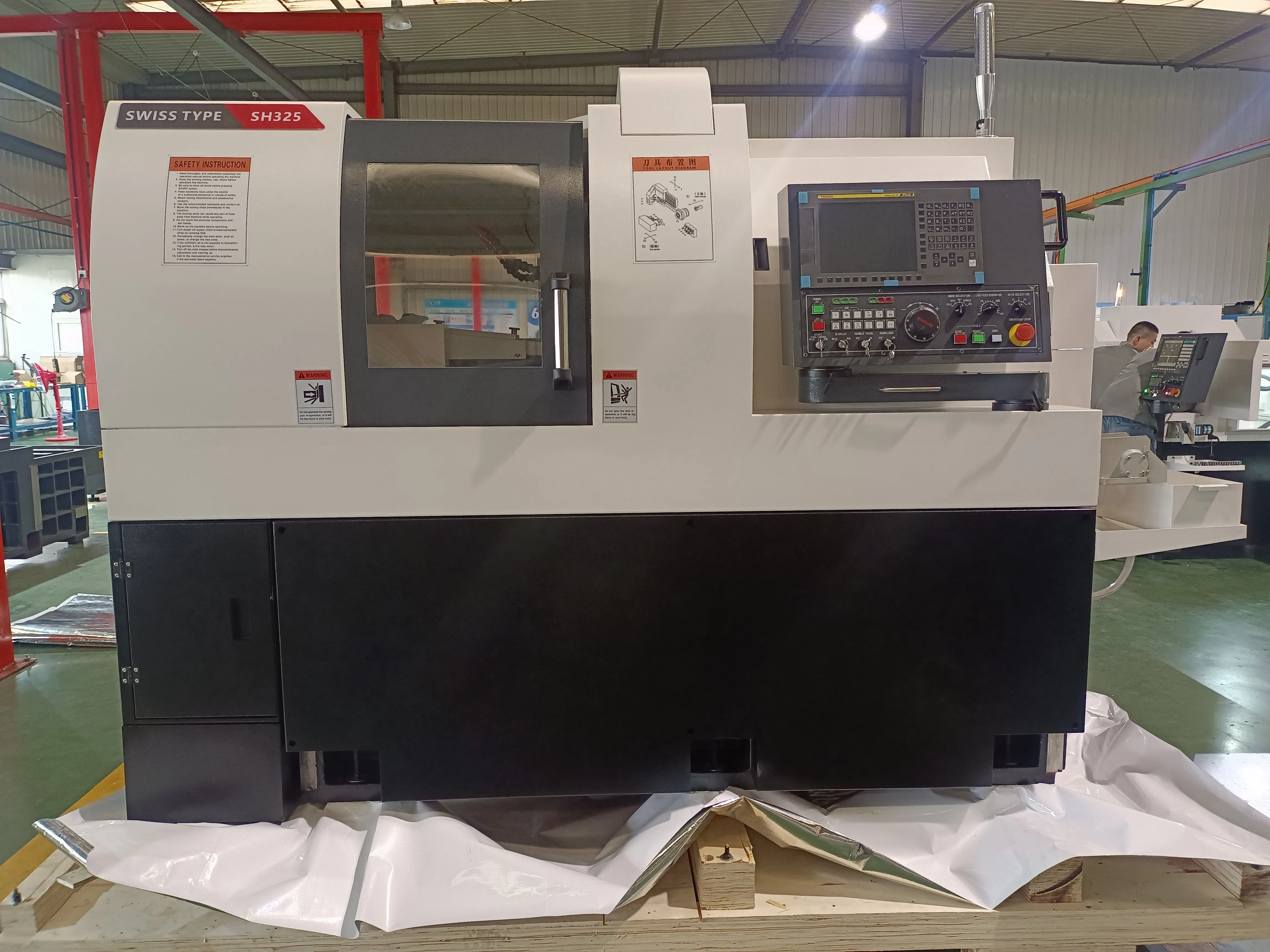

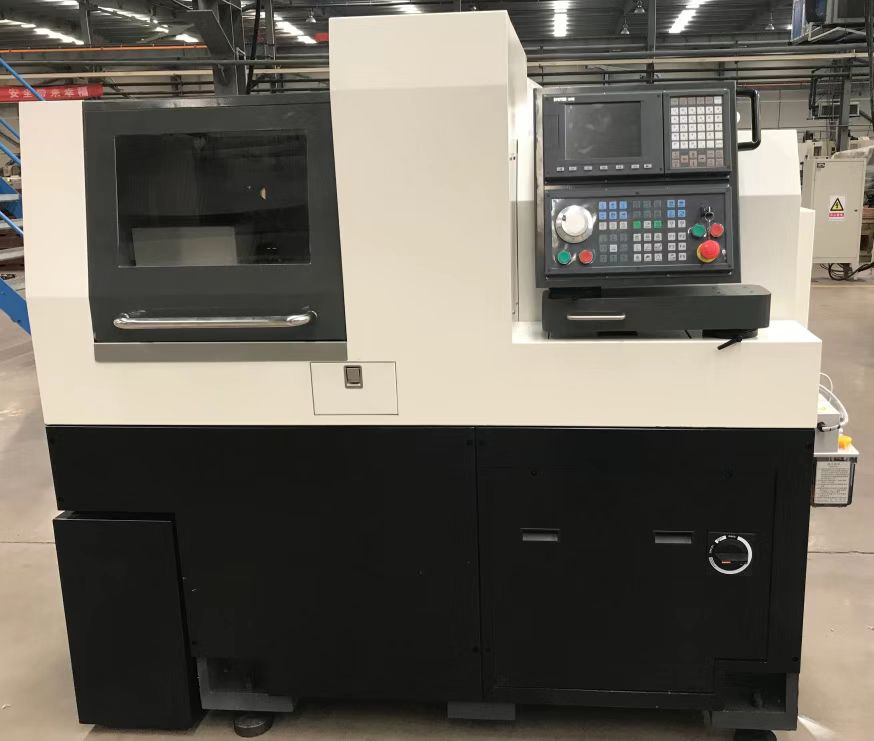

Powerful Swiss Type CNC Lathe Machine Sm385 for High-Volume Production Needs

i

Basic Information

Model NO.

Swiss Lathe Machine

Type

Multicut Lathe

Guide Rail

Horizontal Guide Rail

Controlling Mode

CNC (Automatic)

Precision

High Precision

Certification

GS, CE, RoHS, ISO 9001

System

Fanuc 0I TF-Plus / Syntec 220tb

Max.Rpm

8,000 min-1 (Main/Sub)

Main Motor

5.5/7.5kw

Weight

4,500kg

Size

2760mm x 1564mm x 1882mm

Origin

China

D

Product Description

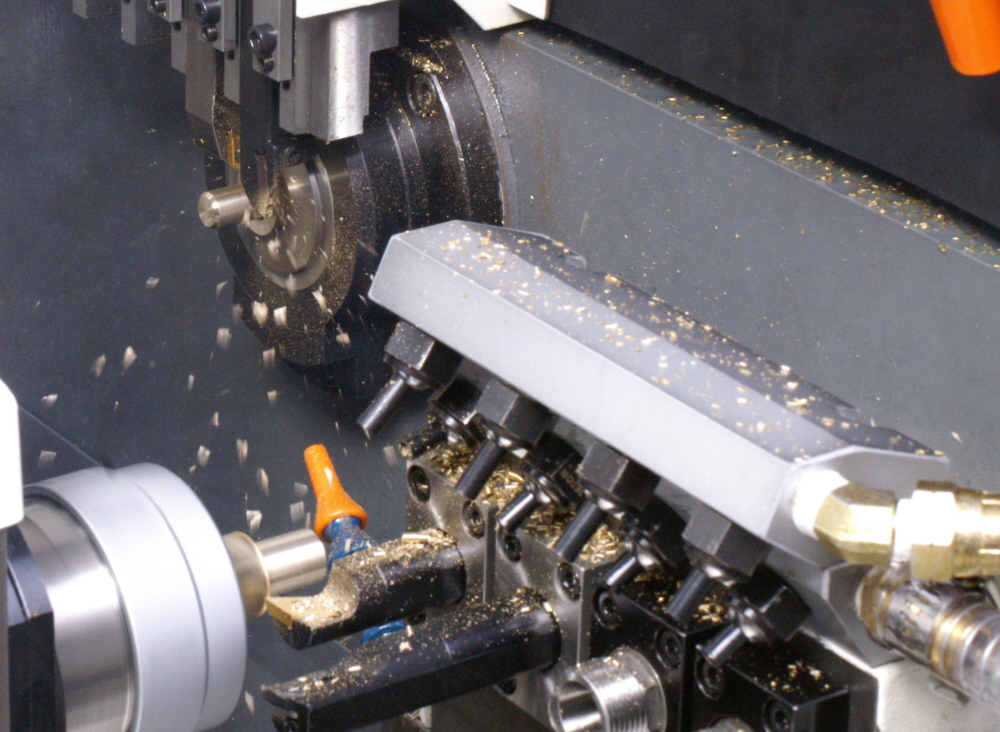

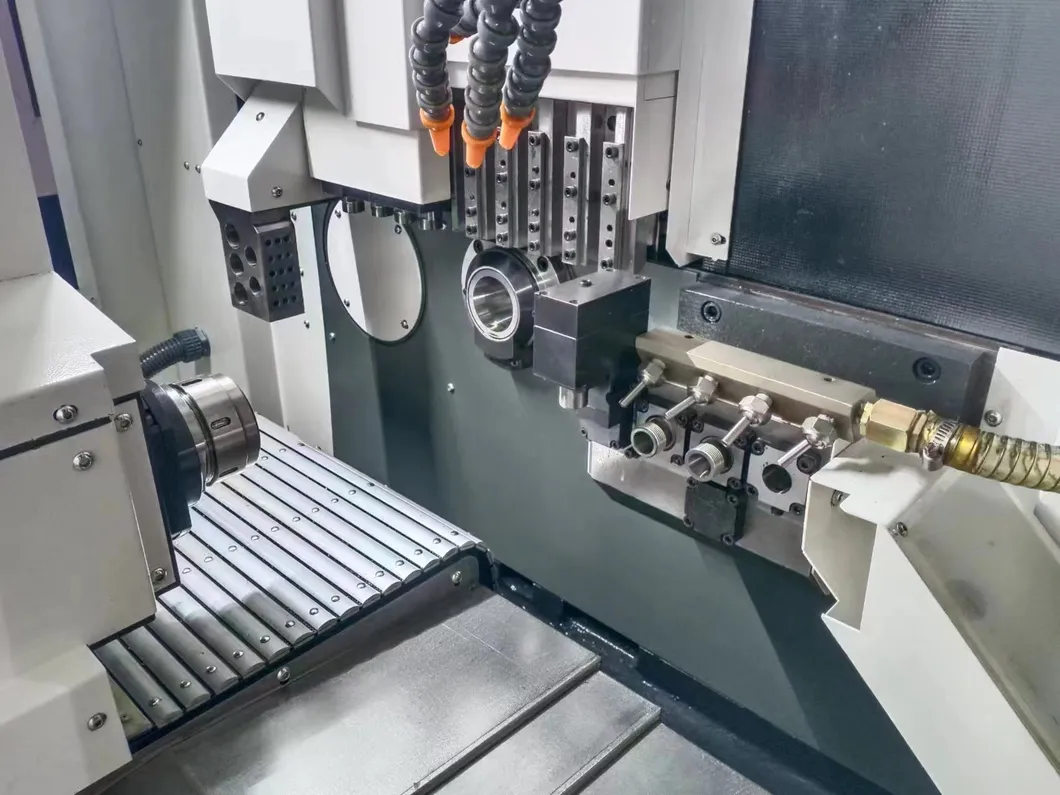

The Swiss-style lathe, also recognized as a CNC automatic lathe, stands as a pinnacle of precision processing machinery. It exemplifies unmatched versatility by masterfully executing operations such as tapping, milling, drilling, and turning. This formidable machine is ingeniously equipped with dual spindles and a double Y-axis, facilitating concurrent processing tasks to drastically minimize processing time. Its prowess is most evident in the mass production of complex, non-standard components. These include finely detailed precision hardware and uniquely shaped shafts, catering to high-demand production needs that call for specialized craftsmanship.

P

Technical Parameters

Items		SC385 Specification
Mechanic	System	FANUC 0i TF-PLUS	SYNTEC 220TB
	Max.RPM	Main 8,000 / Sub 8,000	Main 6,000 / Sub 8,000
	Max. Turning Dia.	φ38mm
	Rapid Traverse	32m/min	24m/min
Tools	O.D Tools	5X [16×16]
	I.N Tools	3X [φ25-ER16] + 2X [φ20-ER16]
	Cross Driven Tools	4X [ER16]
Motors	Main Spindle	5.5/7.5KW	5.9KW
Motors	Sub Spindle	1.5/2.2KW	3.9KW
Weight	Machine Weight	4,500 Kg

V

Our Advantages

Professional Supplier

Superior Quality Control

Excellent Technical Service

Competitive Market Pricing

S

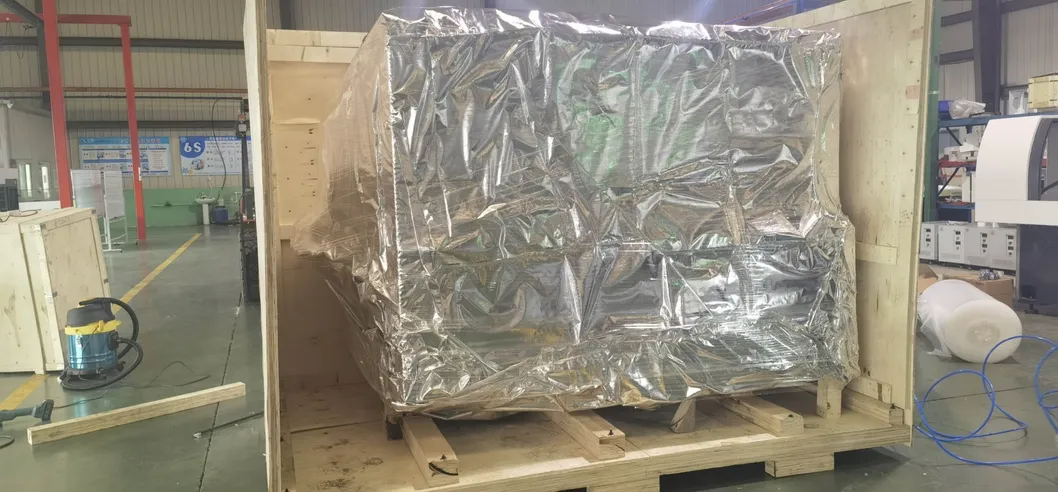

Packaging & Shipping

?

Frequently Asked Questions

What types of machinery do you provide?

We offer a wide range of industrial solutions including laser engraving, cutting, welding, and marking machines, as well as high-precision CNC lathes and Swiss-type CNC lathe centers.

Why should I choose your CNC lathe machines?

Our machines offer faster delivery times, are produced using a full set of advanced equipment, and undergo rigorous third-party testing. We also offer flexible payment terms (TT/LC) and 24-hour online support.

What control systems are compatible with the SC385?

The SC385 supports world-class control systems including FANUC 0i TF-PLUS and SYNTEC 220TB, ensuring high reliability and ease of operation.

What is the processing precision of the Swiss-type lathe?

These machines are designed for high-precision processing of complex and non-standard parts, featuring dual spindles and double Y-axis for maximum accuracy and efficiency.

What are the main advantages of your equipment?

The core advantages include professional manufacturing standards, top-tier quality components, the most competitive pricing in the industry, and comprehensive after-sales service.

How is the equipment packaged for international shipping?

We use standard export-grade professional packaging to ensure that the machine is fully protected against moisture and physical damage during sea or land transport.
