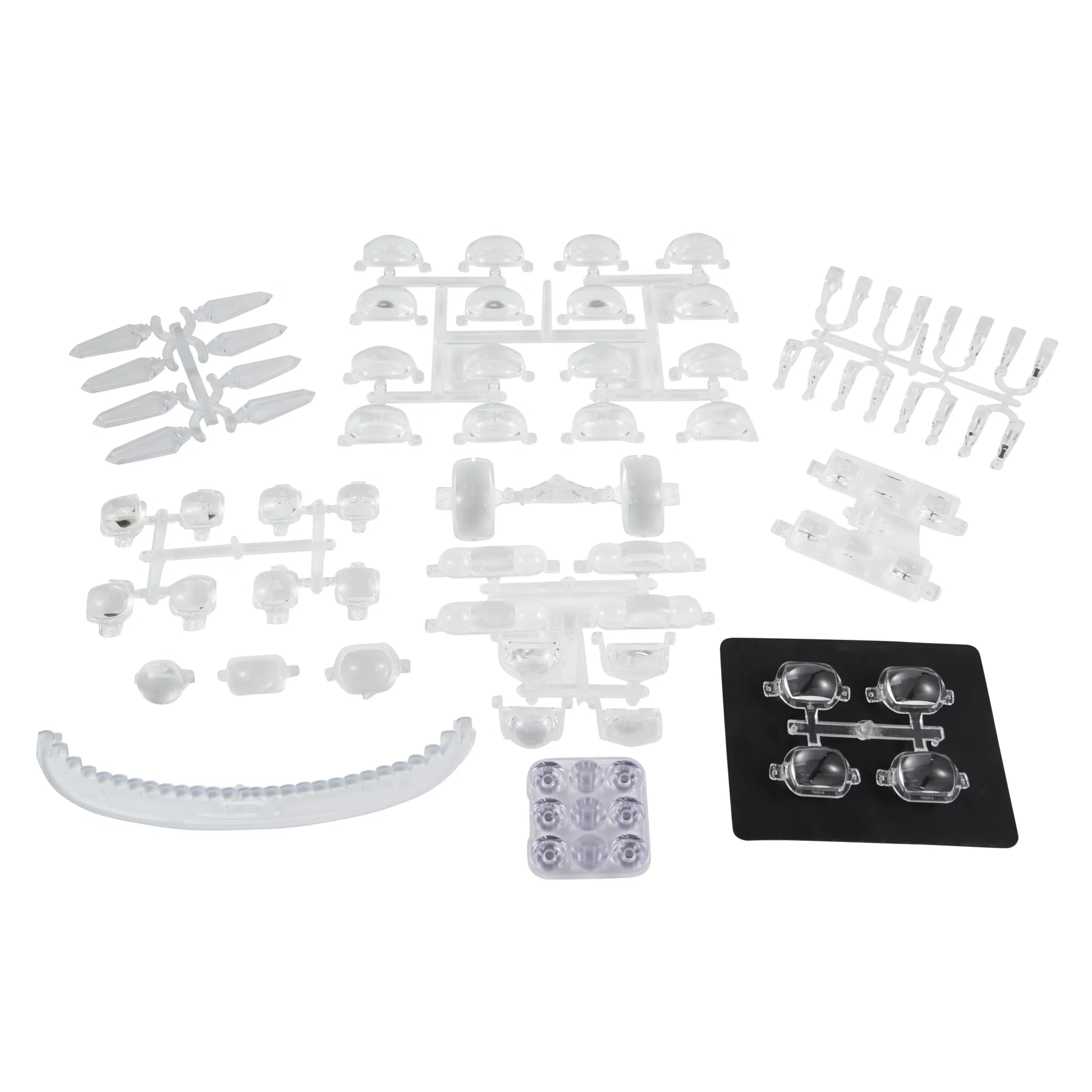

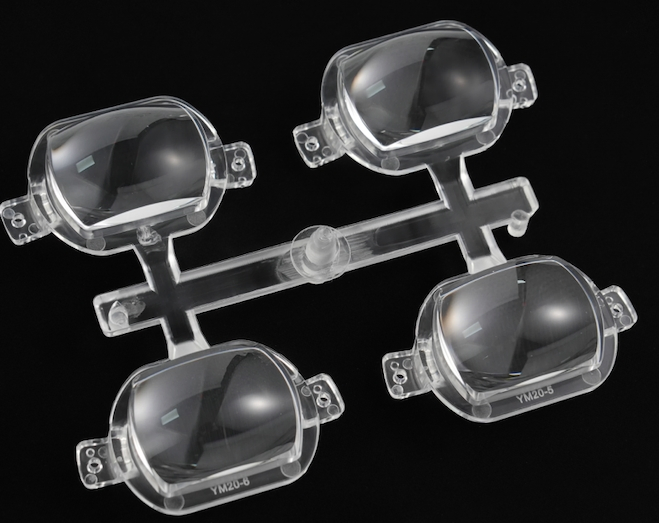

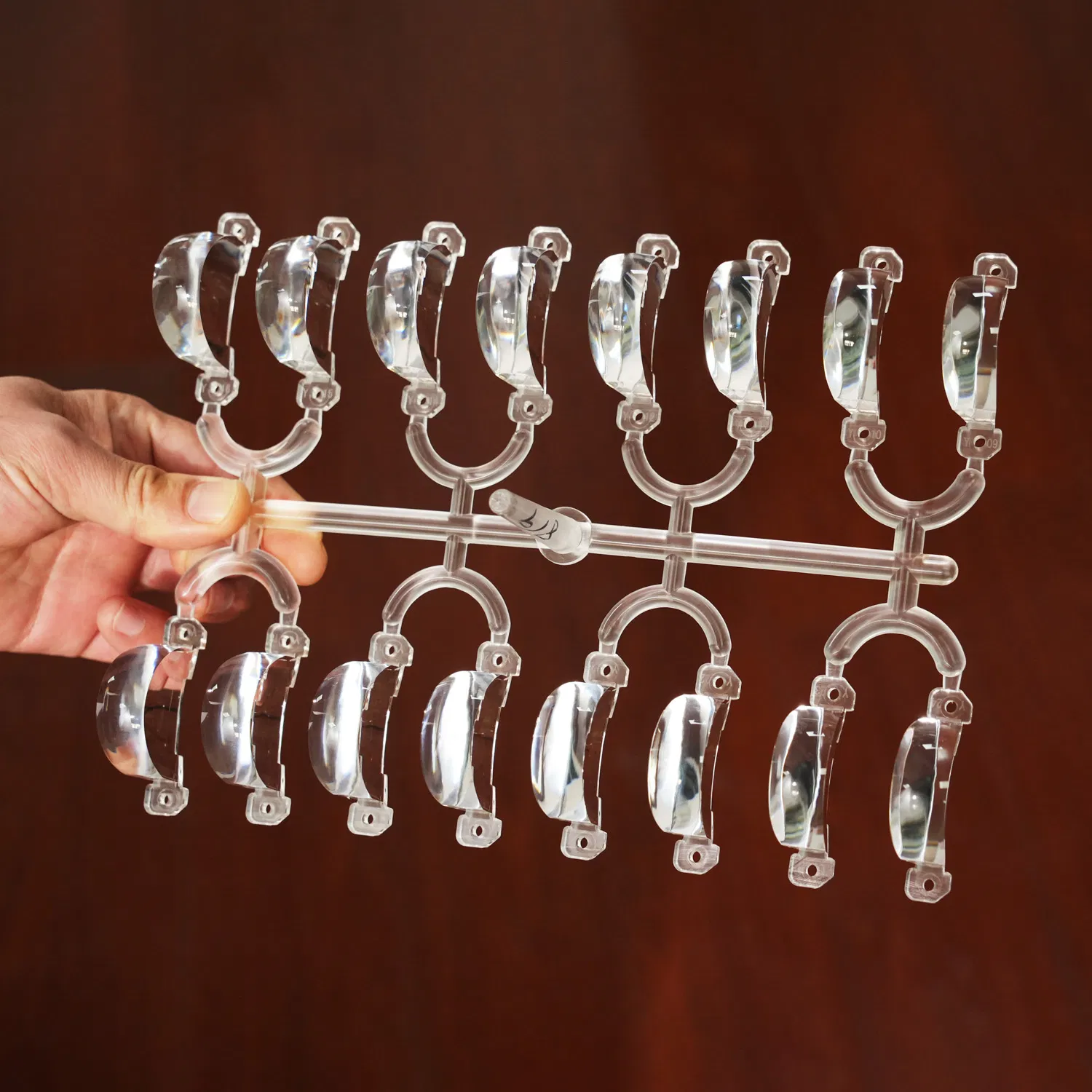

Ultra-Precision Optical Lens Mould/Injection Mould/Plastic Mould for Plastic Injection Moulding

1 / 5

Ultra-Precision Optical Lens Mould/Injection Mould/Plastic Mould for Plastic Injection Moulding

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

N002

Surface Finish

Polish, Anodized, Silk-Screen, etc.

Mould Cavity

Single Cavity, Multi-Cavity

Application

Car, Household Appliances, Electronic, Hardware

Design Software

Certification

TS16949, ISO, FDA

Mold Shaping

Plastic Injection Molding, Rubber Molding

Tolerance

+/-0.01mm

Mold Life

100K-1000K Shots

Mold Material

Nak20, S136, P20, 718h, 45# etc.

Product Material

ABS, PP, PE, PMMA, HDPE, Nylon66 etc.

Origin

China

Product Description

Mould Shaping	Plastic Injection Moulding
Mould Base	LKM / HASCO / etc.
Mould Material	S136 / 718H / NAK20 / P20 etc.
Tolerance	+/-0.01mm to +/-0.1mm
Color	Customizable (Pantone/RAL)
Material	ABS / PC / PP / PA66 / POM / PMMA / TPU Custom
Mould Life	300k - 1000k shots
Sprue Gate	Hot / Cold Runner etc.
Surface Treatment	Polish / Texture / Painting / Printing / Plating etc.
Lead Time	15 Days - 25 Days
Application	Electronics, Home Appliance, Automotive, Medical, Industrial

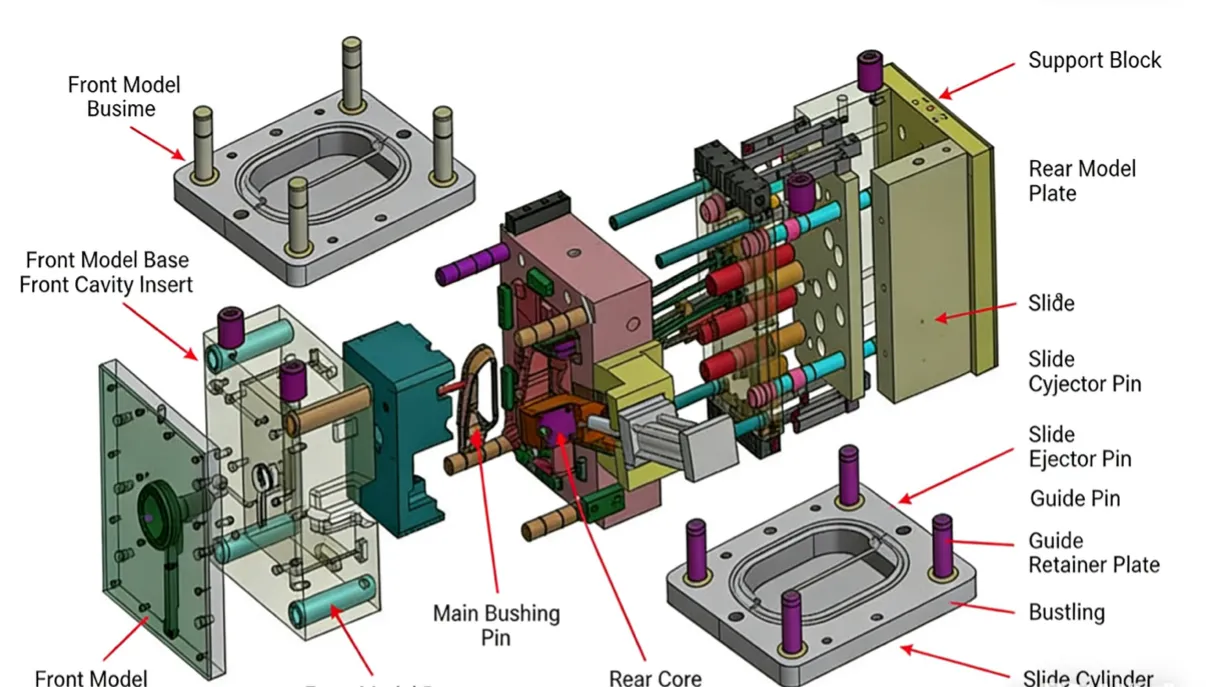

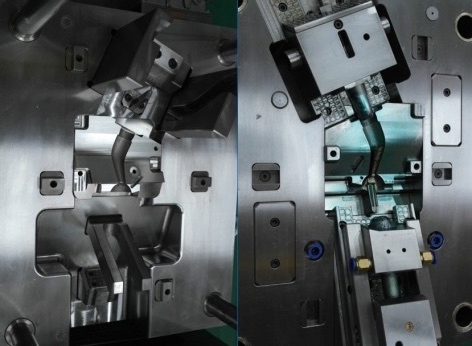

Introduction to Molds

A mold is a precision tool used to transform industrial materials into parts meeting specific requirements in appearance, shape, size, and function.

Key Application Fields: Automotive, light industry, electromechanics, telecommunications, building materials, aviation, aerospace, new energy, and medical treatment.

Industry standard: 60% of a good product depends on the mold, 30% depends on machines, and manpower and materials account for 10%.

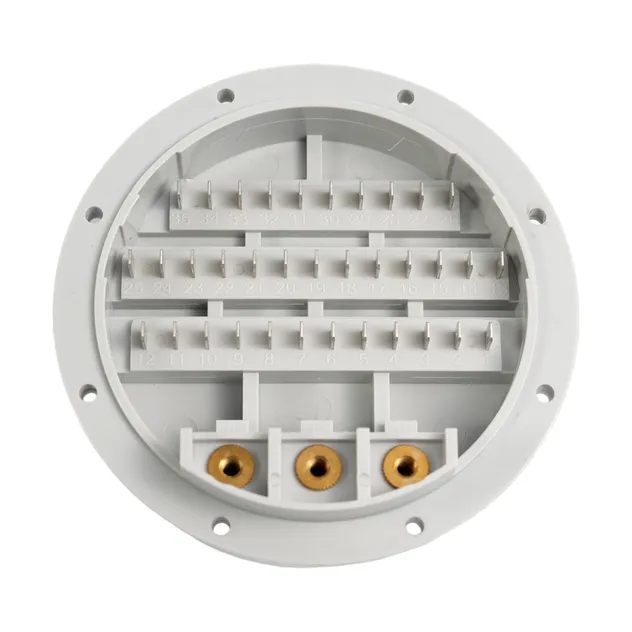

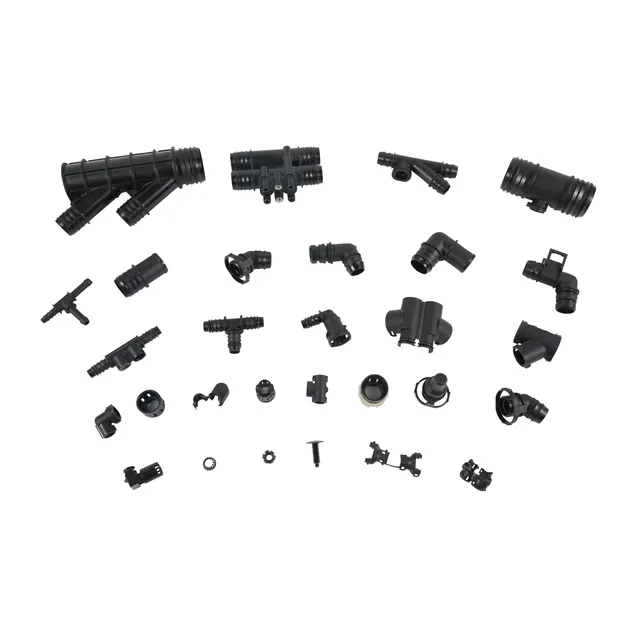

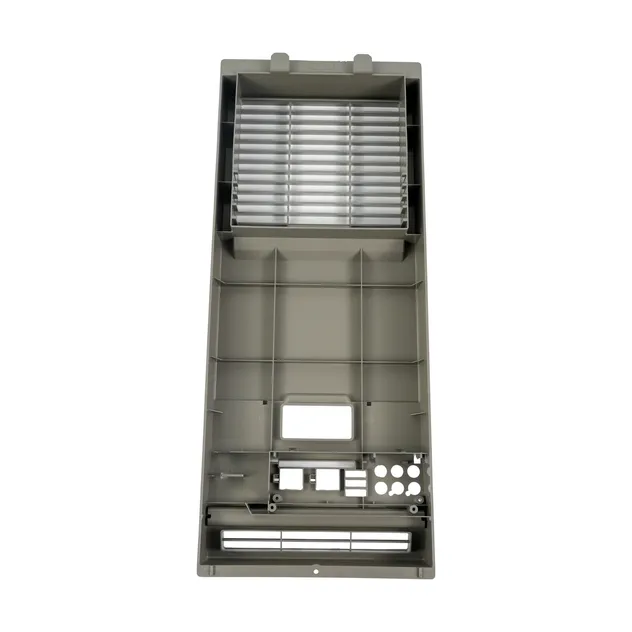

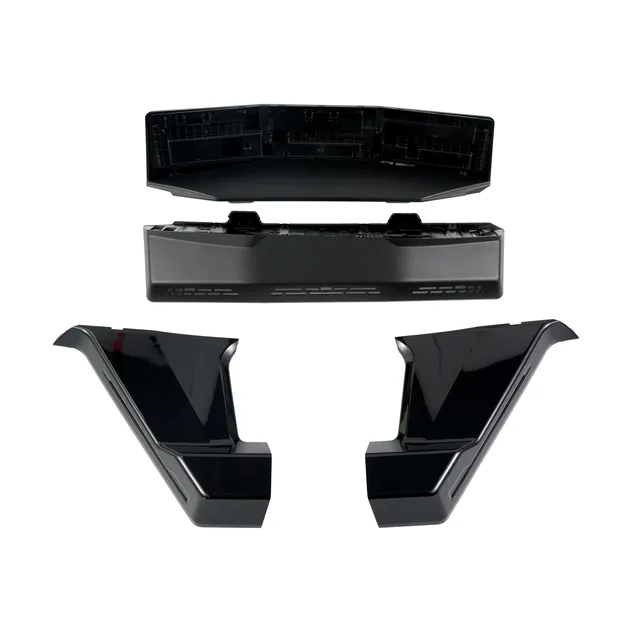

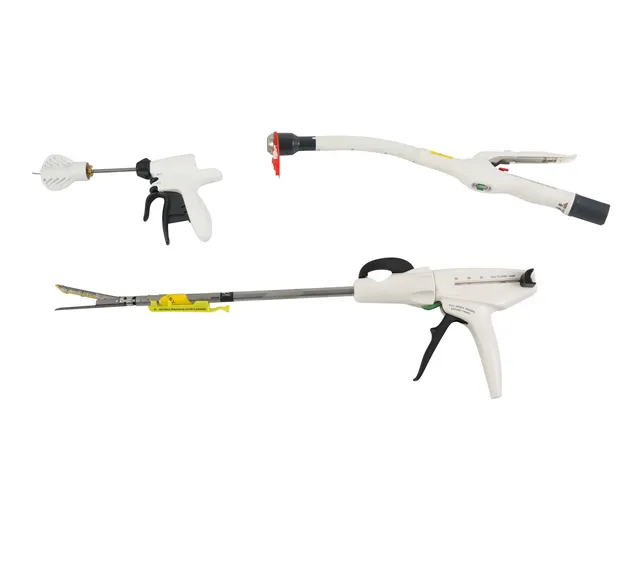

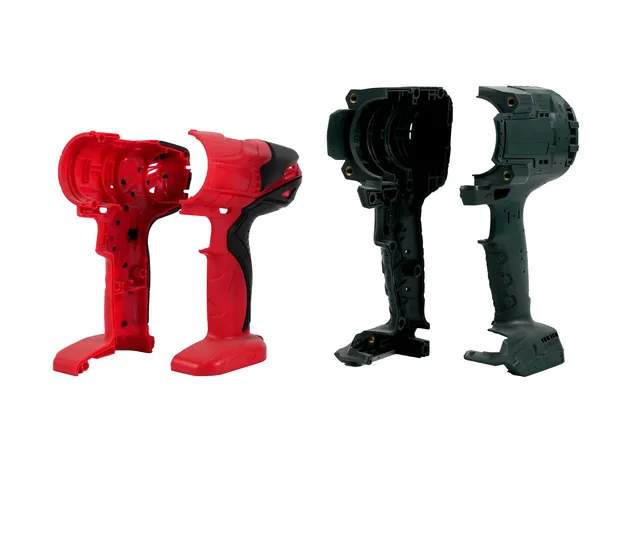

Custom Molds & Material Options

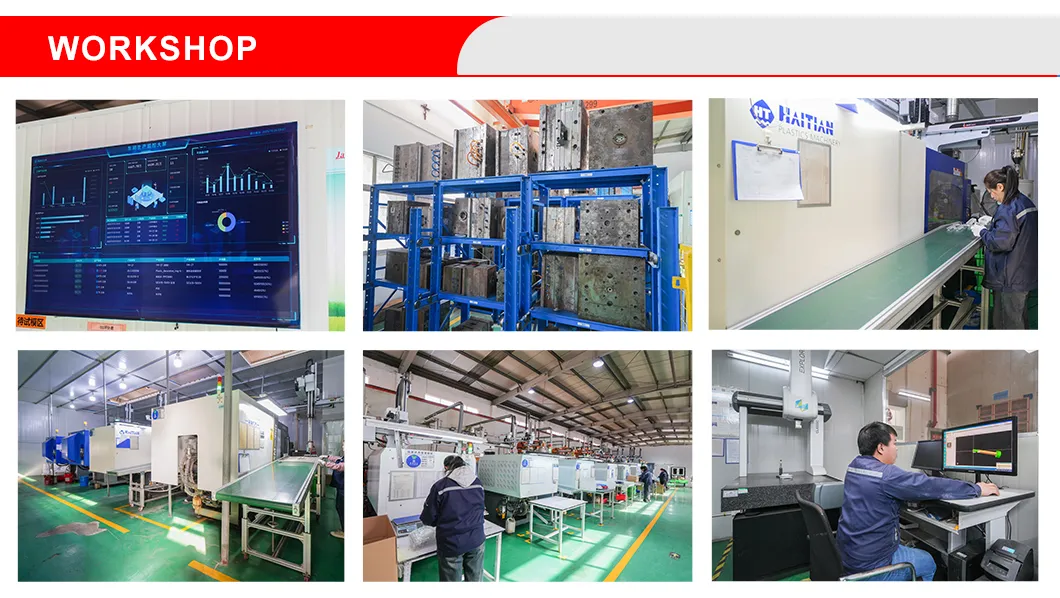

Manufacturing Capabilities

We offer end-to-end services including product design, material selection, prototyping, mold manufacturing, injection molding, assembly, and logistics.

✓ 39 Injection machines (90 to 1,100 tons)

✓ Parts up to 6,000 grams

✓ Dust-free clean room for medical/food products

✓ 10,000 cubic meter warehouse

Packaging & Shipping

DFM Analysis (Design for Manufacturing)

DFM analysis is a comprehensive "health check" performed on a product before its design is converted into actual mold steel. It ensures the product can be produced stably, efficiently, and cost-effectively.

Benefits of DFM:

Cost reduction by identifying issues before cutting steel.
Shorter lead time by reducing mold trial cycles.
Improved quality (reduces sink marks, flash, and air traps).
Longer mold life through optimized cooling and ejection.

Frequently Asked Questions

What services do you offer?

We provide a one-stop solution including product design, material selection, mold design and manufacturing, plastic injection molding, CNC machining, assembly, and logistics support.

What is your typical mold production lead time?

While complexity varies, our streamlined processes enable us to complete many standard molds within 15 working days. Expedited services are available for urgent projects.

Do you handle both prototyping and mass production?

Yes, we support the entire product development cycle—from initial prototypes and low-volume runs to full-scale, high-volume mass production.

How do you ensure part quality?

We employ a strict quality management system including precise mold design, in-process inspections, and final dimensional and visual checks before shipment.

What file formats do you accept for mold design?

We accept all major 3D file formats, including STEP, IGS, X_T, and STL. Our team will review your design for manufacturability (DFM).

Do you offer Design for Manufacturability (DFM) feedback?

Yes, our engineering team provides free DFM analysis to optimize your part design for cost-effectiveness and manufacturing efficiency before production begins.
