| Model NO. | VTC500 |
| Processing Accessory | Chuck CNC Lathe |
| Power Source | Electric |
| Controlling Mode | CNC |
| Automatic Grade | Automatic |
| Setting Mode | Floor-type |
| Certification | ISO 9001 |
| Condition | New |

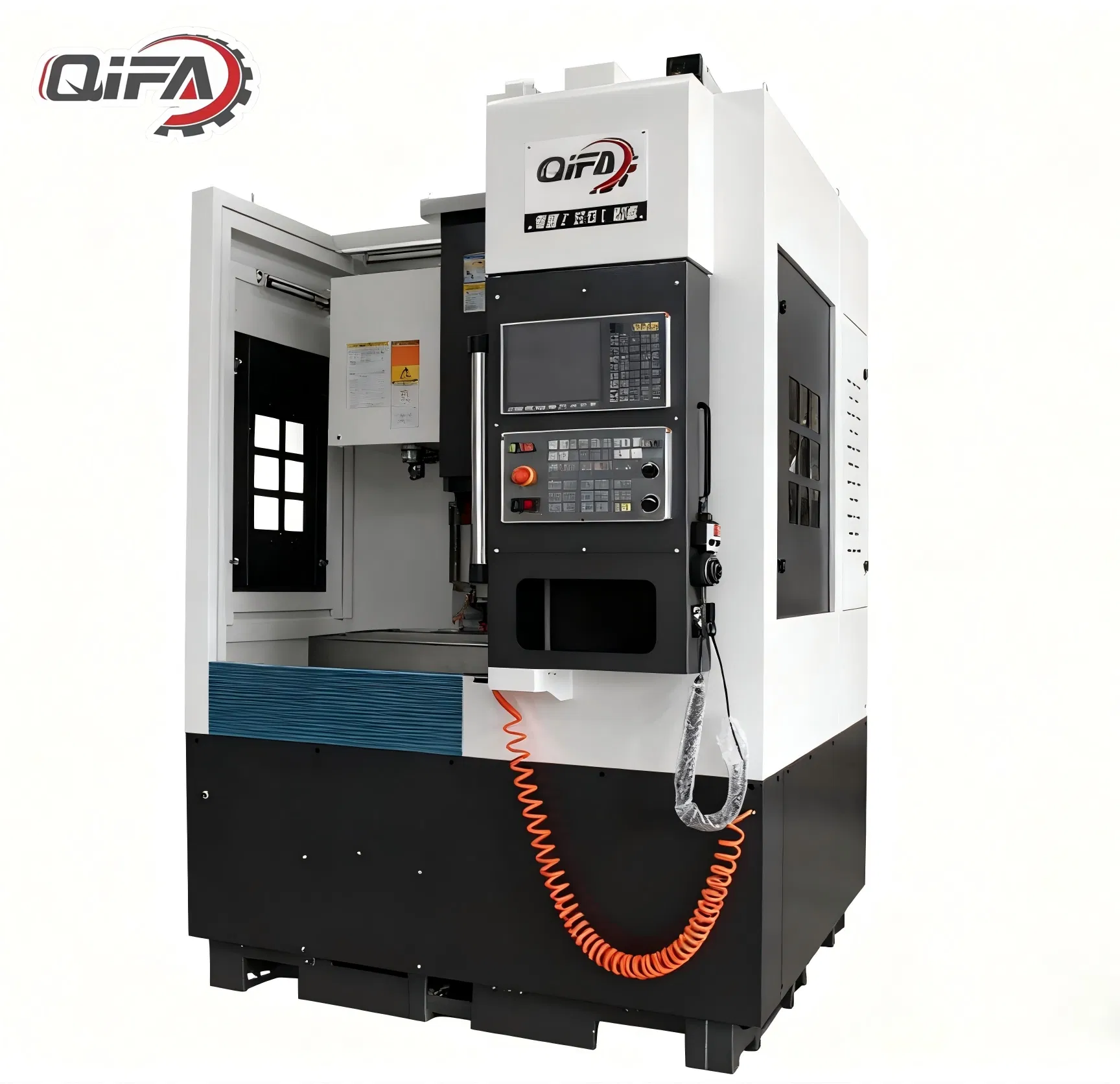

The VTC500 CNC vertical lathe is specifically designed for efficient and precise machining, making it a reliable partner in modern mechanical manufacturing. With an outstanding processing capacity, it features a rotary diameter, cutting length, and diameter all reaching 500mm, enabling it to handle the machining of various disc and short sleeve parts with ease. Whether it's turning complex threads, arcs, or the inner and outer curved surfaces, end faces, and grooves of rotary bodies, it performs with remarkable proficiency.
| Max. Swing Diameter | 500mm |
| Max. Turning Diameter | 400mm |
| Spindle Nose Type | A2-8 |
| Spindle Speed Range | 50-1250rpm |
| Chuck Diameter | 12" HYD |

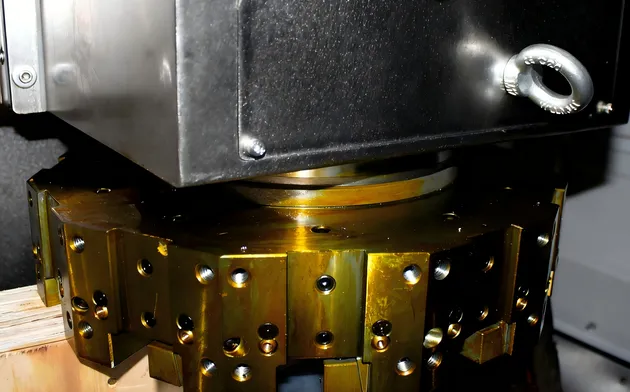

| Turret Type | Horizontal 8 Position |
| X/Z Rapid Traverse | 15m/min / 12m/min |
| Machine Weight | 4200kg |
| Overall Size (L*W*H) | 1.8 * 1.8 * 2.5m |
This equipment is ideally suited for precision processing in multiple sectors, including auto parts, aviation, green energy industry, precision mold industry, and general machinery manufacturing.

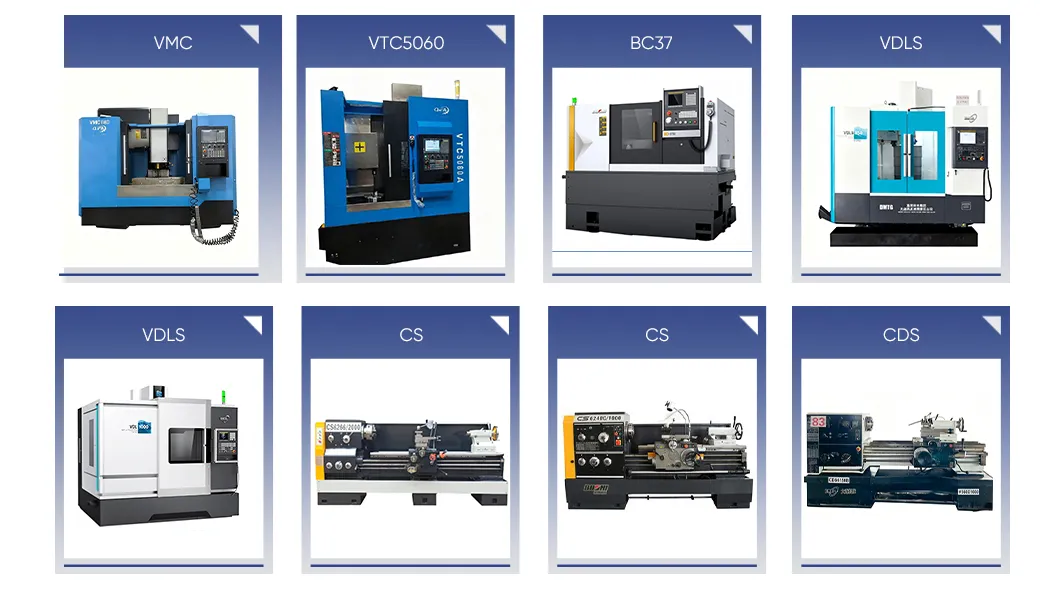

We specialize in manufacturing various types of vertical machining centers, horizontal machining centers, gantry type, and moving column products. Our focus on high-end five-axis simultaneous motion series ensures excellent precision and performance.
WE VALUE OUR CUSTOMERS
Free operation training is provided, covering equipment operation, daily maintenance, and troubleshooting. The software of the equipment is provided for free upgrades. Starting from the date of final acceptance, within a 12-month warranty period, free repair or replacement of parts will be provided for quality issues.
